| General information |
|
| Product type designation |

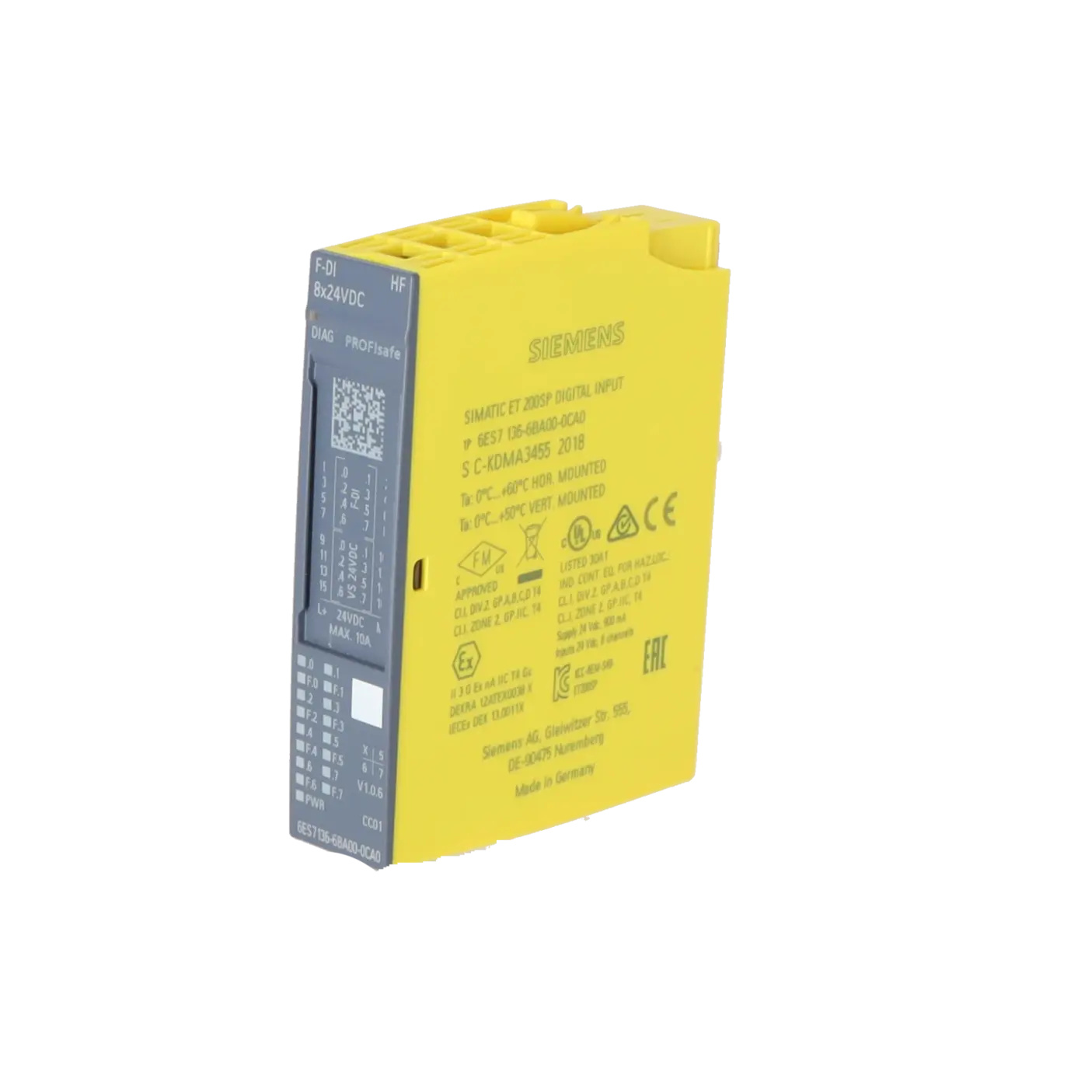

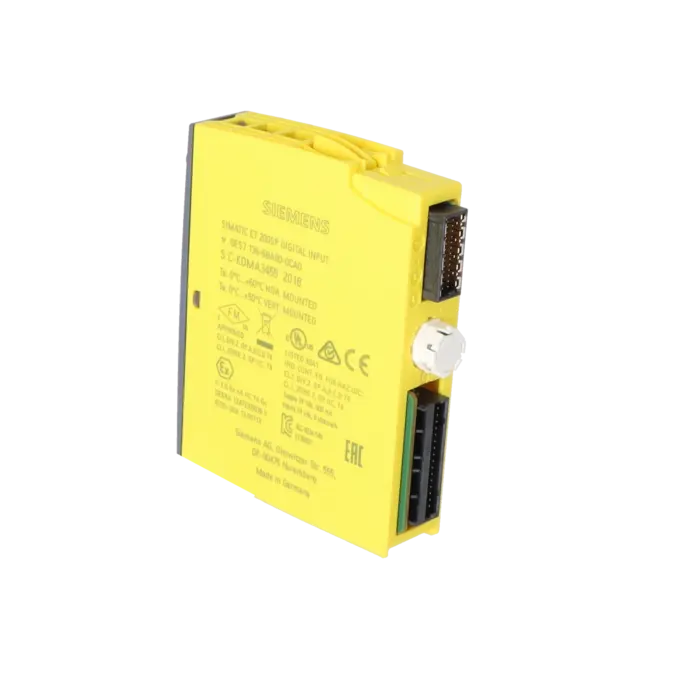

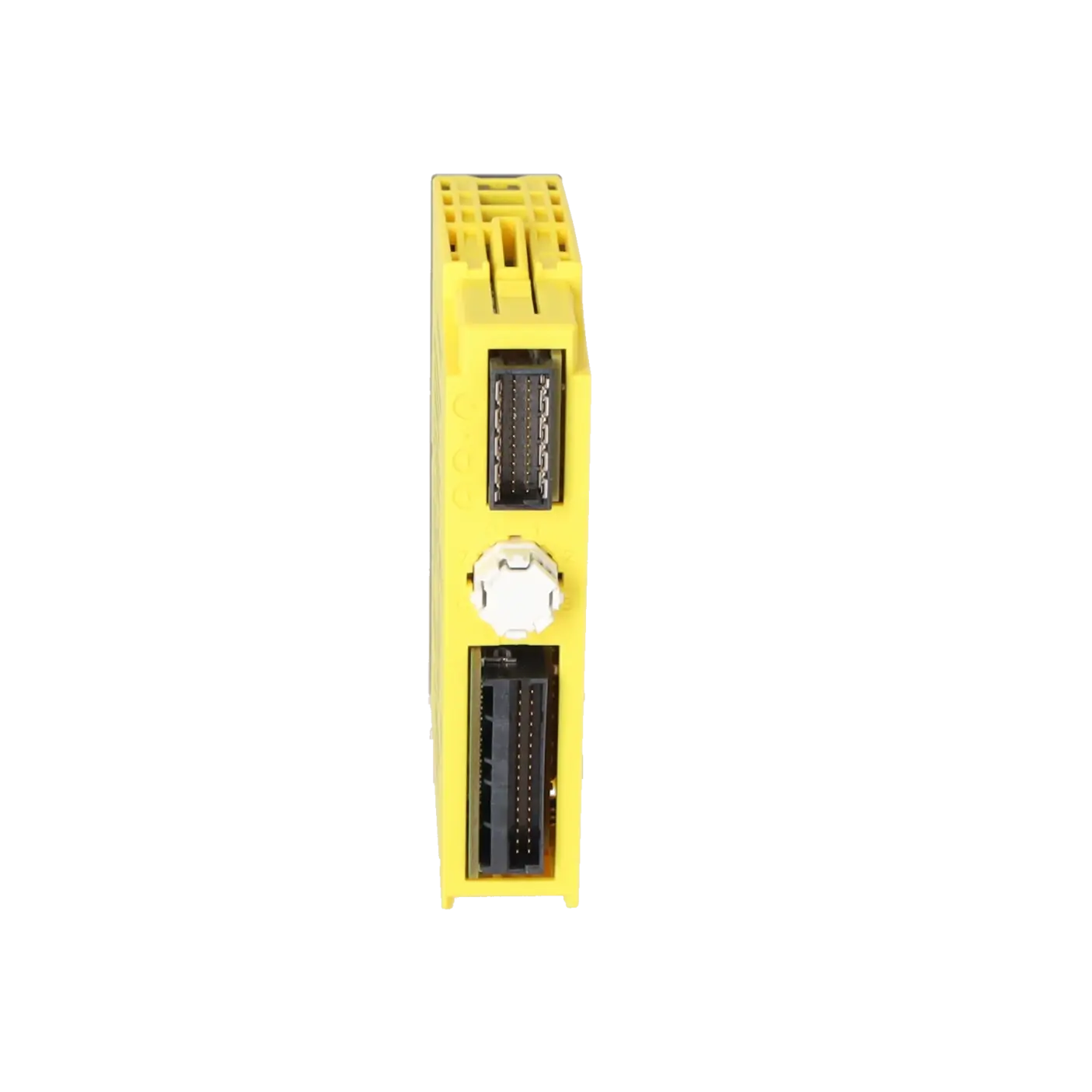

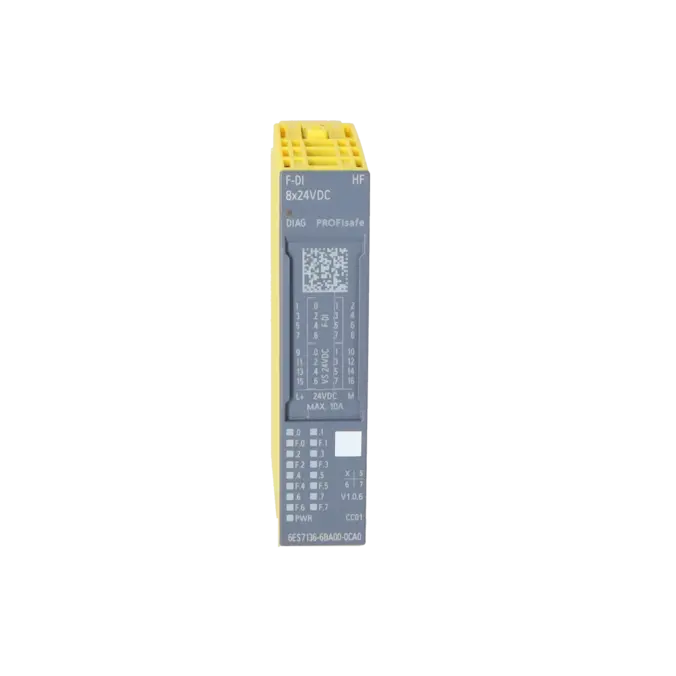

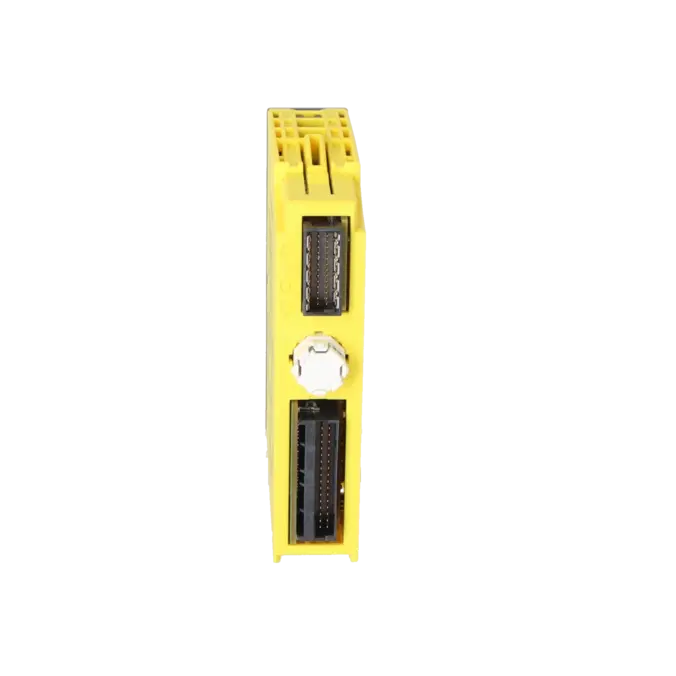

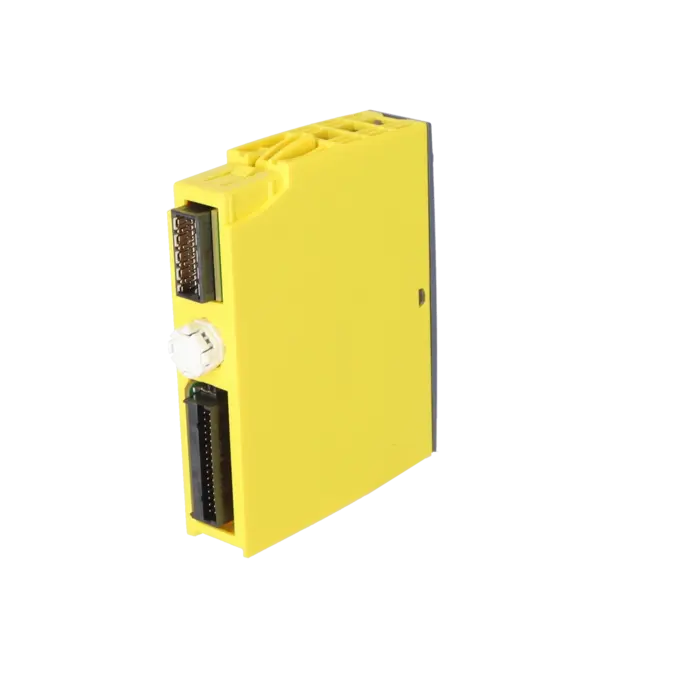

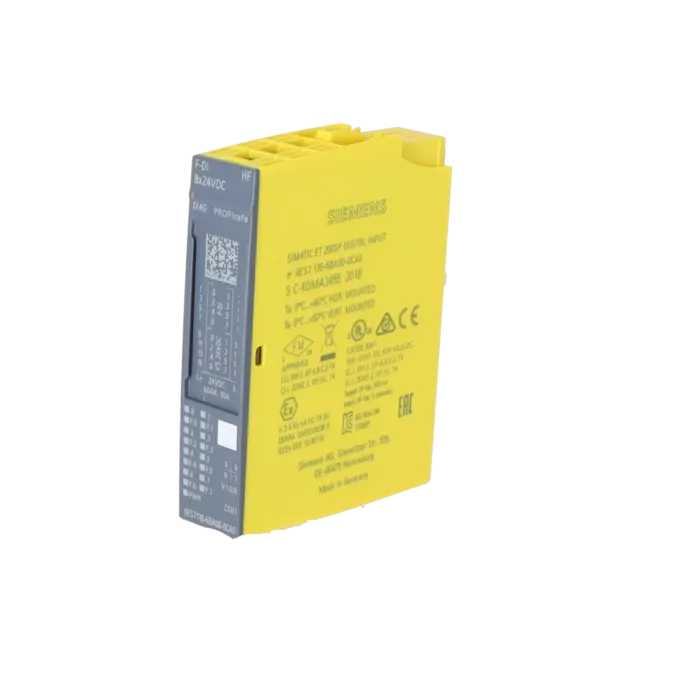

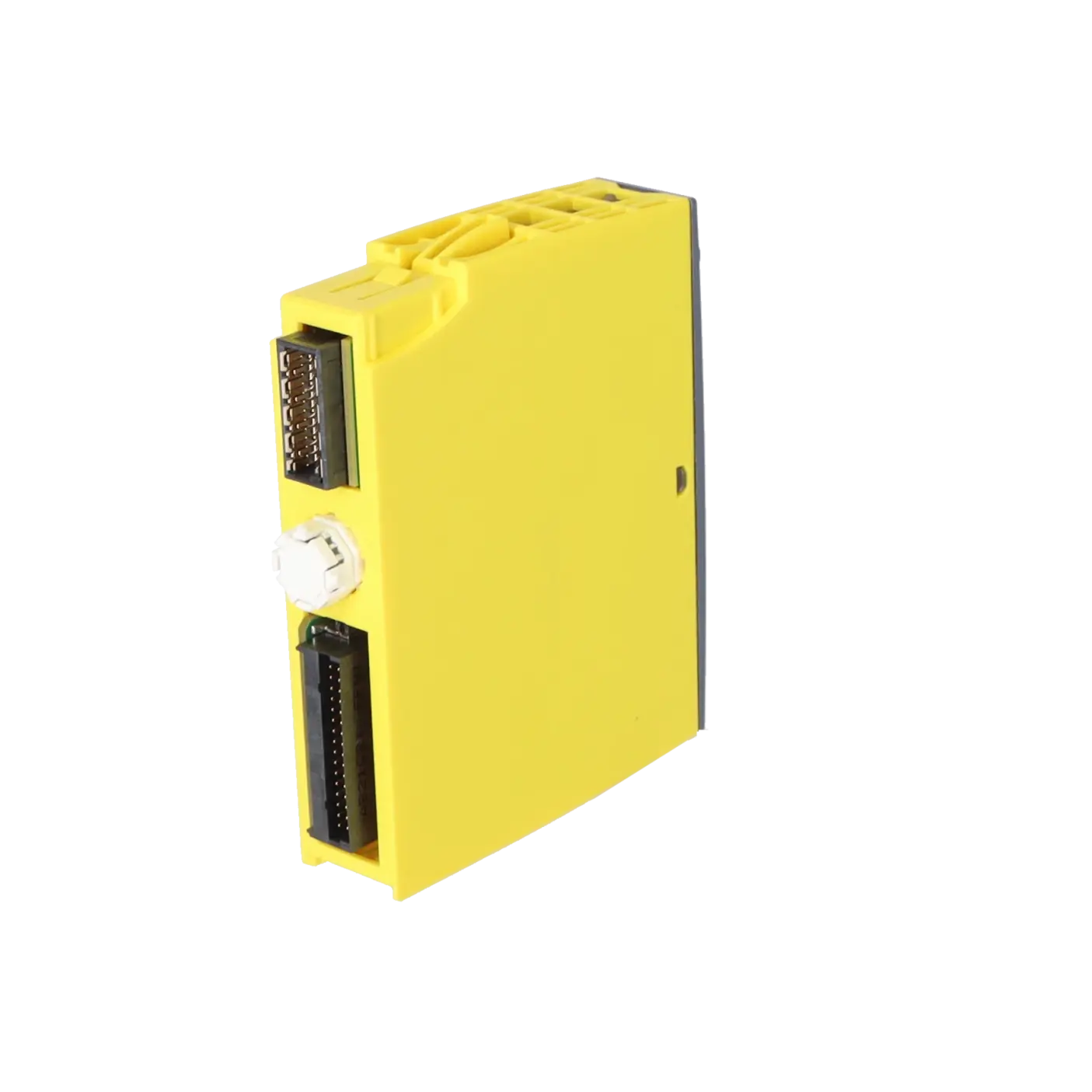

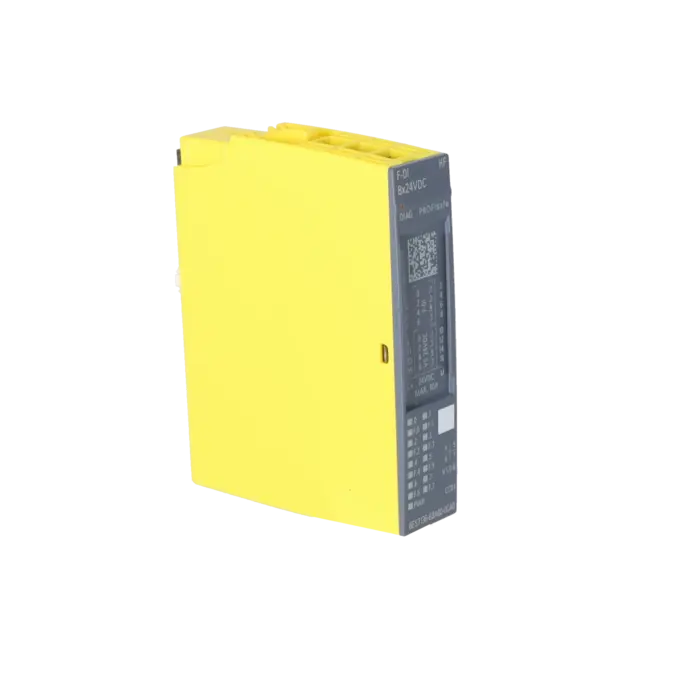

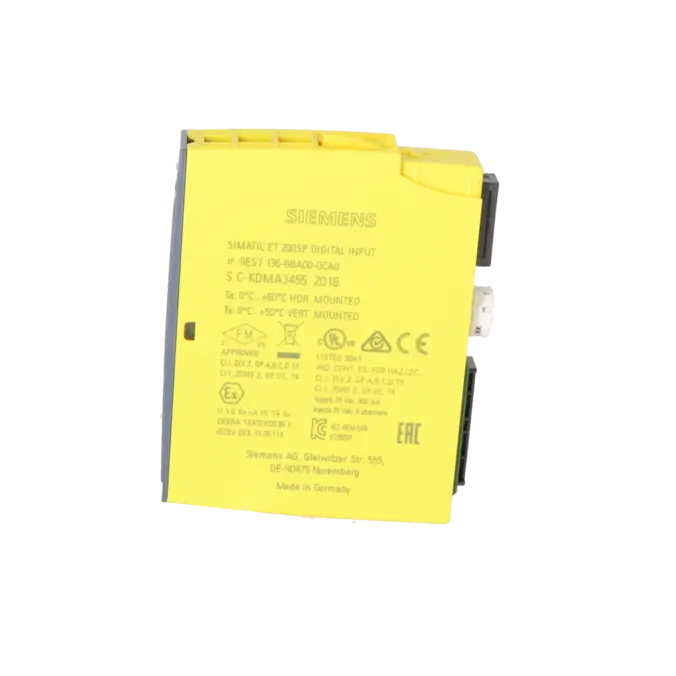

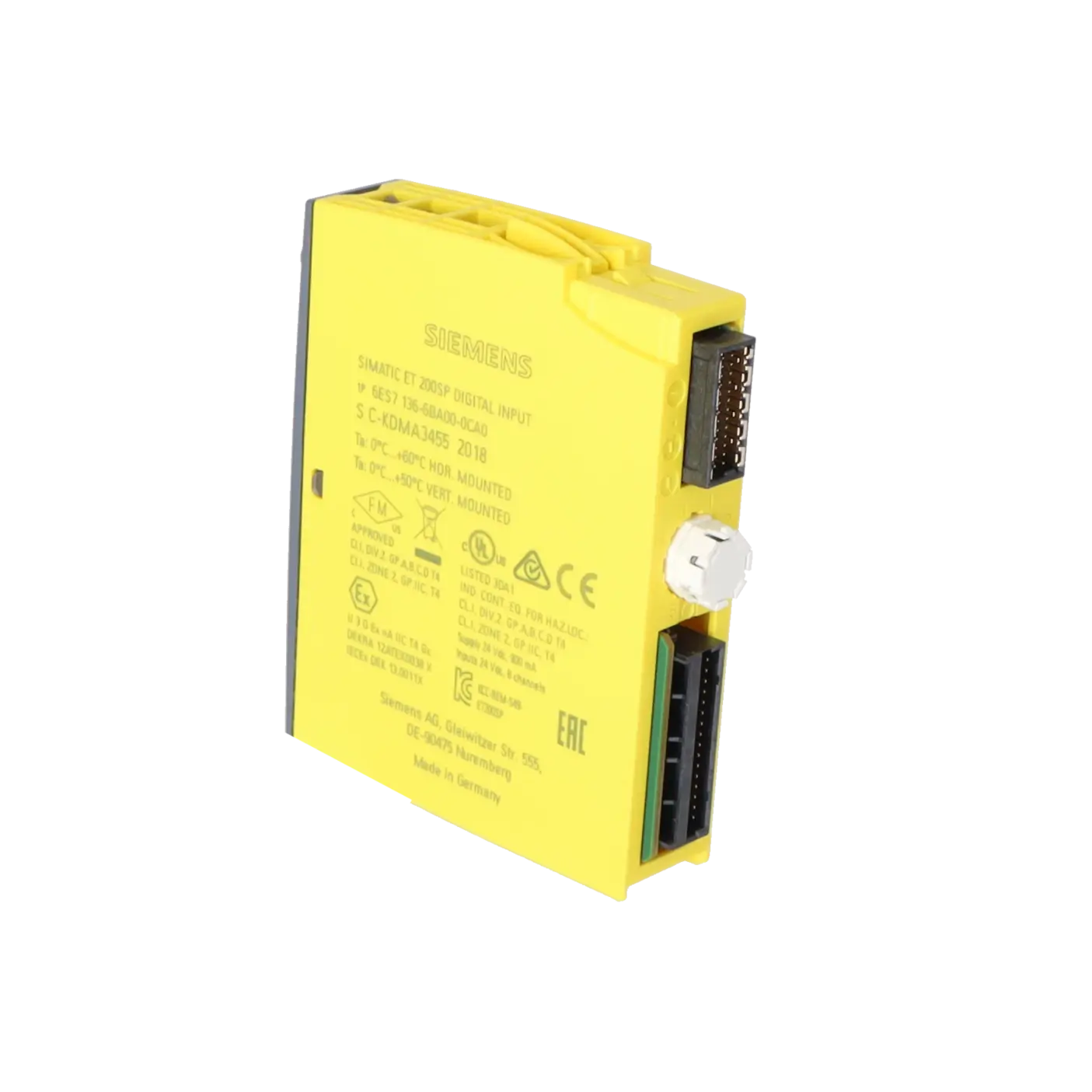

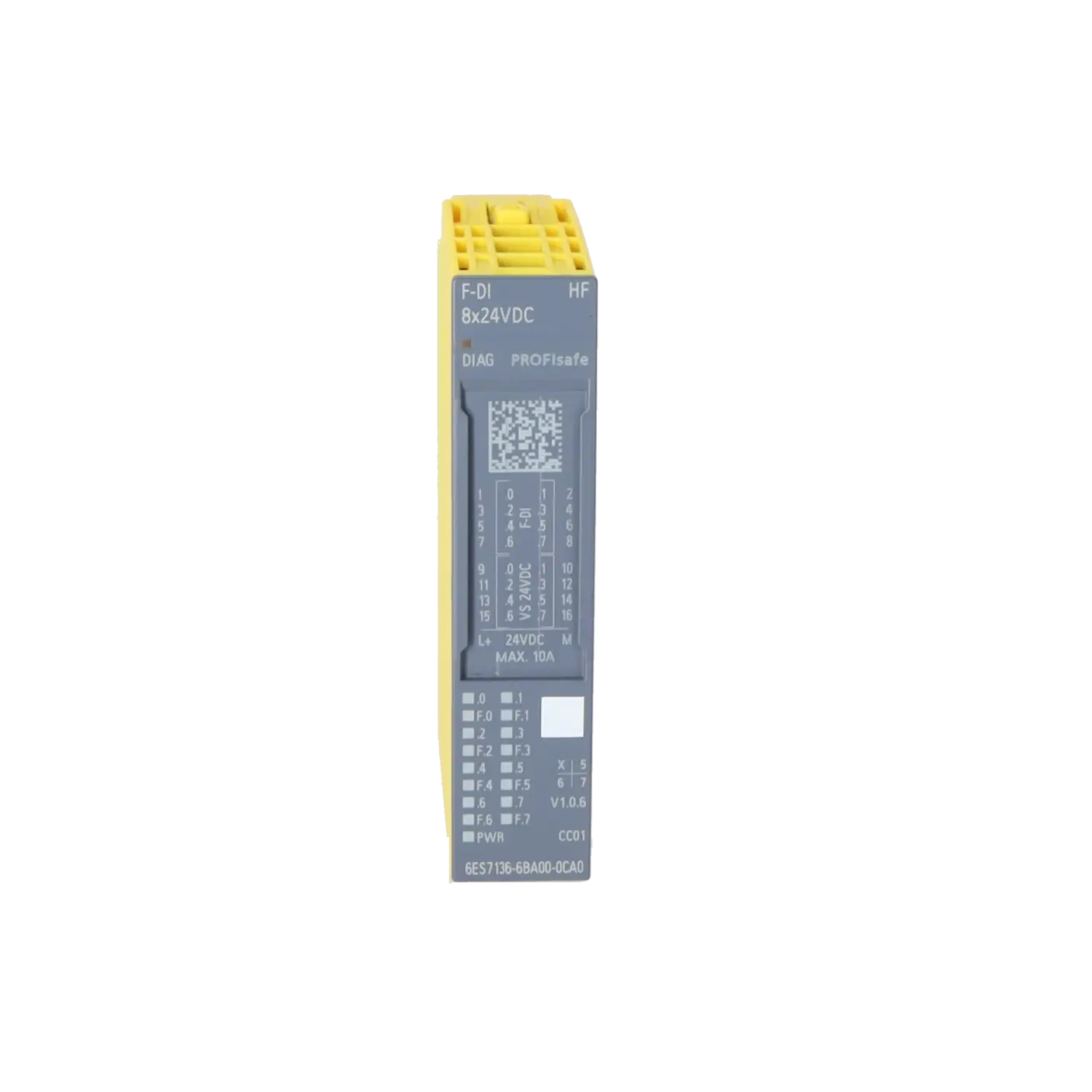

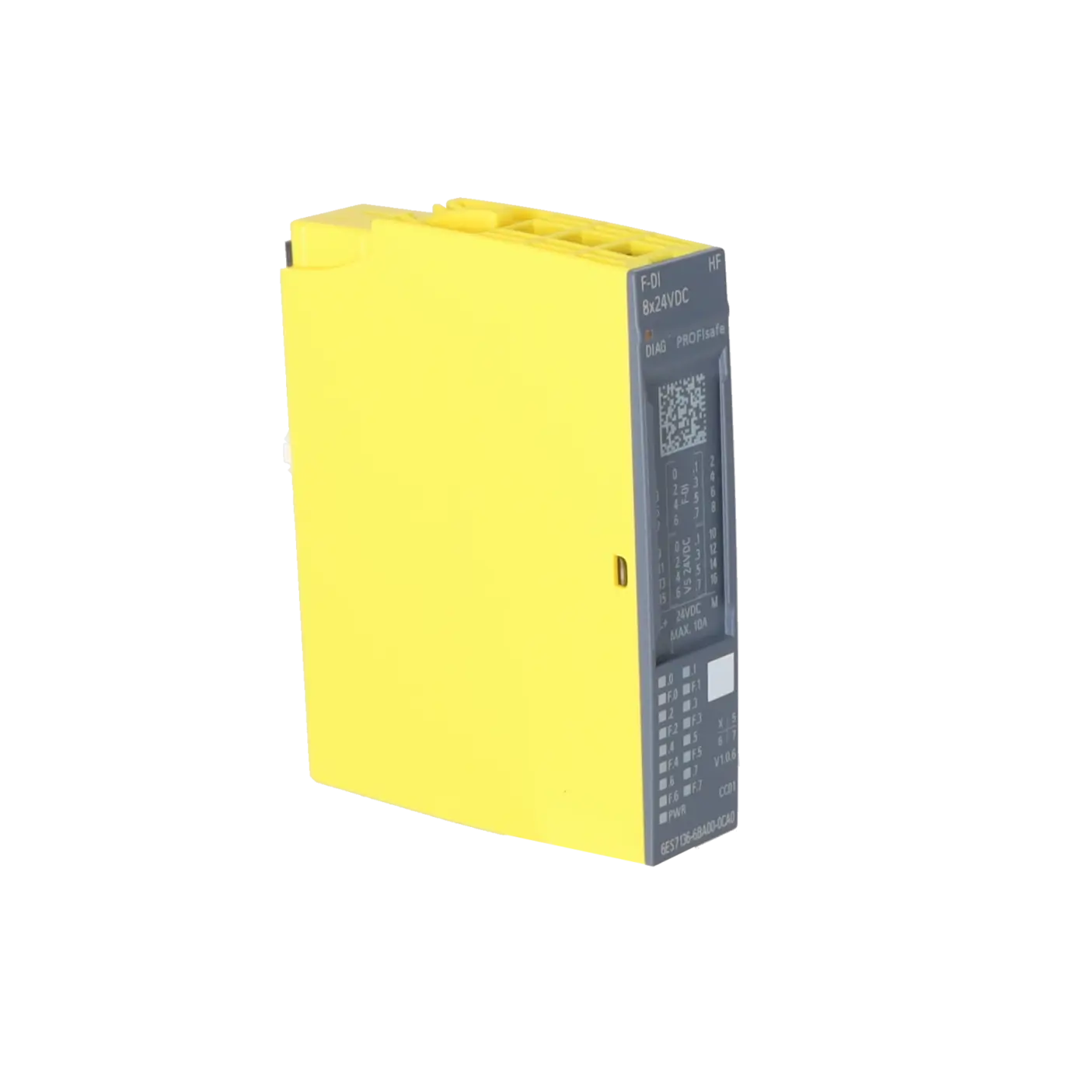

F-DI 8x24VDC HF |
| usable BaseUnits |
BU type A0 |
| Product function |
|
| ● I&M data |
Yes; I&M0 to I&M3 |
| Engineering with |
|
| ● STEP 7 TIA Portal configurable/integrated from version |
V12 |
| ● STEP 7 configurable/integrated from version |
V5.5 SP3 / - |
| ● PROFINET from GSD version/GSD revision |
V2.31 |
| Operating mode |
|
| ● DI |
Yes |
| CiR - Configuration in RUN |
|
| Reparameterization possible in RUN |
No |
| Supply voltage |
|
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
20.4 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
| power supply according to NEC Class 2 required |
No |
| Input current |
|
| Current consumption (rated value) |
75 mA; without load |
| Current consumption, max. |
21 mA; From the backplane bus |
| Encoder supply |
|
| Number of outputs |
8 |
| Short-circuit protection |
Yes; Electronic (response threshold 0.7 A to 1.8 A) |
| Output current |
|
| ● up to 60 °C, max. |
0.3 A |
| 24 V encoder supply |
|
| ● 24 V |
Yes; min. L+ (-1.5 V) |
| ● Short-circuit protection |
Yes |
| ● Output current, max. |
800 mA; Total current of all encoders |
| Power |
|
| Power consumption from the backplane bus |
70 mW |
| Power loss |
|
| Power loss, typ. |
4 W |
| Address area |
|
| Address space per module |
|
| ● Inputs |
6 byte |
| ● Outputs |
4 byte |
| Hardware configuration |
|
| Automatic encoding |
Yes |
| ● Electronic coding element type F |
Yes |
| Digital inputs |
|
| Number of digital inputs |
8 |
| Digital inputs, parameterizable |
Yes |
| Sourcing/sinking input |
Yes; P-reading |
| Input characteristic curve in accordance with IEC 61131, type 1 |
Yes |
| Input voltage |
|
| ● Rated value (DC) |
24 V |
| ● for signal "0" |
-30 to +5 V |
| ● for signal "1" |
+15 to +30 V |
| Input current |
|
| ● for signal "1", typ. |
3.7 mA |
| Input delay (for rated value of input voltage) |
|
| for standard inputs |
|
| — parameterizable |
Yes |
| — at "0" to "1", min. |
0.4 ms |
| — at "0" to "1", max. |
20 ms |
| — at "1" to "0", min. |
0.4 ms |
| — at "1" to "0", max. |
20 ms |
| for technological functions |
|
| — parameterizable |
No |
| Cable length |
|
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
500 m |
| Interrupts/diagnostics/status information |
|
| Diagnostics function |
Yes; See Chapter "Alarms/diagnostic messages" in the manual |
| Alarms |
|
| ● Diagnostic alarm |
Yes |
| ● Hardware interrupt |
No |
| Diagnostics indication LED |
|
| ● RUN LED |
Yes; green LED |
| ● ERROR LED |
Yes; red LED |
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
Yes; red LED |
| ● for module diagnostics |
Yes; green/red DIAG LED |
| Potential separation |
|
| Potential separation channels |
|
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
No |
| Isolation |
|
| Isolation tested with |
707 V DC (type test) |
| Standards, approvals, certificates |
|
| Suitable for safety functions |
Yes |
| Ecological footprint |
|
| ● environmental product declaration |
Yes |
| Global warming potential |
|
| — global warming potential, (total) [CO2 eq] |
88.3 kg |
| — global warming potential, (during production) [CO2 eq] |
13.1 kg |
| — global warming potential, (during operation) [CO2 eq] |
76.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-1.37 kg |
| Highest safety class achievable in safety mode |
|
| ● Performance level according to ISO 13849-1 |
PLe |
| ● SIL acc. to IEC 61508 |
SIL 3 |
| Probability of failure (for service life of 20 years and repair time of 100 hours) |
|
| — Low demand mode: PFDavg in accordance with SIL3 |
< 2.00E-05 |
| — High demand/continuous mode: PFH in accordance with SIL3 |
< 1.00E-09 1/h |
| Ambient conditions |
|
| Ambient temperature during operation |
|
| ● horizontal installation, min. |
0 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
0 °C |
| ● vertical installation, max. |
50 °C |
| Altitude during operation relating to sea level |
|
| ● Installation altitude above sea level, max. |
4 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Dimensions |
|
| Width |
15 mm |
| Height |
73 mm |
| Depth |
58 mm |
| Weights |
|
| Weight, approx. |
49 g |
