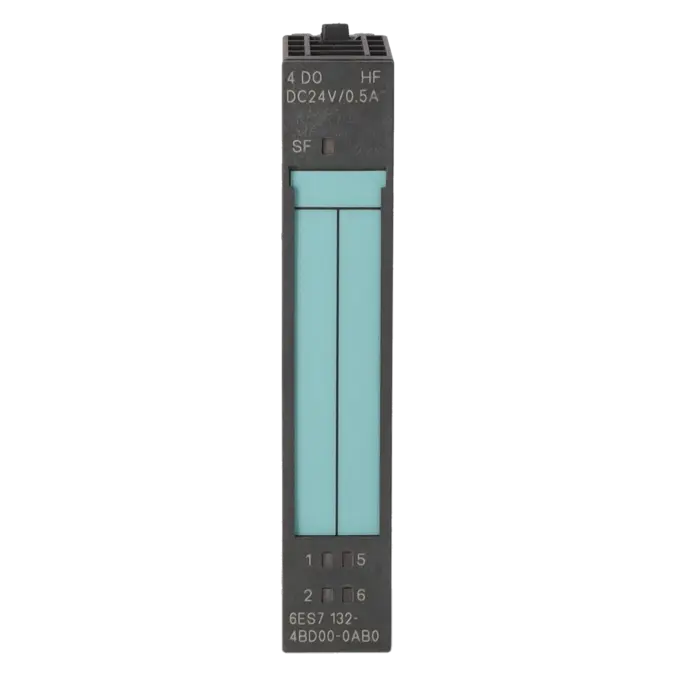

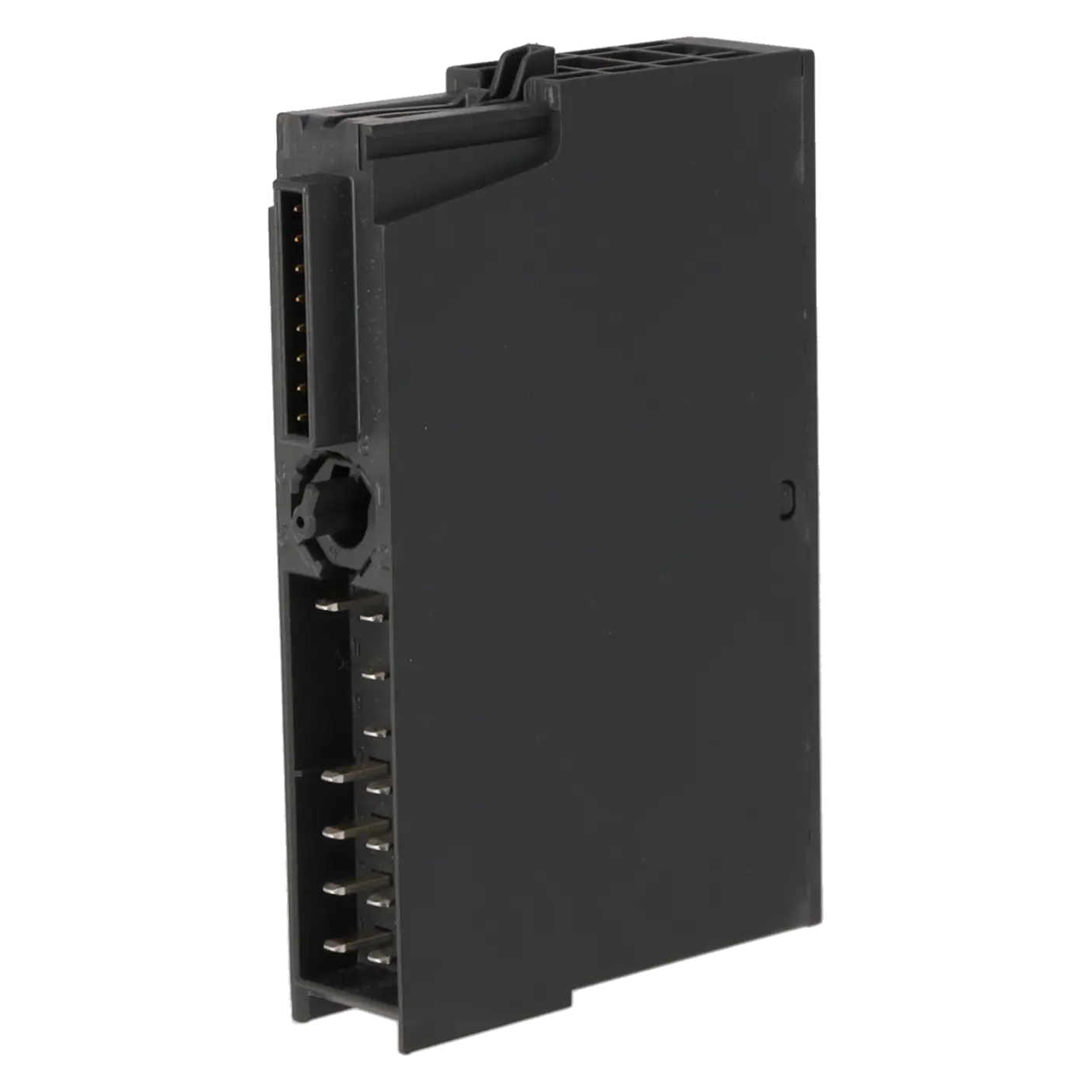

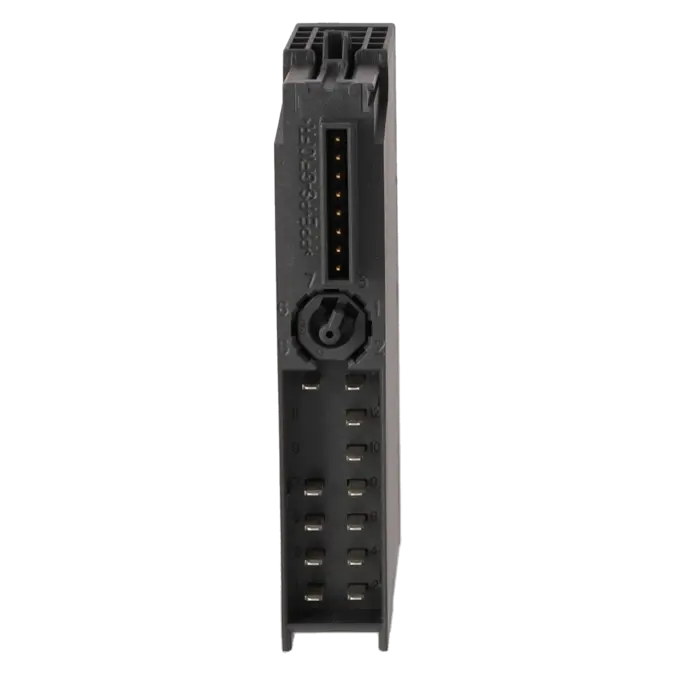

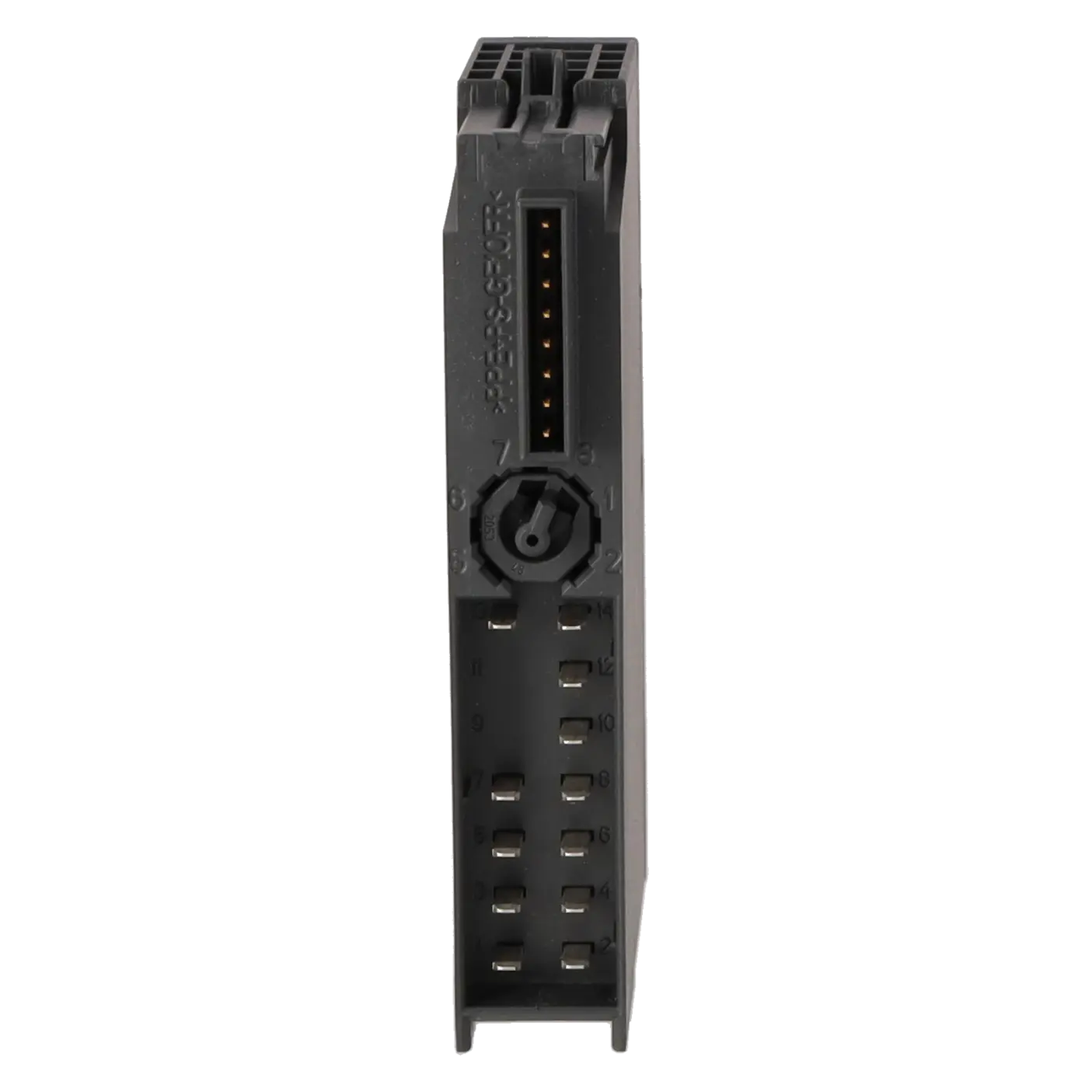

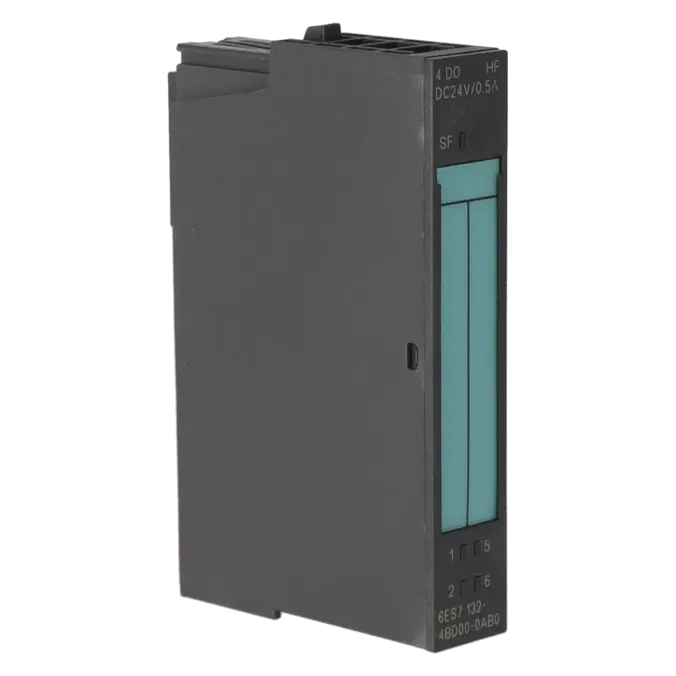

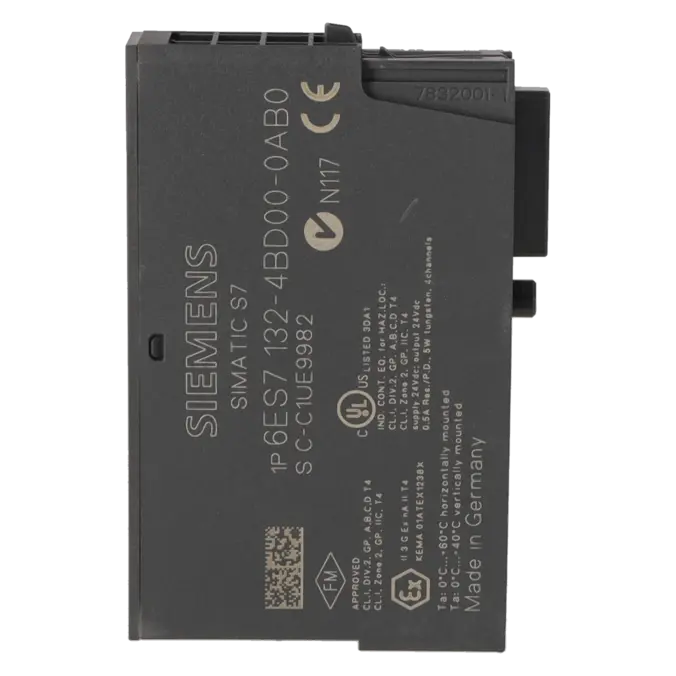

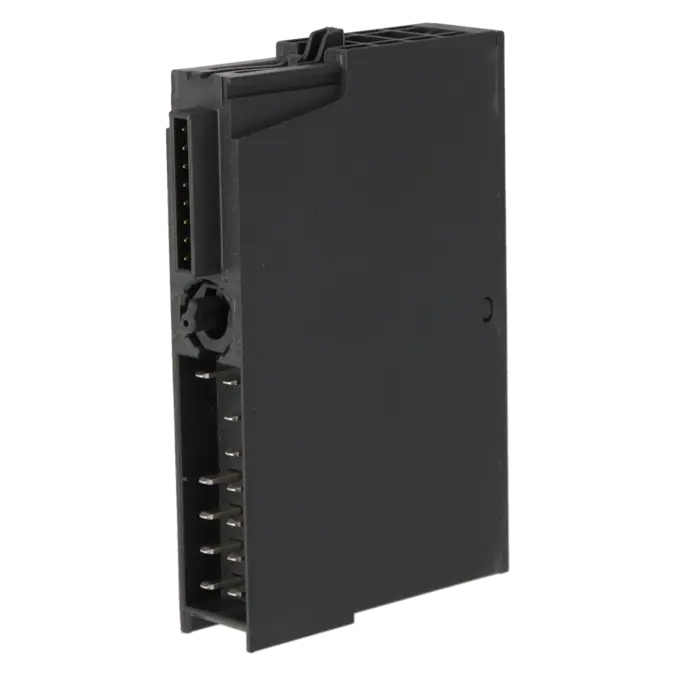

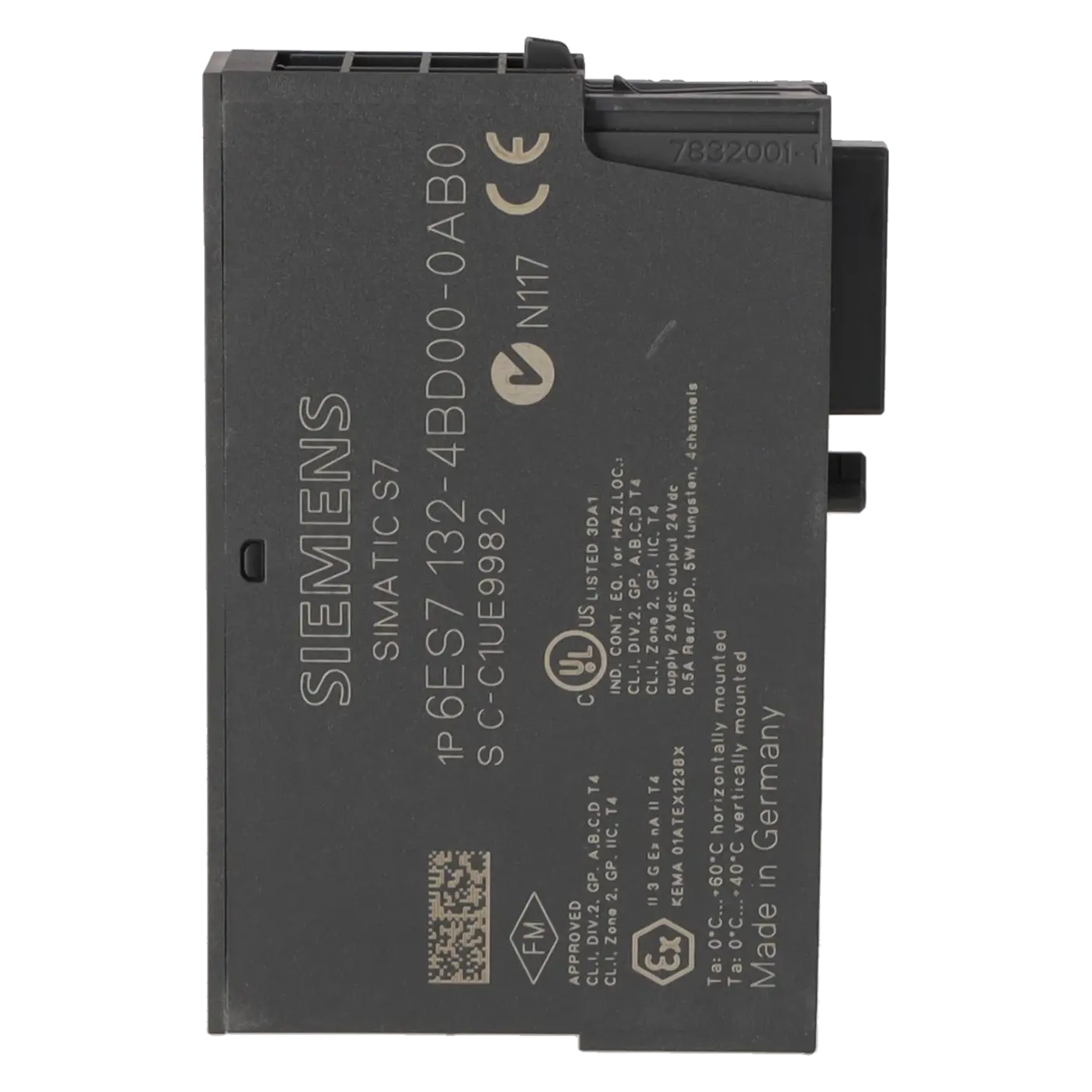

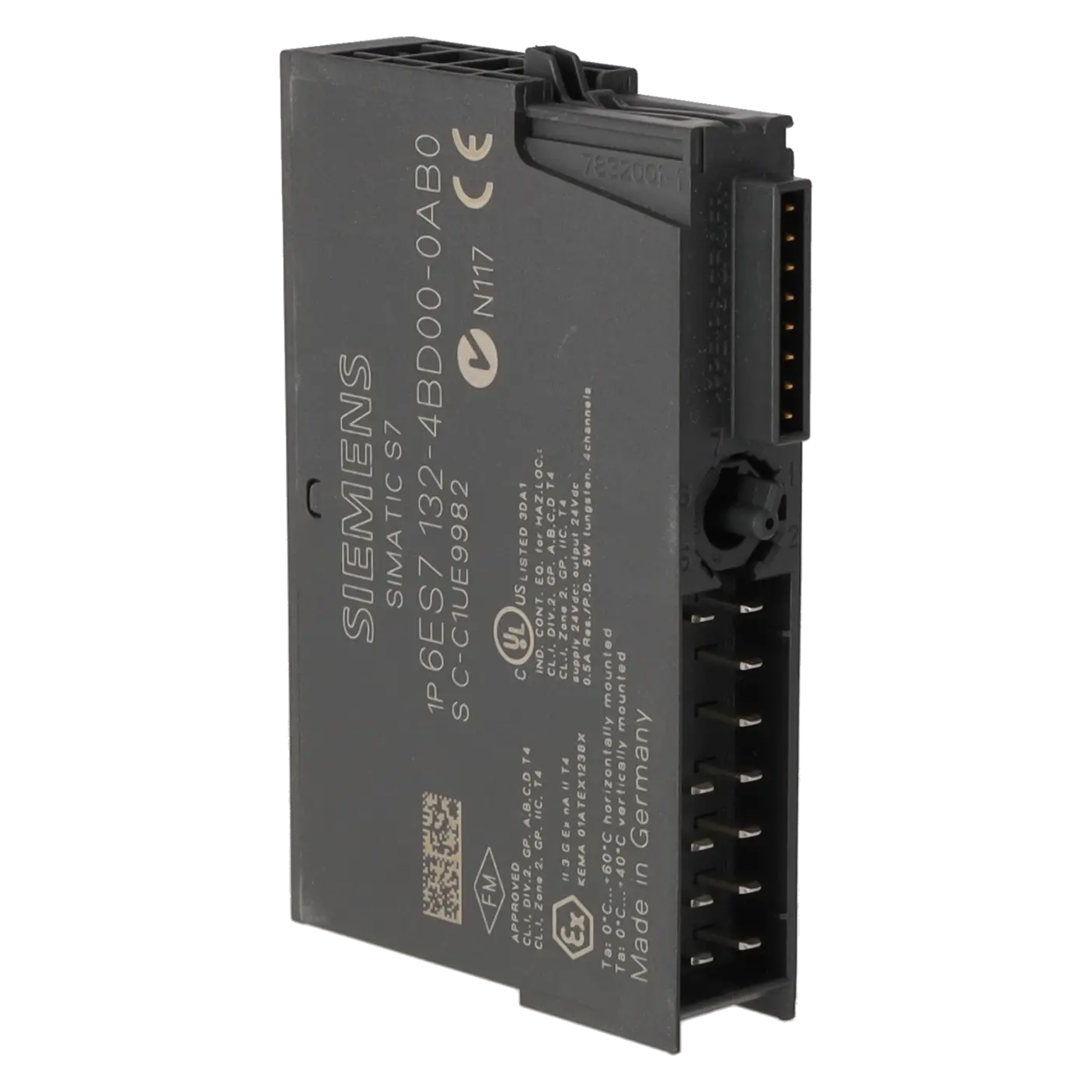

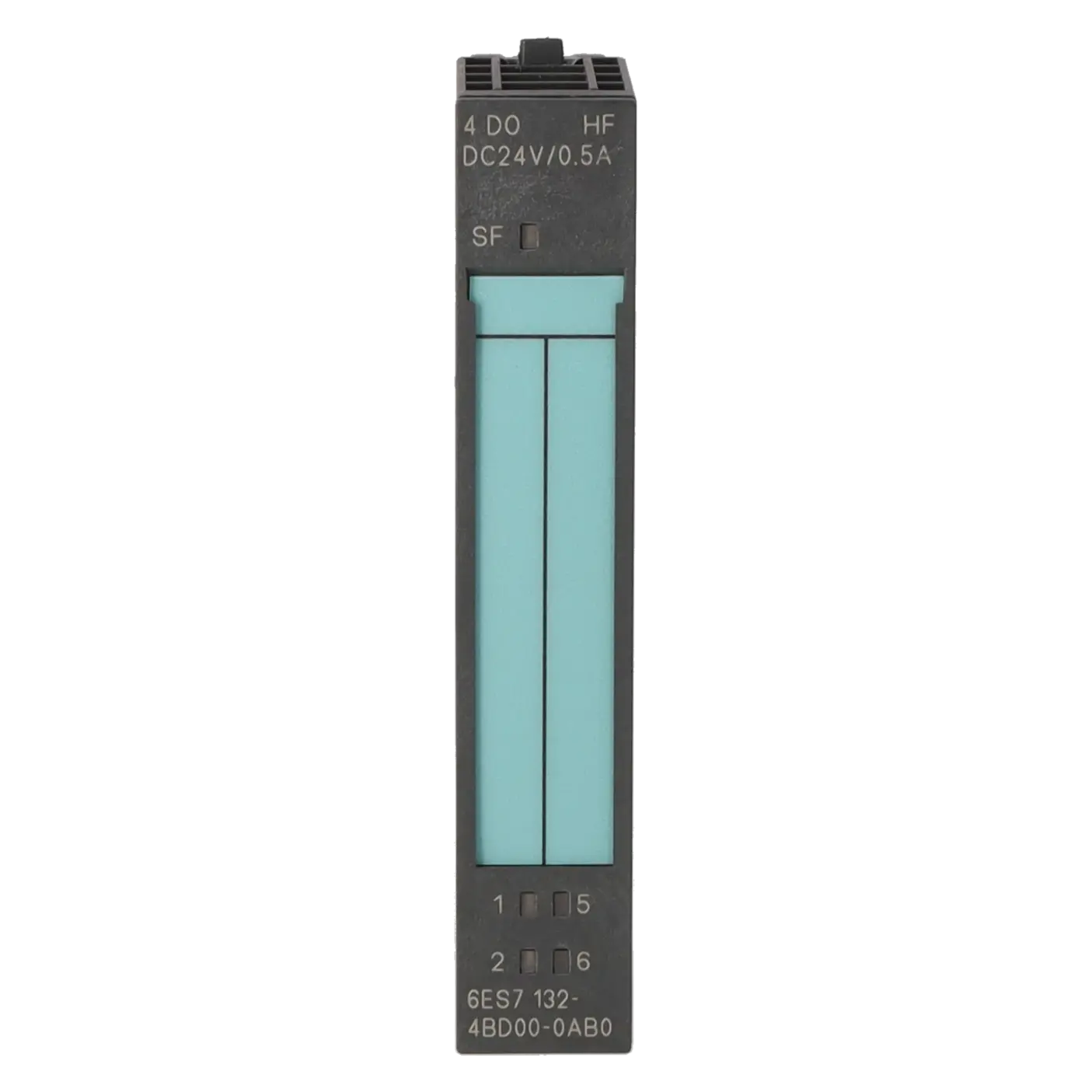

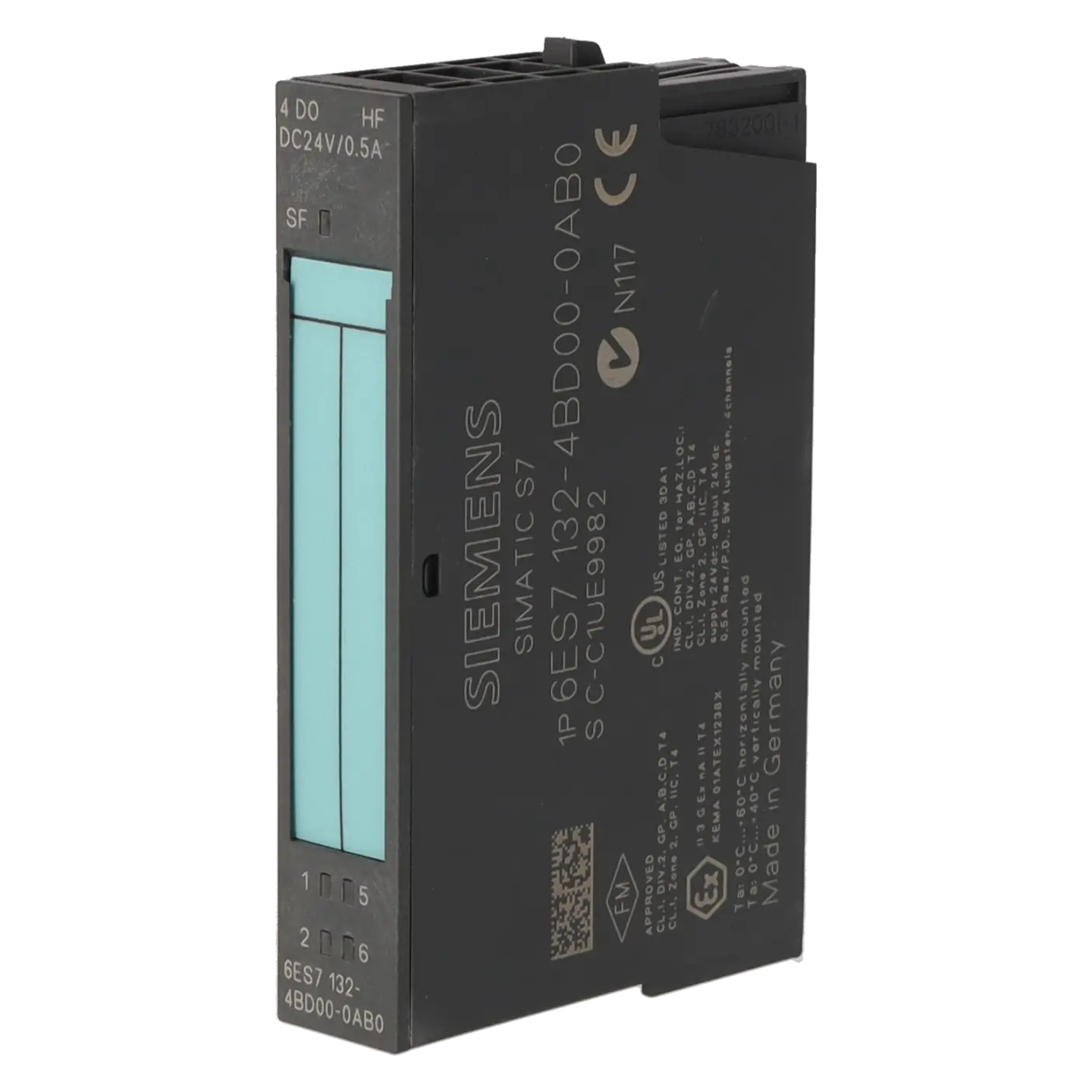

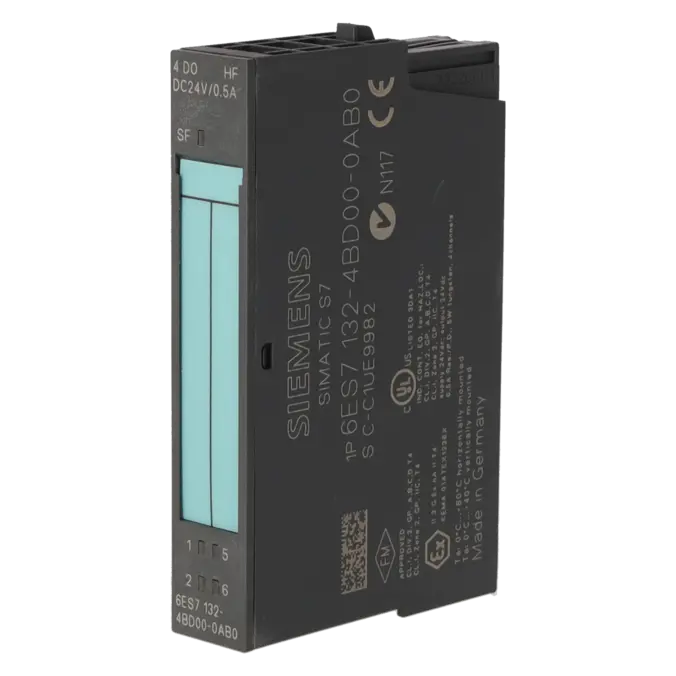

| General information |
|
| Product function |
|
| ● Isochronous mode |
Yes |
| Supply voltage |
|
| Reverse voltage protection |
Yes; when using the same load voltage as on the power module |
| Load voltage L+ |
|
| ● Rated value (DC) |
24 V; From power module |
| ● Reverse polarity protection |
Yes; polarity reversal can lead to the digital outputs being connected through |
| Input current |
|
| from load voltage L+ (without load), max. |
5 mA; Per channel |
| from backplane bus 3.3 V DC, max. |
10 mA |
| Power loss |
|
| Power loss, typ. |
0.8 W |
| Address area |
|
| Address space per module |
|
| ● Address space per module, max. |
1 byte |
| ● with packing |
4 bit |
| Digital outputs |
|
| Type of digital output |
Transistor |
| Number of digital outputs |
4 |
| Short-circuit protection |
Yes |
| ● Response threshold, typ. |
0.7 to 1.5 A |
| Limitation of inductive shutdown voltage to |
-55 to -60 V, L+( ) |
| Controlling a digital input |
Yes |
| Switching capacity of the outputs |
|
| ● on lamp load, max. |
5 W |
| Load resistance range |
|
| ● lower limit |
48 Ω |
| ● upper limit |
3 400 Ω |
| Output voltage |
|
| ● for signal "1", min. |
L+ (-1 V) |
| Output current |
|
| ● for signal "1" rated value |
0.5 A |
| ● for signal "1" permissible range, min. |
7 mA |
| ● for signal "1" permissible range, max. |
600 mA |
| ● for signal "0" residual current, max. |
0.3 mA |
| Output delay with resistive load |
|
| ● "0" to "1", max. |
100 µs |
| ● "1" to "0", max. |
300 µs |
| Parallel switching of two outputs |
|
| ● for uprating |
No |
| ● for redundant control of a load |
Yes; per module |
| Switching frequency |
|
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
2 Hz |
| ● on lamp load, max. |
10 Hz |
| Total current of the outputs |
|
| ● Current per module, max. |
2 A |
| Cable length |
|
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
600 m |
| Interrupts/diagnostics/status information |
|
| Diagnostics function |
Yes |
| Diagnoses |
|
| ● short-circuit |
Yes; module-wise |
| Diagnostics indication LED |
|
| ● Group error SF (red) |
Yes |
| ● Status indicator digital output (green) |
Yes; Per channel |
| Parameter |
|
| Remark |
3 byte |
| Potential separation |
|
| Potential separation digital outputs |
|
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| Isolation |
|
| Isolation tested with |
500 V DC |
| Dimensions |
|
| Width |
15 mm |
| Height |
81 mm |
| Depth |
52 mm |
| Weights |
|
| Weight, approx. |
40 g |
