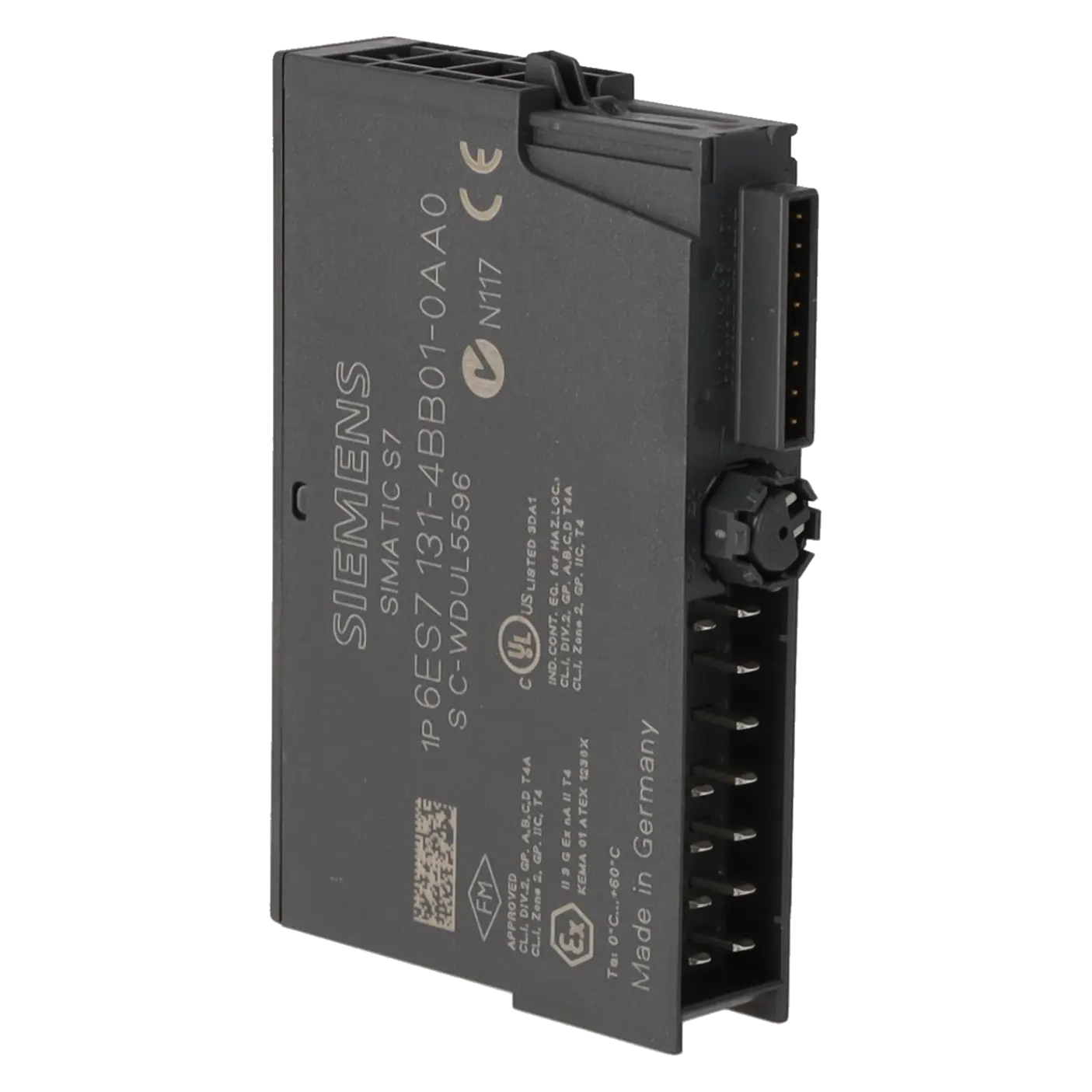

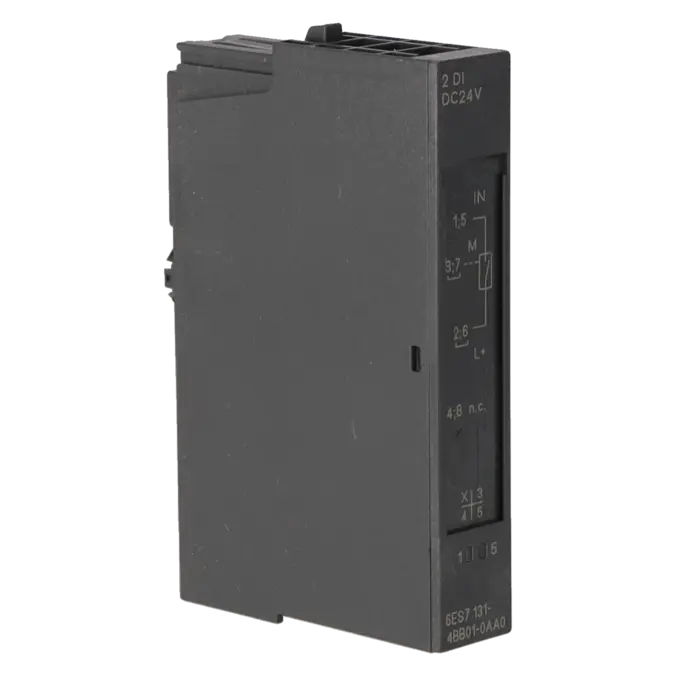

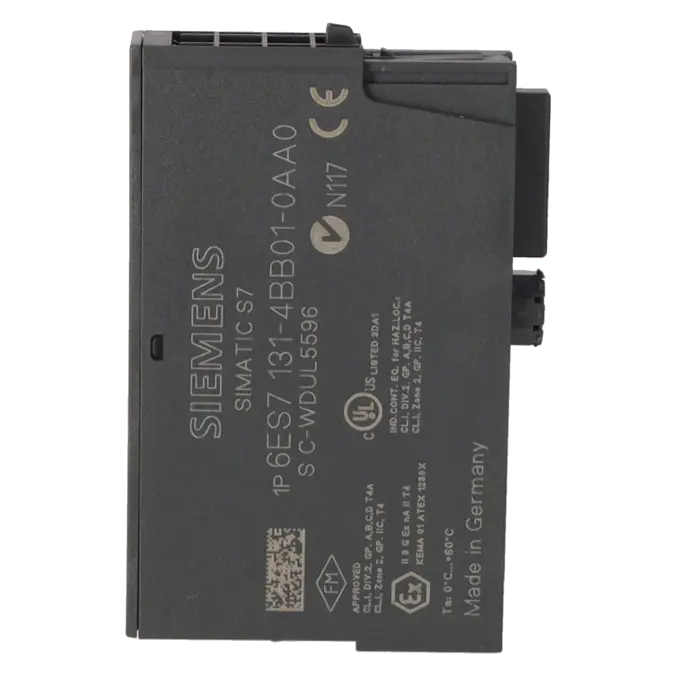

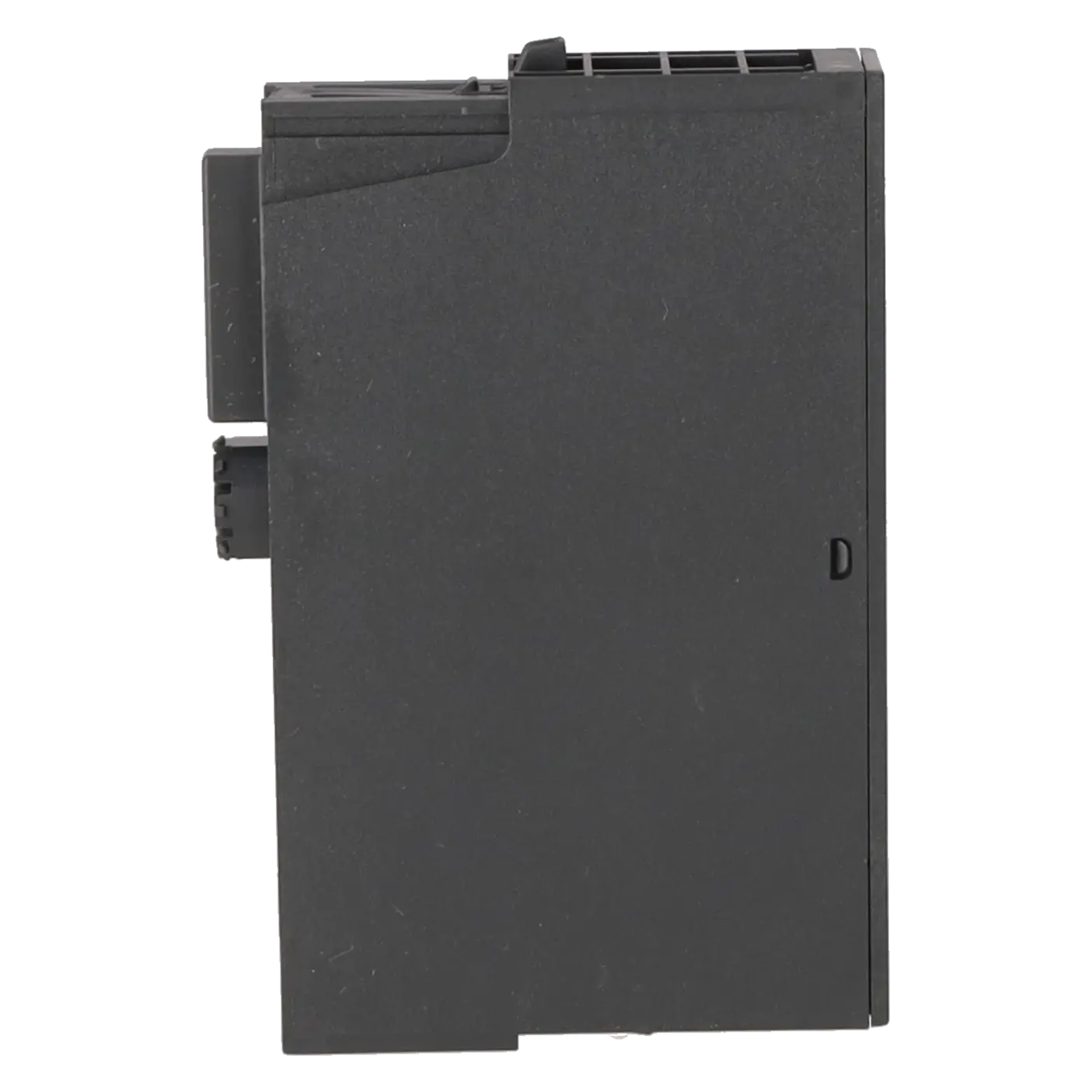

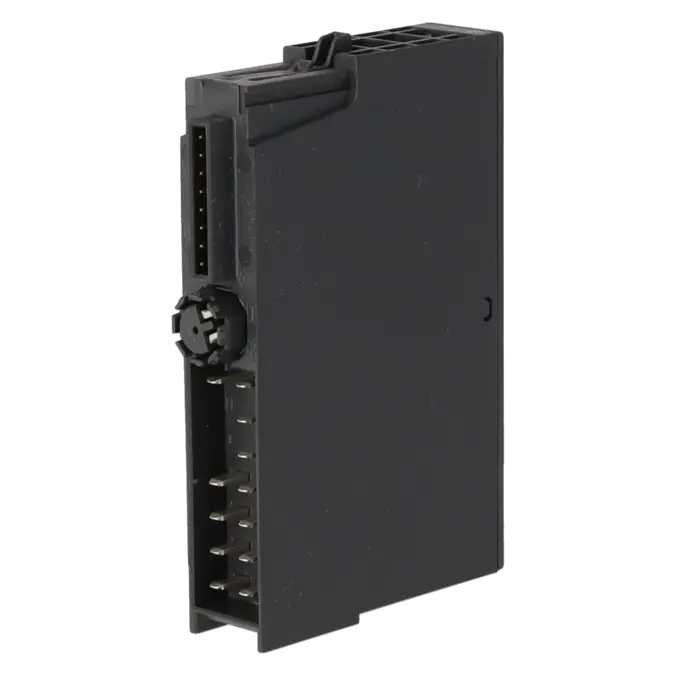

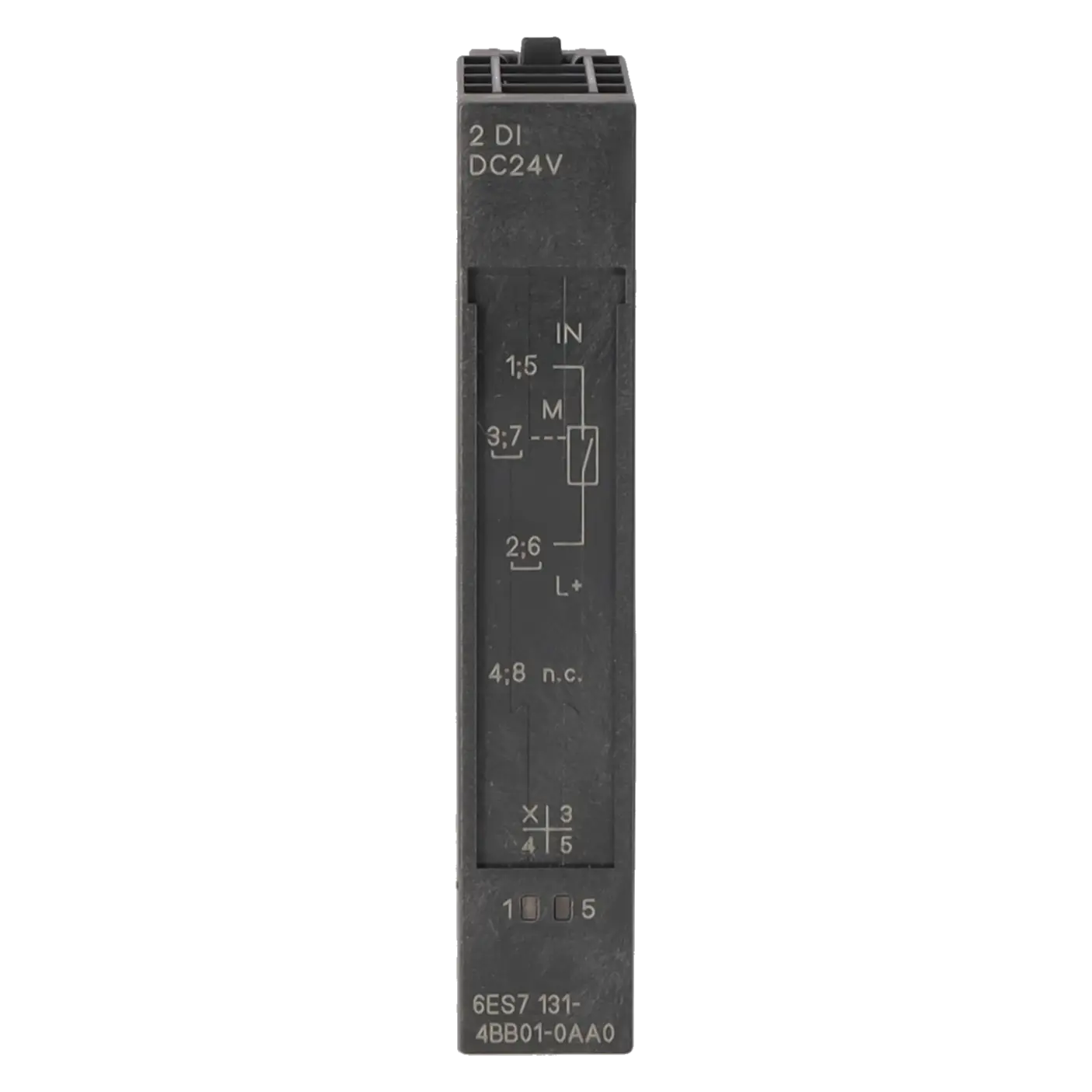

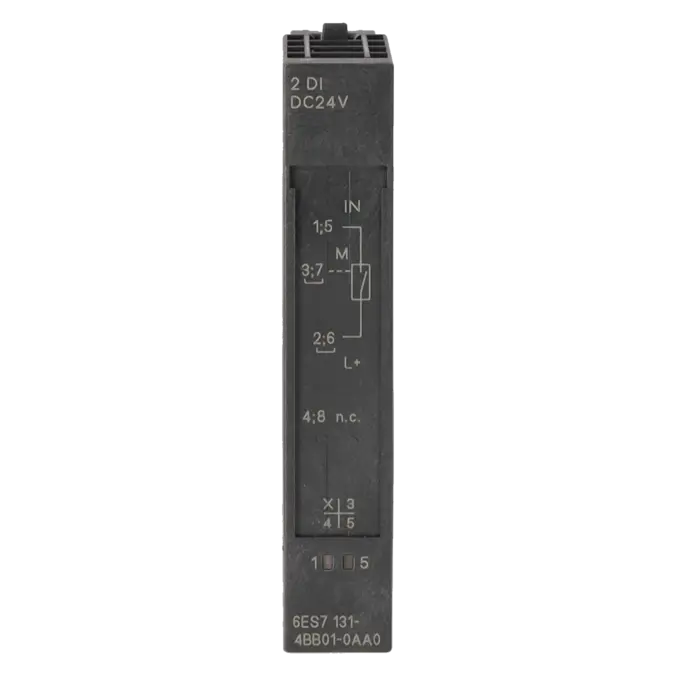

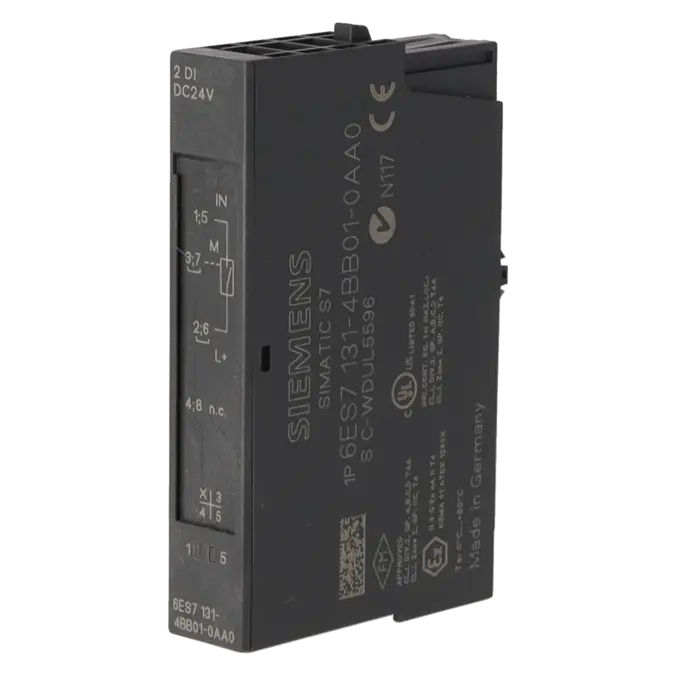

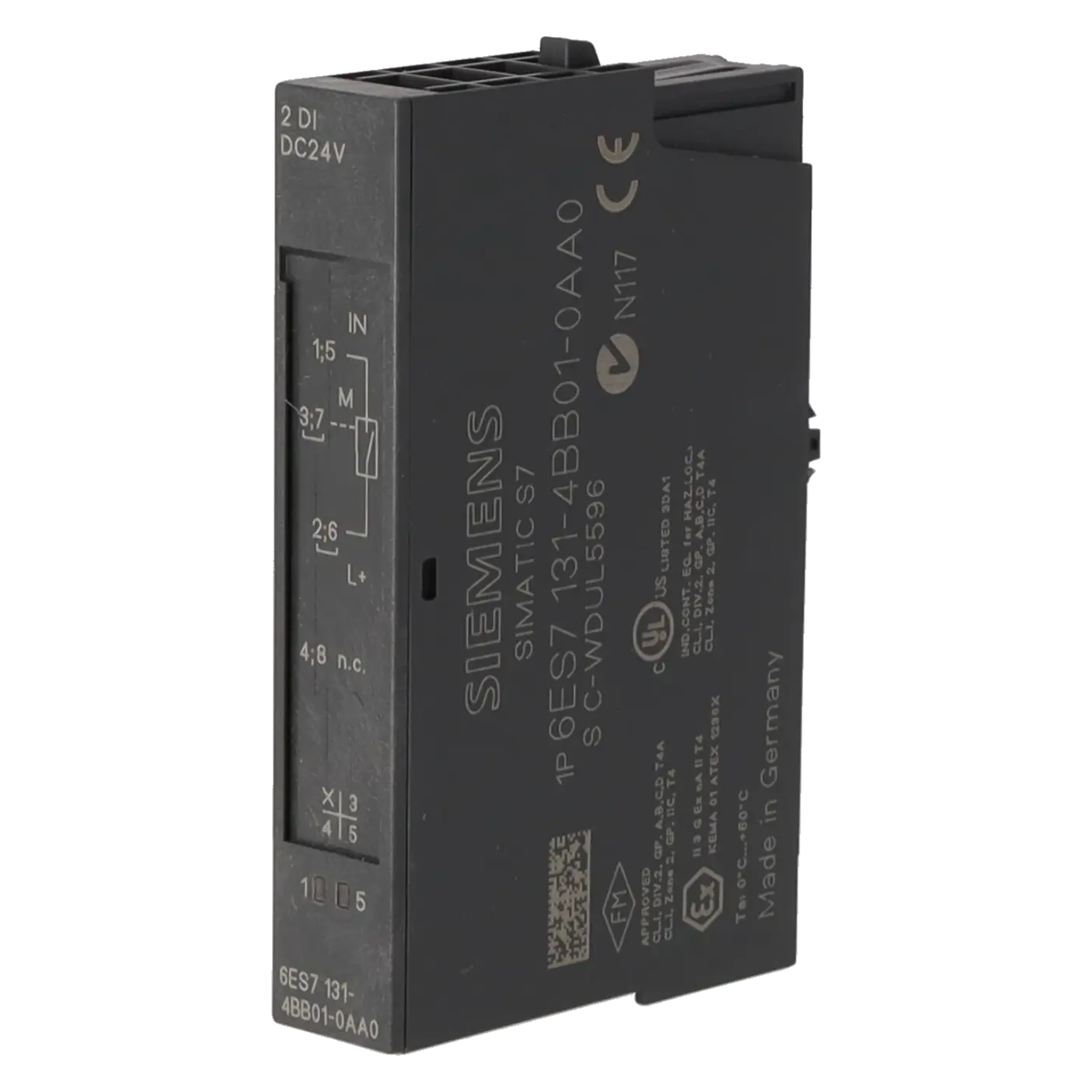

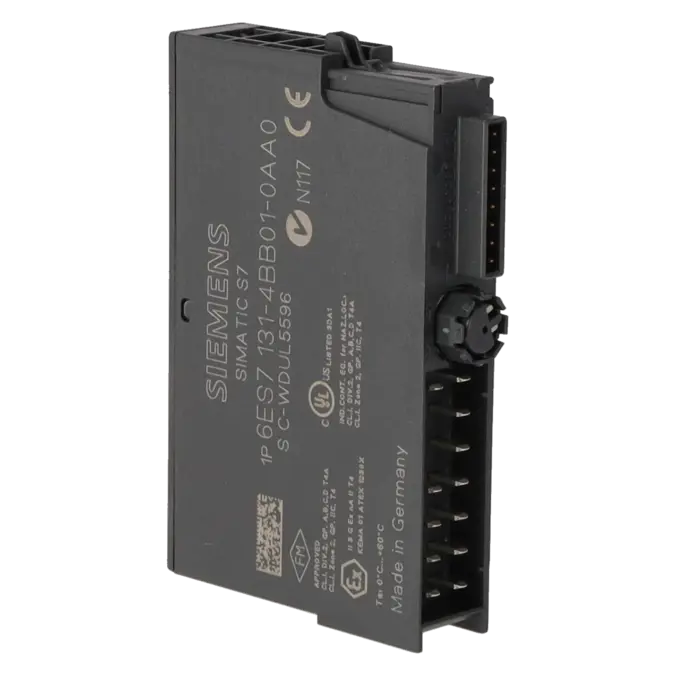

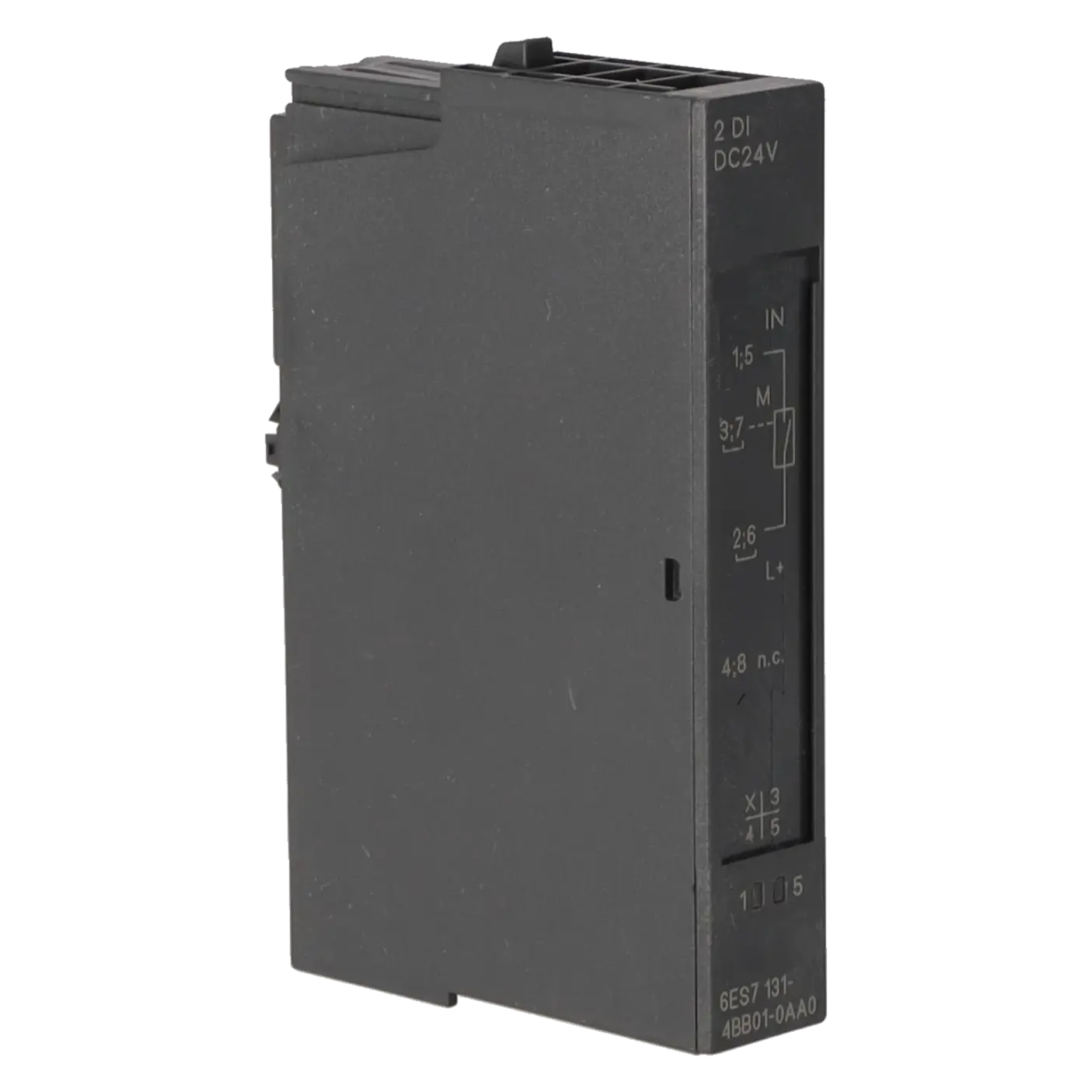

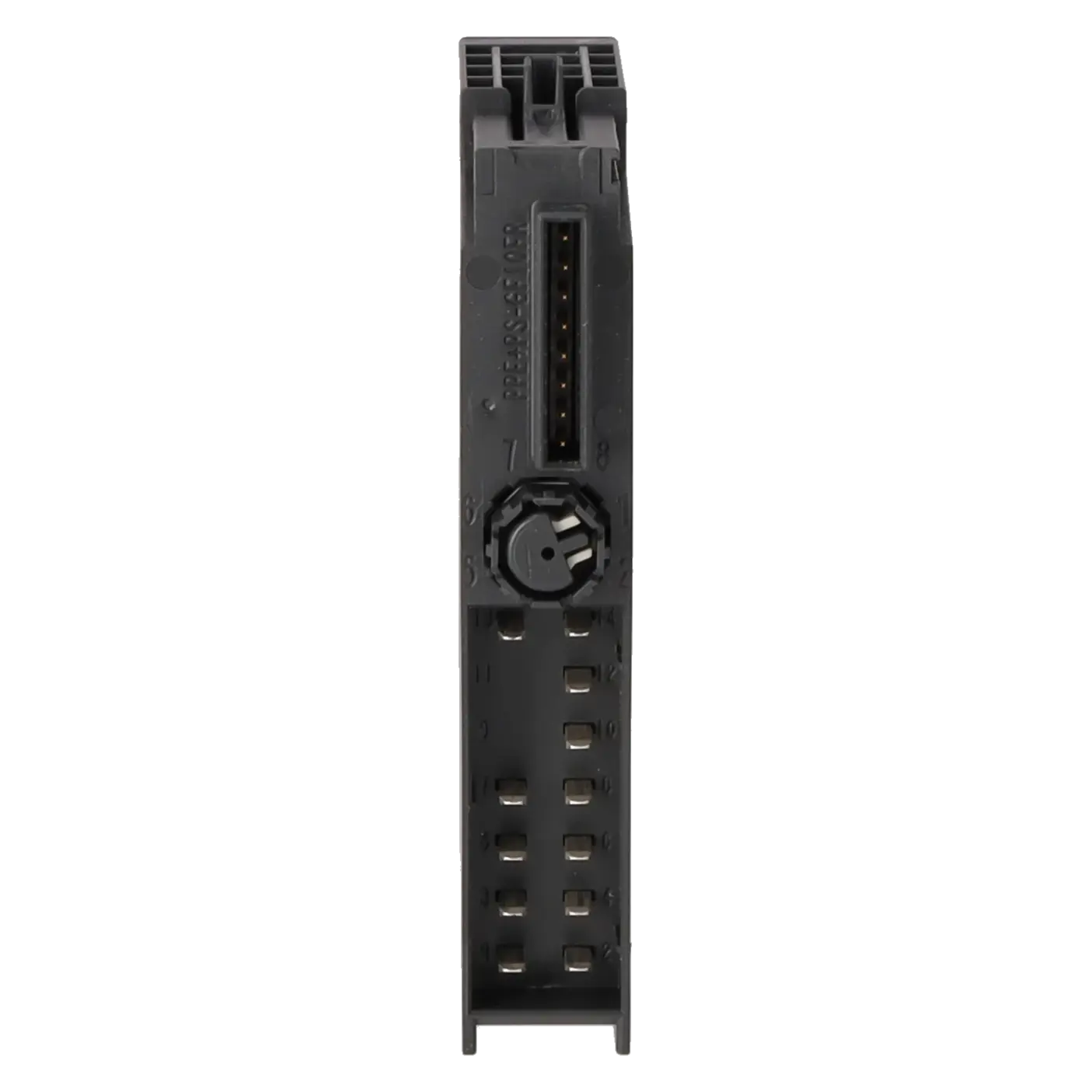

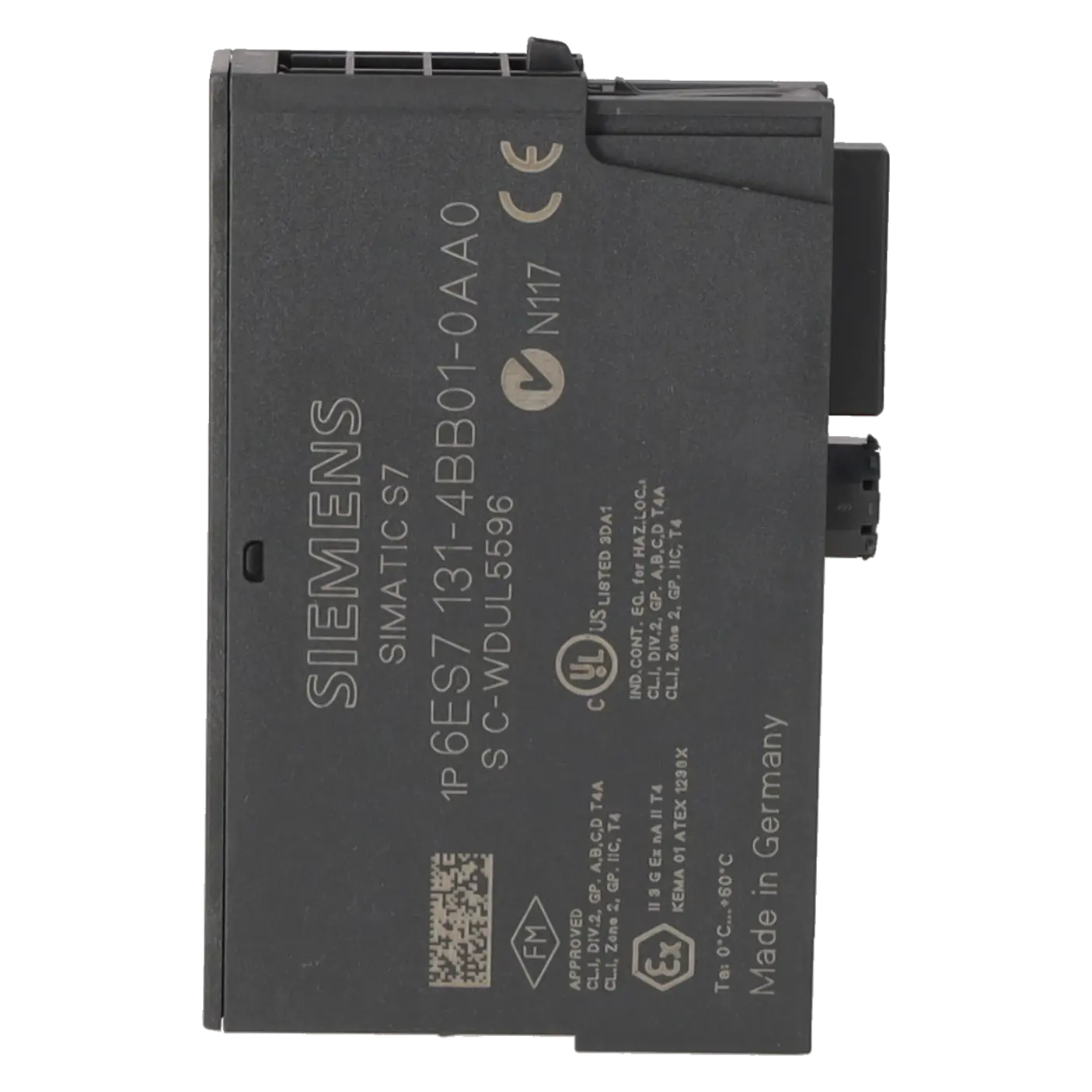

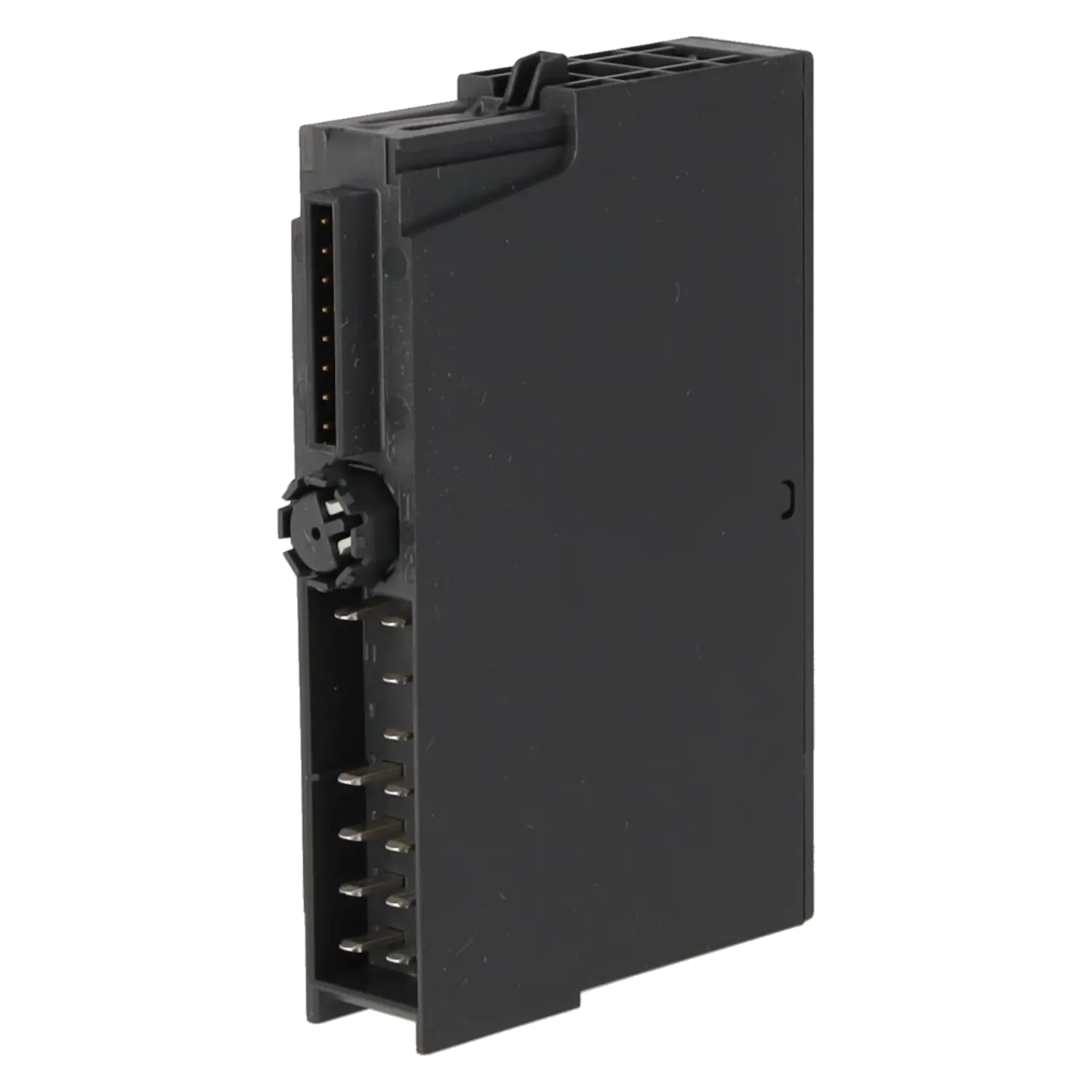

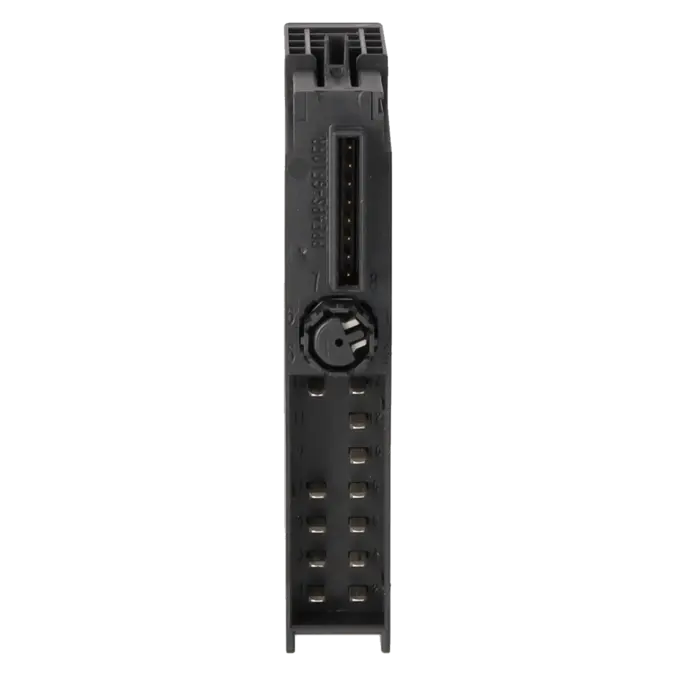

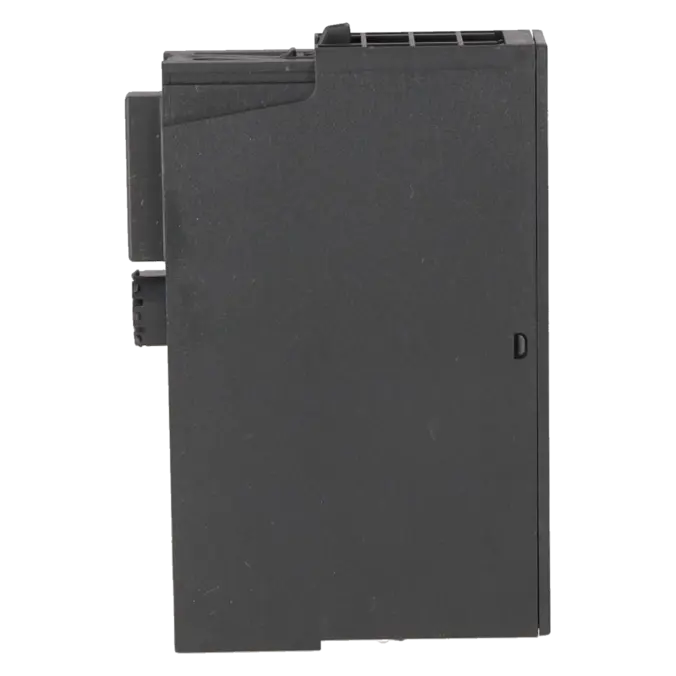

SIEMENS 6ES7131-4BB01-0AA0
- EICHLER-art.no.: K0171081
- EAN: 4025515072300
- UPC: 040892584714
Product description
SIMATIC DP, 5 ELECTRON. MODULES FOR ET 200S, 2 DI STANDARD 24V DC, 15 MM WIDTH, 5 PIECES PER PACKAGING UNIT
Services for SIEMENS 6ES7131-4BB01-0AA0
SIEMENS |
6ES7131-4BB01-0AA0 –
additional product information
| Delivery information | |||
|---|---|---|---|
| Export identifier | AL: N ECCN: N | ||
| Net weight | 0.171 | ||
| Quantity | 1 Stück | ||
| Packaging quantity | 1 | ||
| Additional product information | |||
|---|---|---|---|
| Product status | EOP: 2023-10-01 | ||
| EAN | 4025515072300 | ||
| UPC | 040892584714 | ||
| Static lot number | 85389091 | ||
| List indicator | ST76 | ||
| Product group | 4467 | ||
| Country of origin | CN | ||
| Compliance with the substance restrictions according to RoHS directive | Since: 20081231 | ||
| Product classifications | Version | Classification | |
|---|---|---|---|
| eClass | 4 | 27-24-21-05 | |
| eClass | 5.1 | 27-24-26-04 | |
| eClass | 6.0 | 27-24-26-04 | |
| ETIM | 3 | / | |
| ETIM | 4 | EC001599 | |
| ETIM | 5 | EC001599 | |
| Attribute | Value |
|---|---|
| Supply voltage | |
| Rated value (DC) | 24 V; From power module |
| Reverse polarity protection | Yes |
| Input current | |
| from supply voltage L+, max. | Dependent on encoder |
| from backplane bus 3.3 V DC, max. | 10 mA |
| Encoder supply | |
| Type of output voltage | min. L+ (-0.5 V), under load |
| Output current | |
| ● Rated value | 500 mA |
| ● permissible range, lower limit | 0 mA |
| ● permissible range, upper limit | 500 mA |
| Power loss | |
| Power loss, typ. | 0.4 W |
| Address area | |
| Address space per module | |
| ● Address space per module, max. | 1 byte |
| ● with packing | 2 bit |
| Digital inputs | |
| Number of digital inputs | 2 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Input voltage | |
| ● Type of input voltage | DC |
| ● Rated value (DC) | 24 V |
| ● for signal "0" | -30 to +5 V |
| ● for signal "1" | +15 to +30 V |
| Input current | |
| ● for signal "1", typ. | 7 mA; at 24 V |
| Input delay (for rated value of input voltage) | |
| for standard inputs | |
| — parameterizable | No |
| — at "0" to "1", min. | 2 ms; typically 3 ms |
| — at "0" to "1", max. | 4.5 ms |
| — at "1" to "0", min. | 2 ms; typically 3 ms |
| — at "1" to "0", max. | 4.5 ms |
| Cable length | |
| ● shielded, max. | 1 000 m |
| ● unshielded, max. | 600 m |
| Encoder | |
| Connectable encoders | |
| ● 2-wire sensor | Yes |
| — permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Interrupts/diagnostics/status information | |
| Diagnostics function | No |
| Diagnostics indication LED | |
| ● Group error SF (red) | No |
| ● Status indicator digital input (green) | Yes; per channel |
| Parameter | |
| Remark | 1 byte |
| Potential separation | |
| Potential separation digital inputs | |
| ● between the channels | No |
| ● between the channels and backplane bus | Yes |
| Isolation | |
| Isolation tested with | 500 V DC |
| Dimensions | |
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Weights | |
| Weight, approx. | 35 g |
