SIEMENS 6AV6647-0AC11-3AX0

What is 6AV6647-0AC11-3AX0 and where is it used?

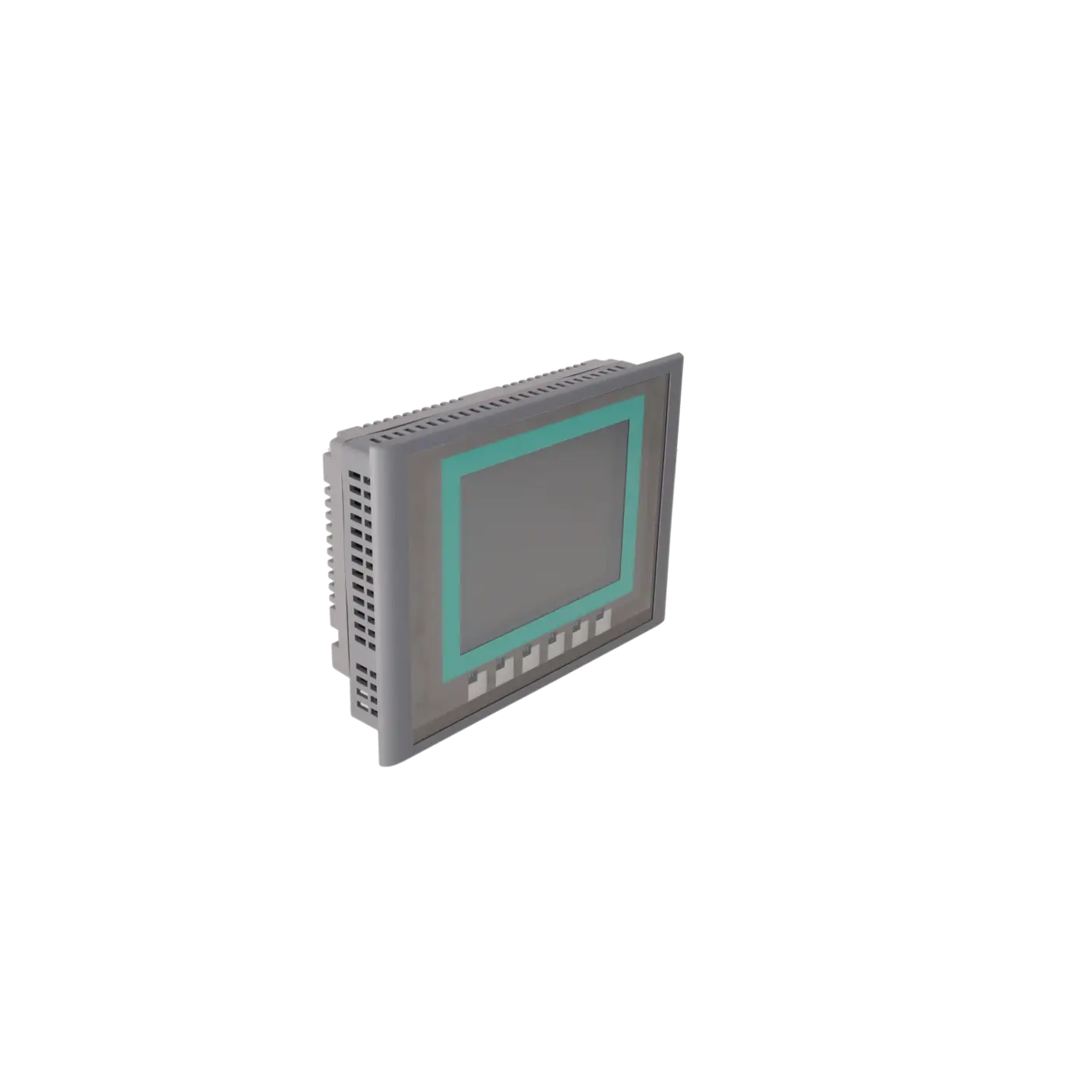

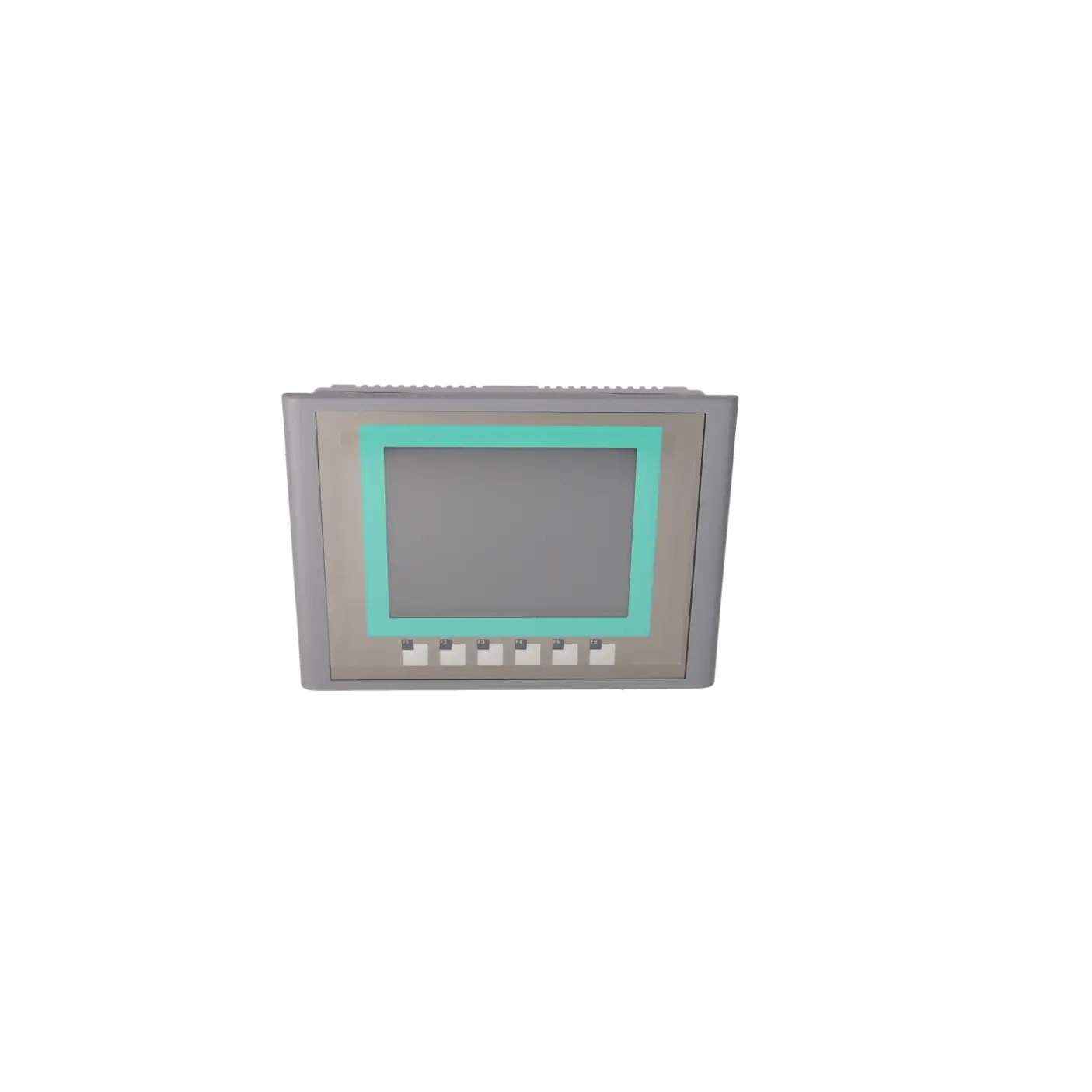

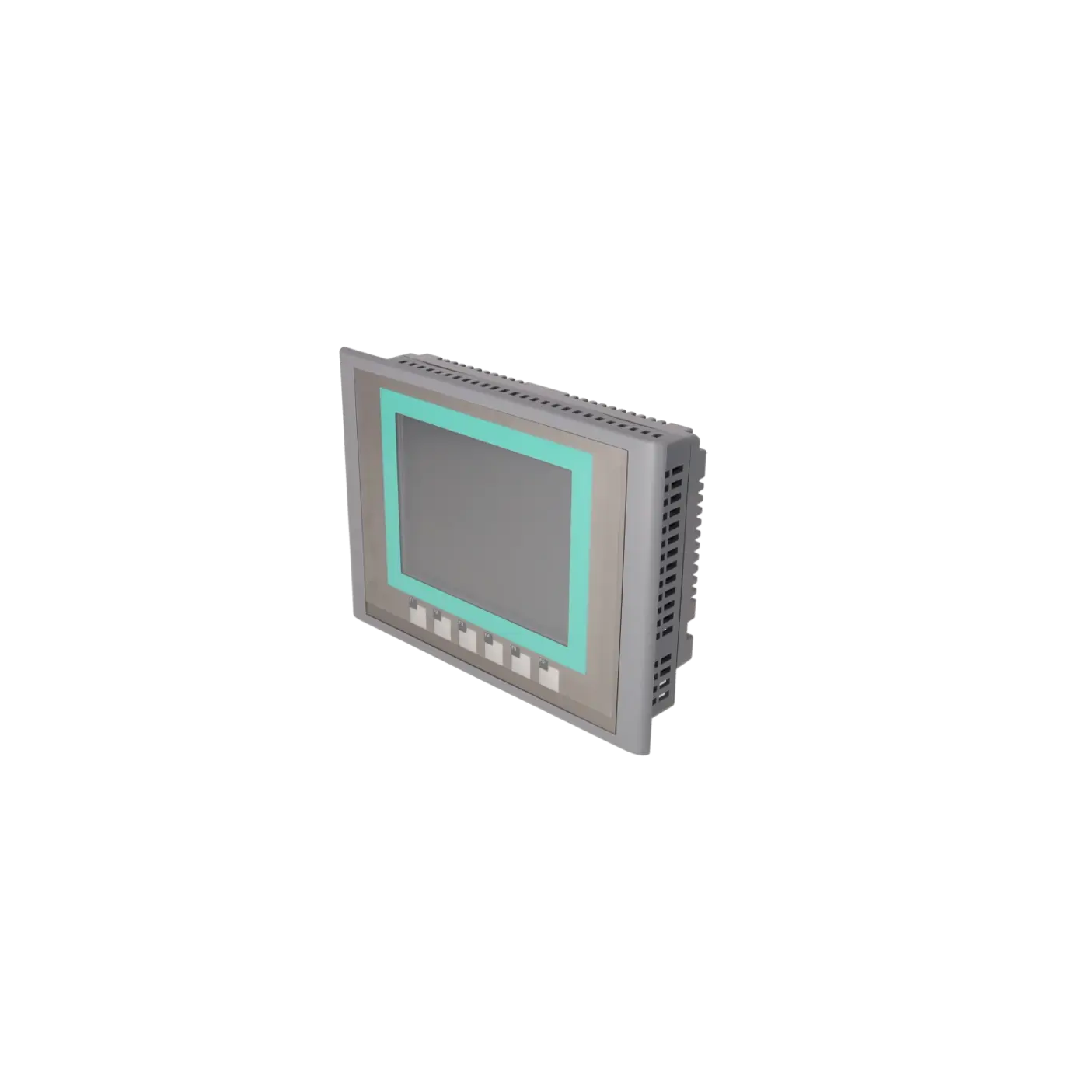

The 6AV6647-0AC11-3AX0 is a SIMATIC HMI KTP600 Basic colour DP from the first generation of Siemens Basic Panels. The device combines key and touch operation and is designed for simple to medium-level visualisation tasks directly on machines and systems. Typical applications include existing installations with MPI/PROFIBUS-DP communication, where operating states need to be displayed, alarms acknowledged, setpoints entered or recipes managed. For maintenance teams and purchasing departments, the panel is particularly relevant when a suitable operator device is required at short notice in older automation environments without immediately migrating the existing communications structure to PROFINET or a new HMI concept.

Overview of the key technical specifications and what they mean

Key technical features include a 5.7-inch TFT display with 320 × 240 pixels, 256 colours, 6 function keys, an analogue resistive touchscreen and a 24 V DC power supply with a permissible range of 19.2 to 28.8 V DC. Typical power consumption is 9 W. Particularly important in practice is that the device does not include an Industrial Ethernet/PROFINET interface, but instead operates via RS-485/RS-422, MPI/PROFIBUS and Modbus RTU. The protection rating is IP65 at the front and IP20 at the rear. The permissible operating temperature is 0 to 50 °C when installed vertically. This makes the panel well suited to traditional machine fronts and control cabinet doors in existing DP/MPI topologies.

Product status, lifecycle status and obsolescence

From a lifecycle perspective, this panel is clearly classified as a legacy product. The additional product information lists EOP (End of Product) status with the date 22 February 2022, and Siemens identifies the part number on its official product pages as a spare part. In the official Siemens discontinuation notice for the first-generation Basic Panels, the KTP700 Basic DP (6AV2123-2GA03-0AX0) is specified as the successor to the KTP600 Basic colour DP. In addition, a Siemens status document dated 2 June 2025 lists a P.M490 target date of 01 October 2026 for 6AV6647-0AC11-3AX0. For spare-parts procurement, it is also important to note that the versioned variant 6AV6647-0AC11-3AX1 is described by Siemens as being fully functionally compatible with the 3AX0 version.

Available EICHLER services and when they are relevant in practice

For operators of older DP/MPI-based systems, several service options remain available. Repair is particularly relevant when the project, panel cut-out and interfaces need to remain unchanged; EICHLER combines this service with technical cleaning, preventive maintenance, comprehensive functional testing and a minimum 24-month warranty. Exchange is the quickest option in the event of an unexpected breakdown when a tested replacement unit is required. Used devices are attractive when original hardware is needed but migration and re-engineering are to be avoided. New stock can be useful for critical spare-parts strategies. An optional test report is beneficial when maintenance, quality assurance or purchasing departments require documented proof of functionality before storage or reinstallation. These services help ensure predictable system availability, even as the product moves further into obsolescence.

Is 6AV6647-0AC11-3AX0 still a standard production product?

No, the device is no longer a standard production product. The product detail page lists an EOP (End of Production) date of 22 February 2022, and Siemens now classifies this part number as a spare part. In addition, Siemens documents a P.M490 target date of 1 October 2026 for this product family, clearly confirming its advanced obsolescence status. For operators, this means that availability, service and spare parts strategy should be actively planned.

Which successor is designated for 6AV6647-0AC11-3AX0?

The Siemens-designated successor is the KTP700 Basic DP, part number 6AV2123-2GA03-0AX0. The Siemens migration guide also documents that the KTP700 Basic DP and KTP600 Basic Colour DP share the same 197 × 141 mm mounting cut-out, although device depth, front design and technical platform may differ. From a migration perspective, this is advantageous because mechanical modifications are often less extensive than with a complete technology change.

Can I use 6AV6647-0AC11-3AX1 as a replacement for 6AV6647-0AC11-3AX0?

Yes. Siemens describes the …-3AX1 version as fully functionally compatible with the corresponding …-3AX0 variant. This is important from a procurement perspective because it increases the likelihood of sourcing a suitable replacement device when the original suffix is not immediately available. For critical applications, however, it remains advisable to verify the project version, firmware version and approval process before installation.

Which software can be used to configure the panel?

According to Siemens, the panel can be configured with WinCC flexible 2008 SP2 Compact, as well as WinCC Basic V11 and STEP 7 Basic V11. Additional product information also lists various WinCC and TIA Portal environments as supported engineering platforms. For maintenance and purchasing teams, this is relevant because it determines whether the existing engineering environment can continue to be used or whether tool compatibility must be verified before any modifications are made.

Which communication interfaces are particularly important in existing installations?

For existing systems, the most important interfaces are MPI, PROFIBUS, RS-485/RS-422 and Modbus RTU. This combination is precisely what makes the panel attractive for older machines and retrofit applications. It is equally important to understand what is not available: no PROFINET, no Industrial Ethernet, no USB and no SD card slot. As a result, the device is well suited to traditional PROFIBUS DP environments, but less flexible for modern Ethernet-based HMI architectures.

When is repair more appropriate than direct migration?

Repair is generally the better option when downtime costs are high and the existing project, DP/MPI communication structure and mechanical installation should remain unchanged. Migration to the KTP700 Basic DP becomes more attractive when a broader modernisation programme is already planned or when a more sustainable spare parts strategy is required. From an economic perspective, repair is often the fastest route back into production, whereas migration focuses more on long-term standardisation and future-proofing.
