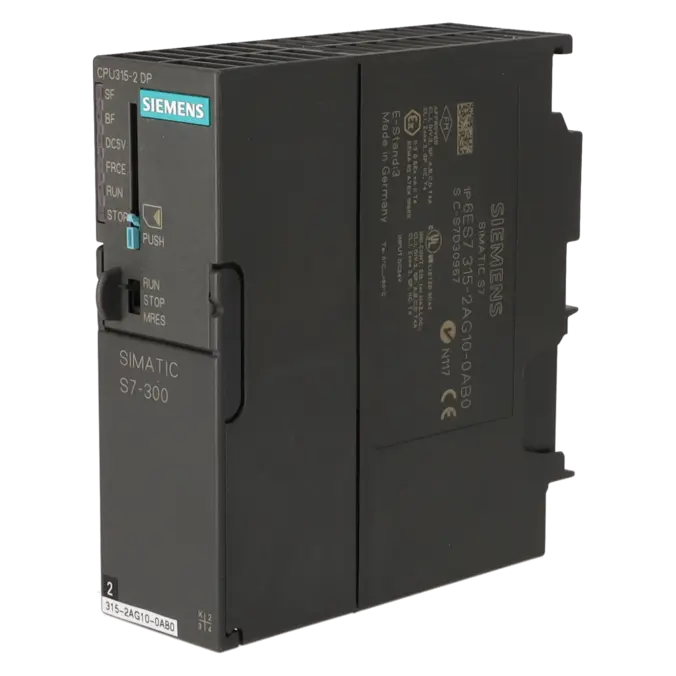

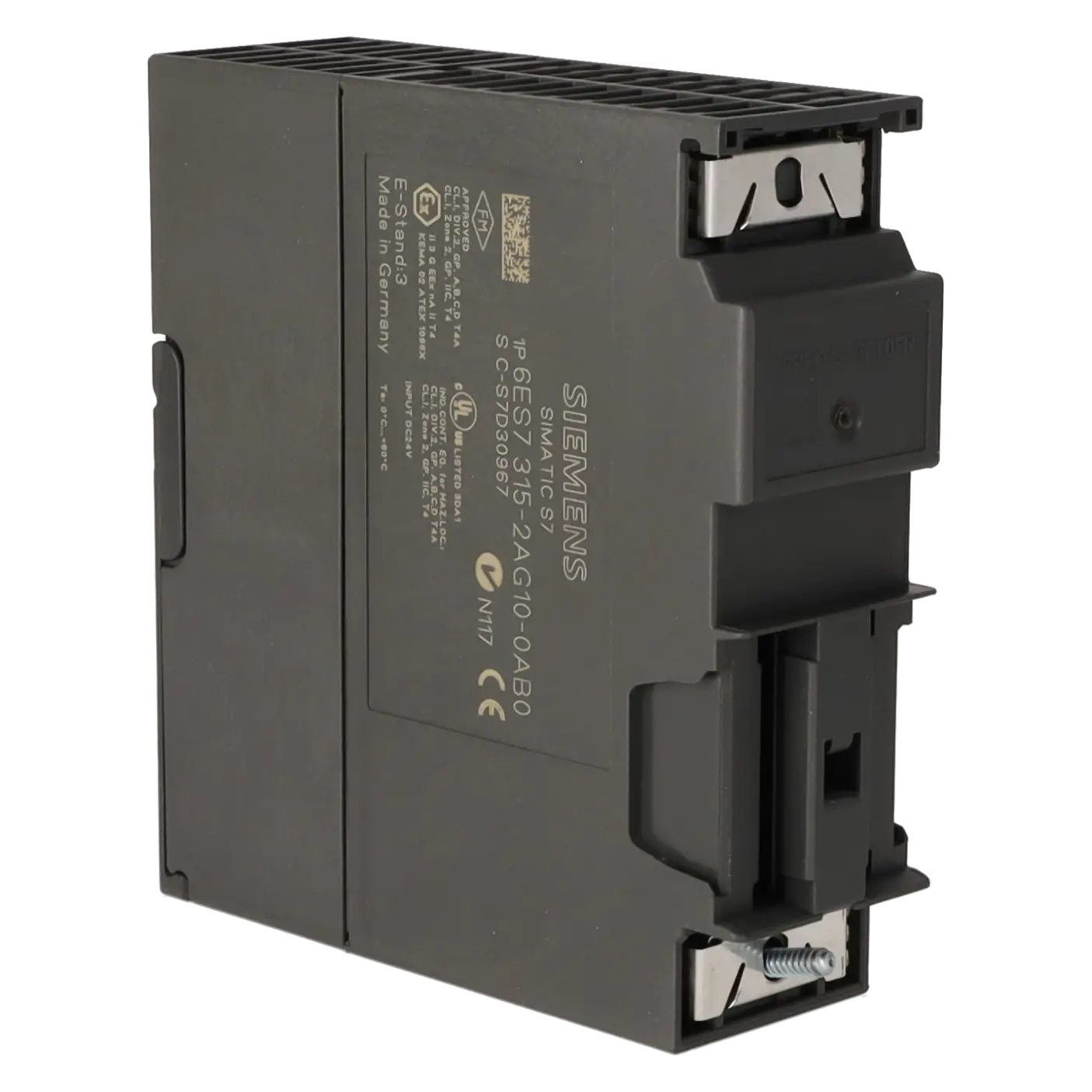

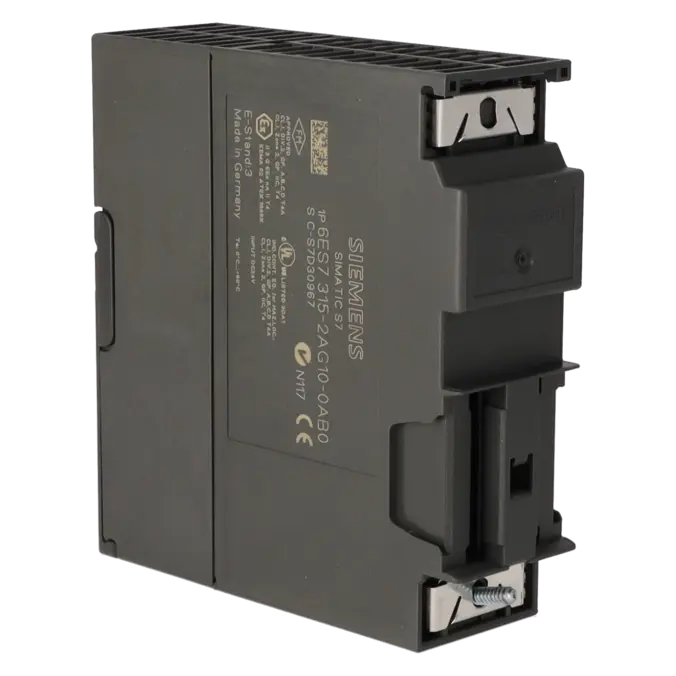

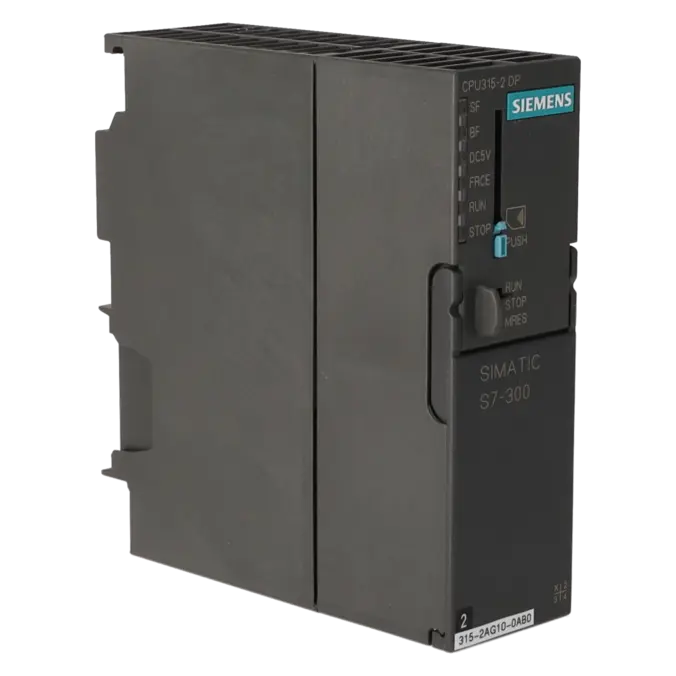

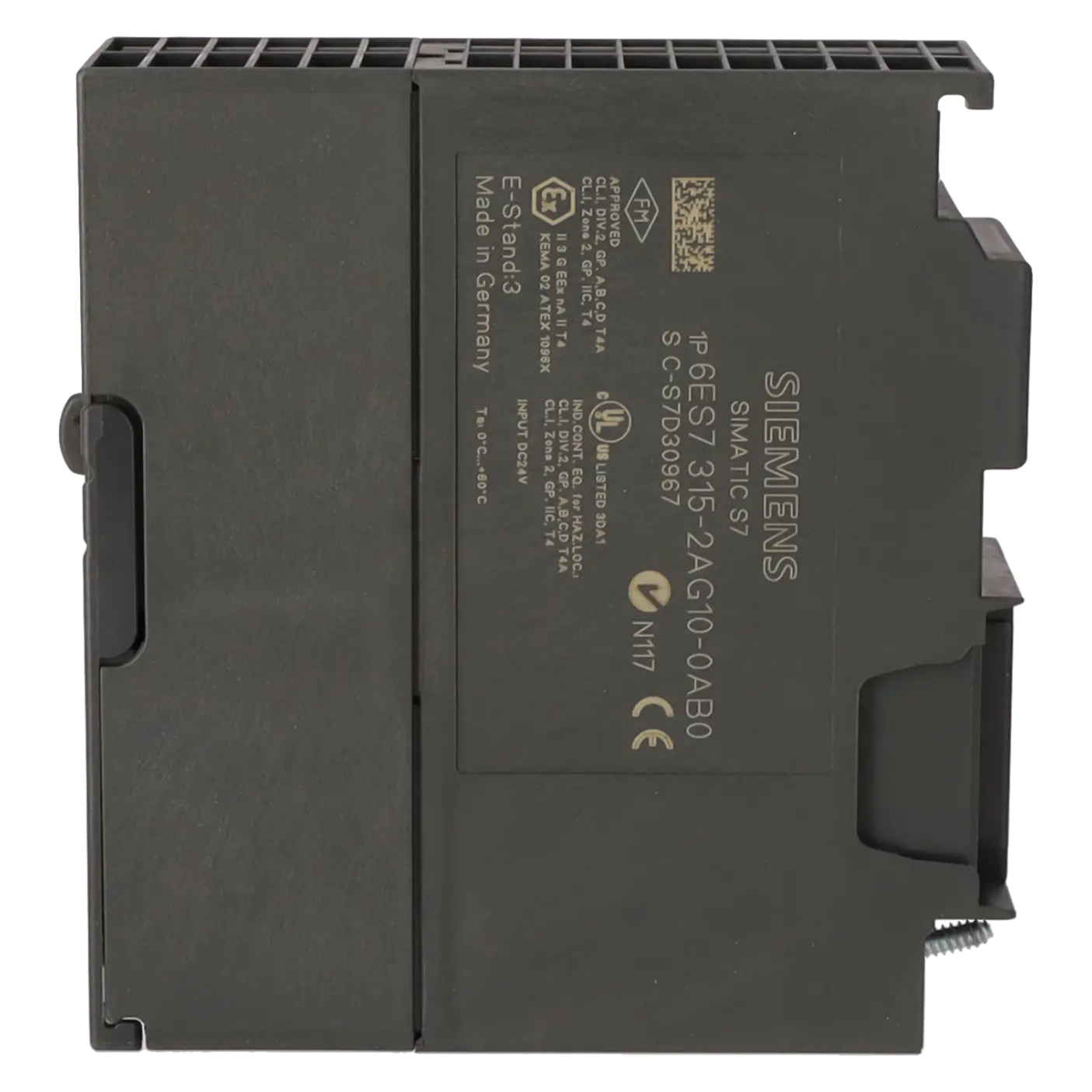

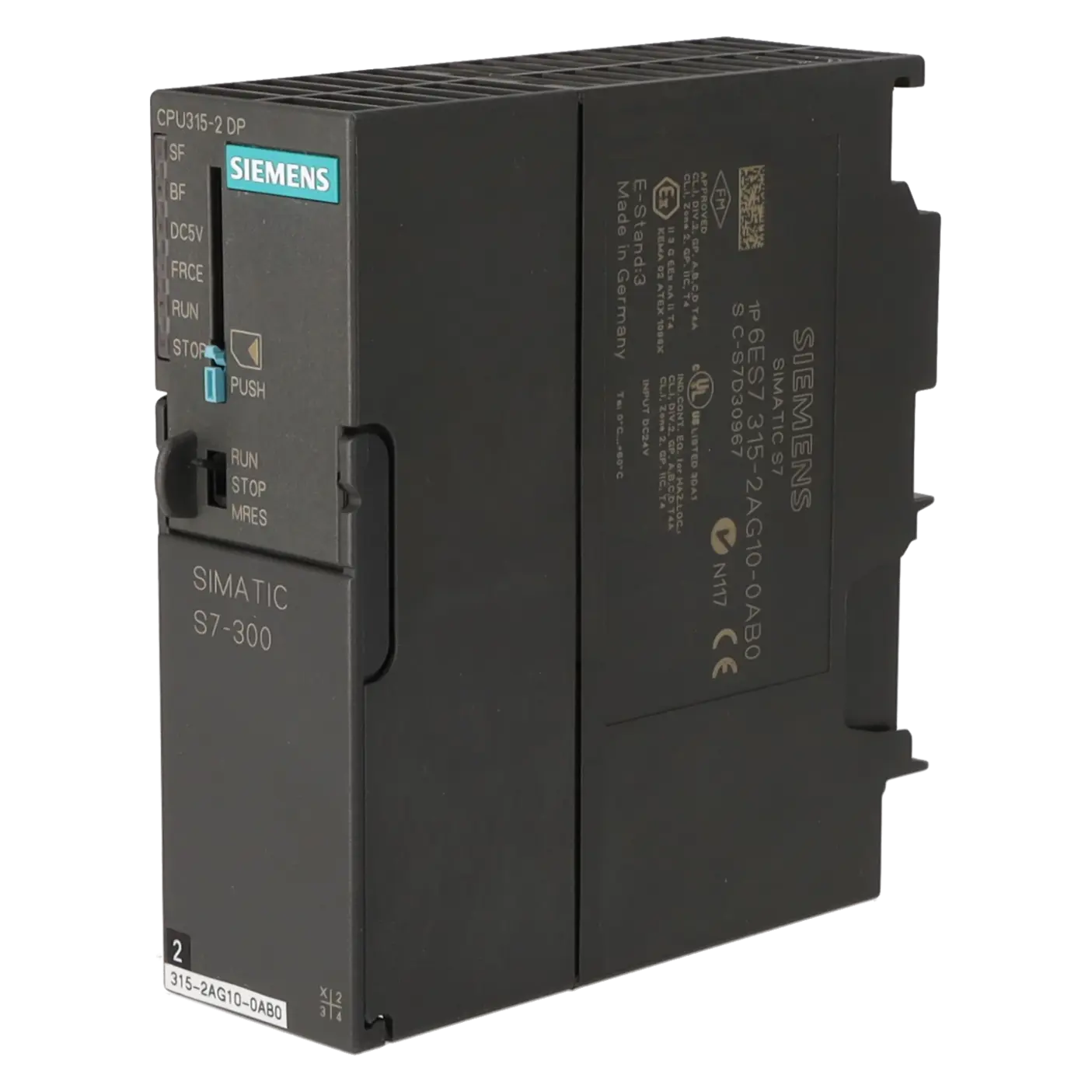

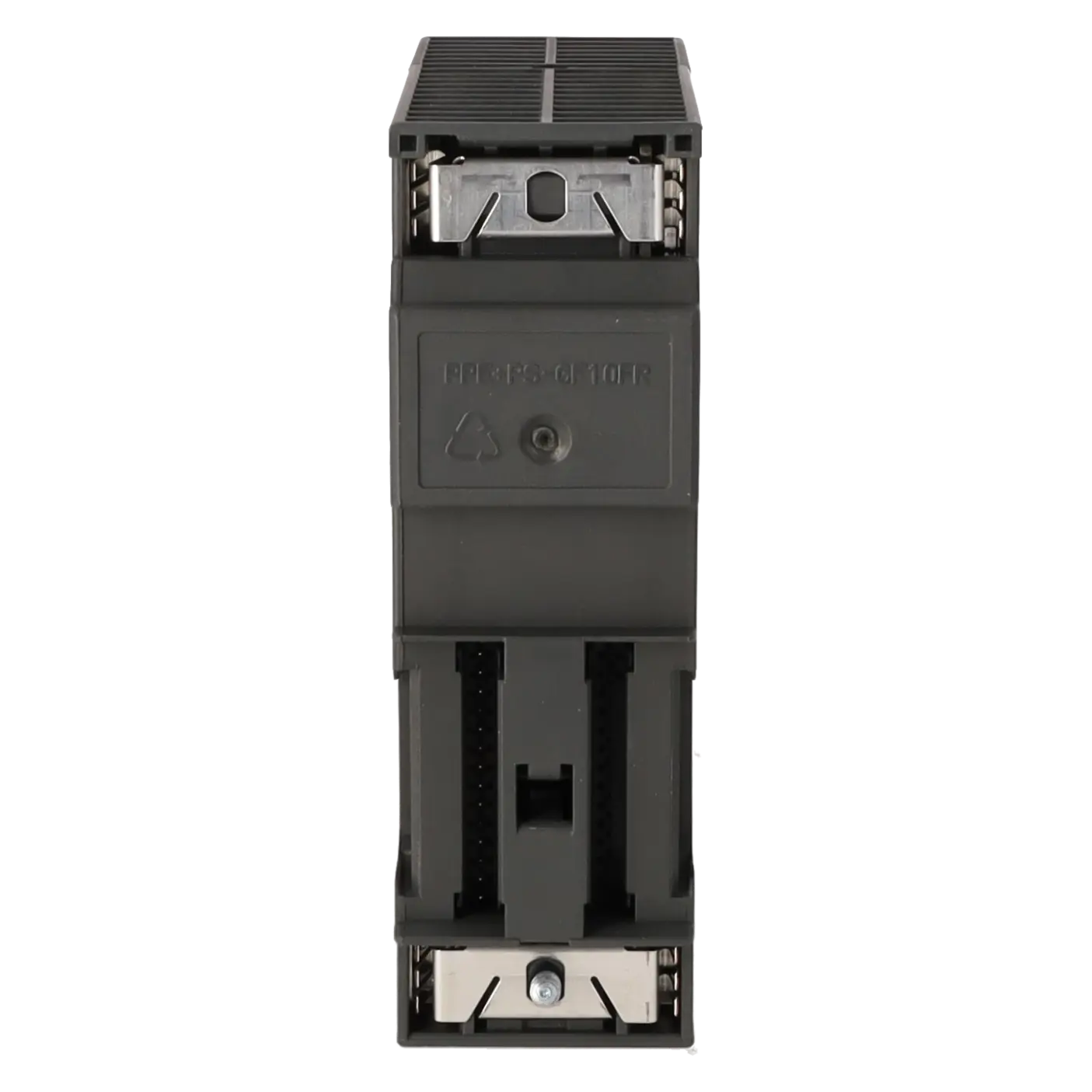

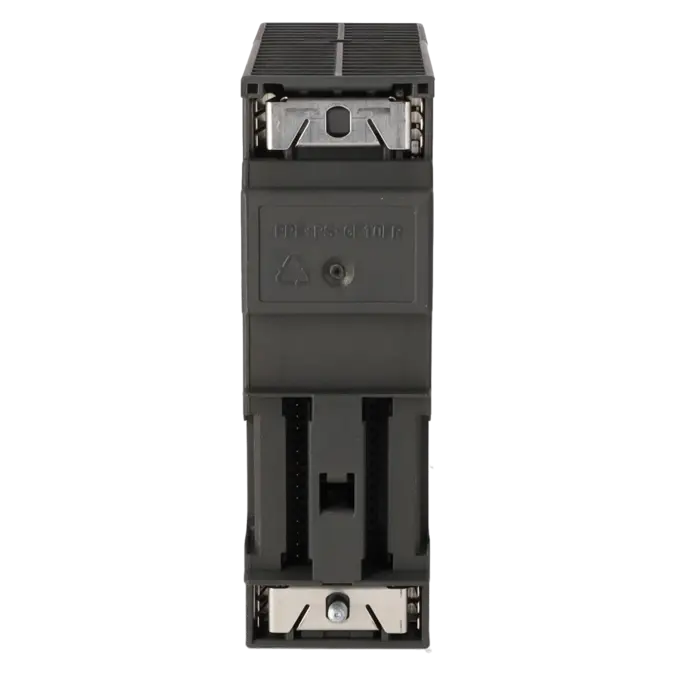

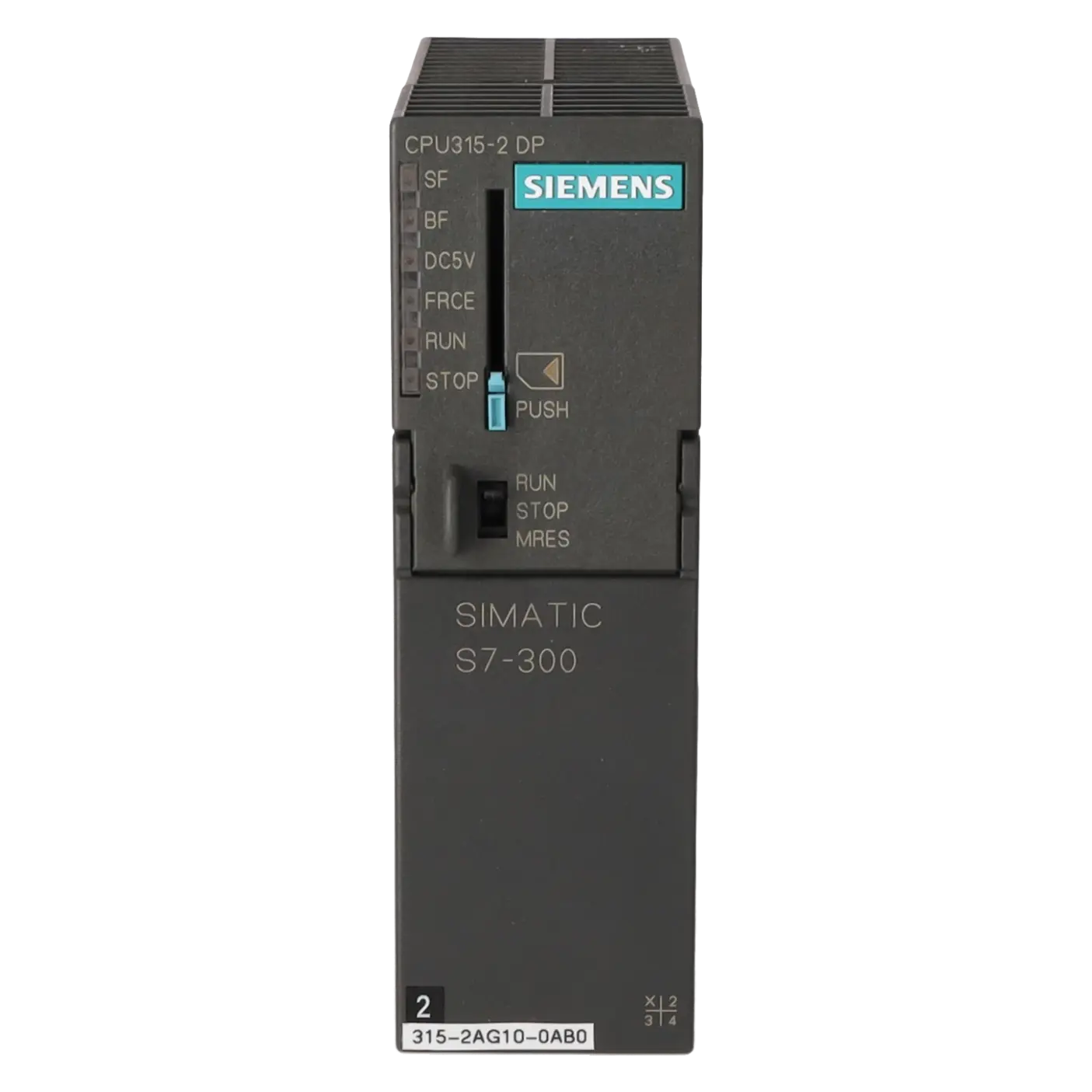

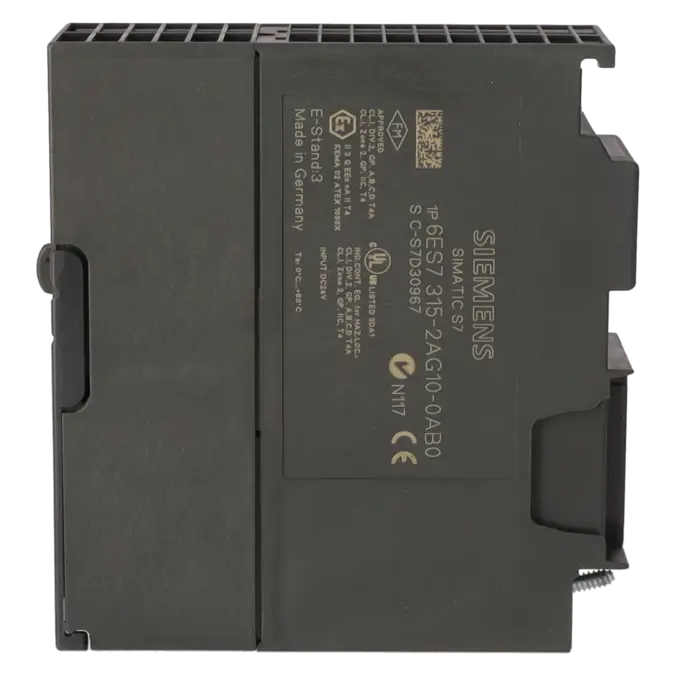

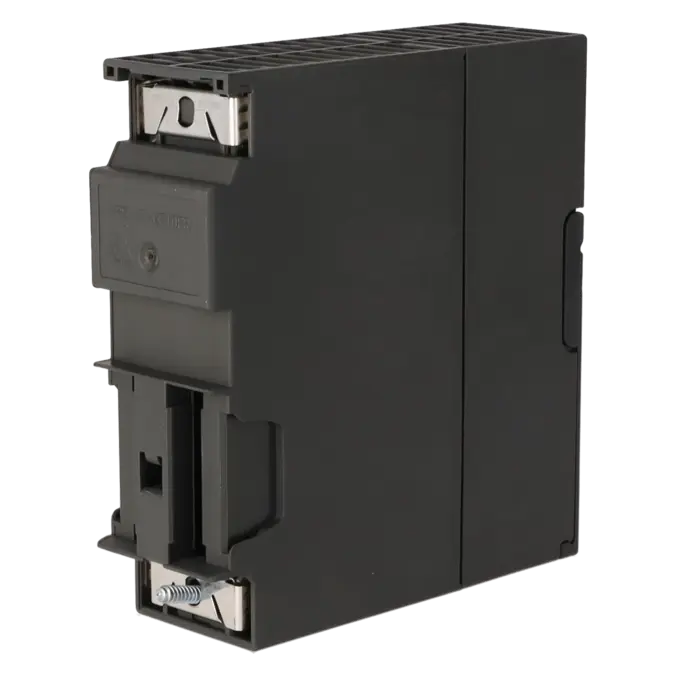

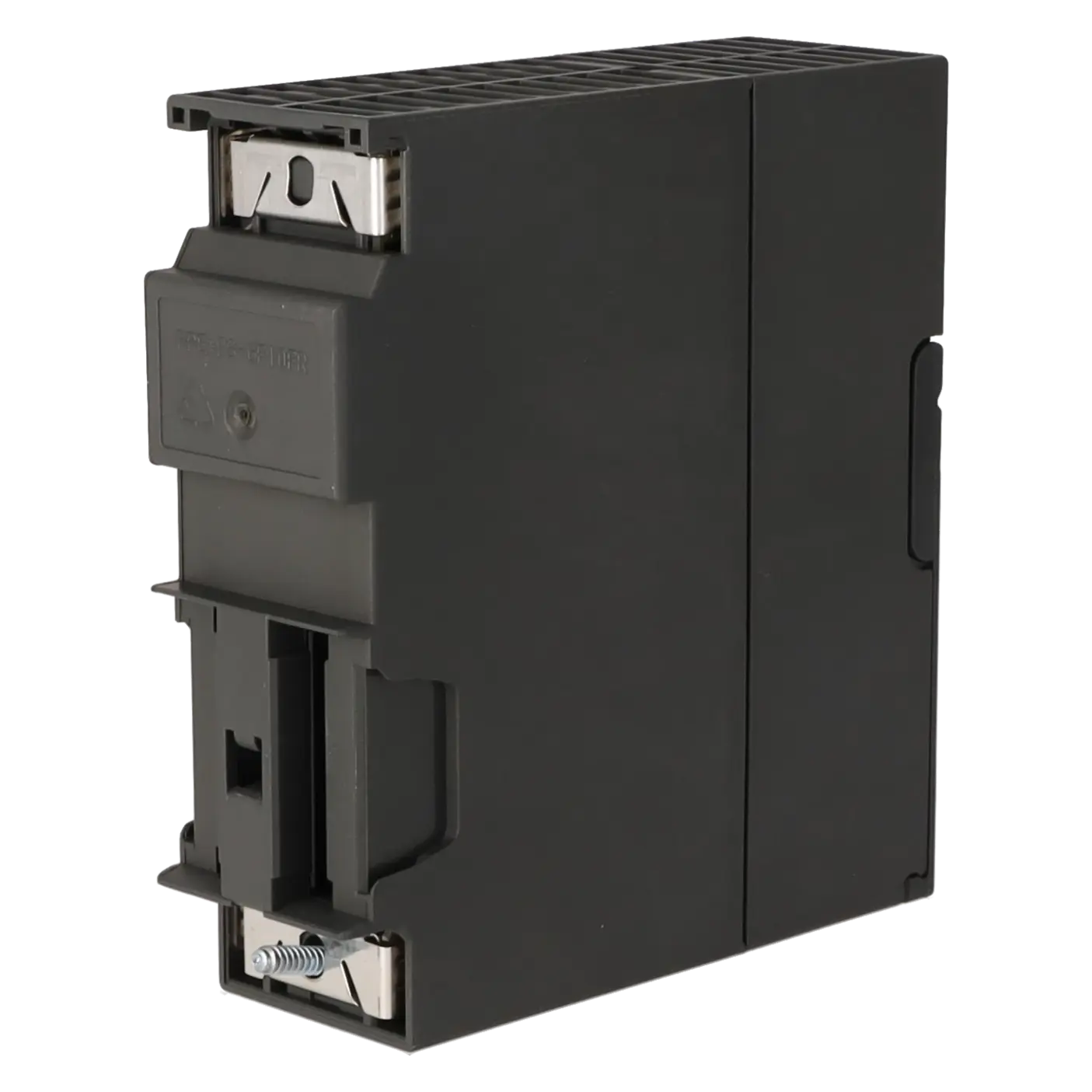

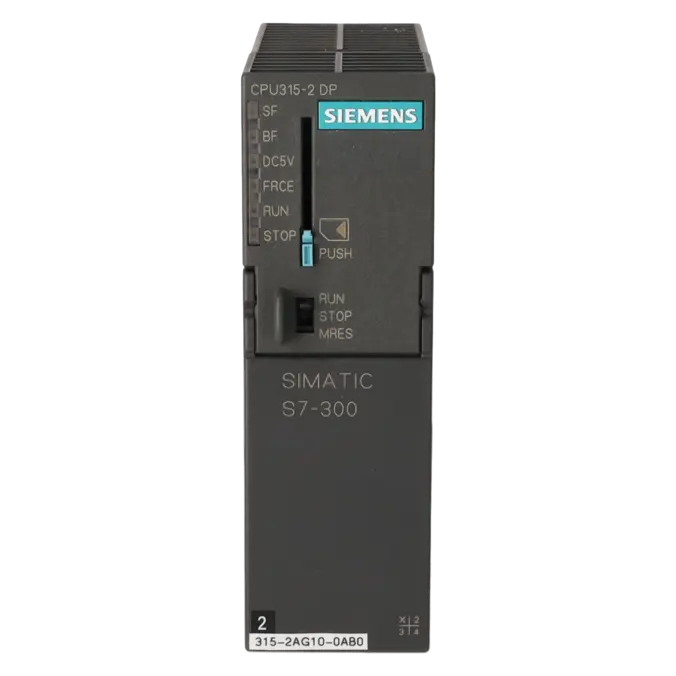

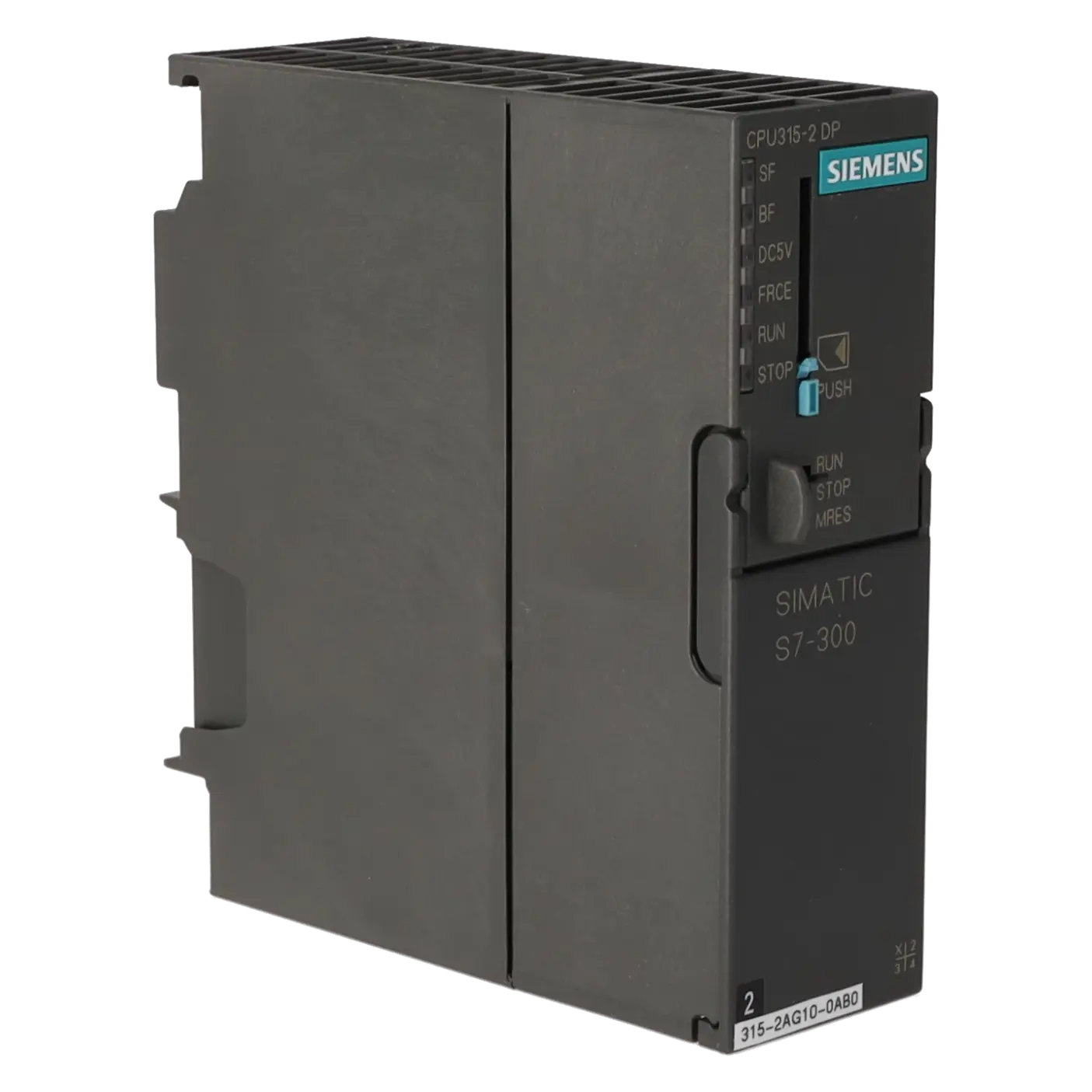

| HW functional status |
1 |
| Firmware version |
V2.6 |
| Engineering with |
|
| ● Programming package |
STEP 7 V5.2 + SP1 or higher with HW update |
| Supply voltage |
|
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
20.4 V |
| permissible range, upper limit (DC) |
28.8 V |
| external protection for power supply lines (recommendation) |
2 A min. |
| Input current |
|
| Current consumption (rated value) |
0.8 A |
| Current consumption (in no-load operation), typ. |
60 mA |
| Inrush current, typ. |
2.5 A |
| I²t |
0.5 A²·s |
| Power loss |
|
| Power loss, typ. |
2.5 W |
| Memory |
|
| Work memory |
|
| ● integrated |
128 kbyte; For program and data |
| ● expandable |
No |
| Load memory |
|
| ● Plug-in (MMC) |
Yes |
| ● Plug-in (MMC), max. |
8 Mbyte |
| ● Data management on MMC (after last programming), min. |
10 y |
| Backup |
|
| ● present |
Yes; Guaranteed by MMC (maintenance-free) |
| ● without battery |
Yes; Program and data |
| CPU processing times |
|
| for bit operations, typ. |
0.1 µs |
| for word operations, typ. |
0.2 µs |
| for fixed point arithmetic, typ. |
2 µs |
| for floating point arithmetic, typ. |
3 µs |
| CPU-blocks |
|
| Number of blocks (total) |
1 024; (DBs, FCs, FBs OBs, SDBs); the maximum number of loadable blocks can be reduced by the MMC being used. |
| DB |
|
| ● Number, max. |
1 023; Number band: 1 to 1023 |
| ● Size, max. |
16 kbyte |
| FB |
|
| ● Number, max. |
1 024; Number range: 0 to 2047 |
| ● Size, max. |
16 kbyte |
| FC |
|
| ● Number, max. |
1 024; Number range: 0 to 2047 |
| ● Size, max. |
16 kbyte |
| OB |
|
| ● Size, max. |
16 kbyte |
| ● Number of free cycle OBs |
1; OB 1 |
| ● Number of time alarm OBs |
1; OB 10 |
| ● Number of delay alarm OBs |
1; OB 20 |
| ● Number of cyclic interrupt OBs |
1; OB 35 |
| ● Number of process alarm OBs |
1; OB 40 |
| ● Number of DPV1 alarm OBs |
3; OB 55, 56, 57 |
| ● Number of startup OBs |
1; OB 100 |
| ● Number of asynchronous error OBs |
1; OB 80 |
| ● Number of synchronous error OBs |
2; OB 121, 122 |
| Nesting depth |
|
| ● per priority class |
8 |
| ● additional within an error OB |
4 |
| Counters, timers and their retentivity |
|
| S7 counter |
|
| ● Number |
256 |
| Retentivity |
|
| — adjustable |
Yes |
| — lower limit |
0 |
| — upper limit |
255 |
| — preset |
8 |
| Counting range |
|
| — adjustable |
Yes |
| — lower limit |
0 |
| — upper limit |
999 |
| IEC counter |
|
| ● present |
Yes |
| ● Type |
SFB |
| ● Number |
Unlimited (limited only by RAM capacity) |
| S7 times |
|
| ● Number |
256 |
| Retentivity |
|
| — adjustable |
Yes |
| — lower limit |
0 |
| — upper limit |
255 |
| — preset |
No retentivity |
| Time range |
|
| — lower limit |
10 ms |
| — upper limit |
9 990 s |
| IEC timer |
|
| ● present |
Yes |
| ● Type |
SFB |
| ● Number |
Unlimited (limited only by RAM capacity) |
| Data areas and their retentivity |
|
| Retentive data area (incl. timers, counters, flags), max. |
128 kbyte |
| Flag |
|
| ● Size, max. |
2 048 byte |
| ● Retentivity available |
Yes; MB 0 to MB 2 047 |
| ● Retentivity preset |
MB 0 to MB 15 |
| ● Number of clock memories |
8; 1 memory byte |
| Data blocks |
|
| ● Retentivity adjustable |
Yes; via non-retain property on DB |
| ● Retentivity preset |
Yes |
| Local data |
|
| ● per priority class, max. |
1 024 byte; per block max. 510 |
| Address area |
|
| I/O address area |
|
| ● Inputs |
2 kbyte |
| ● Outputs |
2 kbyte |
| of which distributed |
|
| — Inputs |
2 kbyte |
| — Outputs |
2 kbyte |
| Process image |
|
| ● Inputs |
128 byte |
| ● Outputs |
128 byte |
| Digital channels |
|
| ● Inputs |
16 384 |
| — of which central |
1 024 |
| ● Outputs |
16 384 |
| — of which central |
1 024 |
| Analog channels |
|
| ● Inputs |
1 024 |
| — of which central |
256 |
| ● Outputs |
1 024 |
| — of which central |
256 |
| Hardware configuration |
|
| Number of expansion units, max. |
3 |
| Number of DP masters |
|
| ● integrated |
1 |
| ● via CP |
4 |
| Number of operable FMs and CPs (recommended) |
|
| ● FM |
8 |
| ● CP, PtP |
8 |
| ● CP, LAN |
10 |
| Rack |
|
| ● Racks, max. |
4 |
| ● Modules per rack, max. |
8 |
| Time of day |
|
| Clock |
|
| ● Hardware clock (real-time) |
Yes |
| ● retentive and synchronizable |
Yes |
| ● Backup time |
6 wk; At 40 °C ambient temperature |
| ● Deviation per day, max. |
10 s |
| Operating hours counter |
|
| ● Number |
1 |
| ● Number/Number range |
0 |
| ● Range of values |
0 to 2^31 hours (when using SFC 101) |
| ● Granularity |
1 h |
| ● retentive |
Yes; Must be restarted at each restart |
| Clock synchronization |
|
| ● supported |
Yes |
| ● to MPI, master |
Yes |
| ● to MPI, slave |
Yes |
| ● to DP, master |
Yes; With DP slave only slave clock |
| ● to DP, slave |
Yes |
| ● in AS, master |
Yes |
| ● in AS, slave |
No |
| ● on Ethernet via NTP |
No |
| Digital inputs |
|
| integrated channels (DI) |
0 |
| Digital outputs |
|
| integrated channels (DO) |
0 |
| Analog inputs |
|
| integrated channels (AI) |
0 |
| Analog outputs |
|
| integrated channels (AO) |
0 |
| Interfaces |
|
| Number of industrial Ethernet interfaces |
0 |
| Number of PROFINET interfaces |
0 |
| Number of RS 485 interfaces |
1 |
| Number of RS 422 interfaces |
0 |
| 1. Interface |
|
| Interface type |
Integrated RS 485 interface |
| Isolated |
No |
| Interface types |
|
| ● RS 485 |
Yes |
| ● Output current of the interface, max. |
200 mA |
| Protocols |
|
| ● MPI |
Yes |
| ● PROFIBUS DP master |
No |
| ● PROFIBUS DP slave |
No |
| ● Point-to-point connection |
No |
| MPI |
|
| ● Number of connections |
16 |
| ● Transmission rate, max. |
187.5 kbit/s |
| Services |
|
| — PG/OP communication |
Yes |
| — Routing |
Yes |
| — Global data communication |
Yes |
| — S7 basic communication |
Yes |
| — S7 communication |
Yes |
| — S7 communication, as client |
No |
| — S7 communication, as server |
Yes |
| 2. Interface |
|
| Interface type |
Integrated RS 485 interface |
| Isolated |
Yes |
| Interface types |
|
| ● RS 485 |
Yes |
| ● Output current of the interface, max. |
200 mA |
| Protocols |
|
| ● MPI |
No |
| ● PROFIBUS DP master |
Yes |
| ● PROFIBUS DP slave |
Yes |
| ● Point-to-point connection |
No |
| PROFIBUS DP master |
|
| ● Number of connections, max. |
16 |
| ● Transmission rate, max. |
12 Mbit/s |
| ● Number of DP slaves, max. |
124; Per station |
| Services |
|
| — PG/OP communication |
Yes |
| — Routing |
Yes |
| — Global data communication |
No |
| — S7 basic communication |
Yes; I blocks only |
| — S7 communication |
Yes |
| — S7 communication, as client |
No |
| — S7 communication, as server |
Yes |
| — Equidistance |
Yes |
| — Isochronous mode |
No |
| — SYNC/FREEZE |
Yes |
| — DPV1 |
Yes |
| Address area |
|
| — Inputs, max. |
2 048 byte |
| — Outputs, max. |
2 048 byte |
| User data per DP slave |
|
| — Inputs, max. |
244 byte |
| — Outputs, max. |
244 byte |
| PROFIBUS DP slave |
|
| ● Number of connections |
16 |
| ● GSD file |
The latest GSD file is available at: http://www.siemens.com/profibus-gsd |
| ● Transmission rate, max. |
12 Mbit/s |
| ● automatic baud rate search |
Yes; only with passive interface |
| ● Address area, max. |
32 |
| ● User data per address area, max. |
32 byte |
| Services |
|
| — PG/OP communication |
Yes |
| — Routing |
Yes; with interface active |
| — Global data communication |
No |
| — S7 basic communication |
No |
| — S7 communication |
Yes |
| — S7 communication, as client |
No |
| — S7 communication, as server |
Yes |
| — Direct data exchange (slave-to-slave communication) |
Yes |
| — DPV1 |
No |
| Transfer memory |
|
| — Inputs |
244 byte |
| — Outputs |
244 byte |
| Protocols |
|
| PROFIsafe |
No |
| communication functions / header |
|
| PG/OP communication |
Yes |
| Global data communication |
|
| ● supported |
Yes |
| ● Number of GD loops, max. |
8 |
| ● Number of GD packets, max. |
8 |
| ● Number of GD packets, transmitter, max. |
8 |
| ● Number of GD packets, receiver, max. |
8 |
| ● Size of GD packets, max. |
22 byte |
| ● Size of GD packet (of which consistent), max. |
22 byte |
| S7 basic communication |
|
| ● supported |
Yes |
| ● User data per job, max. |
76 byte |
| ● User data per job (of which consistent), max. |
76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server) |
| S7 communication |
|
| ● supported |
Yes |
| ● as server |
Yes |
| ● as client |
Yes; Via CP and loadable FB |
| ● User data per job, max. |
180 byte; With PUT/GET |
| ● User data per job (of which consistent), max. |
64 byte; as server |
| S5 compatible communication |
|
| ● supported |
Yes; via CP and loadable FC |
| Number of connections |
|
| ● overall |
16 |
| ● usable for PG communication |
15 |
| — reserved for PG communication |
1 |
| — adjustable for PG communication, min. |
1 |
| — adjustable for PG communication, max. |
15 |
| ● usable for OP communication |
15 |
| — reserved for OP communication |
1 |
| — adjustable for OP communication, min. |
1 |
| — adjustable for OP communication, max. |
15 |
| ● usable for S7 basic communication |
12 |
| — reserved for S7 basic communication |
0 |
| — adjustable for S7 basic communication, min. |
0 |
| — adjustable for S7 basic communication, max. |
12 |
| ● usable for routing |
4 |
| S7 message functions |
|
| Number of login stations for message functions, max. |
16; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages |
Yes |
| simultaneously active Alarm-S blocks, max. |
40 |
| Test commissioning functions |
|
| Status block |
Yes |
| Single step |
Yes |
| Number of breakpoints |
2 |
| Status/control |
|
| ● Status/control variable |
Yes |
| ● Variables |
Inputs, outputs, memory bits, DB, times, counters |
| ● Number of variables, max. |
30 |
| — of which status variables, max. |
30 |
| — of which control variables, max. |
14 |
| Forcing |
|
| ● Forcing |
Yes |
| ● Forcing, variables |
Inputs, outputs |
| ● Number of variables, max. |
10 |
| Diagnostic buffer |
|
| ● present |
Yes |
| ● Number of entries, max. |
100 |
| — adjustable |
No |
| configuration / header |
|
| Configuration software |
|
| ● STEP 7 |
Yes; V5.2 SP1 or higher with HW update |
| configuration / programming / header |
|
| ● Command set |
see instruction list |
| ● Nesting levels |
8 |
| ● System functions (SFC) |
see instruction list |
| ● System function blocks (SFB) |
see instruction list |
| Programming language |
|
| — LAD |
Yes |
| — FBD |
Yes |
| — STL |
Yes |
| — SCL |
Yes |
| — CFC |
Yes |
| — GRAPH |
Yes |
| — HiGraph® |
Yes |
| Know-how protection |
|
| ● User program protection/password protection |
Yes |
| Dimensions |
|
| Width |
40 mm |
| Height |
125 mm |
| Depth |
130 mm |
| Weights |
|
| Weight, approx. |
290 g |
