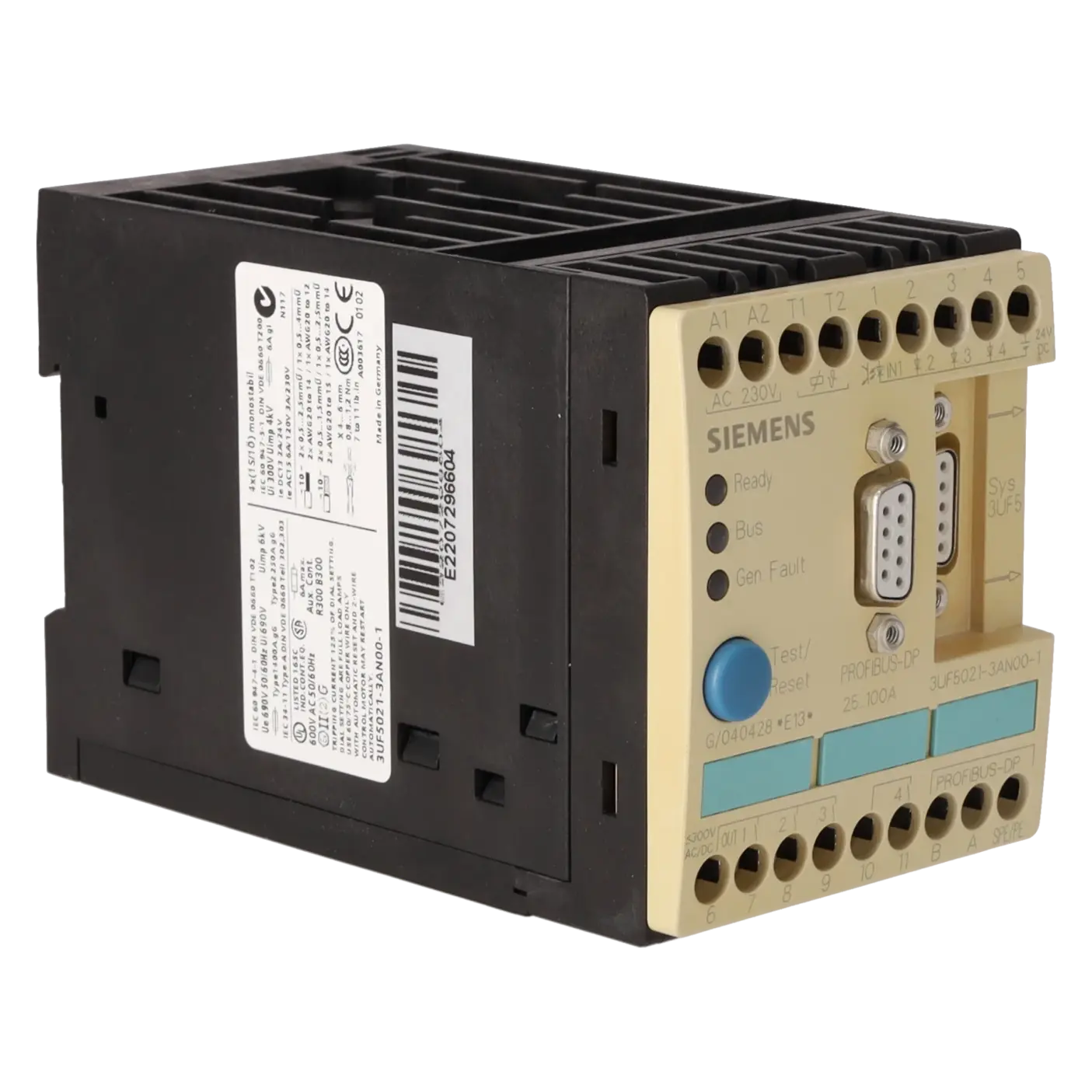

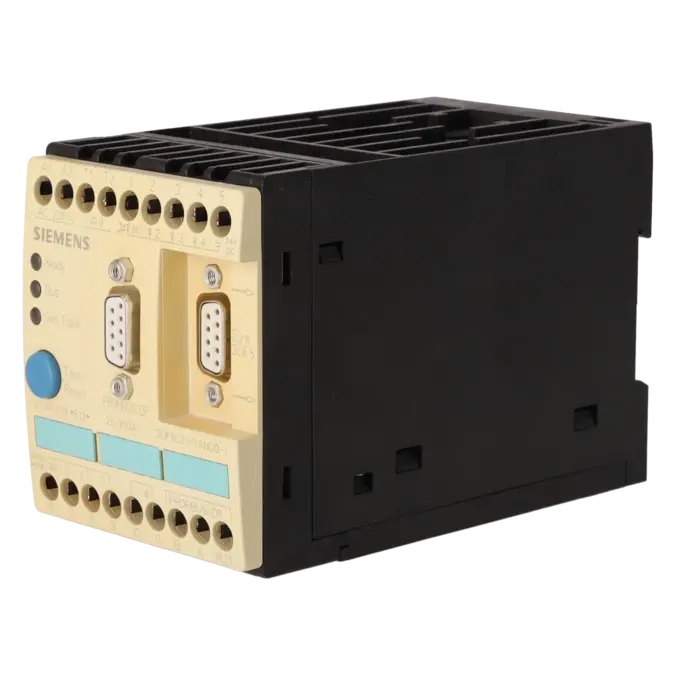

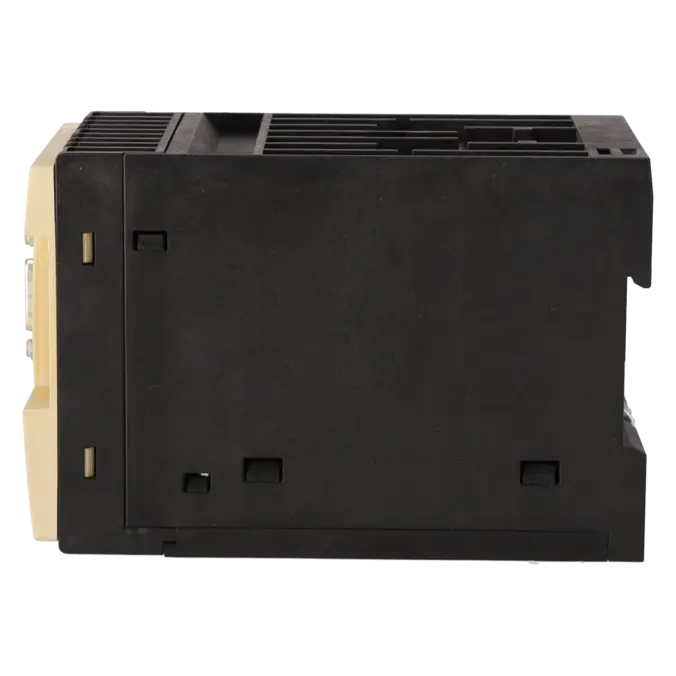

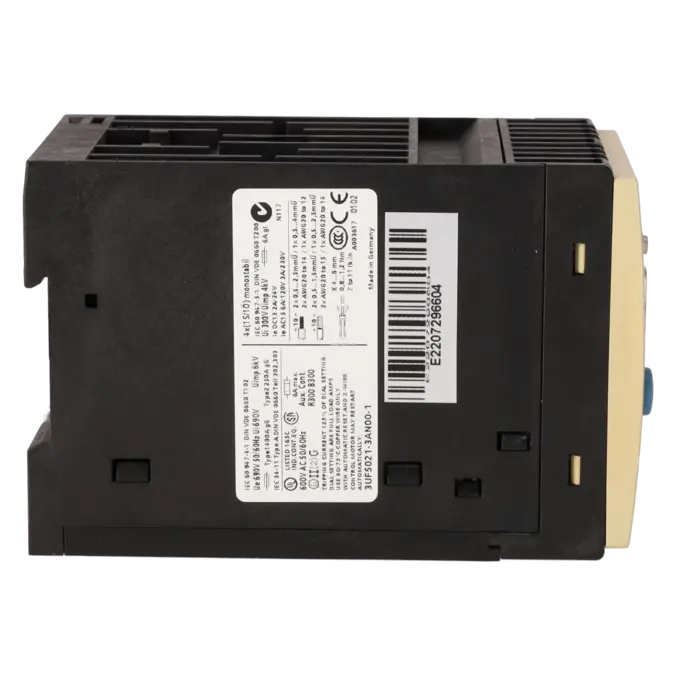

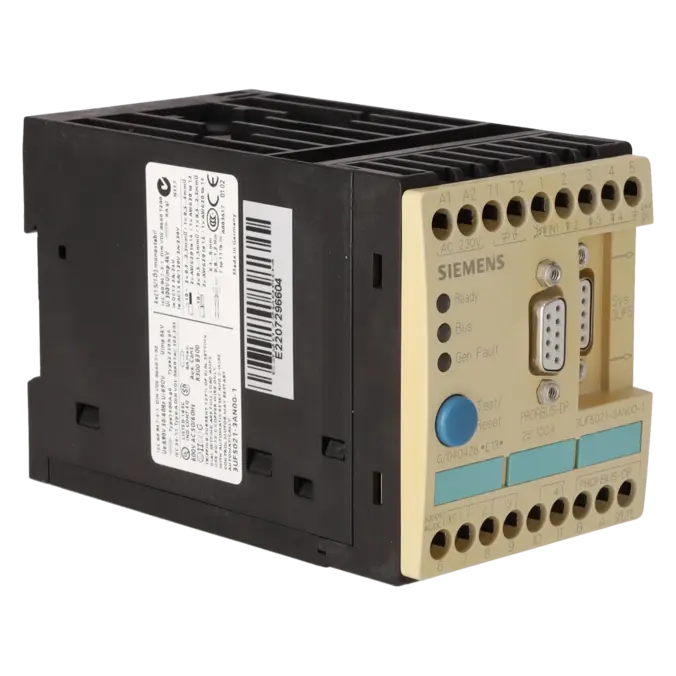

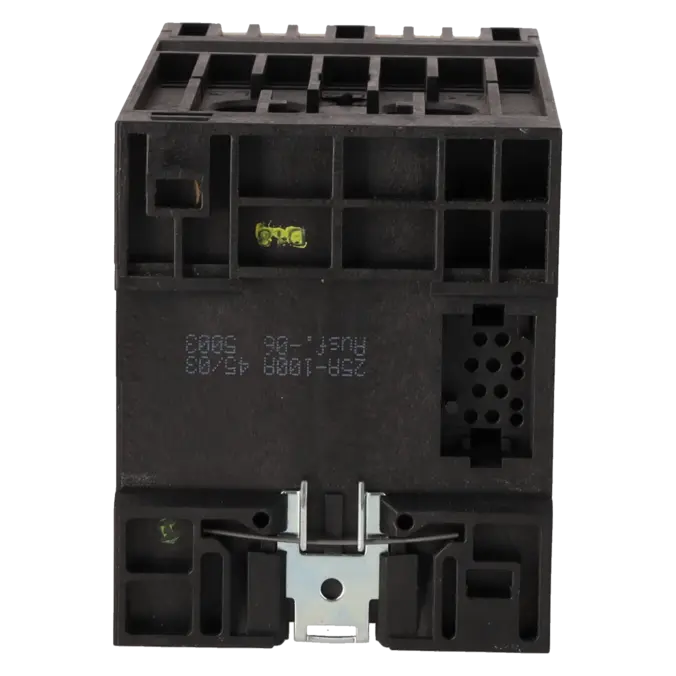

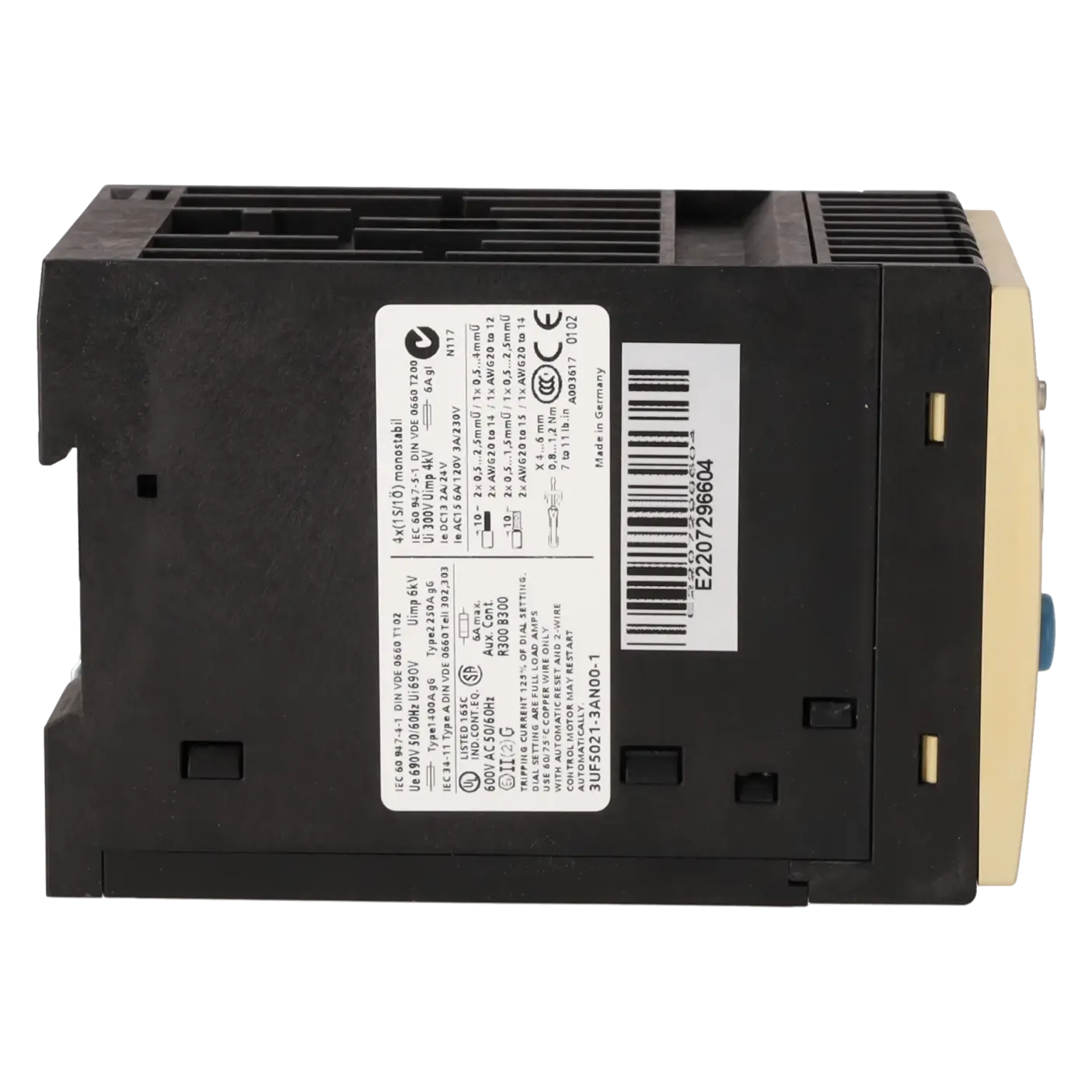

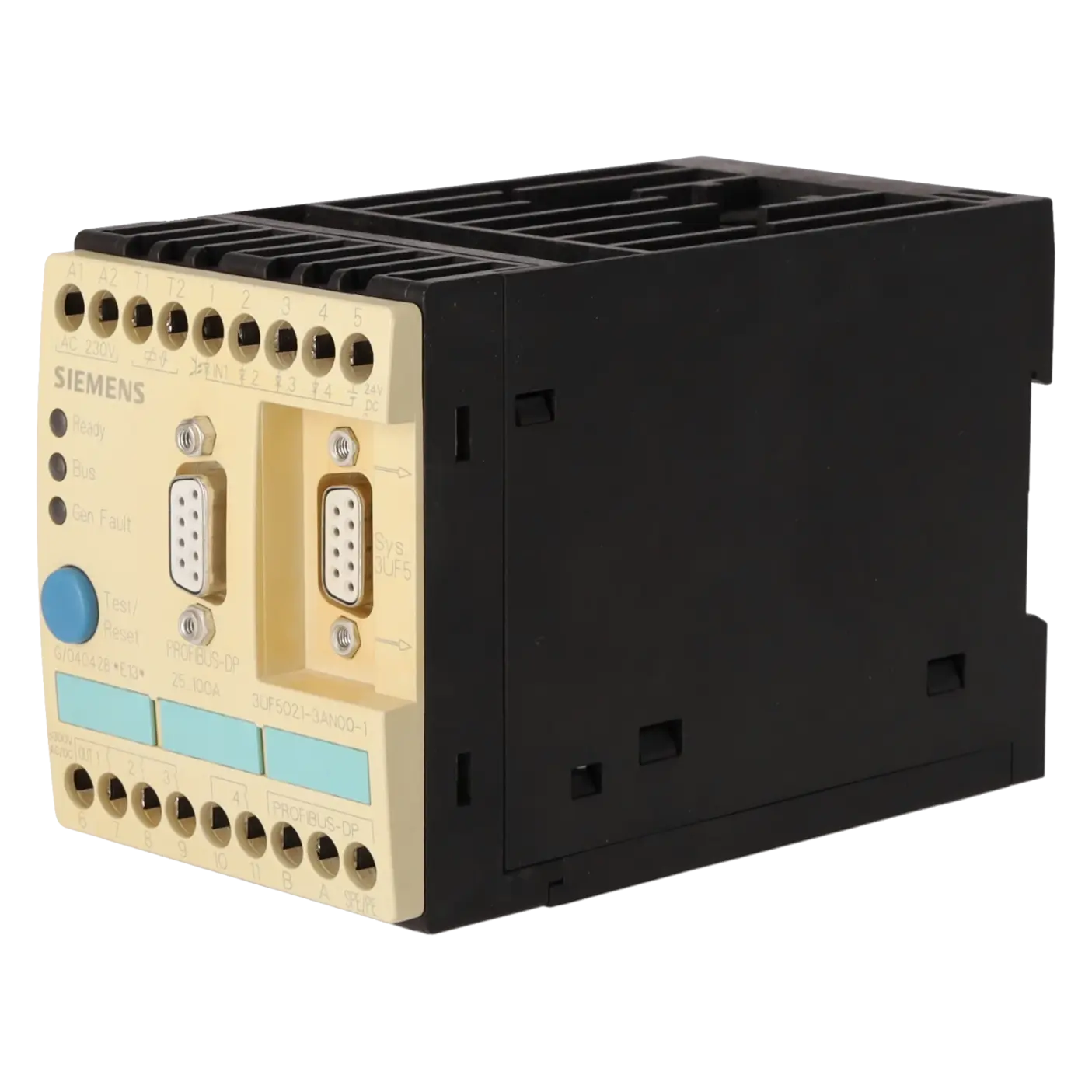

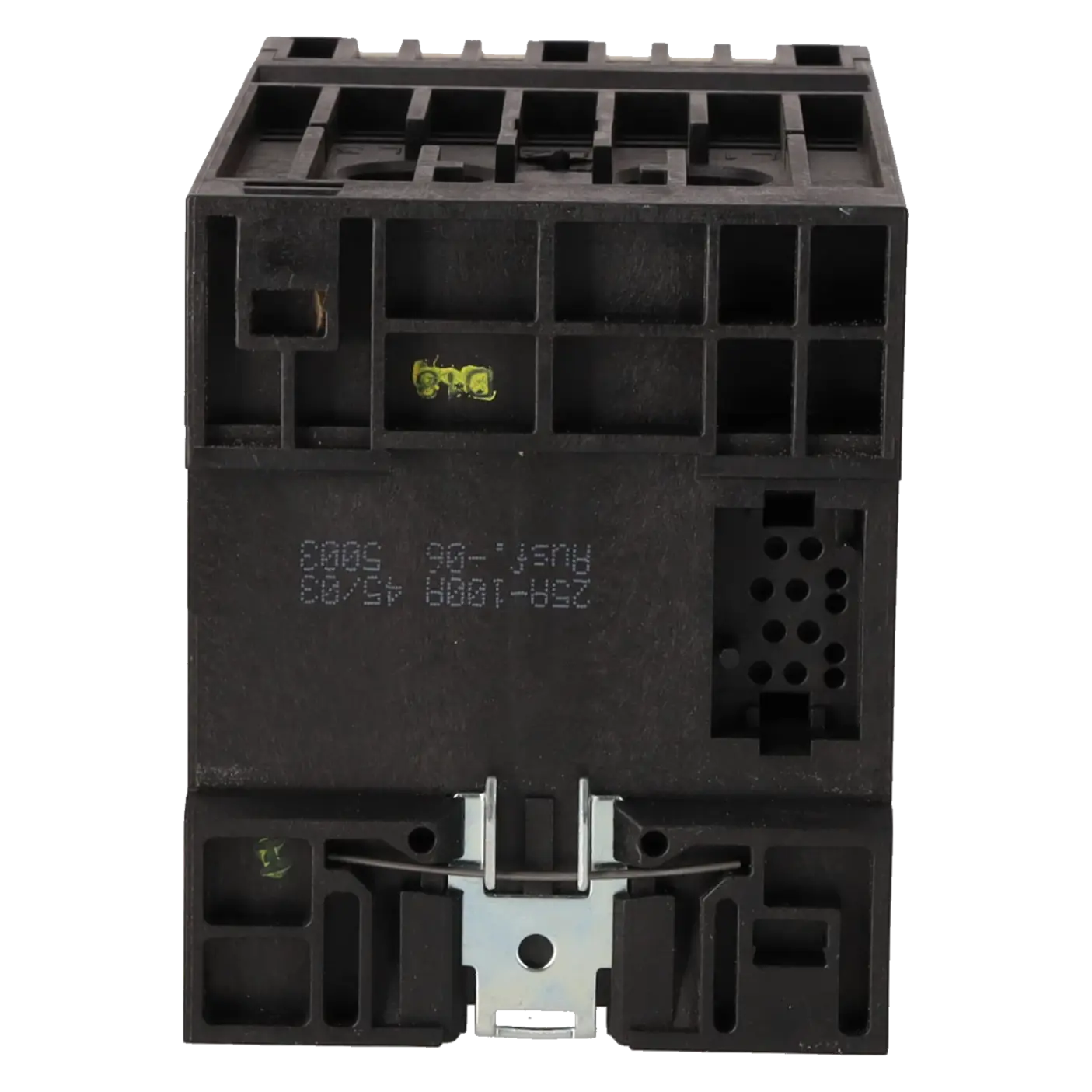

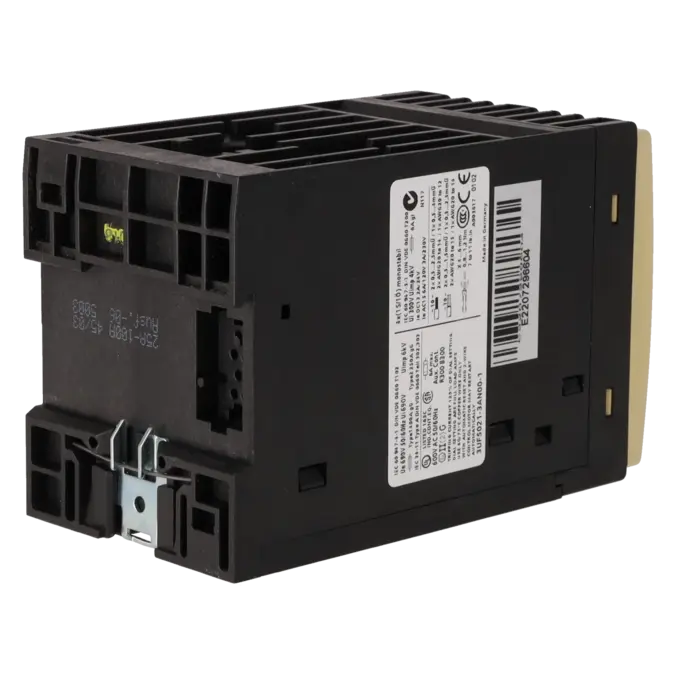

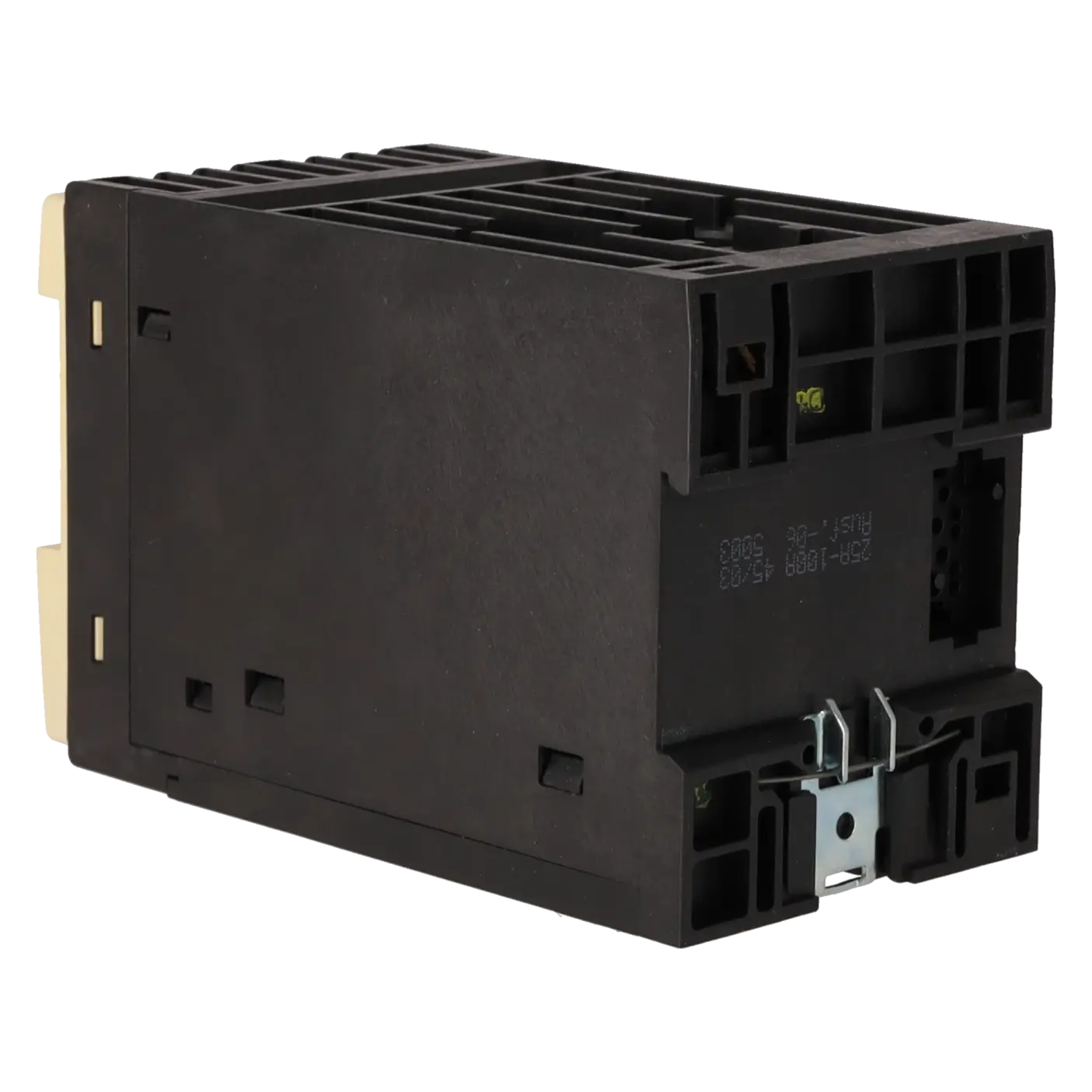

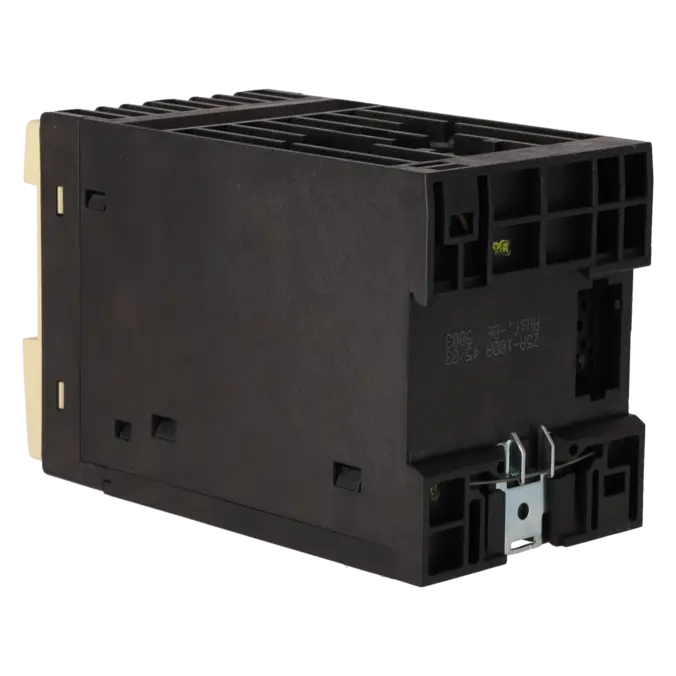

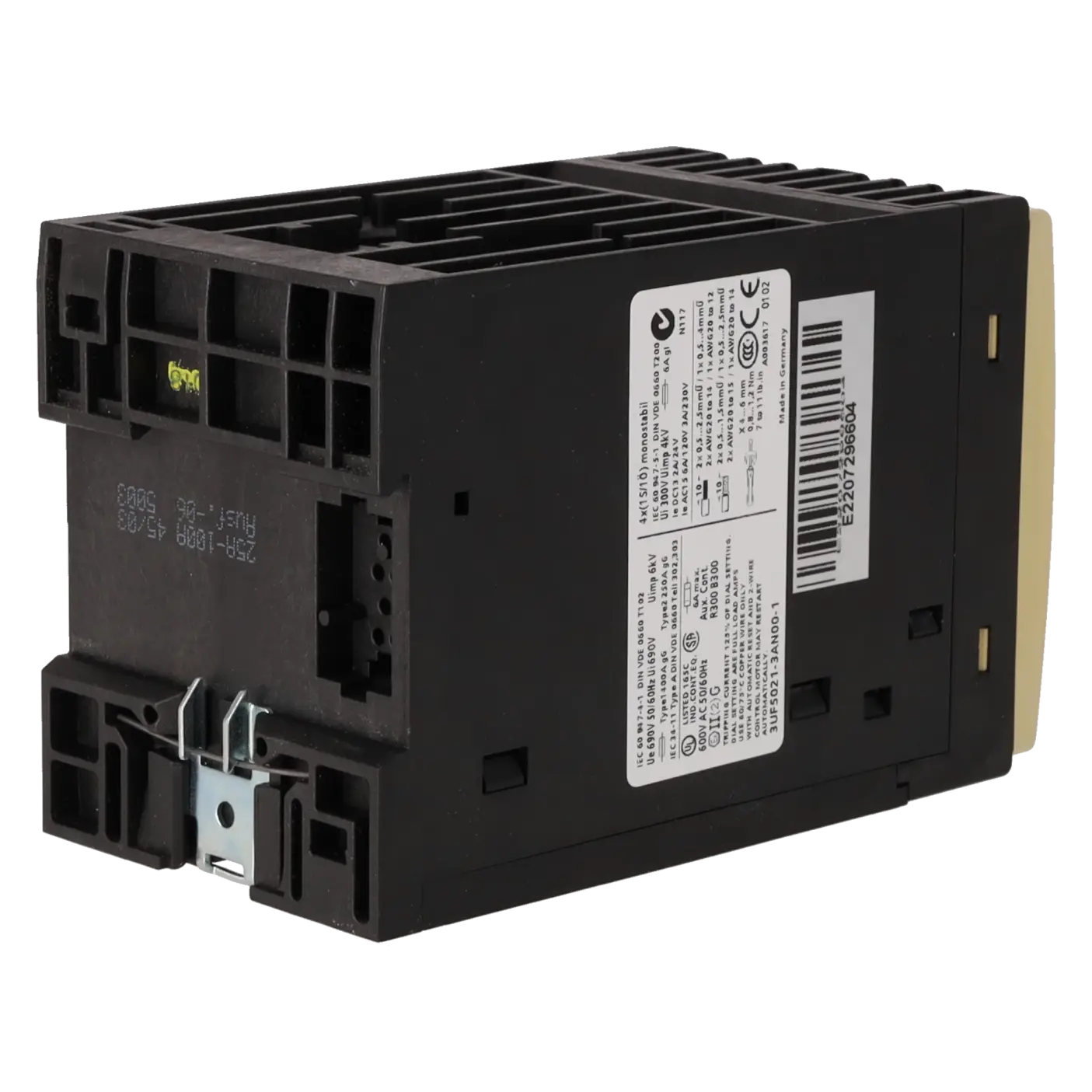

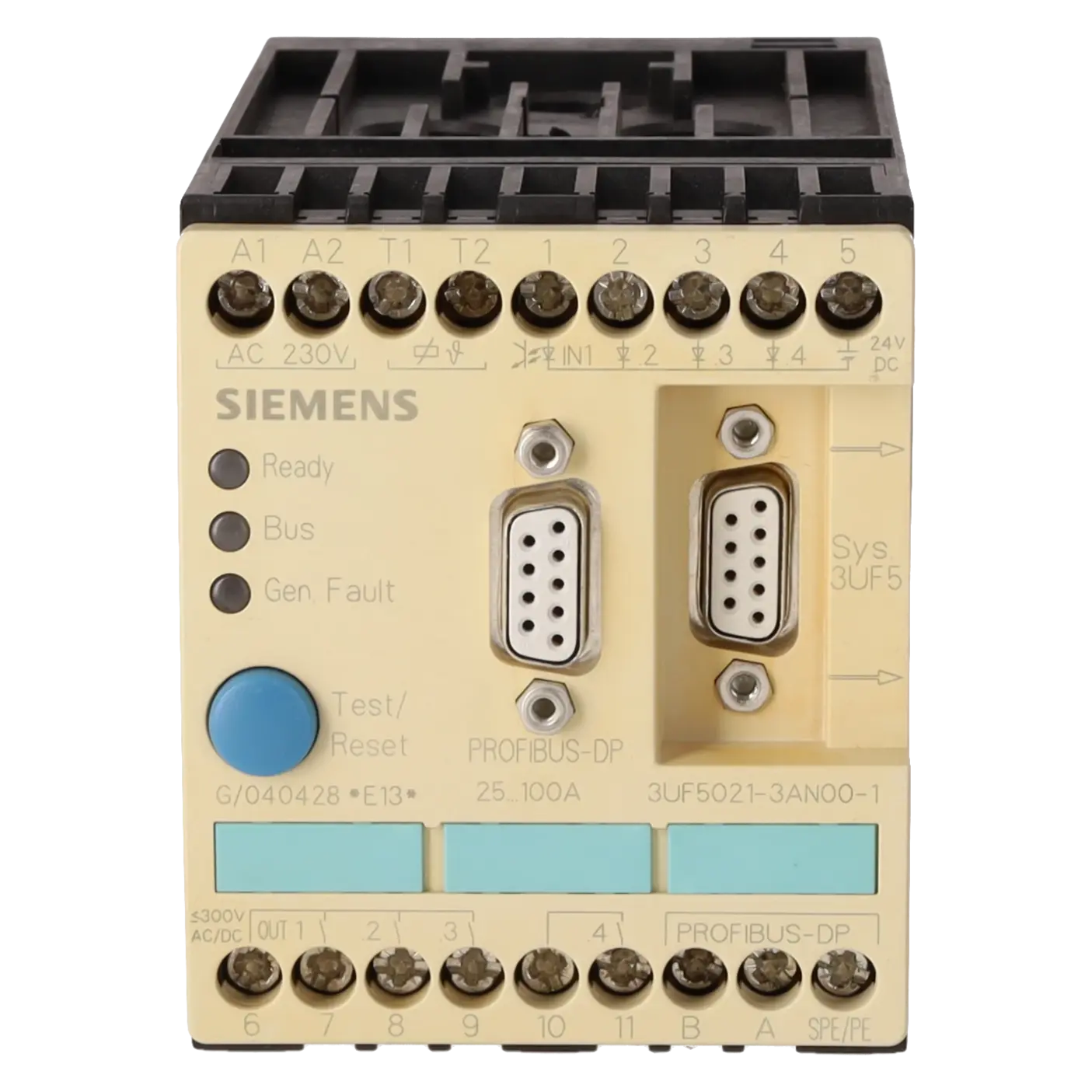

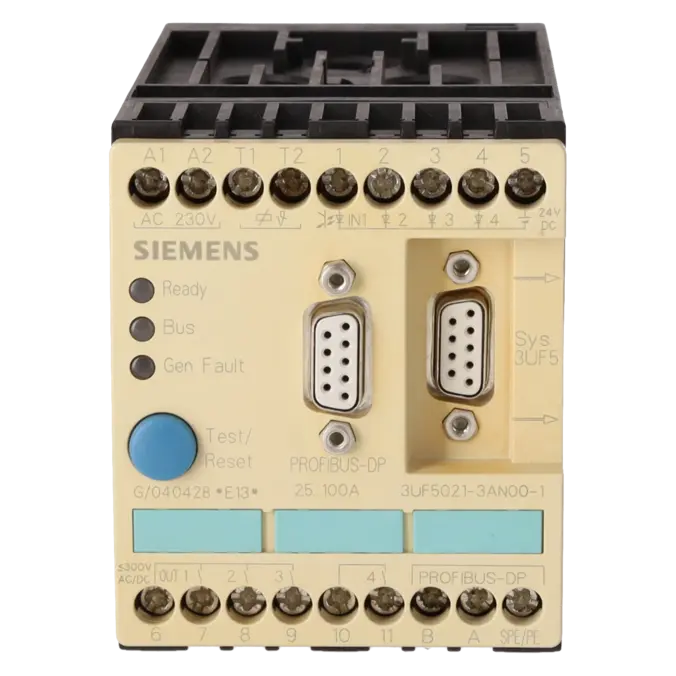

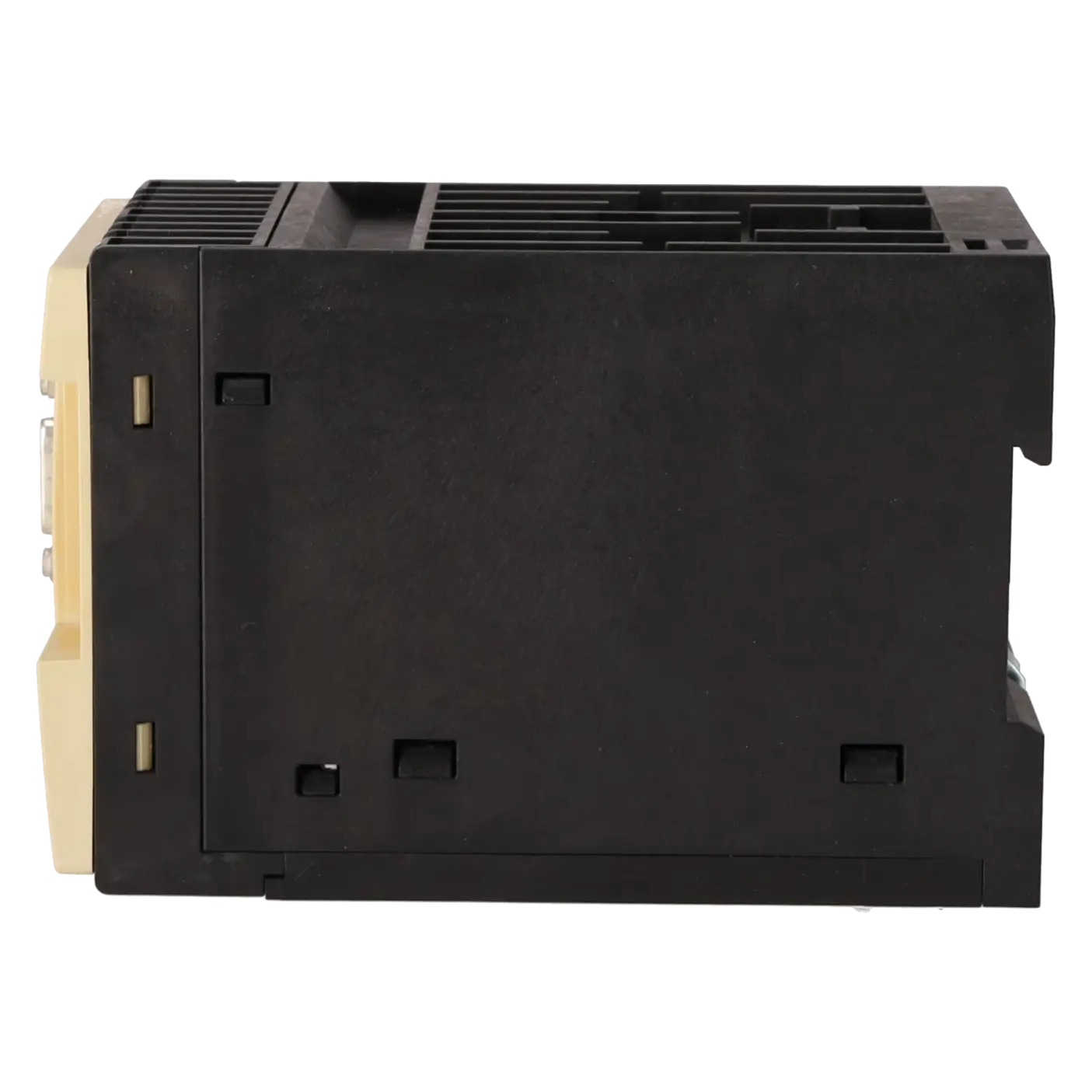

SIEMENS 3UF5021-3AN00-1
- EICHLER-art.no.: K0102981
- EAN: 4011209254640
Product description
GRUNDGERAET SIMOCODE DP PROFIBUS DP-SCHNITTSTELLE 1,5 MBAUD, RS485 4E/4A FREI PARAMETRIERBAR US: AC 230V 50/60HZ 25...100A, BAUBR. 70MM EINGANG F. THERMISTORANSCHLUSS MONOSTABILE AUSGAENGE
Services for SIEMENS 3UF5021-3AN00-1
SIEMENS |
3UF5021-3AN00-1 –
additional product information
| Delivery information | |||
|---|---|---|---|
| Export identifier | AL: ECCN: | ||
| Net weight | 0.76 | ||
| Quantity | 1 Stück | ||
| Packaging quantity | 1 | ||
| Additional product information | |||
|---|---|---|---|
| Product status | EOP: 2010-10-01 | ||
| EAN | 4011209254640 | ||
| UPC | / | ||
| Static lot number | 85364900 | ||
| List indicator | / | ||
| Product group | 5836 | ||
| Country of origin | DE | ||
| Compliance with the substance restrictions according to RoHS directive | Since: / | ||
| Product classifications | Version | Classification | |
|---|---|---|---|
| eClass | 4 | / | |
| eClass | 5.1 | / | |
| eClass | 6.0 | / | |
| ETIM | 3 | / | |
| ETIM | 4 | / | |
| ETIM | 5 | / | |
| Attribute | Value |
|---|---|
| General technical data | |
| product component | |
| ● input for thermistor connection | Yes |
| protection class IP | IP20 |
| reference code acc. to IEC 81346-2 | F |
| Inputs/ Outputs | |
| number of inputs | 4 |
| number of outputs | 4 |
| switching behavior | monostable |
| Installation/ mounting/ dimensions | |
| fastening method | screw and snap-on mounting |
| height | 85 mm |
| width | 70 mm |
| depth | 132.5 mm |
| Ambient conditions | |
| ambient temperature | |
| ● during operation | -25 ... +60 °C |
| Main circuit | |
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 25 ... 100 A |
| operating voltage | |
| ● rated value | 110 ... 690 V |
| operating frequency rated value | 50 ... 60 Hz |
| Control circuit/ Control | |
| type of voltage | AC |
| control supply voltage at AC | |
| ● at 50 Hz rated value | 230 ... 230 V |
| ● at 60 Hz rated value | 230 ... 230 V |
| supply voltage frequency for auxiliary and control circuit rated value | 50 ... 60 Hz |
| Auxiliary circuit | |
| number of NO contacts for auxiliary contacts | 4 |
