SIEMENS 6ES7321-1BL00-0AA0

What is 6ES7321-1BL00-0AA0 and where is it used?

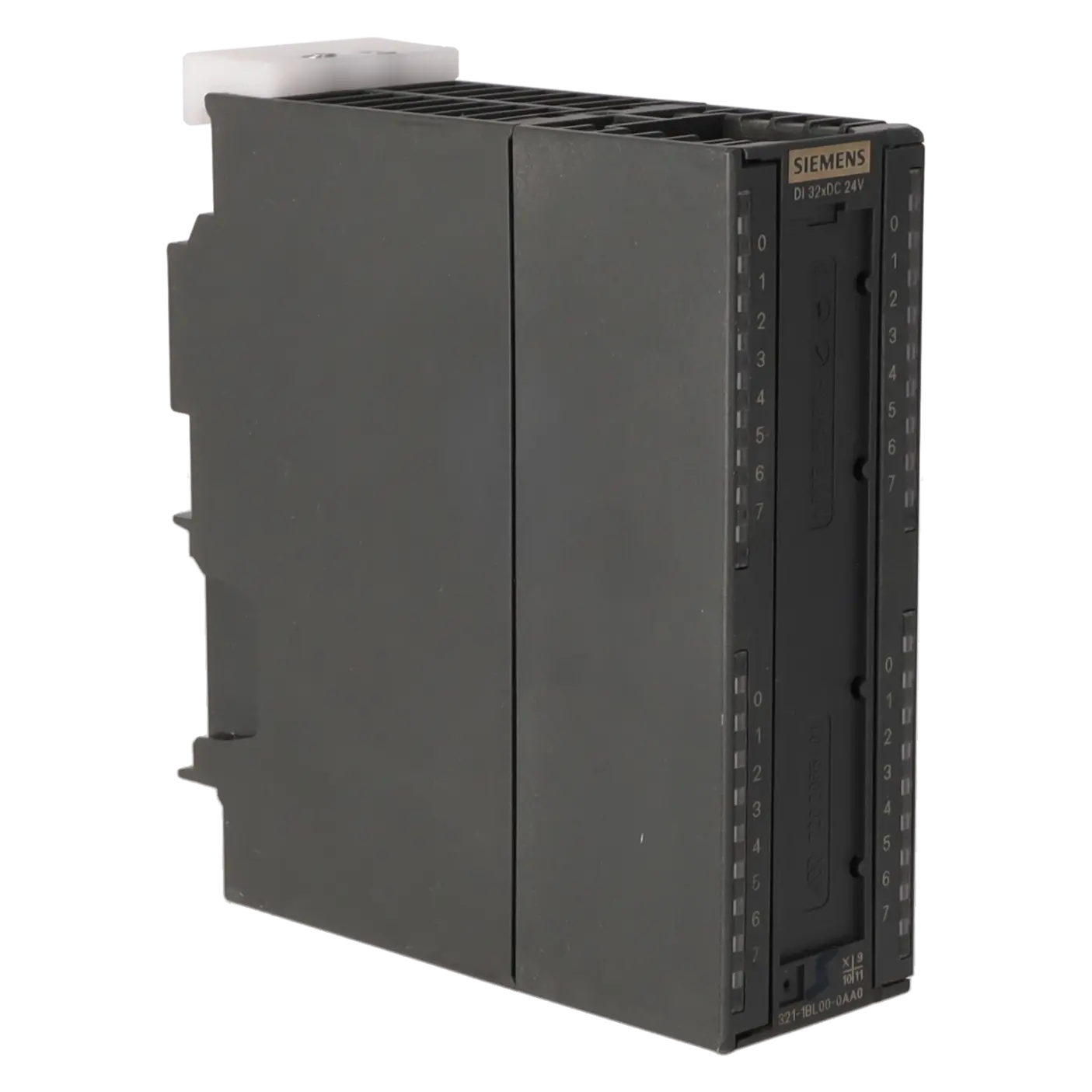

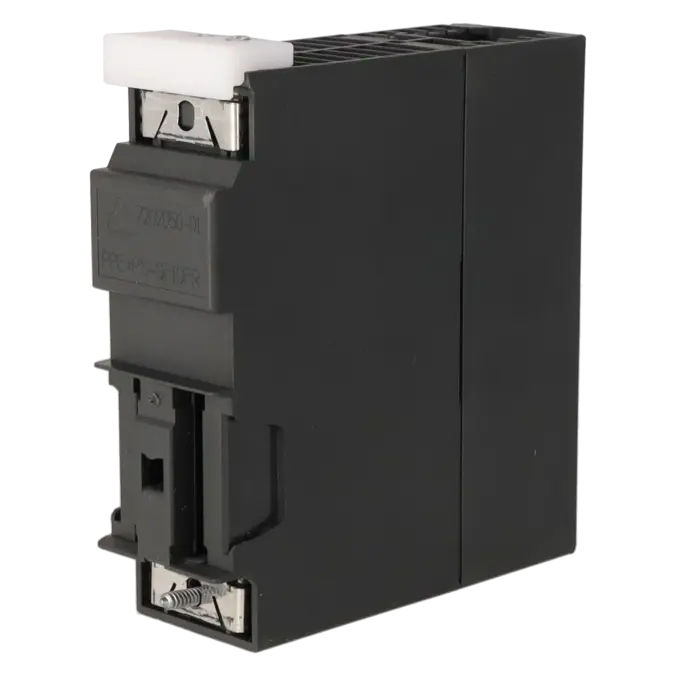

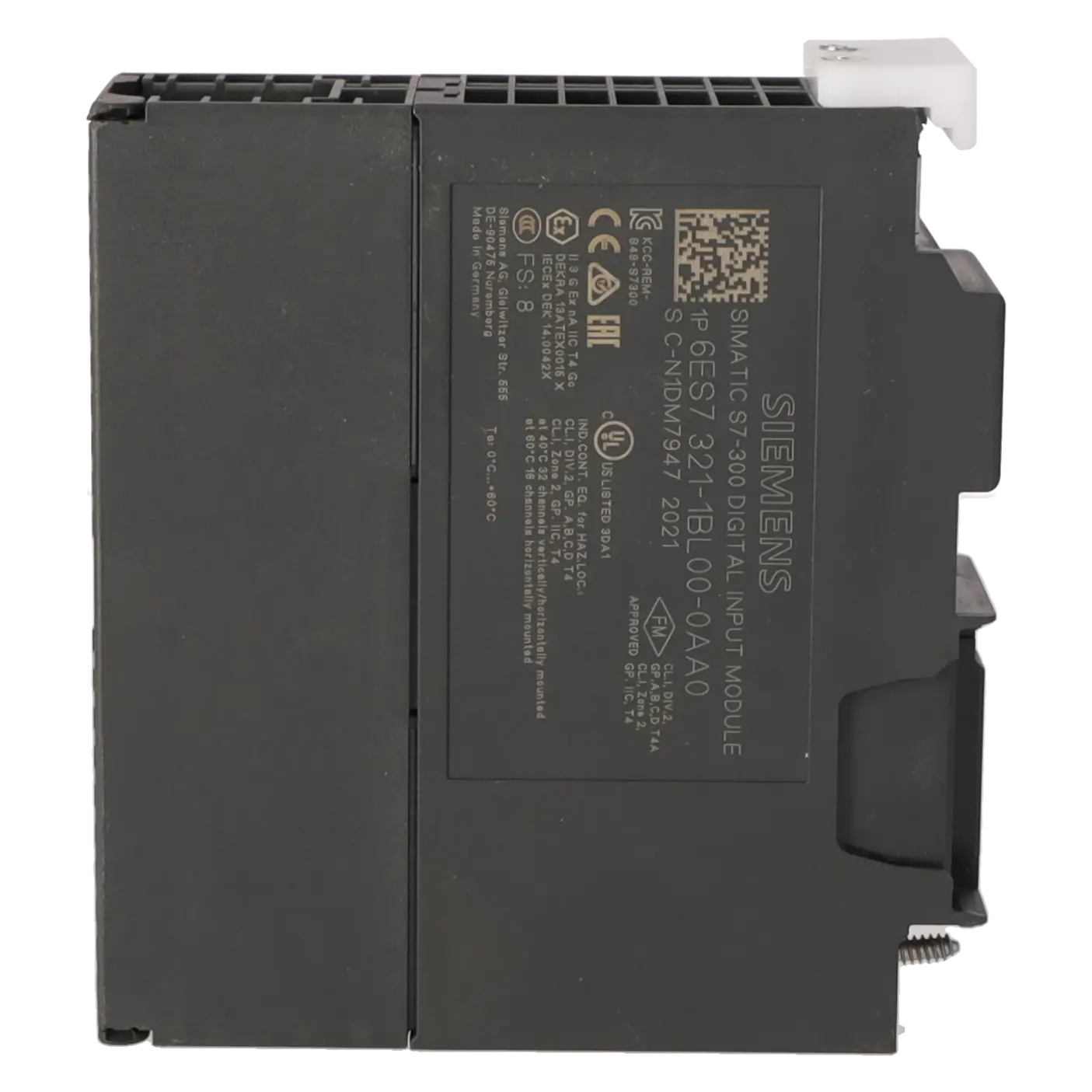

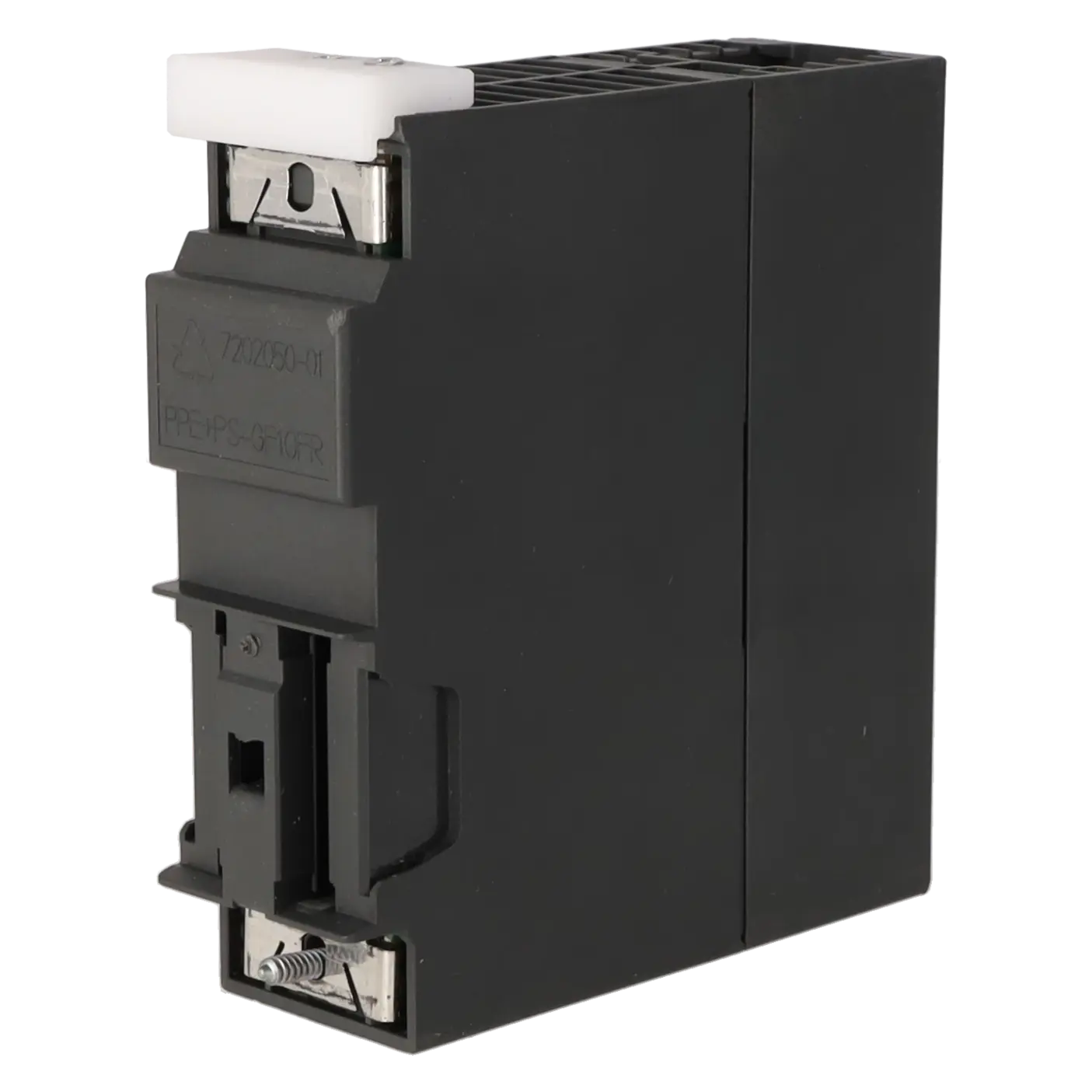

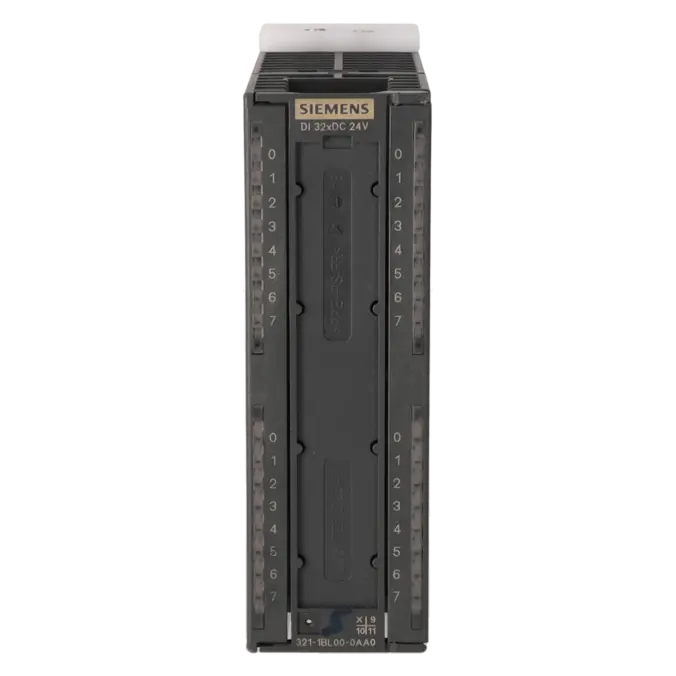

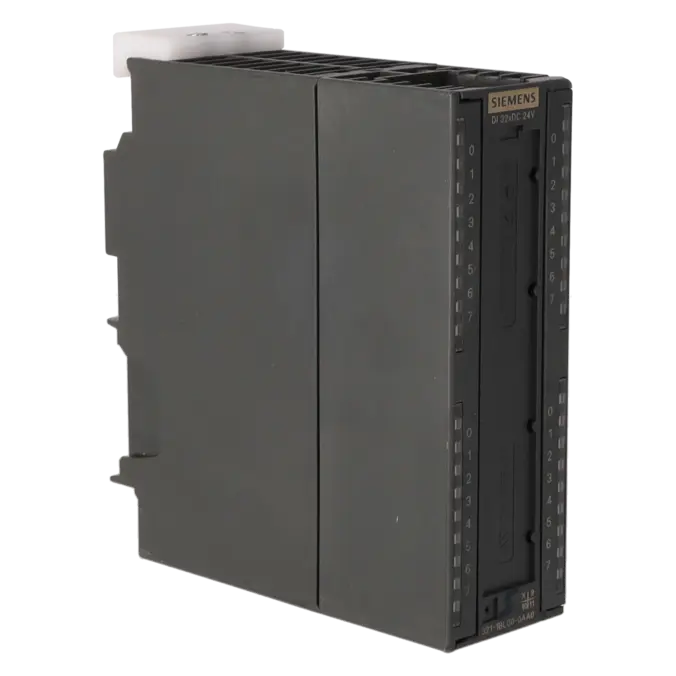

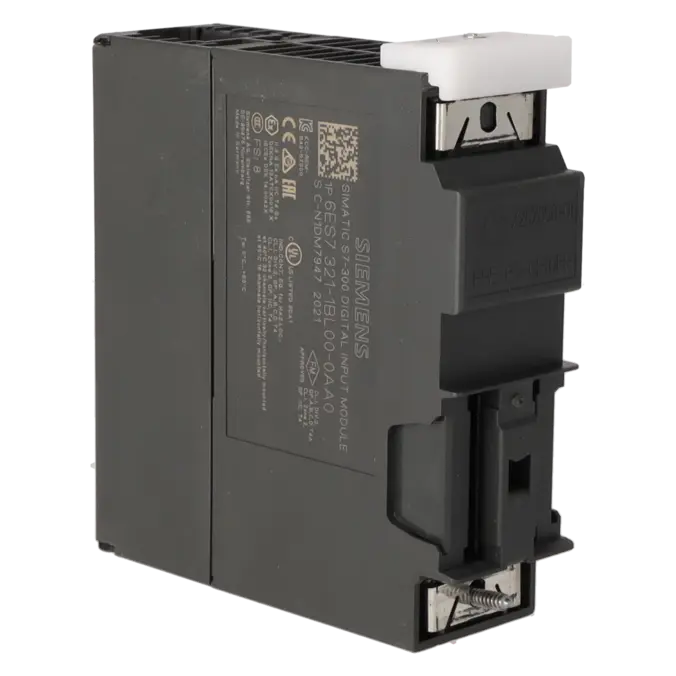

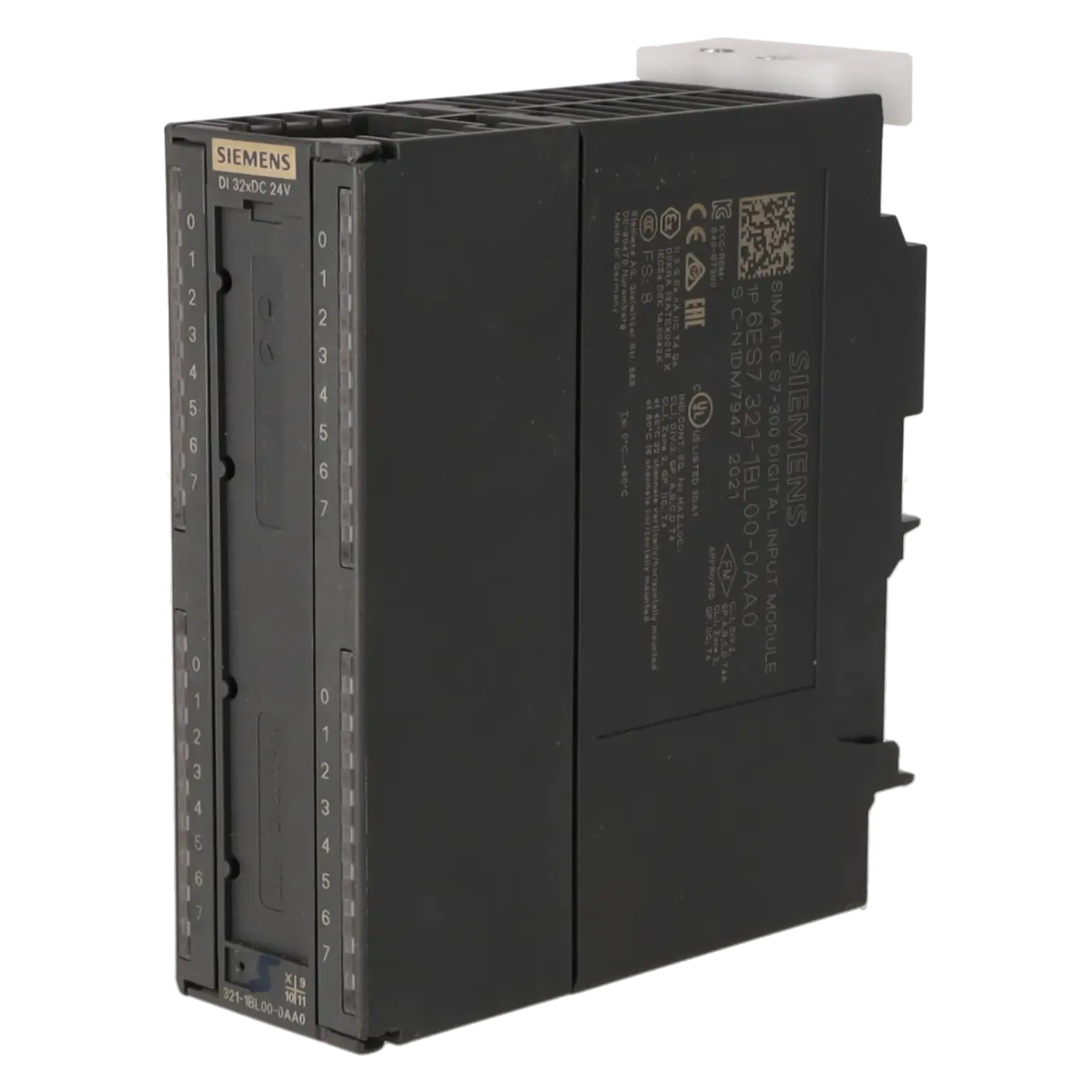

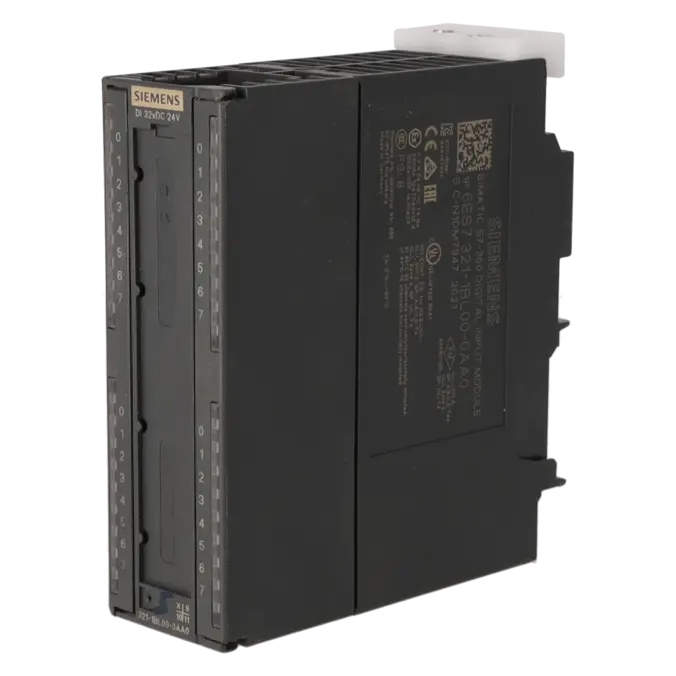

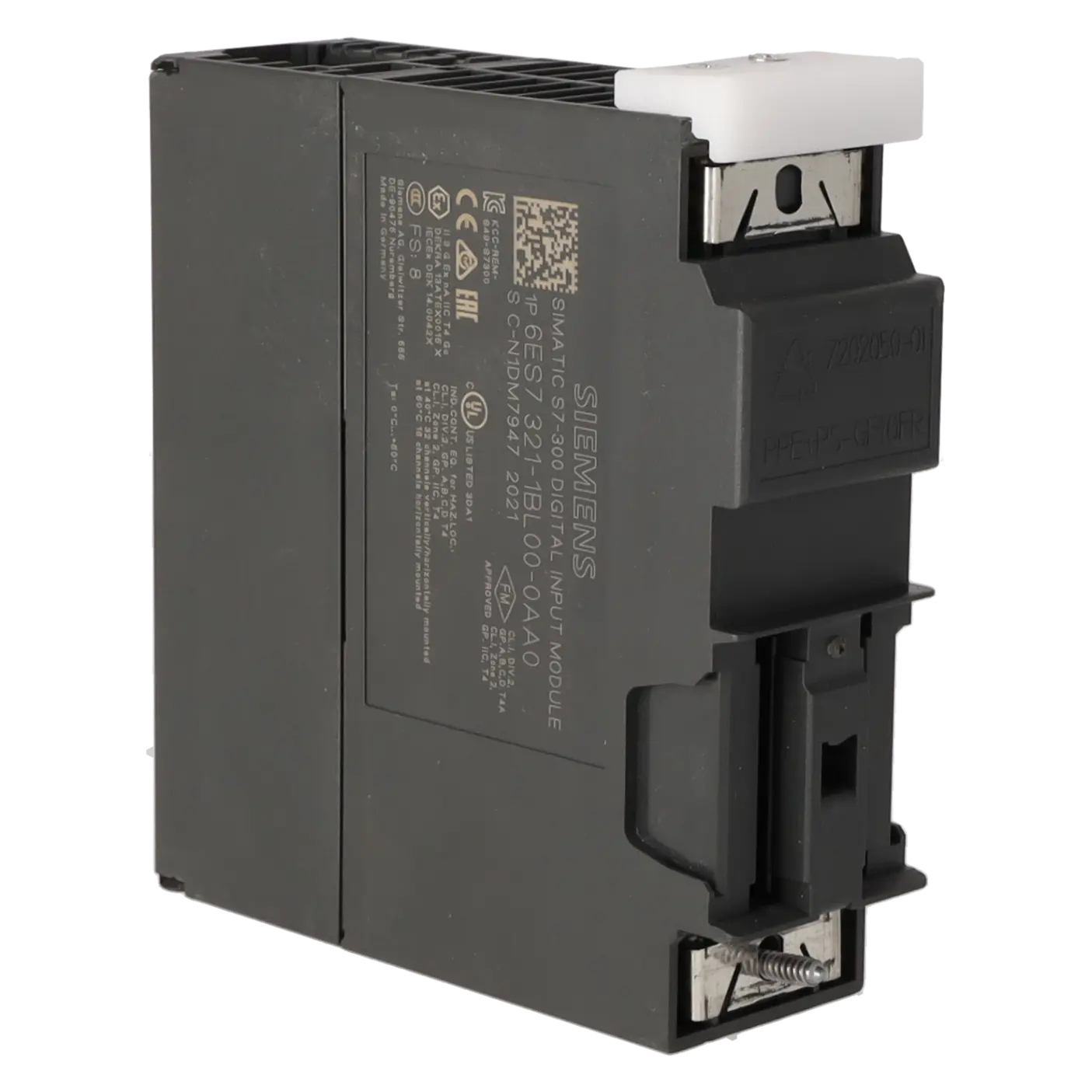

The 6ES7321-1BL00-0AA0 is a SIMATIC S7-300 SM 321 digital input module from Siemens for SIMATIC S7-300 and the distributed ET 200M I/O system. The module provides 32 digital 24 V DC inputs, features electrical isolation, and is connected via a 40-pin front connector. Siemens specifies the module for use with switches as well as 2-wire, 3-wire, and 4-wire proximity switches. It is used wherever a large number of binary signals must be acquired reliably, for example in conveyor systems, packaging machines, assembly lines, machine tools, and process-related ET 200M stations. For maintenance and procurement teams, the part number is particularly important when existing installed hardware must be identified, replaced, or supported quickly.

Overview of the key technical data and what it means

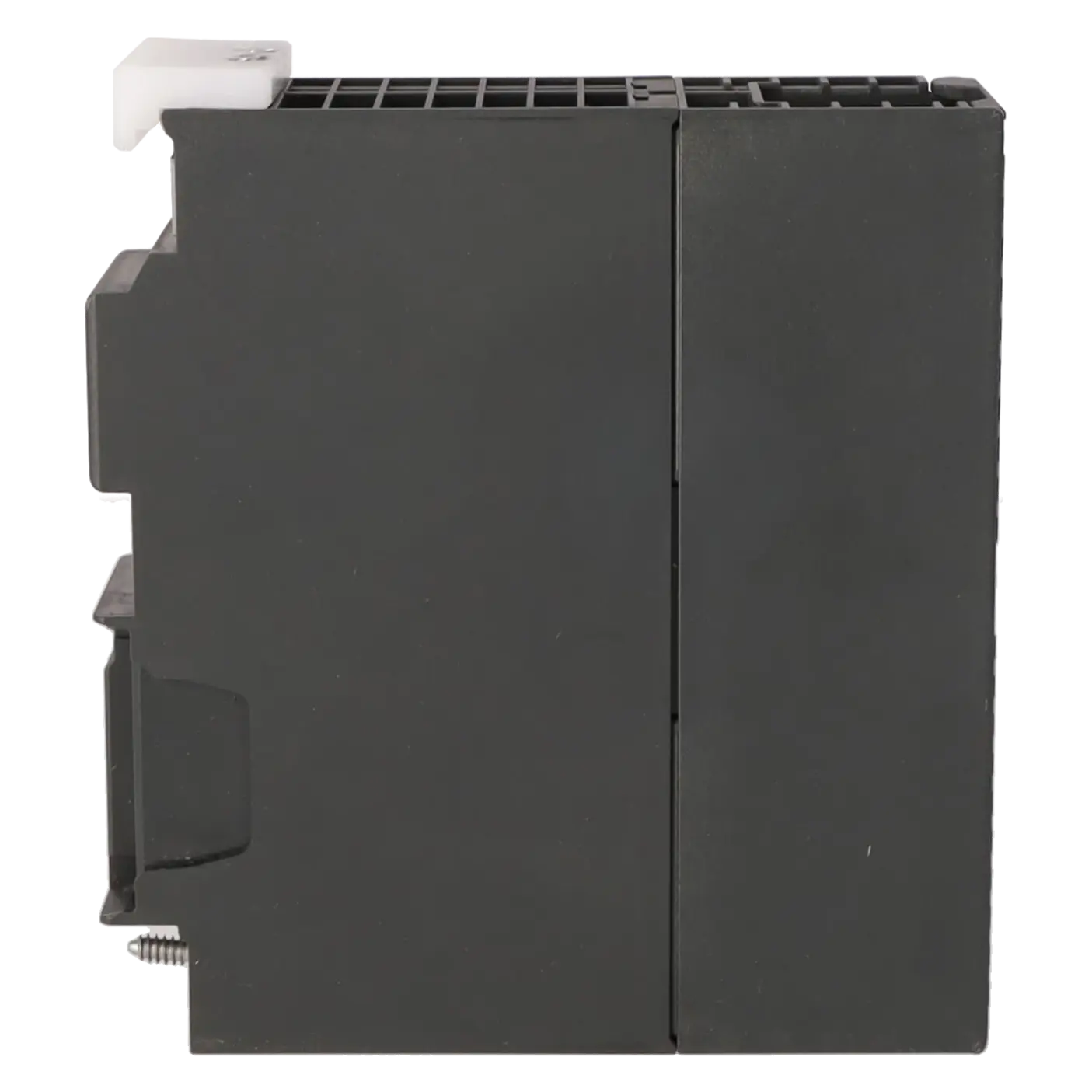

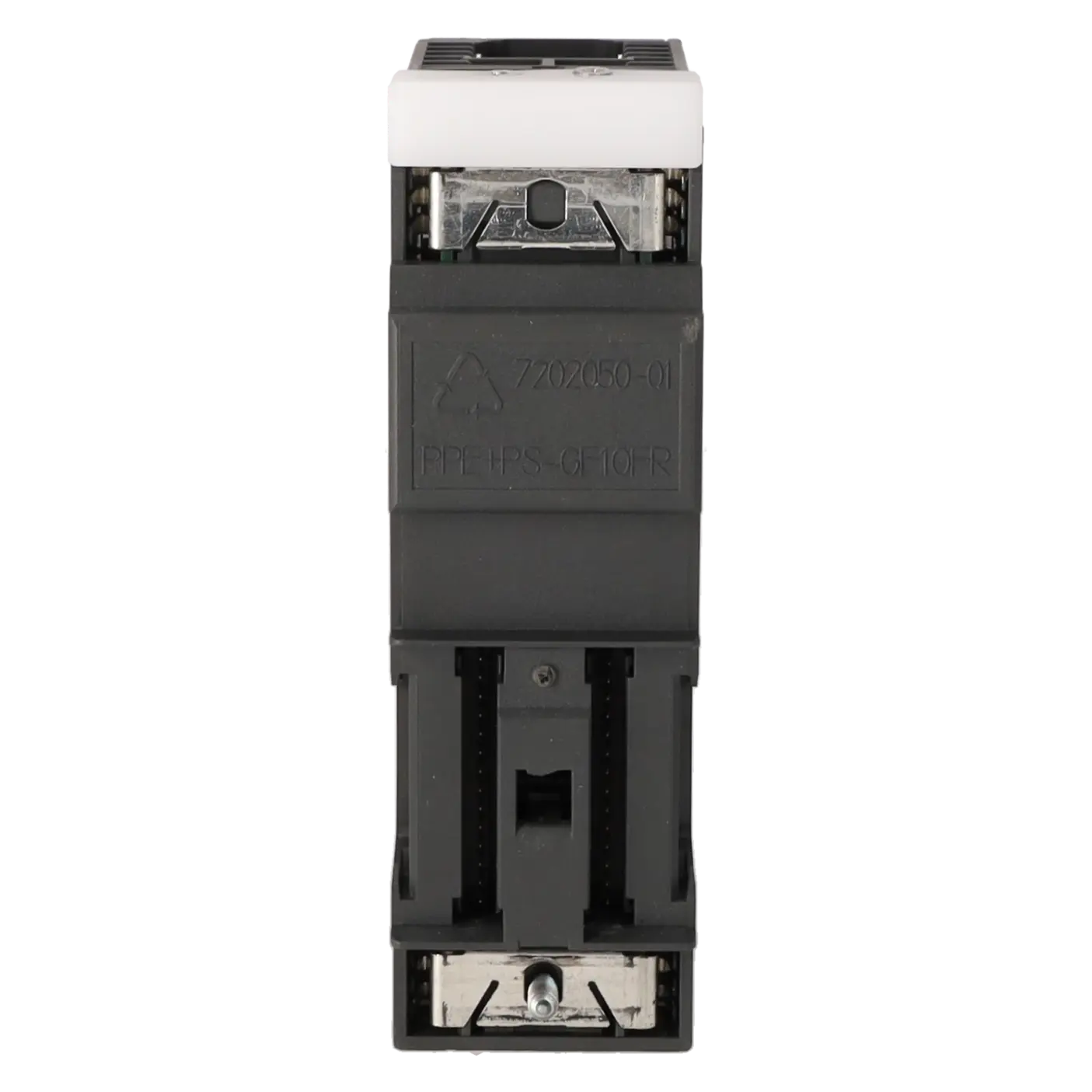

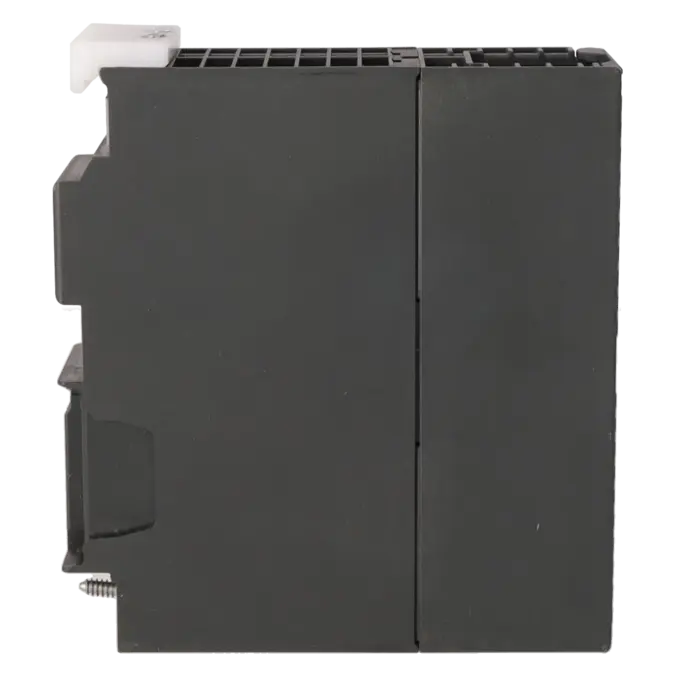

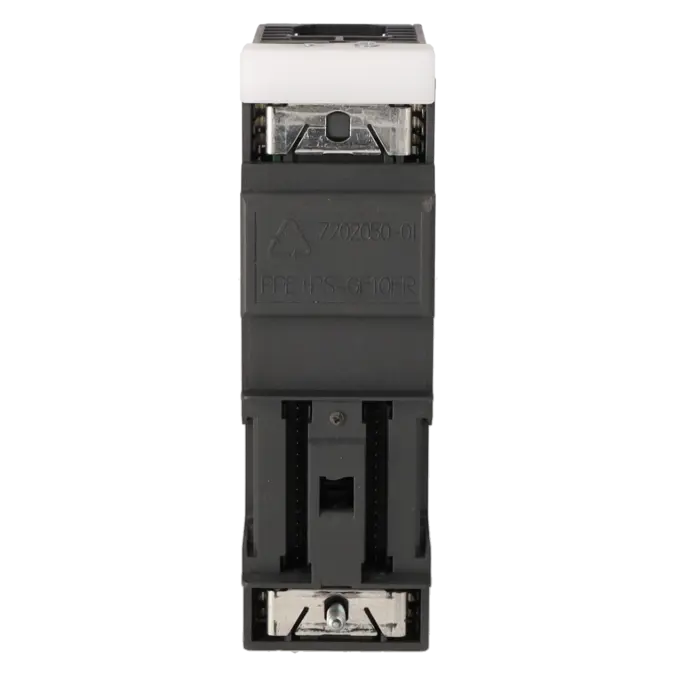

The module processes 32 digital inputs with a nominal voltage of 24 V DC. A signal is typically detected as a logical 1 between 13 and 30 V, while voltages between −30 and +5 V are detected as a logical 0. The typical input current at logic 1 is 7 mA. Input delay is 1.2 to 4.8 ms in both directions. This makes the module suitable for conventional switching and sensor applications, although it is not intended for highly dynamic applications requiring configurable filtering. The module uses a 40-pin front connector, supports shielded cable lengths up to 1,000 m and unshielded cable lengths up to 600 m, requires a maximum of 15 mA from the backplane bus, has a power dissipation of approximately 6.5 W, and measures 40 × 125 × 120 mm with a weight of approximately 260 g.

Product status, life-cycle status, and obsolescence

For procurement and plant availability, the status of this module is particularly important. The EICHLER product page lists 6ES7321-1BL00-0AA0 with an EOP (End of Product) date of 01 October 2025. Siemens also classifies the module as a Spare Part and includes it within the PM400/Product Phase-Out programme, clearly placing it in the area of installed-base support, spare-parts management, and obsolescence planning. For modernisation projects, Siemens maps the functionality to the ET 200SP HA DI 32Ch 24V DC, 6DL1131-6BL00-0PH1, and describes suitable I/O adapters for migration from ET 200M. This represents a reliable migration path, but not a simple 1:1 replacement within an existing S7-300 architecture without engineering modifications.

Available EICHLER services and when they are relevant

For operators of older S7-300 and ET 200M installations, this module is primarily a matter of minimising downtime. EICHLER offers repair, exchange, used units, and new replacement modules for 6ES7321-1BL00-0AA0. Repair is specified with a turnaround time of 2 to 5 days and includes technical cleaning, preventive maintenance, comprehensive functional testing, and a minimum 24-month warranty. Exchange, used units, and new units are listed with availability of 1 to 3 days. An optional digital input/output test report is also available. For maintenance personnel, this is valuable when existing modules must be returned to production quickly. For procurement teams, it reduces supply-chain risks in an obsolescence environment. For decision-makers, it provides supply security without immediately requiring a complete migration project.

Is 6ES7321-1BL00-0AA0 still available or only as a spare part?

Siemens currently classifies 6ES7321-1BL00-0AA0 as a Spare Part within the PM400/Product Phase-Out framework, while the EICHLER product page additionally lists EOP: 2025-10-01. For operators, this means that the module is no longer considered a future-oriented standard product but rather a component that should be evaluated from the perspective of spare-parts supply, repair, exchange, and life-cycle management. Anyone planning to operate S7-300 or ET 200M installations over the long term should actively secure spare-part inventories, repair options, and migration strategies.

Can I use 6ES7321-1BL00-0AA0 in both SIMATIC S7-300 and ET 200M?

Yes. Siemens assigns the module to both the SIMATIC S7-300 platform and the ET 200M distributed I/O system. This makes it suitable for both central S7-300 racks and decentralised ET 200M stations. For procurement and maintenance teams, this is important because not only the part number but also the specific system environment determines replacement options, inventory planning, and modernisation strategies. Before replacing the module, the rack configuration, addressing, and existing wiring should always be verified.

Which front connector is required for 6ES7321-1BL00-0AA0?

The module requires a 40-pin front connector. This specification is clearly stated in the Siemens technical data. In practice, this is important because many problems following a replacement or retrofit are caused not by the module itself but by an incorrect or incomplete front-connector assembly. If only the base module is available, the front connector should always be checked for completeness, mechanical condition, and correct wiring before assuming an electronic fault.

Can I use 2-wire proximity switches with 6ES7321-1BL00-0AA0?

Yes. The module is suitable for 2-wire, 3-wire, and 4-wire proximity switches. For 2-wire sensors, however, the maximum permissible off-state leakage current of 1.5 mA is critical. In practice, excessive leakage current can cause an input to be detected as active even when the sensor should be inactive. Therefore, when troubleshooting permanently active input signals, the first checks should be the sensor type, leakage current, and wiring arrangement.

Does the module provide diagnostic functions?

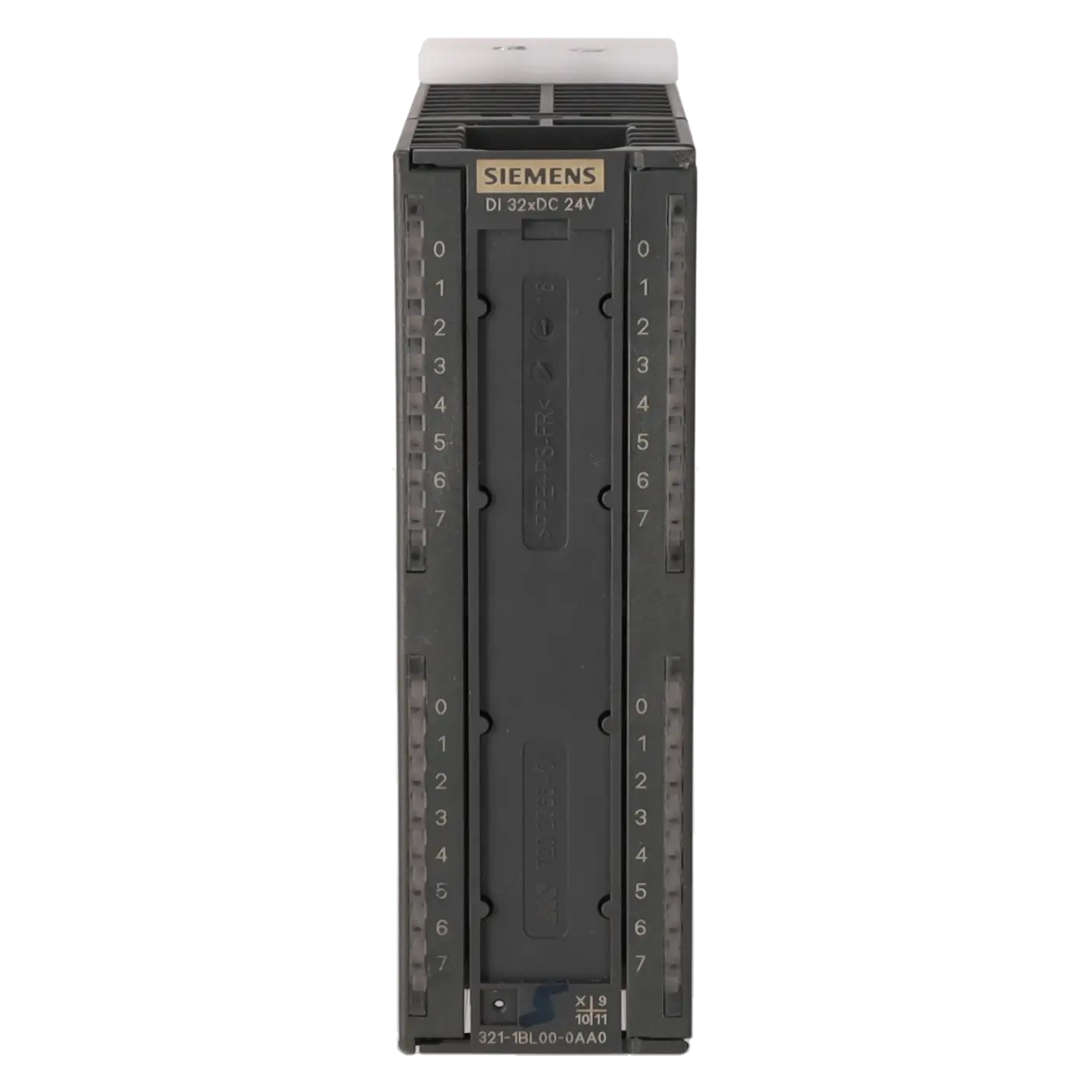

No. According to Siemens, 6ES7321-1BL00-0AA0 does not support diagnostic functions, diagnostic alarms, or process alarms. The module only provides green status LEDs for the digital inputs. This is important during troubleshooting because the module does not provide the level of fault information available in more modern I/O modules. When faults occur, wiring, voltage levels, reference potentials, addressing, and signal timing must therefore be checked systematically.

When is repair more sensible than exchange or purchasing a new unit?

Repair is particularly appropriate when an existing installation using proven hardware must be returned to service quickly and the original module can be restored economically. Exchange is the better option when production must resume immediately and a compatible replacement module is required with minimal delay. Used units can be a practical procurement solution in an obsolescence environment, while new units are attractive when a defined condition is preferred for critical spare-parts inventories. EICHLER combines these options with functional testing, warranty coverage, and optional test reports, making them especially valuable for documented maintenance procedures and procurement decisions requiring a high degree of confidence.

Is there a verified Siemens successor for modernisation projects?

For existing installations, Siemens does not describe a simple plug-compatible replacement within the same architecture. However, in migration documentation for ET 200M, Siemens identifies the ET 200SP HA DI 32Ch 24V DC, 6DL1131-6BL00-0PH1, as the corresponding modernisation module and provides suitable I/O adapters for migration projects. For operators, this means that there is a verified migration path, but not a universal plug-and-play replacement for every existing S7-300 installation. Before migrating, the wiring, mechanical design, system architecture, and conversion effort should be evaluated carefully.
