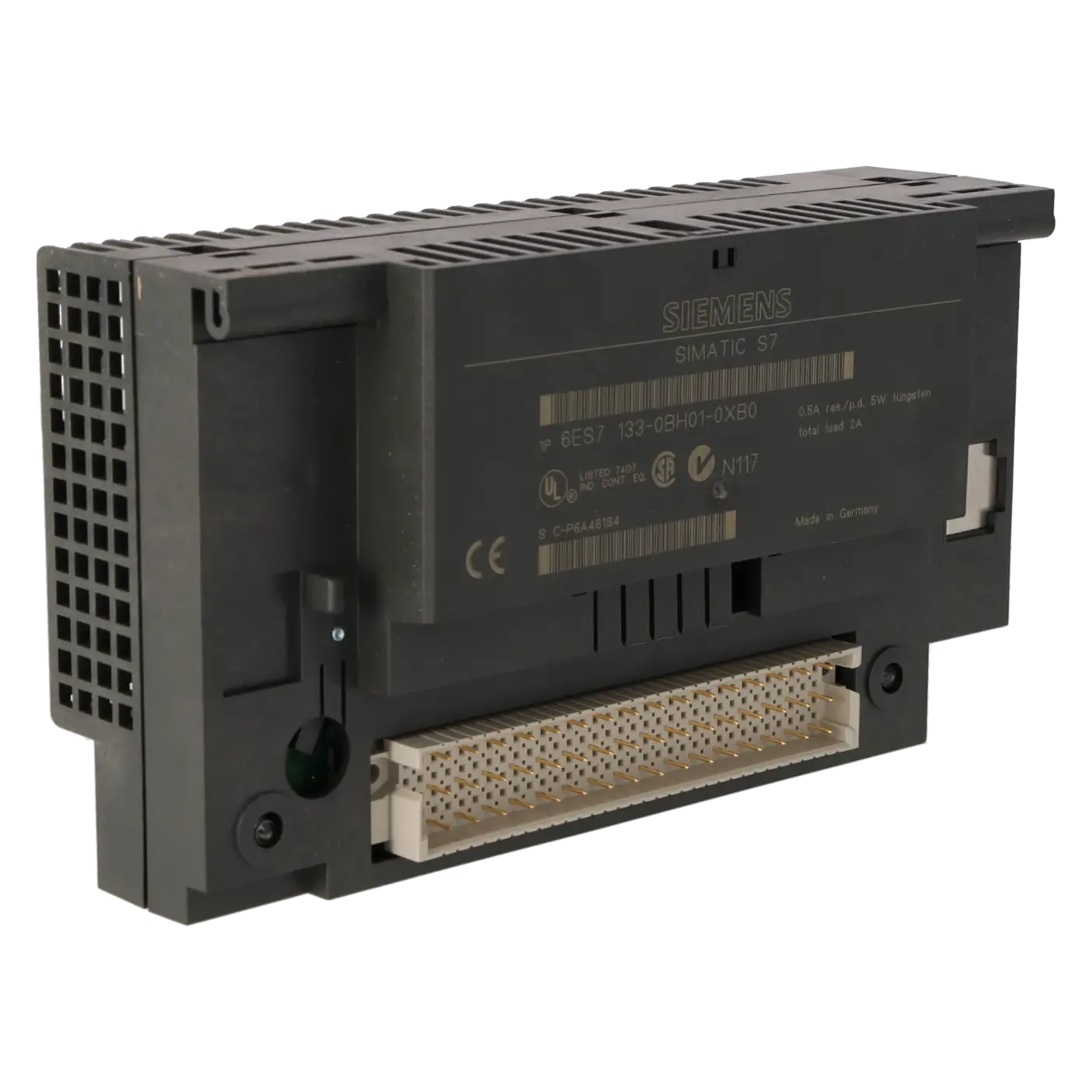

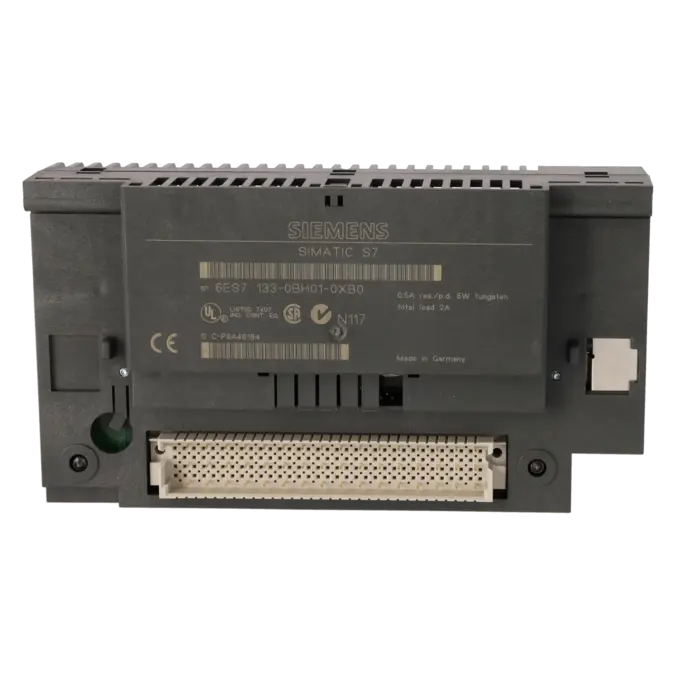

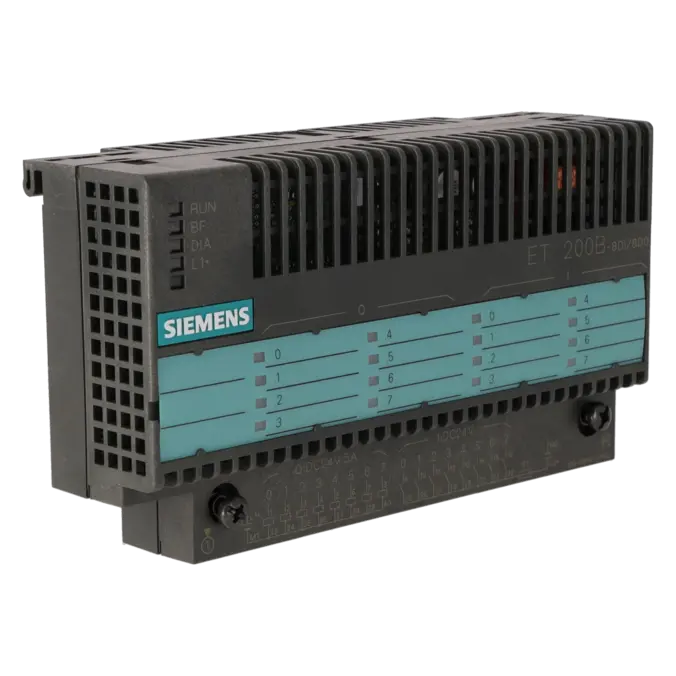

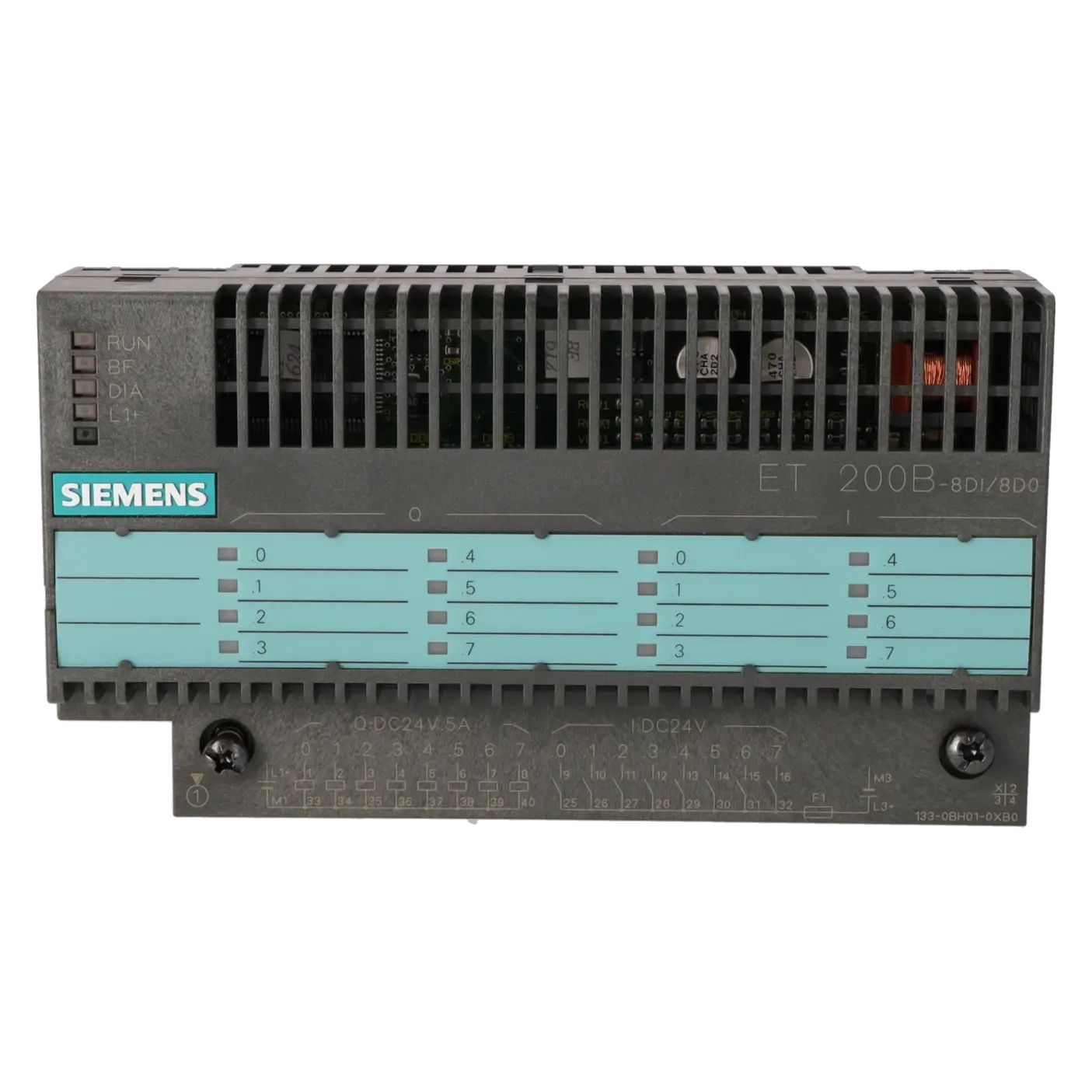

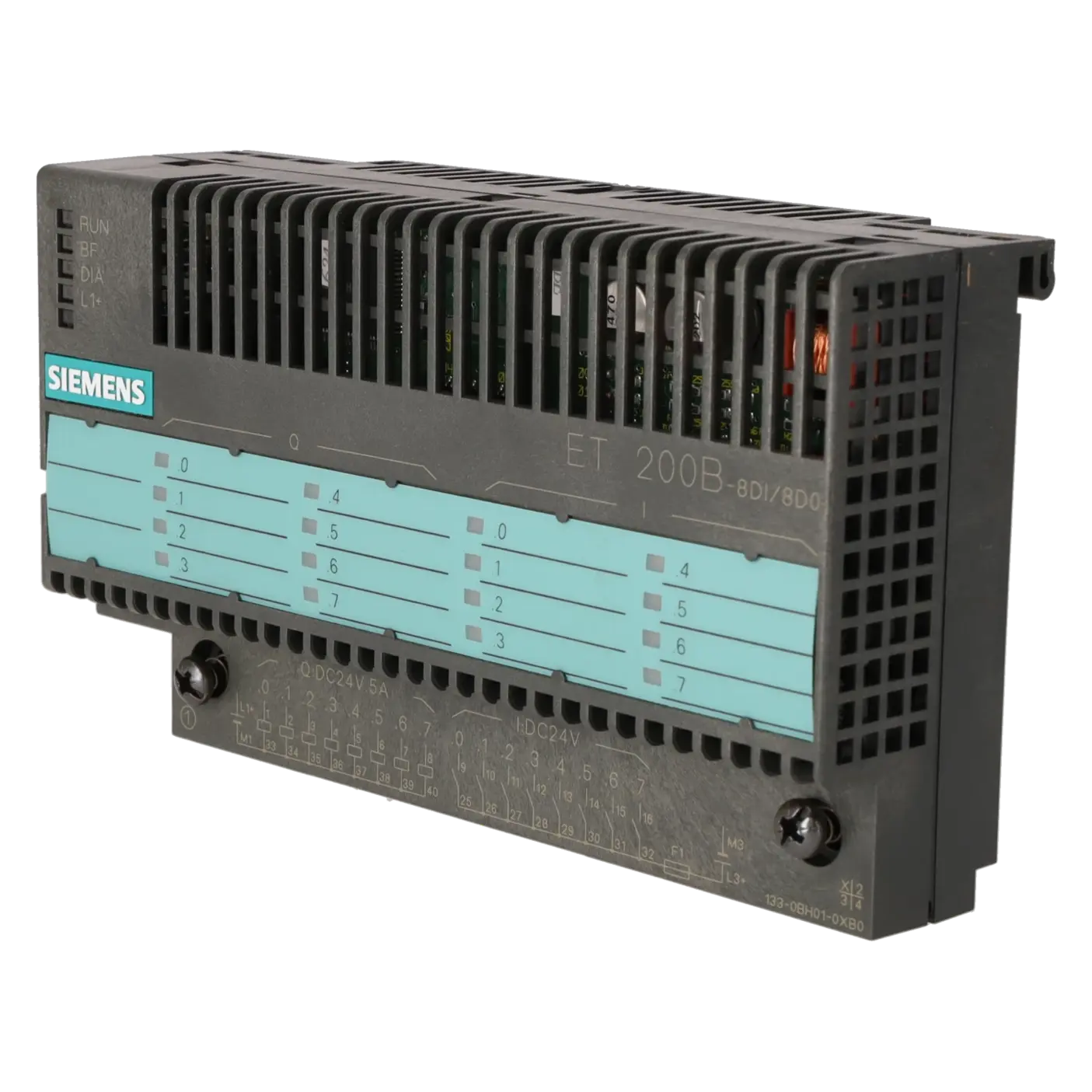

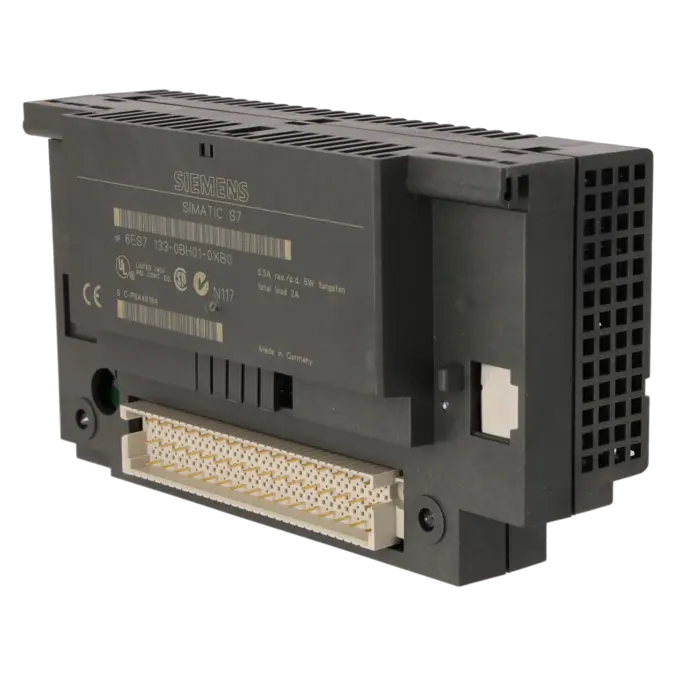

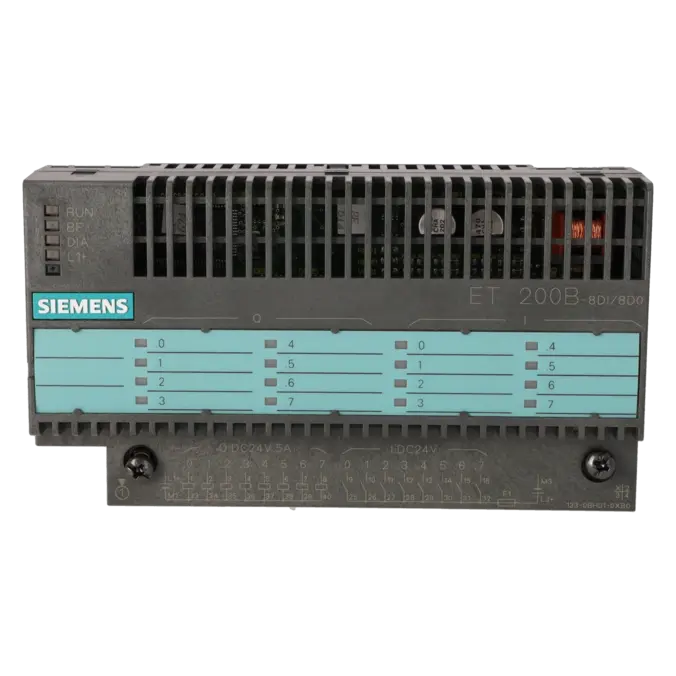

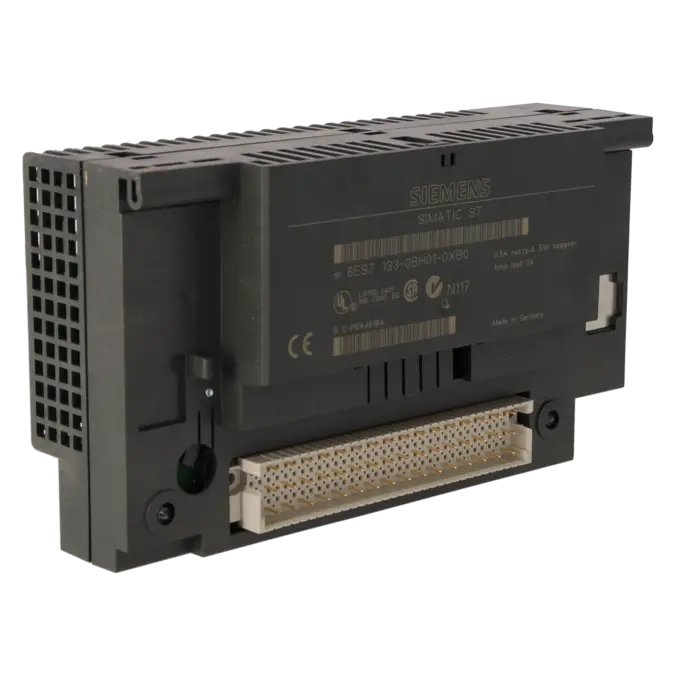

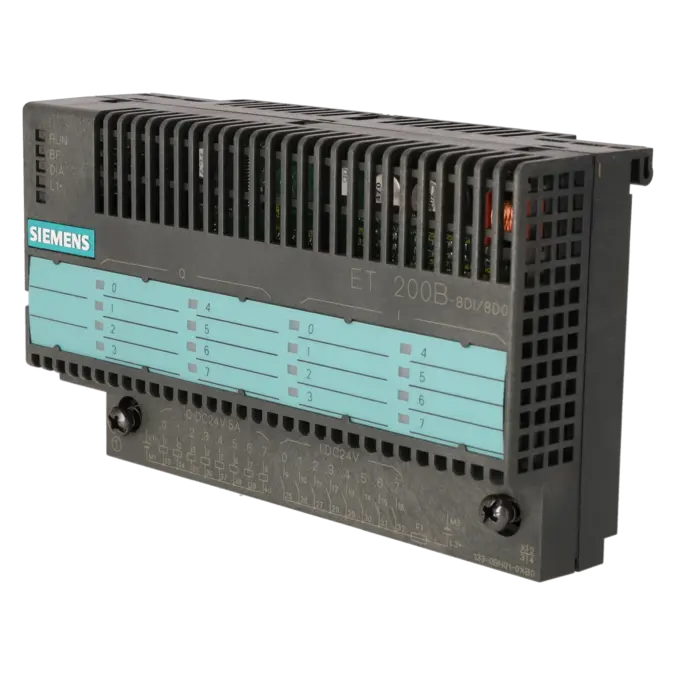

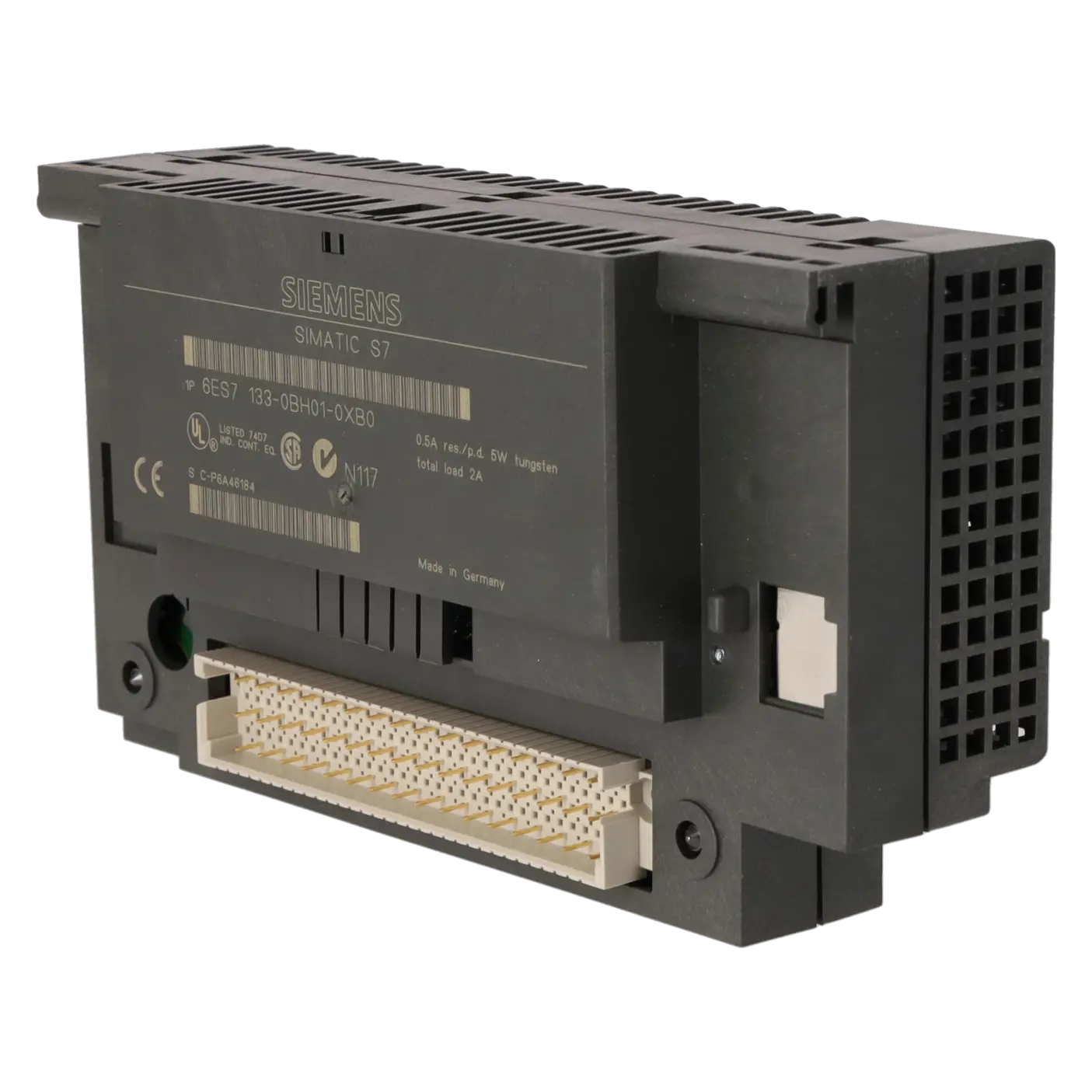

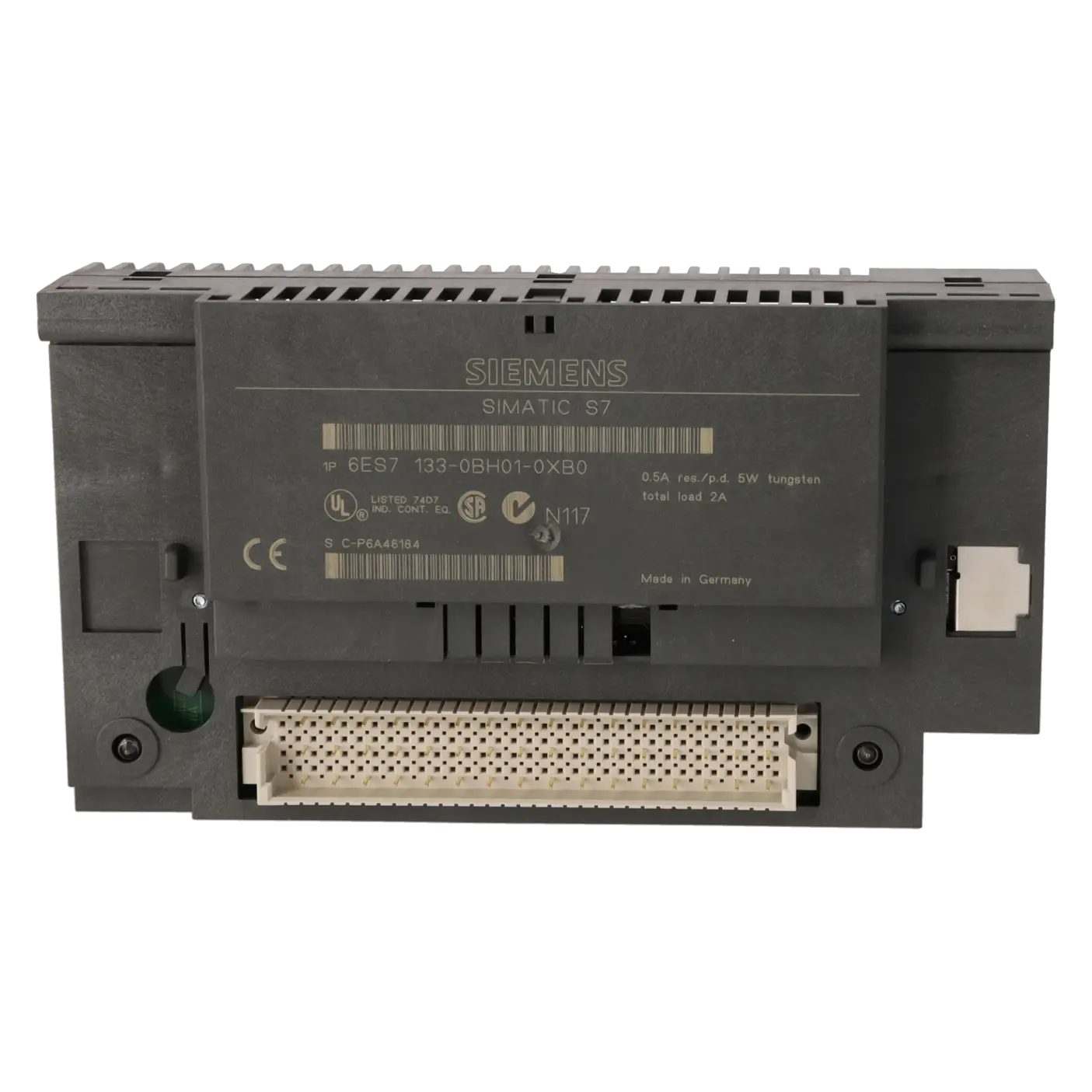

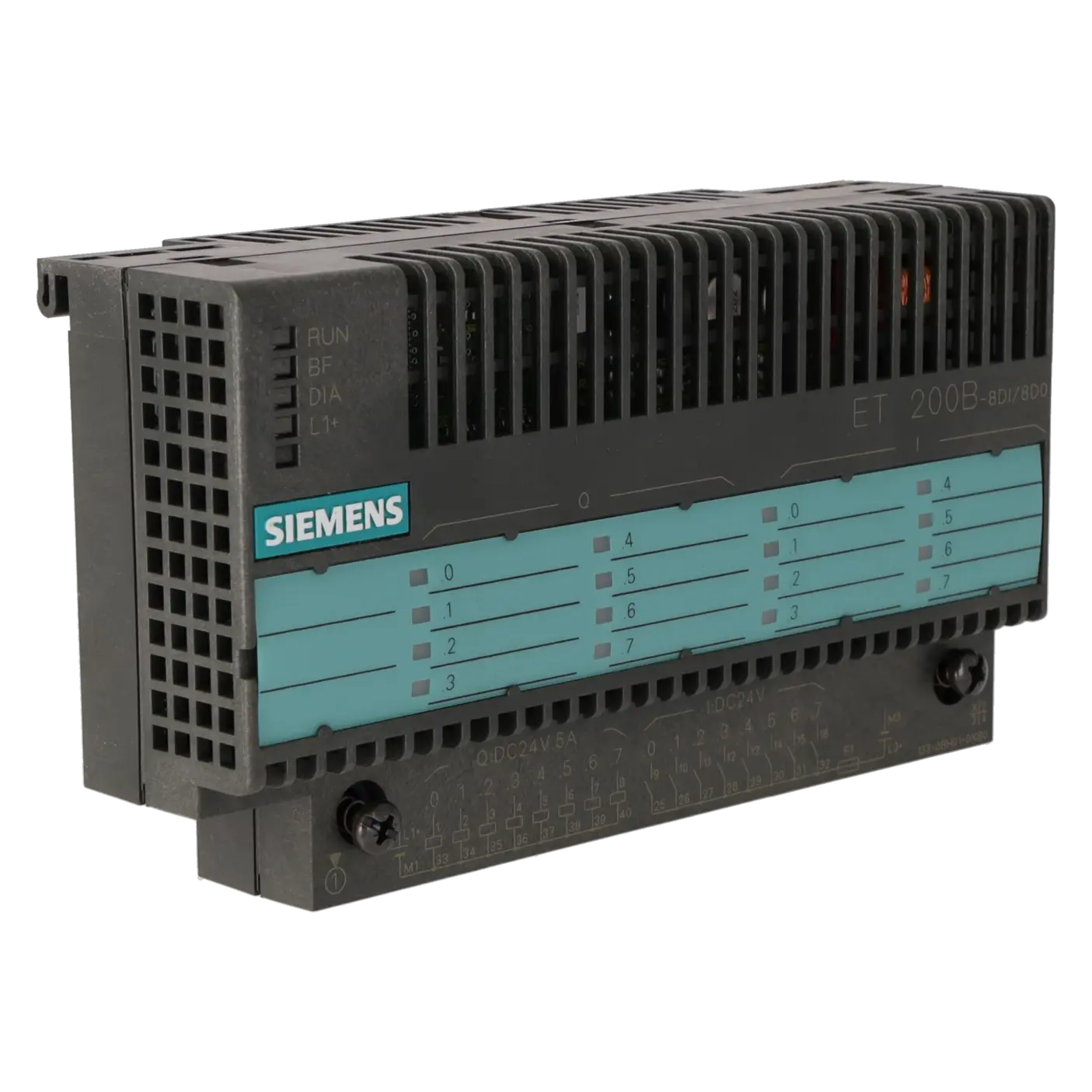

| General information |
|
| Usable terminal block |
TB1/DC, TB1-4/DC, TB3/DC, TB3-4/DC |
| Supply voltage |
|
| Rated value (DC) |
24 V; L1+, L3+; value at t < 0.5 s: 35 V |
| permissible range, lower limit (DC) |
18.5 V |
| permissible range, upper limit (DC) |
30.2 V |
| Input current |
|
| Current consumption, typ. |
70 mA; from L3+; logic |
| Current consumption, max. |
500 mA; from L3+; sensor |
| I²t |
0.05 A²·s; with starting current inrush |
| Power loss |
|
| Power loss, max. |
3.8 W |
| Digital inputs |
|
| Number of digital inputs |
8 |
| Input voltage |
|
| ● Rated value (DC) |
24 V |
| ● for signal "0" |
-30 to +5 V |
| ● for signal "1" |
13 to 30V |
| Input current |
|
| ● for signal "1", typ. |
4 mA; At 24 V min. 2 mA |
| Input delay (for rated value of input voltage) |
|
| for standard inputs |
|
| — at "0" to "1", min. |
2 ms |
| — at "0" to "1", max. |
3 ms |
| Cable length |
|
| ● unshielded, max. |
100 m |
| Digital outputs |
|
| Number of digital outputs |
8 |
| Short-circuit protection |
Yes; Electronic |
| Limitation of inductive shutdown voltage to |
typically (L1+) -55 V |
| Controlling a digital input |
Yes |
| Switching capacity of the outputs |
|
| ● on lamp load, max. |
5 W |
| Output voltage |
|
| ● Rated value (DC) |
24 V |
| ● for signal "0", max. |
2 V; idling |
| ● for signal "1", min. |
UE -3 V |
| Output current |
|
| ● for signal "1" permissible range, max. |
0.5 A; in one group |
| ● for signal "0" residual current, max. |
1 mA |
| Output delay with resistive load |
|
| ● "0" to "1", max. |
20 µs |
| ● "1" to "0", max. |
0.5 ms |
| Switching frequency |
|
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
0.5 Hz |
| ● on lamp load, max. |
8 Hz |
| Total current of the outputs (per group) |
|
| all mounting positions |
|
| — up to 60 °C, max. |
2 A |
| Cable length |
|
| ● unshielded, max. |
100 m |
| Encoder |
|
| Connectable encoders |
|
| ● 2-wire sensor |
Yes |
| — permissible quiescent current (2-wire sensor), max. |
1.5 mA |
| Interfaces |
|
| PROFIBUS DP |
|
| ● Transmission rate, max. |
12 Mbit/s |
| Protocols |
|
| Bus protocol/transmission protocol |
PROFIBUS DP |
| PROFIBUS DP |
|
| Services |
|
| — SYNC capability |
Yes |
| — FREEZE capability |
Yes |
| Interrupts/diagnostics/status information |
|
| Diagnostics indication LED |
|
| ● RUN LED |
Yes |
| ● Bus fault BF (red) |
Yes |
| ● Status indicator digital input (green) |
Yes |
| ● Status indicator digital output (green) |
Yes |
| Potential separation |
|
| between electronic block and PROFIBUS DP |
Yes |
| Potential separation digital inputs |
|
| ● Potential separation digital inputs |
No |
| Potential separation digital outputs |
|
| ● Potential separation digital outputs |
No |
| ● between the channels, in groups of |
8 |
| Ambient conditions |
|
| Ambient temperature during operation |
|
| ● horizontal installation, min. |
0 °C |
| ● horizontal installation, max. |
60 °C; 40°C for other mountings |
| Air pressure acc. to IEC 60068-2-13 |
|
| ● permissible range, lower limit |
795 hPa |
| ● permissible range, upper limit |
1 080 hPa |
| Relative humidity |
|
| ● Operation, min. |
15 % |
| ● Operation, max. |
95 %; RH class 2 in accordance with IEC 1131-2 |
| Vibrations |
|
| ● Operation, tested according to IEC 60068-2-6 |
Yes; IEC 68, Part 2-6; 10 to 57 Hz; (constant amplitude 0.075 mm); 57 to 150 Hz; (constant acceleration 1 g) |
| Shock testing |
|
| ● tested according to IEC 60068-2-27 |
Yes; IEC 68, Part 2-27; half-sine, 15 g, 11 ms |
| Connection method |
|
| Design of electrical connection for the inputs and outputs |
Screw-type and spring-loaded terminals, permanent wiring; 3 and 4-wire connection |
| Dimensions |
|
| Width |
160 mm; EB and TB |
| Height |
130 mm; EB and TB |
| Depth |
60 mm; EB and TB |
| Weights |
|
| Weight, approx. |
650 g; EB and TB |
