| General information |
|
| Product type designation |

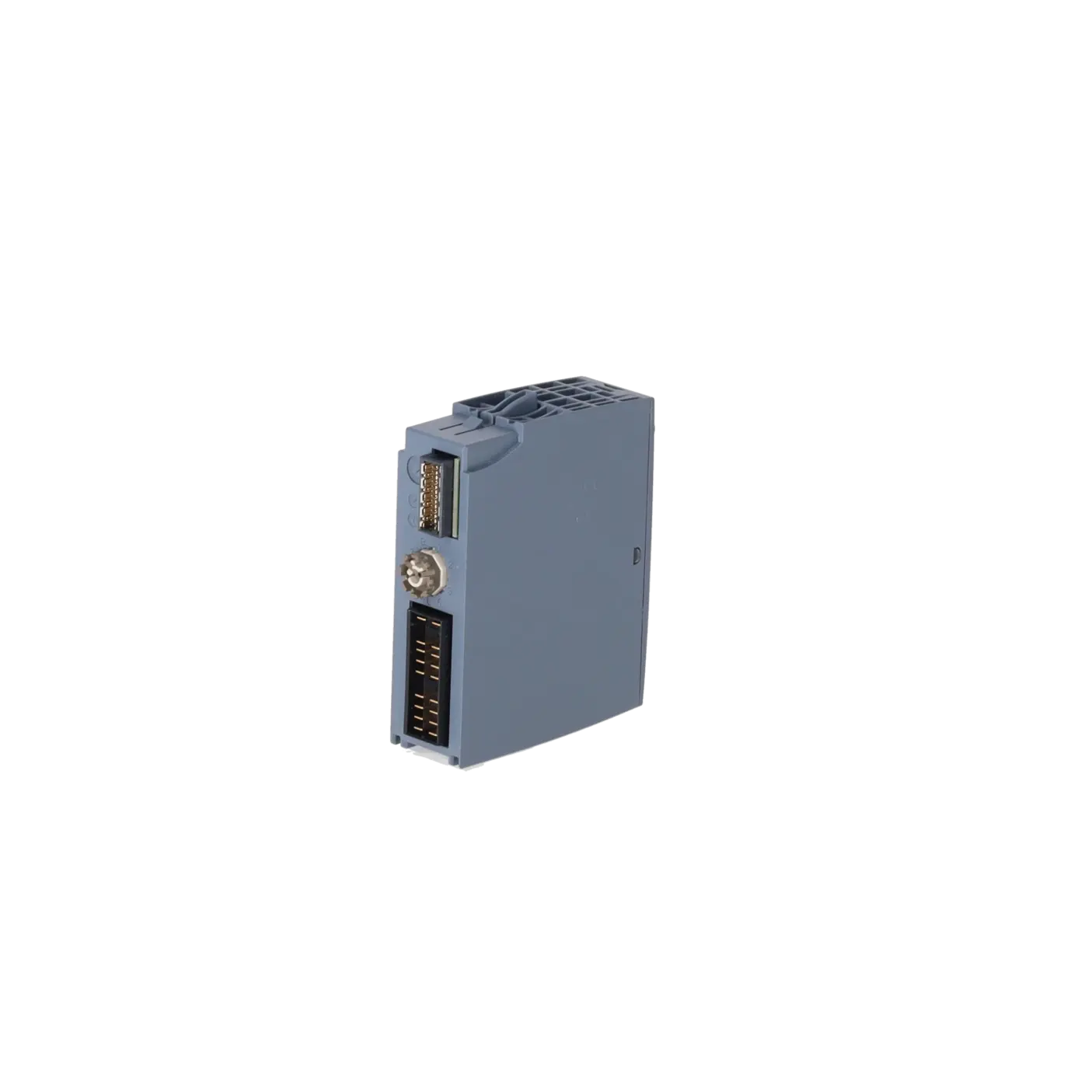

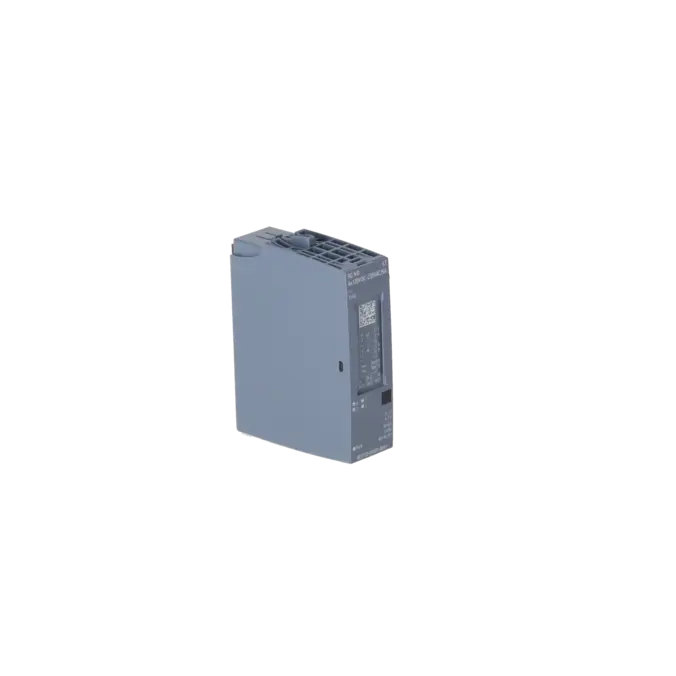

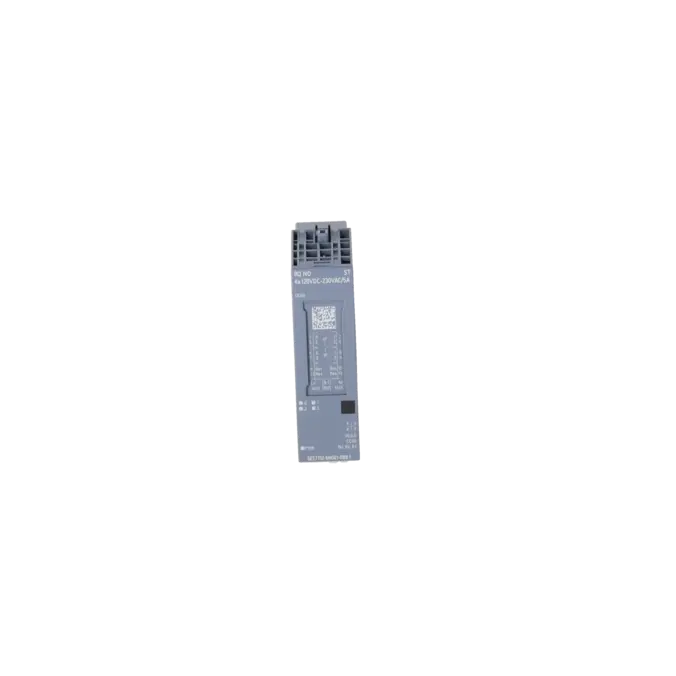

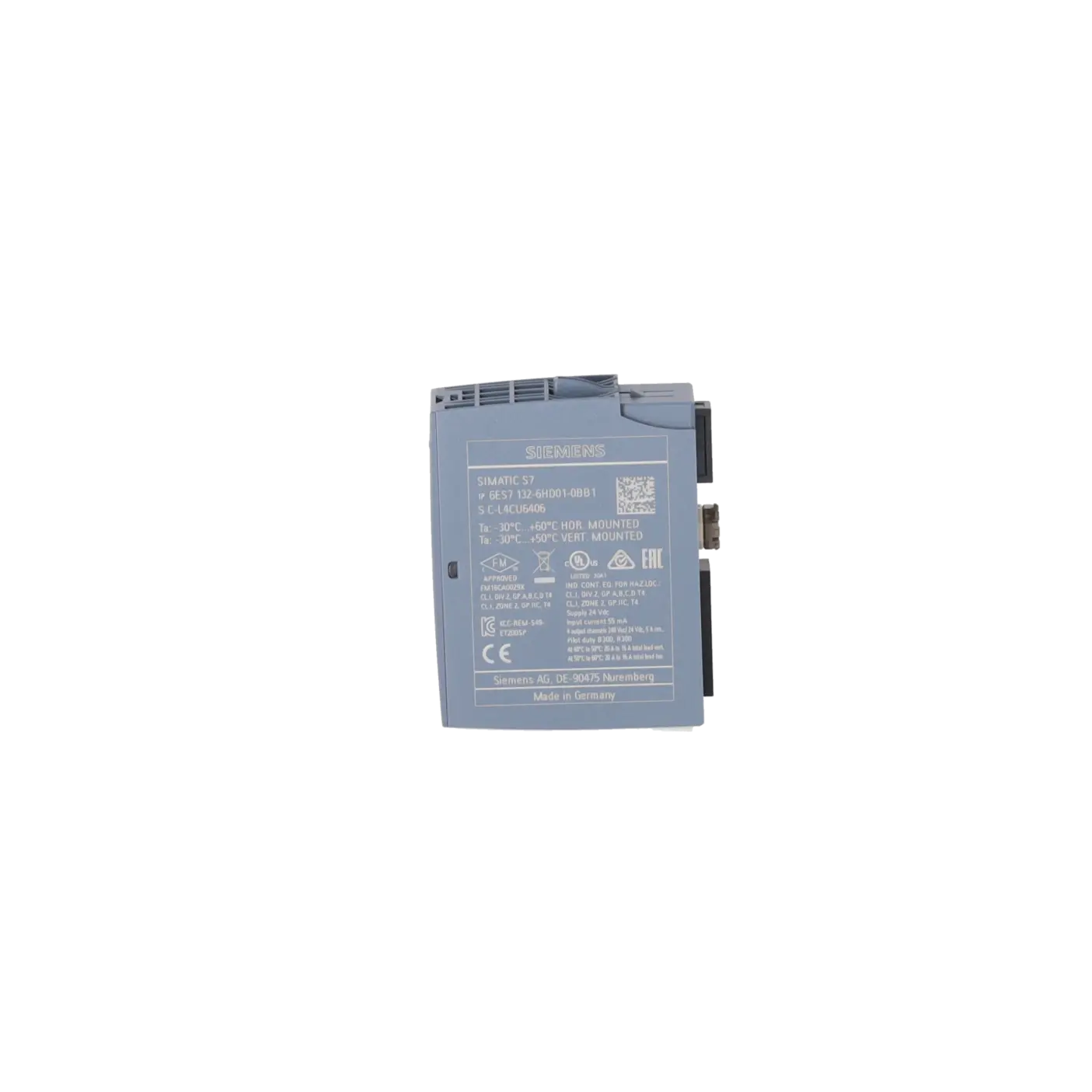

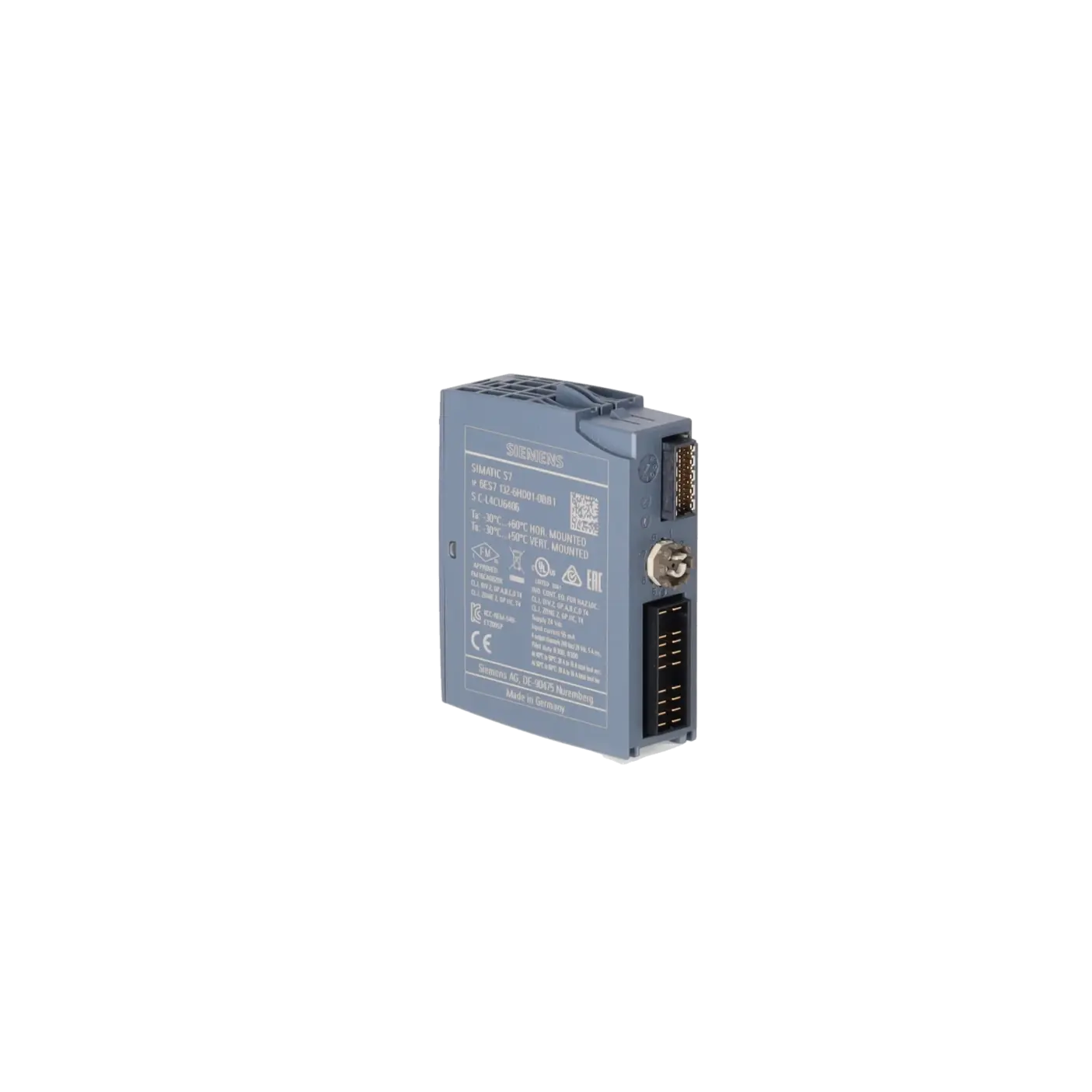

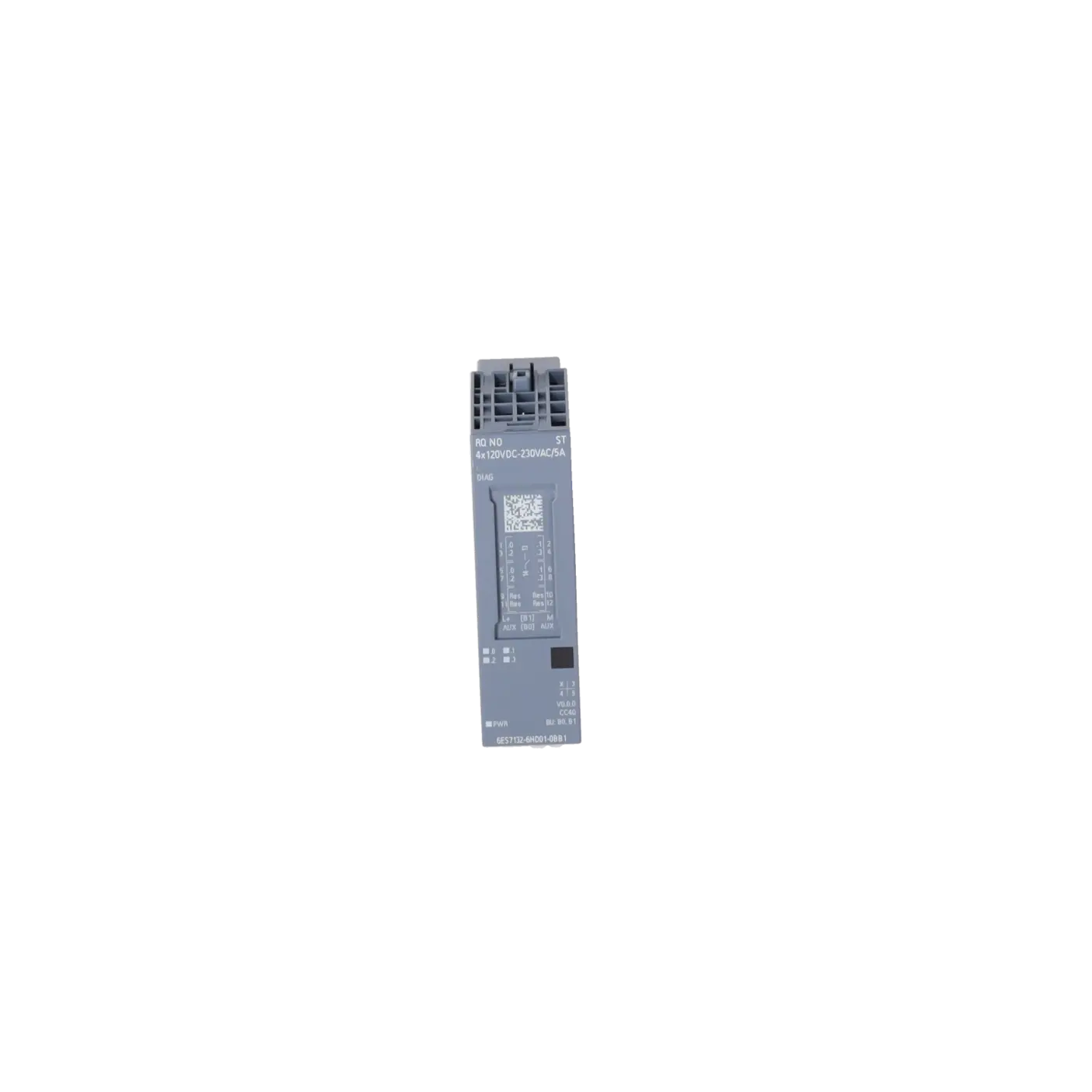

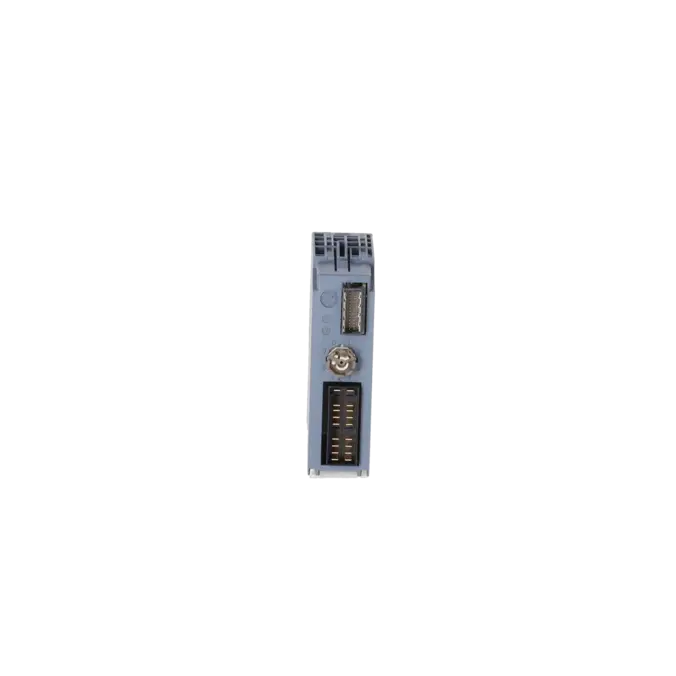

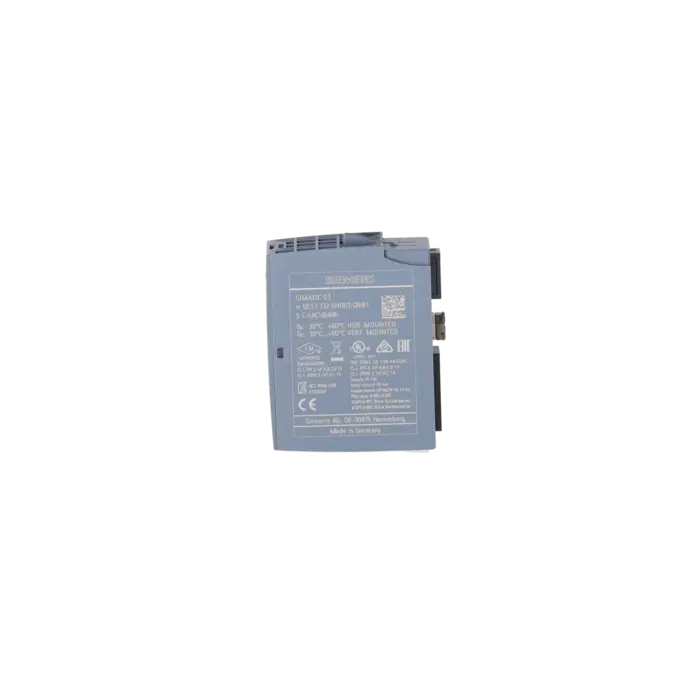

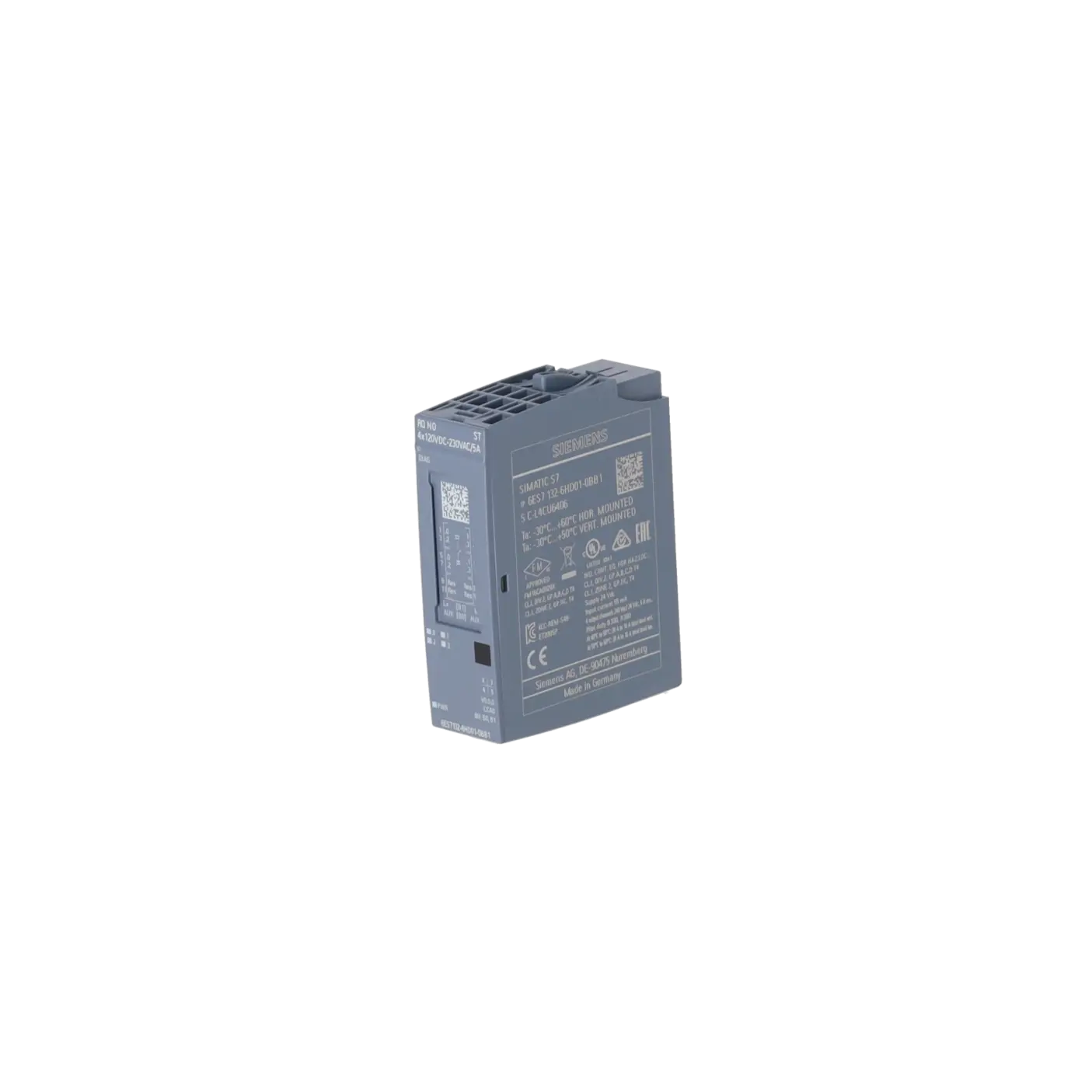

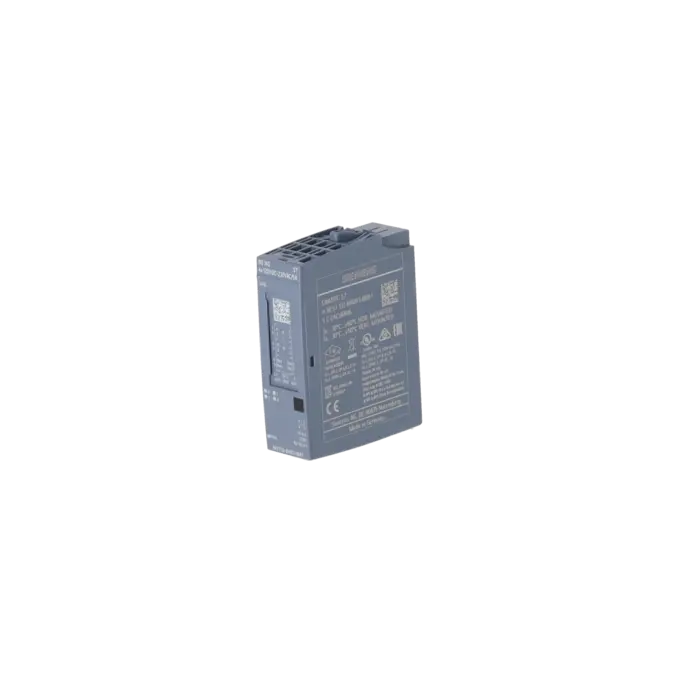

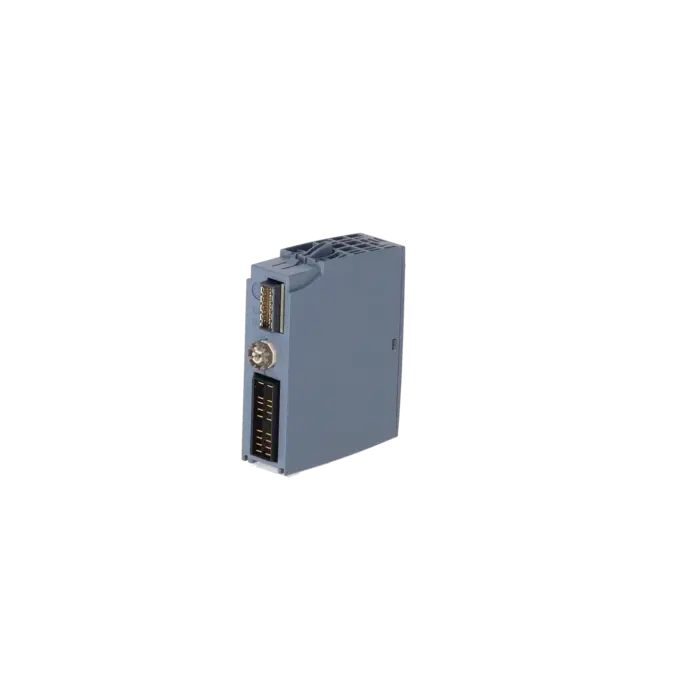

RQ 4x120 VDC ... 230 VAC/5 A NO ST |
| HW functional status |
From FS02 |
| Firmware version |
V0.0 |
| ● FW update possible |
No |
| usable BaseUnits |
BU type B0, B1 |
| Product function |
|
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
| Engineering with |
|
| ● STEP 7 TIA Portal configurable/integrated from version |
V14 |
| ● STEP 7 configurable/integrated from version |
V5.5 SP3 |
| ● PCS 7 configurable/integrated from version |
V8.1 SP1 |
| ● PROFIBUS from GSD version/GSD revision |
One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.3 |
| Operating mode |
|
| ● DQ |
Yes |
| ● DQ with energy-saving function |
No |
| ● PWM |
No |
| ● Oversampling |
No |
| ● MSO |
No |
| Redundancy |
|
| ● Redundancy capability |
Yes |
| Supply voltage |
|
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
| Input current |
|
| Current consumption (rated value) |
55 mA; without load |
| Output voltage |
|
| Rated value (AC) |
230 V |
| Power loss |
|
| Power loss, typ. |
1.5 W |
| Address area |
|
| Address space per module |
|
| ● Inputs |
+ 1 byte for QI information |
| ● Outputs |
1 byte |
| Hardware configuration |
|
| Automatic encoding |
Yes |
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
type C |
| Selection of BaseUnit for connection variants |
|
| ● 2-wire connection |
BU type B1 |
| ● 3-wire connection |
BU type B0 |
| Digital outputs |
|
| Type of digital output |
Relays |
| Number of digital outputs |
4 |
| Current-sinking |
Yes |
| Current-sourcing |
Yes |
| Digital outputs, parameterizable |
Yes |
| Short-circuit protection |
No |
| Parallel switching of two outputs |
|
| ● for logic links |
Yes |
| ● for uprating |
No |
| ● for redundant control of a load |
Yes |
| Switching frequency |
|
| ● with resistive load, max. |
2 Hz |
| ● with inductive load (acc. to IEC 60947-5-1, DC13), max. |
0.5 Hz; provide one freewheeling diode for switching frequencies higher than 0.1 Hz |
| ● with inductive load (acc. to IEC 60947-5-1, AC15), max. |
0.5 Hz |
| ● on lamp load, max. |
2 Hz |
| Total current of the outputs |
|
| ● Current per channel, max. |
5 A |
| ● Current per module, max. |
20 A |
| Total current of the outputs (per module) |
|
| horizontal installation |
|
| — up to 50 °C, max. |
20 A |
| — up to 60 °C, max. |
16 A |
| vertical installation |
|
| — up to 40 °C, max. |
20 A |
| — up to 50 °C, max. |
16 A |
| Relay outputs |
|
| ● Number of relay outputs |
4 |
| ● Rated supply voltage of relay coil L+ (DC) |
24 V |
| ● Current consumption of relays (coil current of all relays), max. |
40 mA |
| ● external protection for relay outputs |
Yes, with miniature fuse max. 6 A tripping current and quick-response tripping characteristic |
| ● Number of operating cycles, max. |
7 000 000; see additional description in the manual |
| Switching capacity of contacts |
|
| — with inductive load, max. |
2 A; see additional description in the manual |
| — with resistive load, max. |
5 A; see additional description in the manual |
| — Thermal continuous current, max. |
5 A; Max. 1 385 VA, 150 W |
| — Switching current, min. |
100 mA; 5 V DC |
| — Rated switching voltage (DC) |
24 V DC to 120 V DC |
| — Rated switching voltage (AC) |
24V AC to 230V AC |
| Cable length |
|
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
200 m |
| Interrupts/diagnostics/status information |
|
| Diagnostics function |
Yes |
| Substitute values connectable |
Yes |
| Alarms |
|
| ● Diagnostic alarm |
Yes |
| Diagnoses |
|
| ● Monitoring the supply voltage |
Yes |
| ● Wire break |
No |
| ● short-circuit |
No |
| Diagnostics indication LED |
|
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
No |
| ● for module diagnostics |
Yes; green/red DIAG LED |
| Potential separation |
|
| Potential separation channels |
|
| ● between the channels |
Yes |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
Yes |
| Permissible potential difference |
|
| between channels and backplane bus/supply voltage |
240 V AC |
| Isolation |
|
| Isolation tested with |
2 500 V DC (type test) |
| tested with |
|
| ● between channels and backplane bus/supply voltage |
2 500 V DC |
| ● between backplane bus and supply voltage |
707 V DC (type test) |
| Standards, approvals, certificates |
|
| Suitable for safety functions |
No |
| Ecological footprint |
|
| ● environmental product declaration |
Yes |
| Global warming potential |
|
| — global warming potential, (total) [CO2 eq] |
25.5 kg |
| — global warming potential, (during production) [CO2 eq] |
3.54 kg |
| — global warming potential, (during operation) [CO2 eq] |
22.1 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.137 kg |
| Ambient conditions |
|
| Ambient temperature during operation |
|
| ● horizontal installation, min. |
-30 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C |
| ● vertical installation, max. |
50 °C |
| Altitude during operation relating to sea level |
|
| ● Installation altitude above sea level, max. |
2 000 m; On request: Installation altitudes greater than 2 000 m |
| Absolute humidity |
|
| ● dew point, min. |
-60 °C; suitable for dry room applications |
| Dimensions |
|
| Width |
20 mm |
| Height |
73 mm |
| Depth |
58 mm |
| Weights |
|
| Weight, approx. |
40 g |
