| General information |
|
| Product type designation |

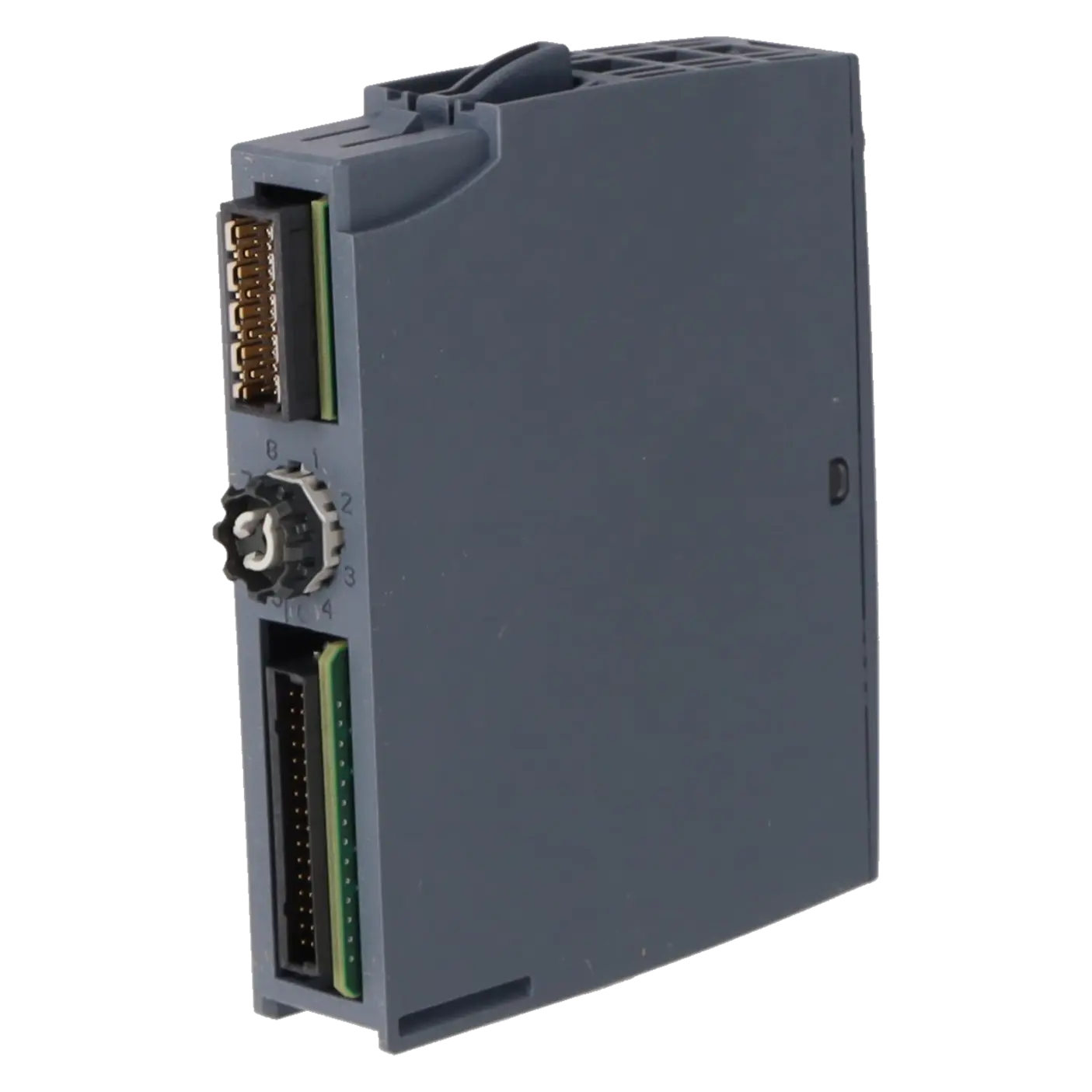

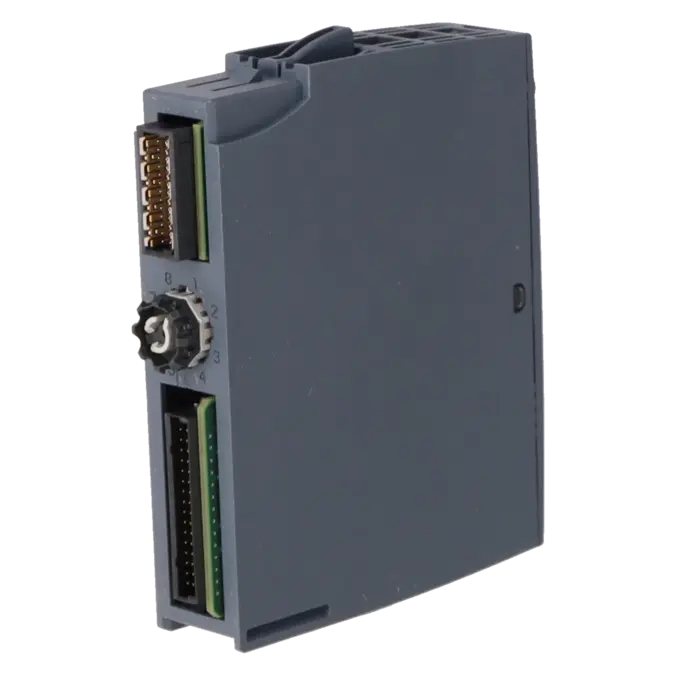

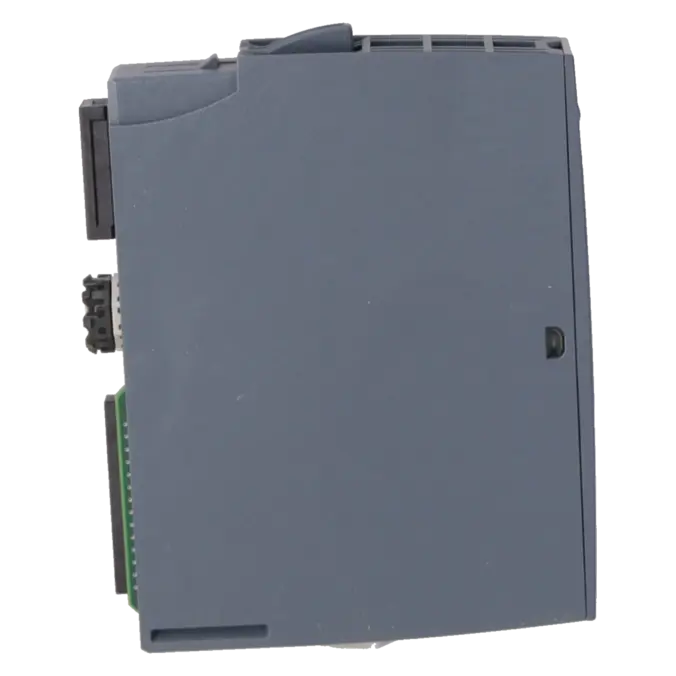

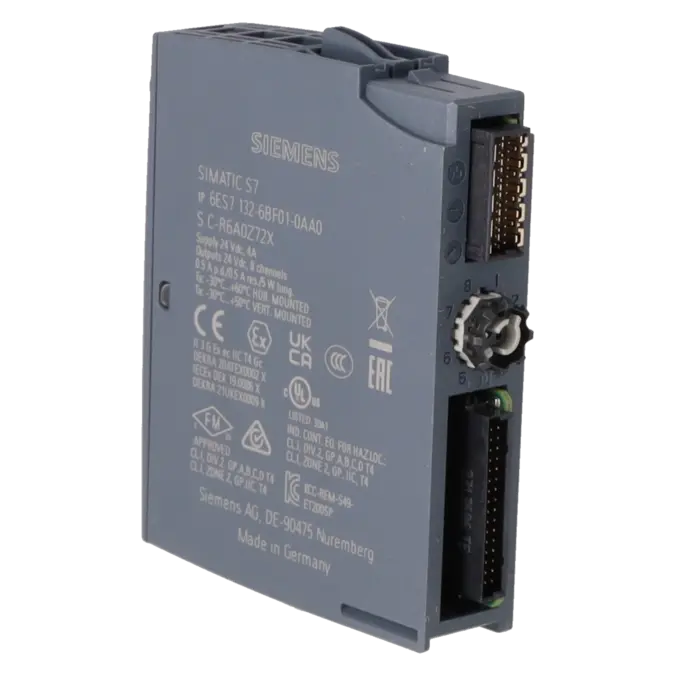

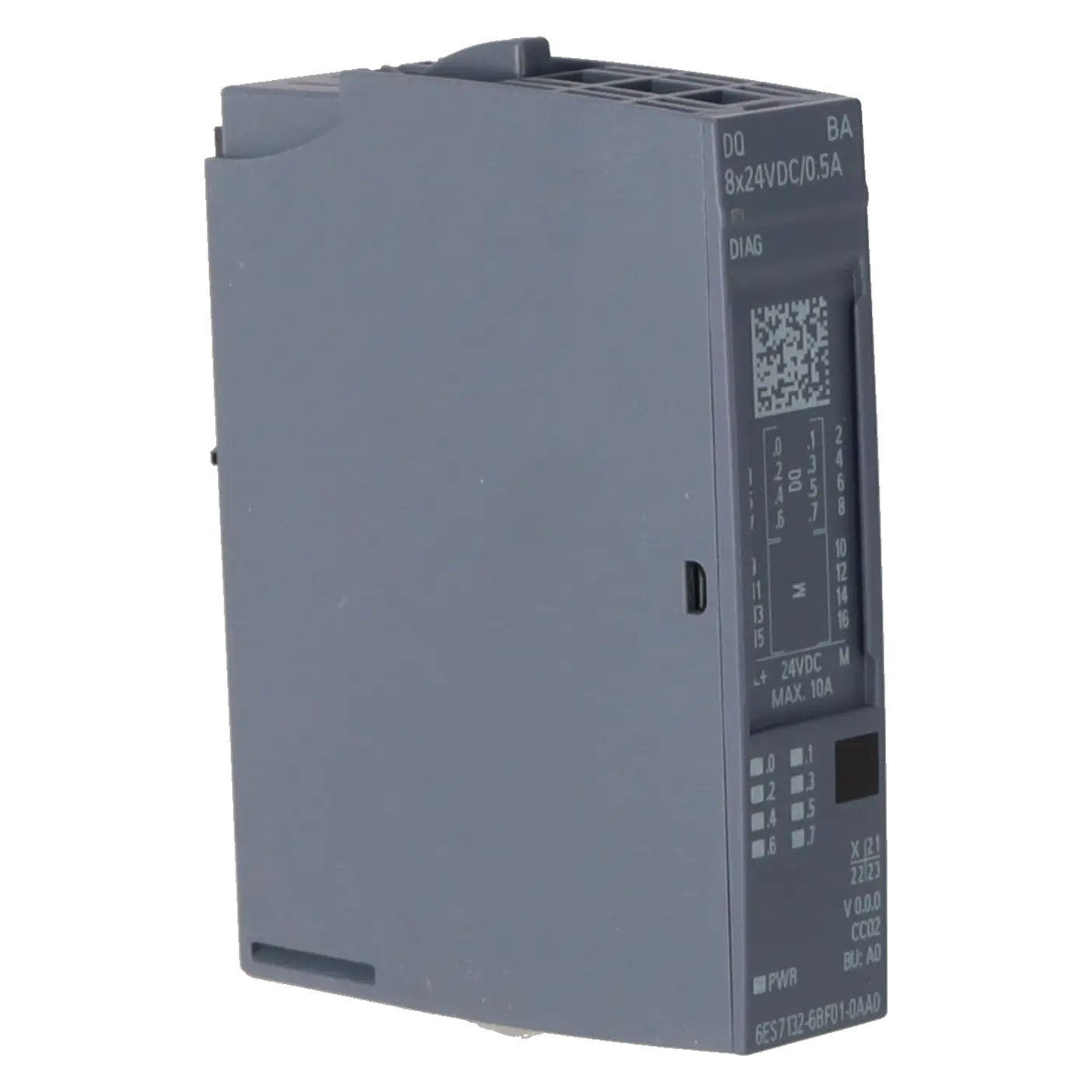

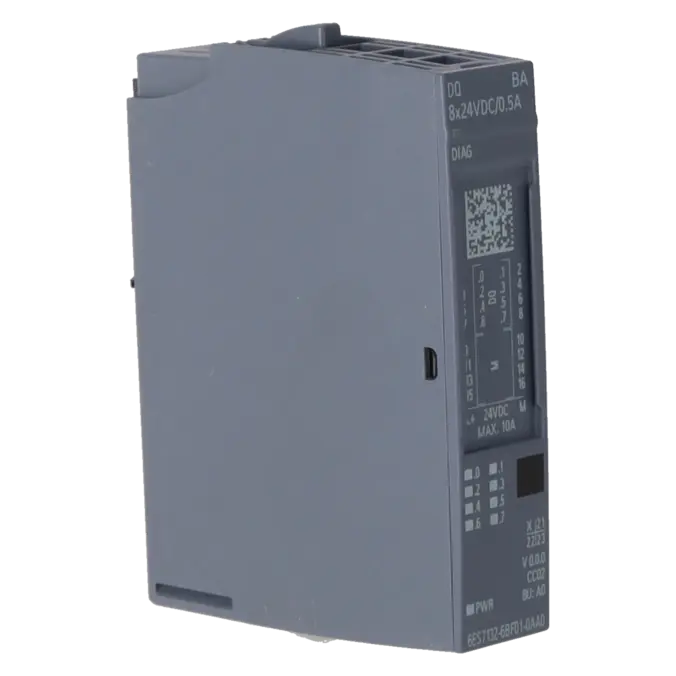

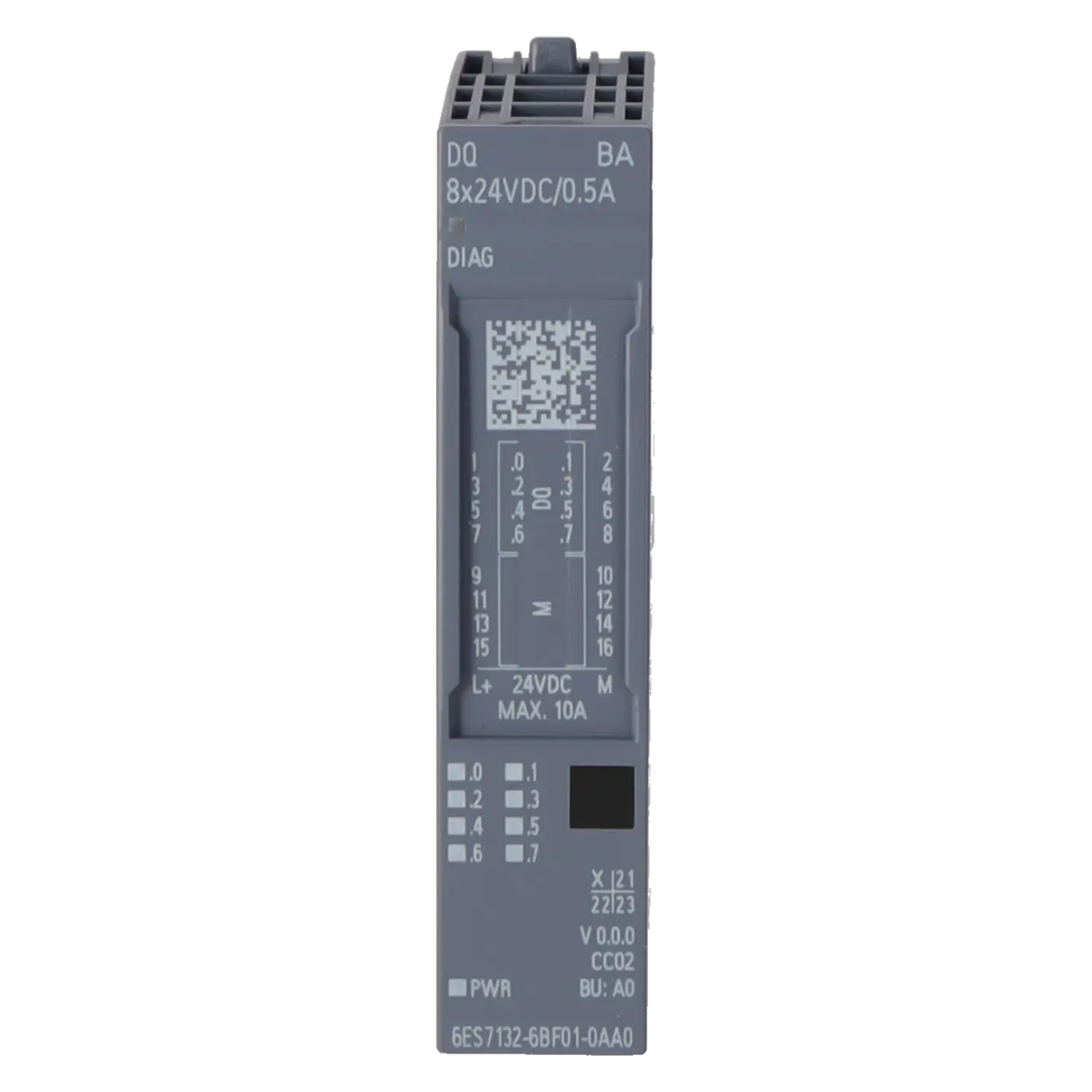

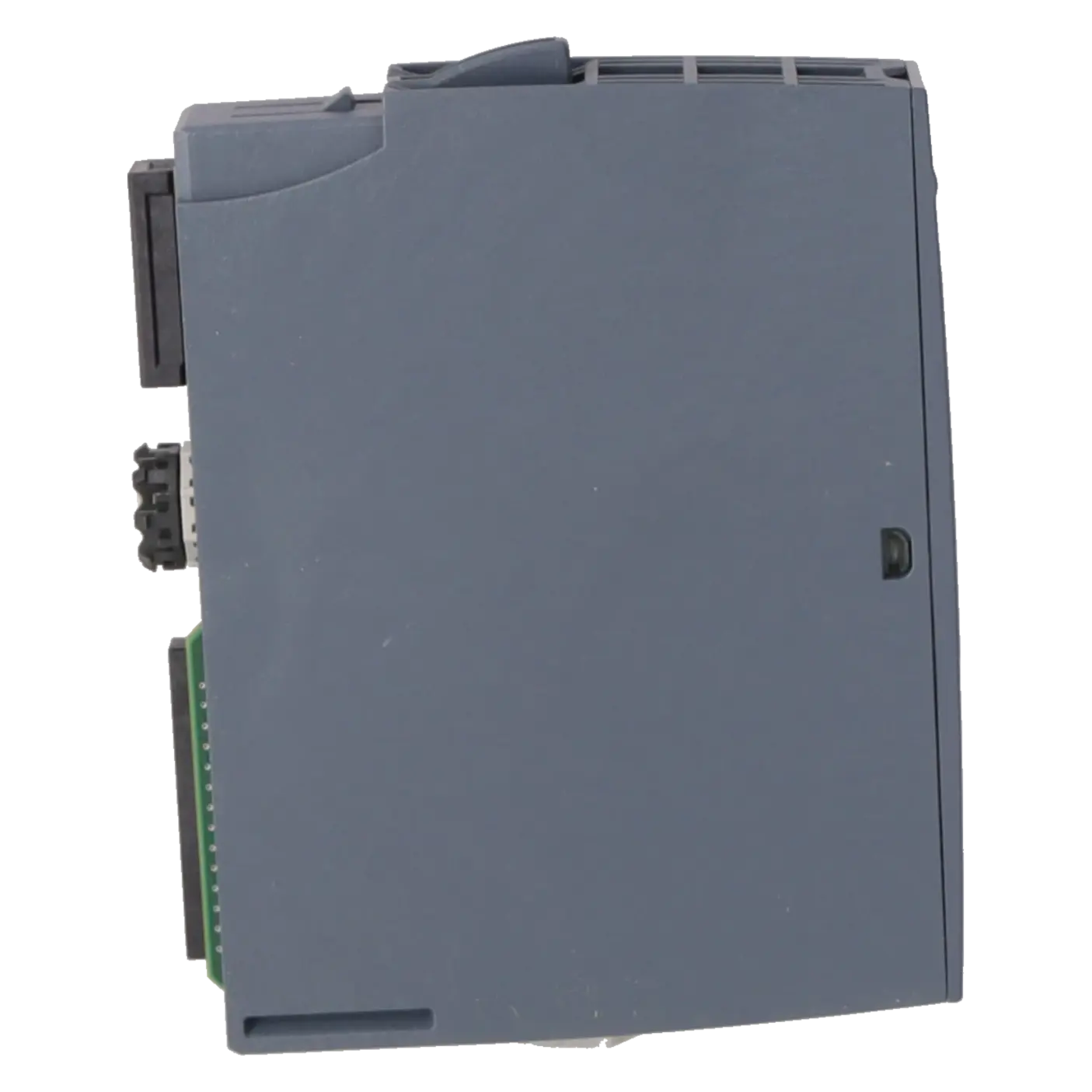

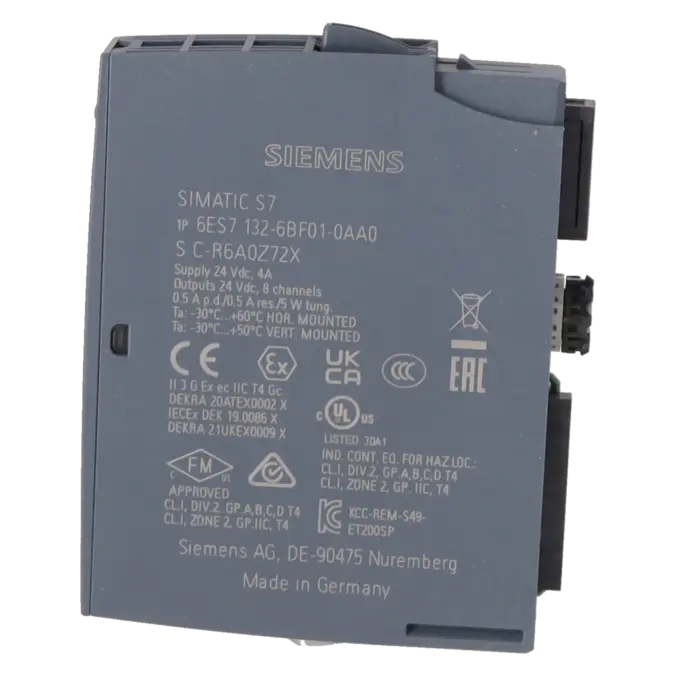

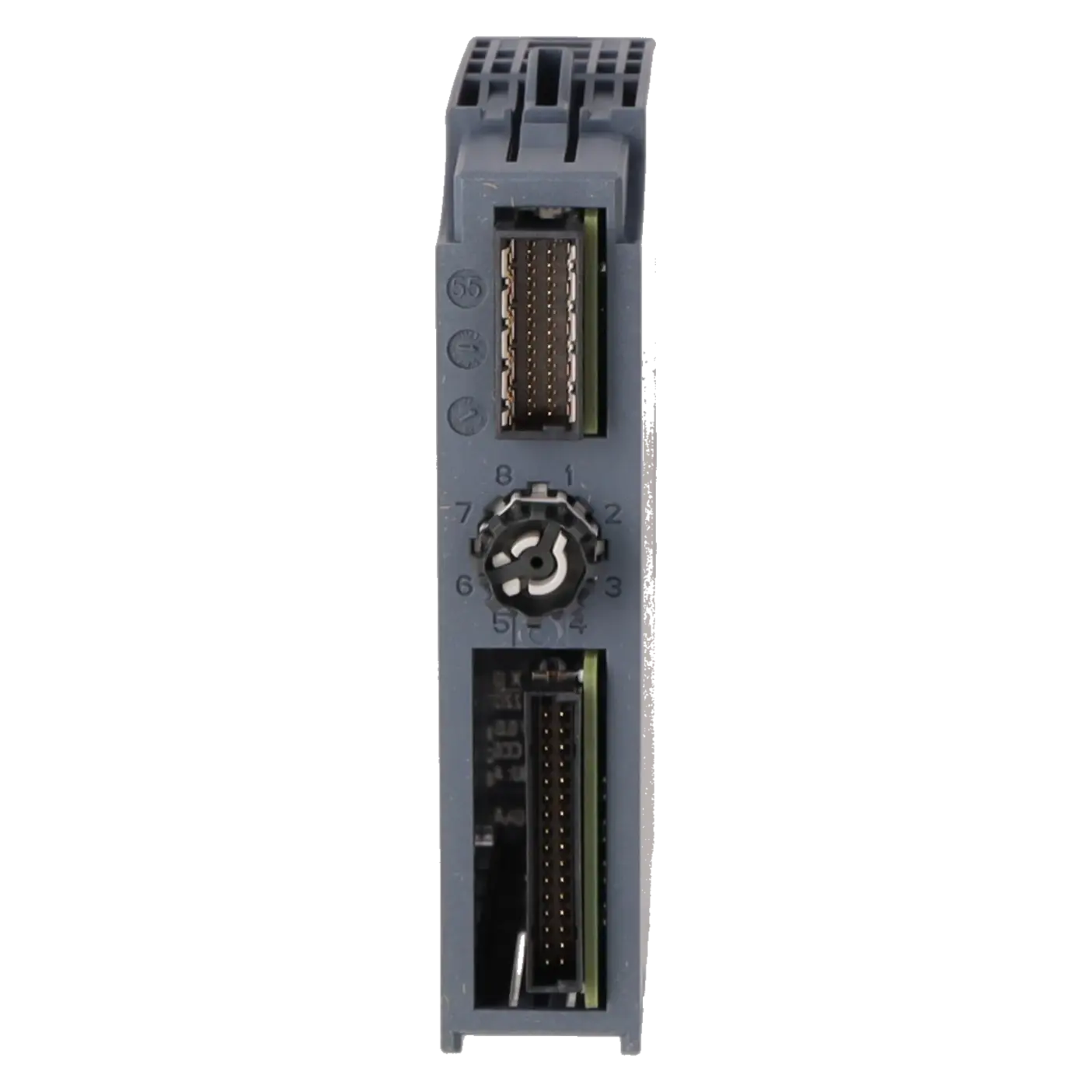

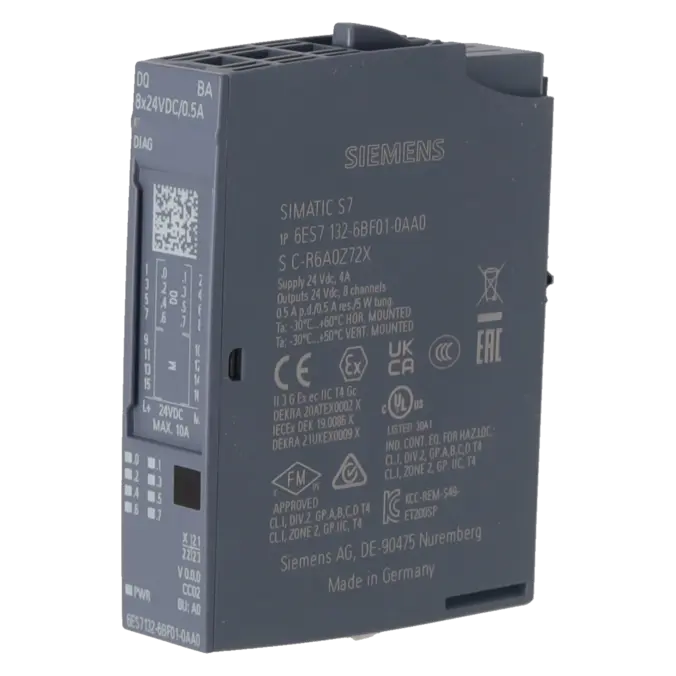

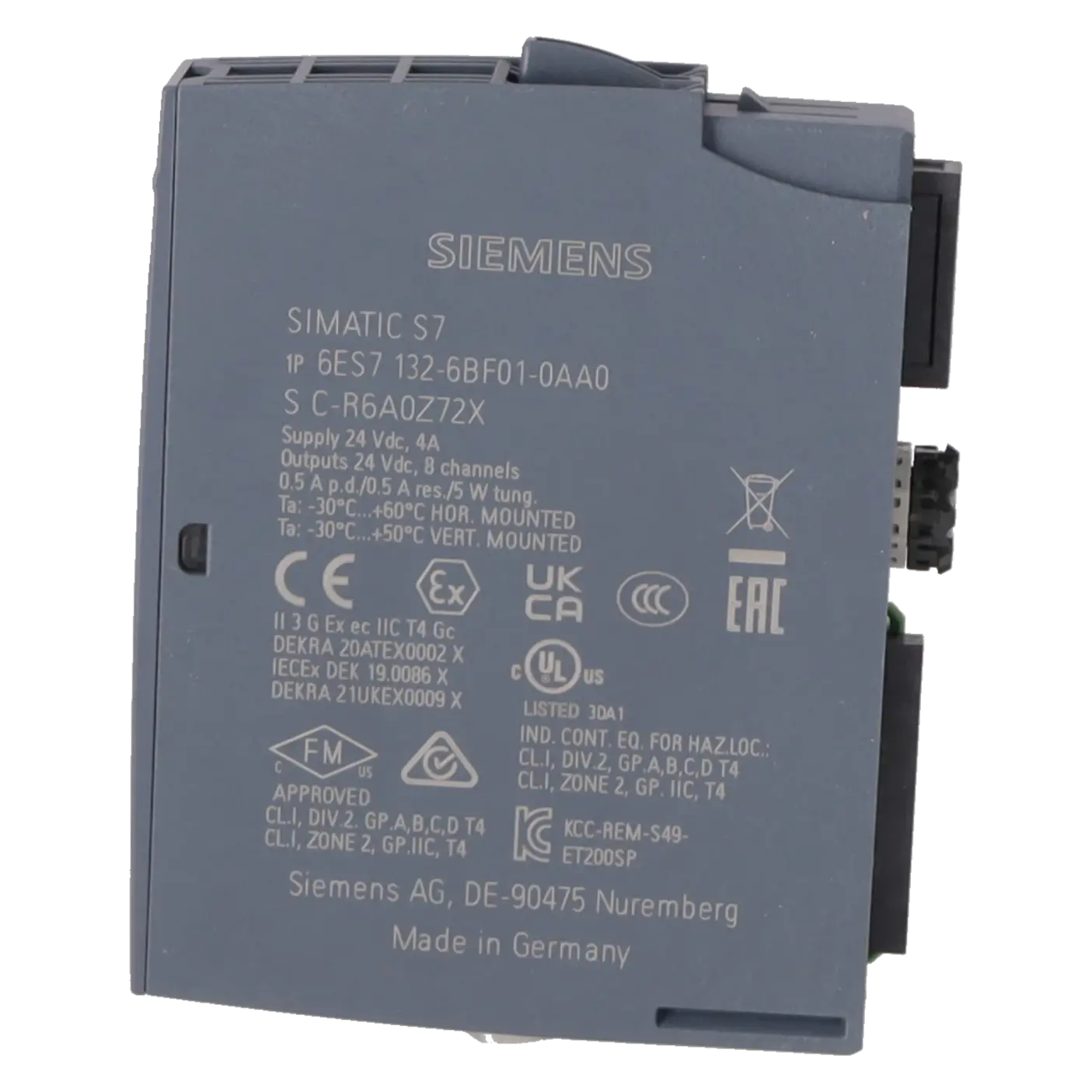

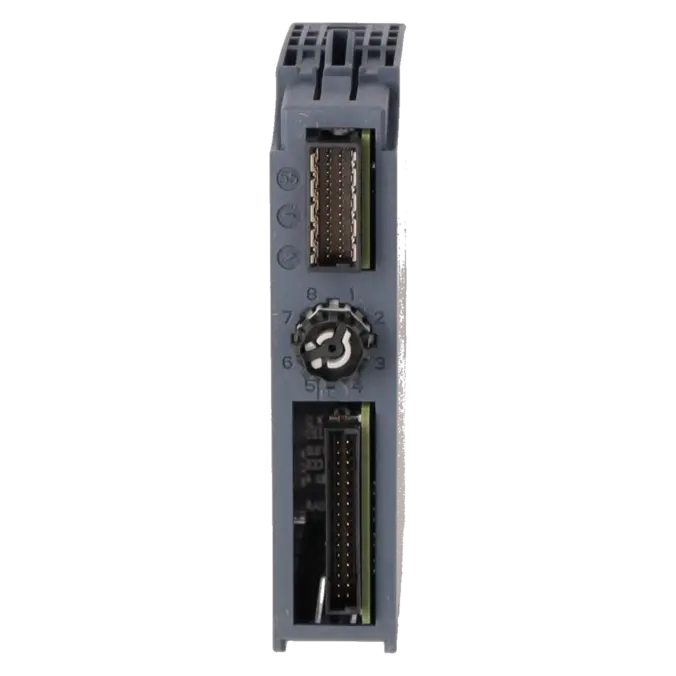

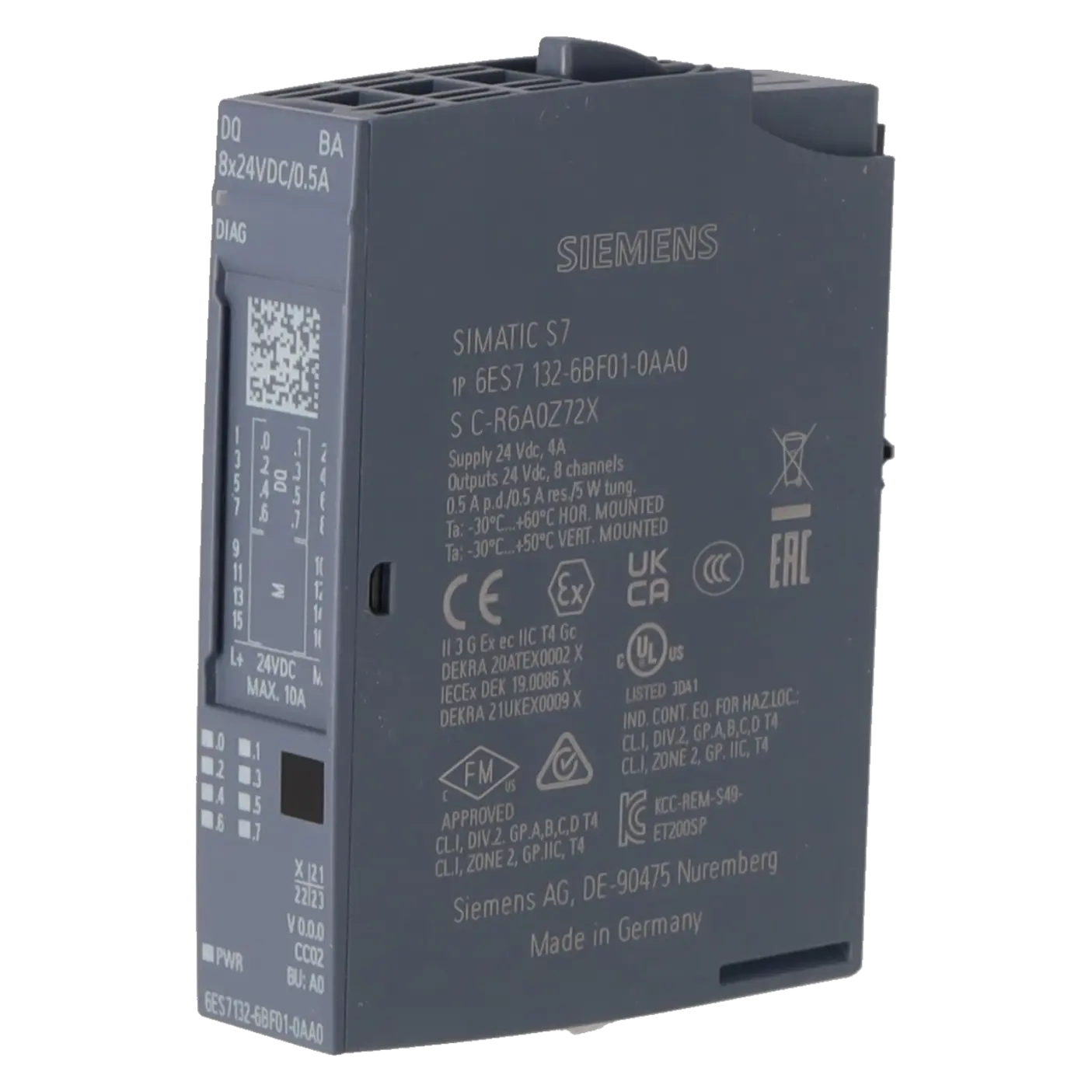

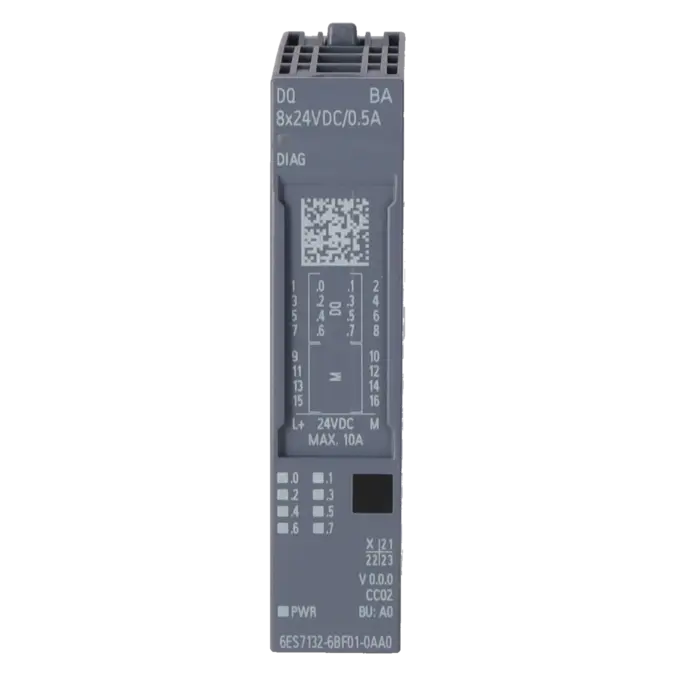

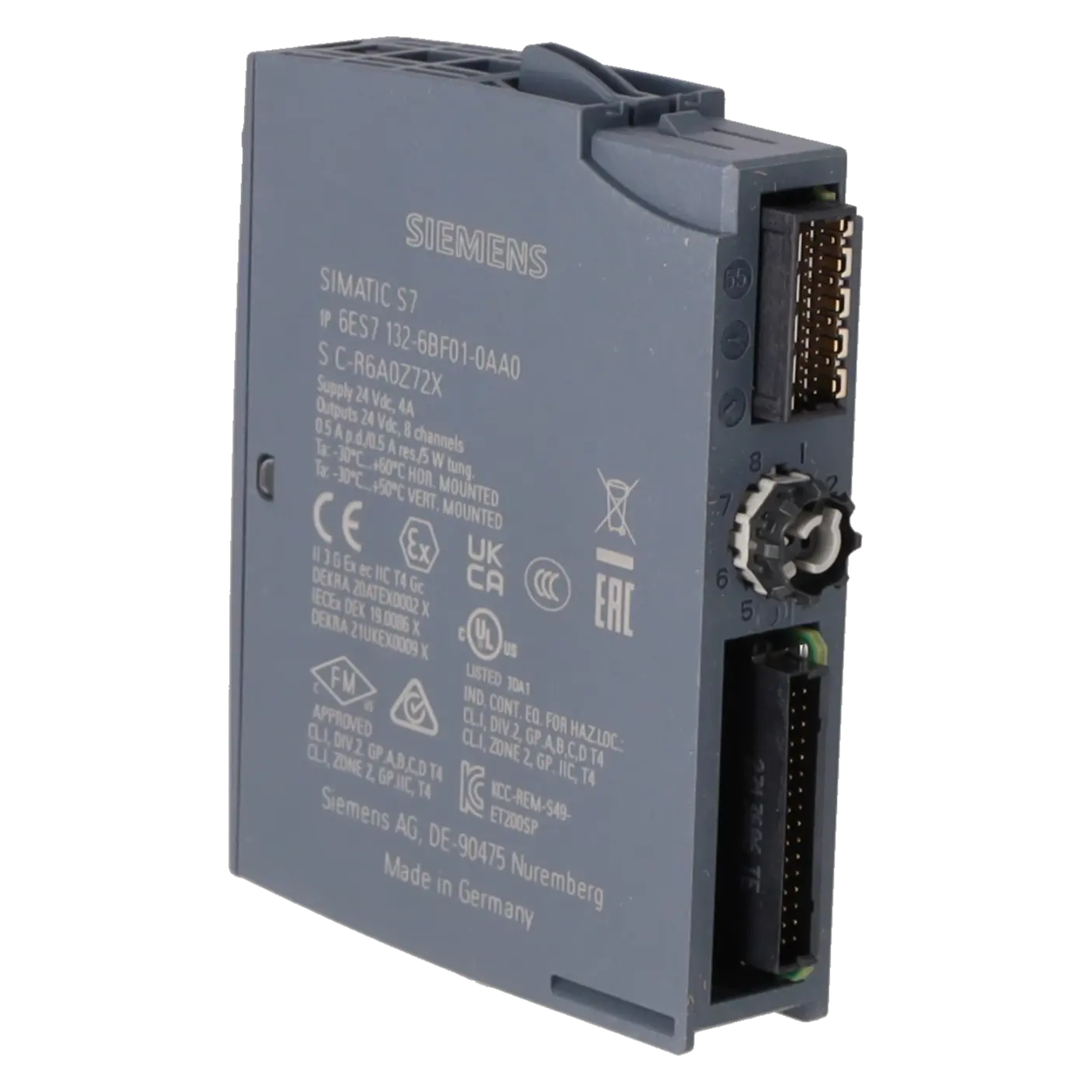

DQ 8x24VDC/0.5A BA |
| HW functional status |
From FS02 |
| Firmware version |
V0.0 |
| ● FW update possible |
No |
| usable BaseUnits |
BU type A0 |
| Color code for module-specific color-coded label |
CC02 |
| Product function |
|
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
No |
| Engineering with |
|
| ● STEP 7 TIA Portal configurable/integrated from version |
V14 |
| ● STEP 7 configurable/integrated from version |
V5.5 SP3 |
| ● PROFIBUS from GSD version/GSD revision |
One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.3 |
| Operating mode |
|
| ● DQ |
Yes |
| ● DQ with energy-saving function |
No |
| ● PWM |
No |
| ● Oversampling |
No |
| ● MSO |
No |
| Supply voltage |
|
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
| Input current |
|
| Current consumption, max. |
45 mA; without load |
| Output voltage |
|
| Rated value (DC) |
24 V |
| Power loss |
|
| Power loss, typ. |
1 W |
| Address area |
|
| Address space per module |
|
| ● Address space per module, max. |
1 byte |
| Hardware configuration |
|
| Automatic encoding |
Yes |
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
Type A |
| Selection of BaseUnit for connection variants |
|
| ● 1-wire connection |
BU type A0 |
| ● 2-wire connection |
BU type A0 |
| ● 3-wire connection |
BU type A0 with AUX terminals or potential distributor module |
| ● 4-wire connection |
BU type A0 + Potential distributor module |
| Digital outputs |
|
| Type of digital output |
Source output (PNP, current-sourcing) |
| Number of digital outputs |
8 |
| Current-sinking |
No |
| Current-sourcing |
Yes |
| Digital outputs, parameterizable |
Yes |
| Short-circuit protection |
Yes; per channel, electronic |
| ● Response threshold, typ. |
1 A |
| Limitation of inductive shutdown voltage to |
Typ. L+ (-50 V) |
| Controlling a digital input |
Yes |
| Switching capacity of the outputs |
|
| ● with resistive load, max. |
0.5 A |
| ● on lamp load, max. |
5 W |
| Load resistance range |
|
| ● lower limit |
48 Ω |
| ● upper limit |
100 kΩ |
| Output current |
|
| ● for signal "1" rated value |
0.5 A |
| ● for signal "1" permissible range, max. |
0.5 A |
| ● for signal "0" residual current, max. |
10 µA |
| Output delay with resistive load |
|
| ● "0" to "1", max. |
100 µs; at rated load |
| ● "1" to "0", max. |
150 µs; at rated load |
| Parallel switching of two outputs |
|
| ● for uprating |
No |
| ● for redundant control of a load |
Yes |
| Switching frequency |
|
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
2 Hz |
| ● on lamp load, max. |
10 Hz |
| Total current of the outputs |
|
| ● Current per channel, max. |
0.5 A |
| ● Current per module, max. |
4 A |
| Total current of the outputs (per module) |
|
| horizontal installation |
|
| — up to 60 °C, max. |
4 A |
| vertical installation |
|
| — up to 50 °C, max. |
4 A |
| Cable length |
|
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
600 m |
| Interrupts/diagnostics/status information |
|
| Diagnostics function |
Yes |
| Substitute values connectable |
Yes |
| Alarms |
|
| ● Diagnostic alarm |
Yes |
| Diagnoses |
|
| ● Monitoring the supply voltage |
Yes |
| ● Wire break |
No |
| ● short-circuit |
No |
| ● Group error |
Yes |
| Diagnostics indication LED |
|
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
No |
| ● for module diagnostics |
Yes; green/red DIAG LED |
| Potential separation |
|
| Potential separation channels |
|
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
No |
| Isolation |
|
| Isolation tested with |
707 V DC (type test) |
| Standards, approvals, certificates |
|
| Suitable for safety functions |
No |
| Suitable for safety-related tripping of standard modules |
Yes; see FAQ Entry ID: 39198632 |
| Ecological footprint |
|
| ● environmental product declaration |
Yes |
| Global warming potential |
|
| — global warming potential, (total) [CO2 eq] |
20.4 kg |
| — global warming potential, (during production) [CO2 eq] |
3.16 kg |
| — global warming potential, (during operation) [CO2 eq] |
17.5 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.221 kg |
| Highest safety class achievable in safety mode |
|
| ● Performance level according to ISO 13849-1 |
PL d |
| ● SIL acc. to IEC 61508 |
SIL 2 |
| Ambient conditions |
|
| Ambient temperature during operation |
|
| ● horizontal installation, min. |
-30 °C; < 0 °C as of FS02 |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C; < 0 °C as of FS02 |
| ● vertical installation, max. |
50 °C |
| Altitude during operation relating to sea level |
|
| ● Installation altitude above sea level, max. |
5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity |
|
| ● dew point, min. |
-60 °C; suitable for dry room applications |
| Dimensions |
|
| Width |
15 mm |
| Height |
73 mm |
| Depth |
58 mm |
| Weights |
|
| Weight, approx. |
30 g |
