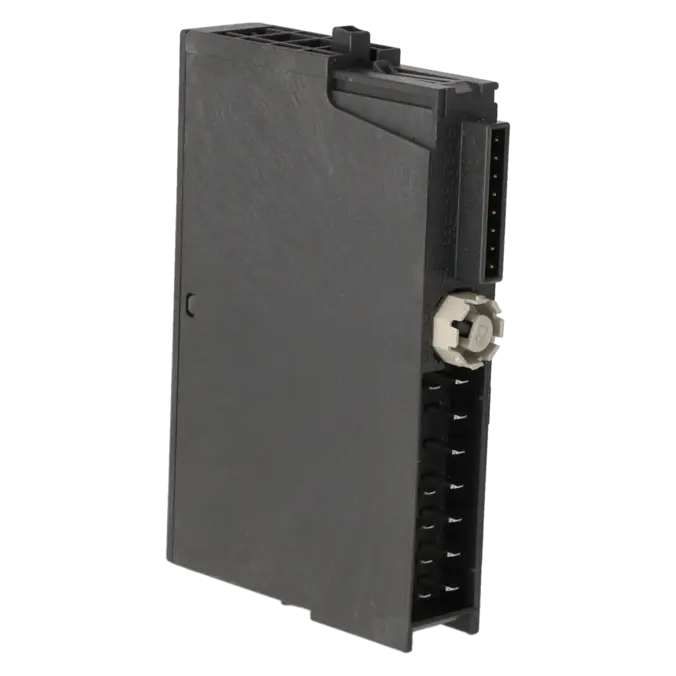

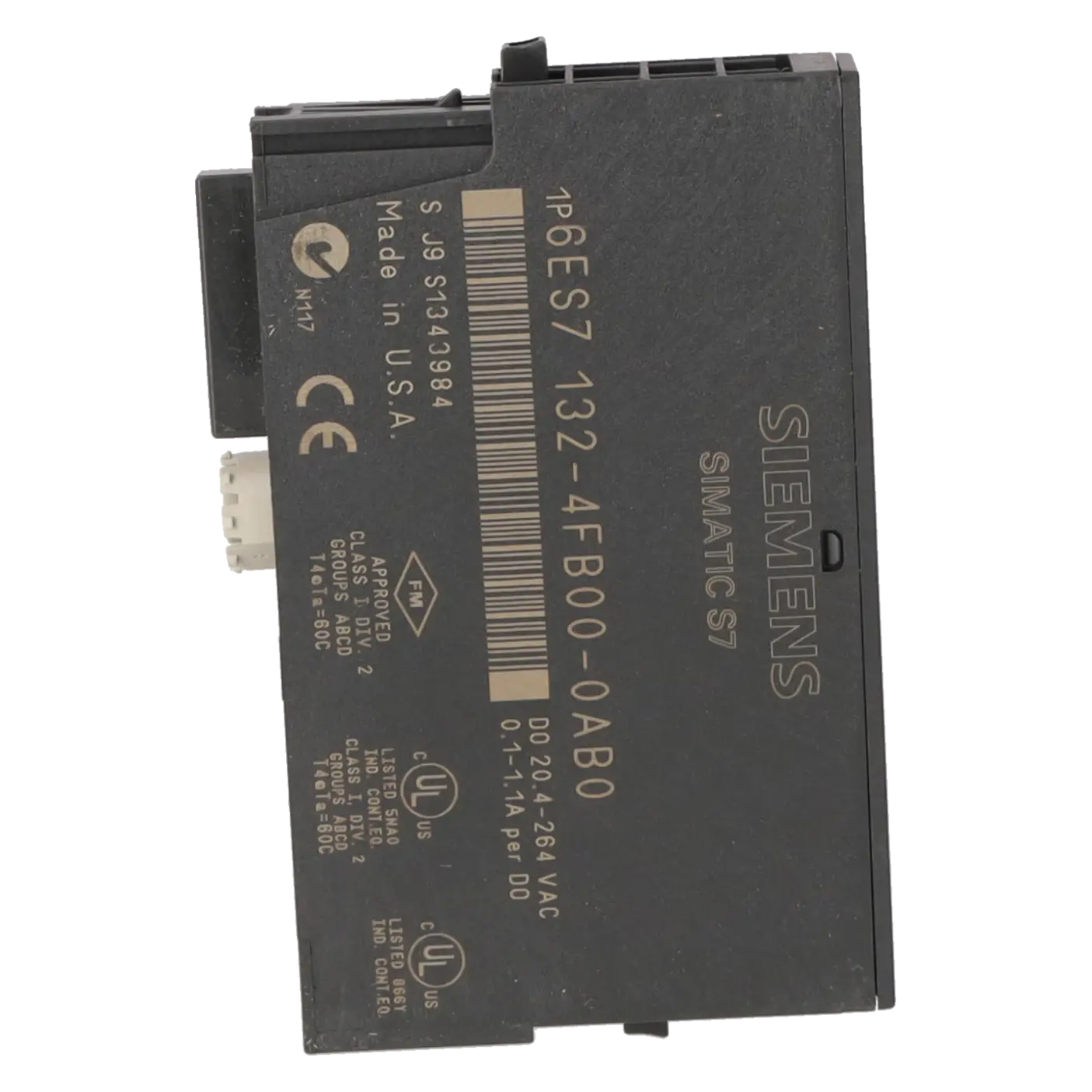

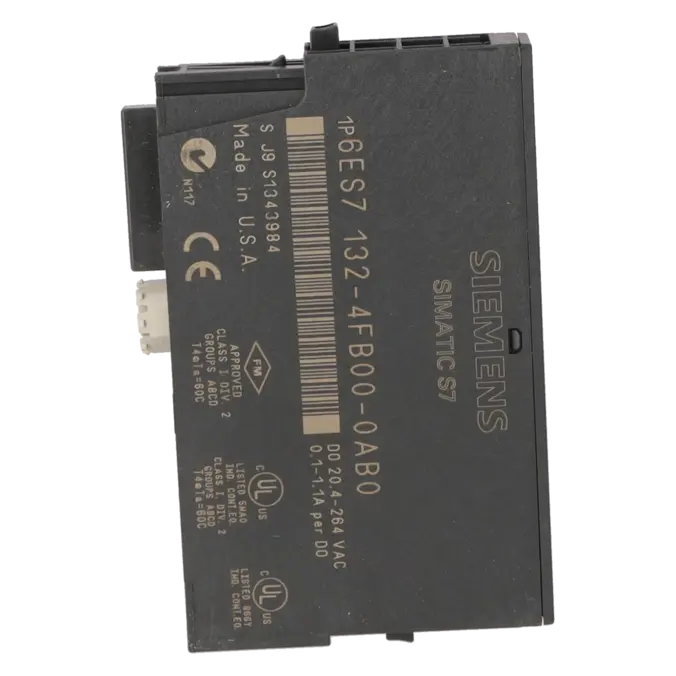

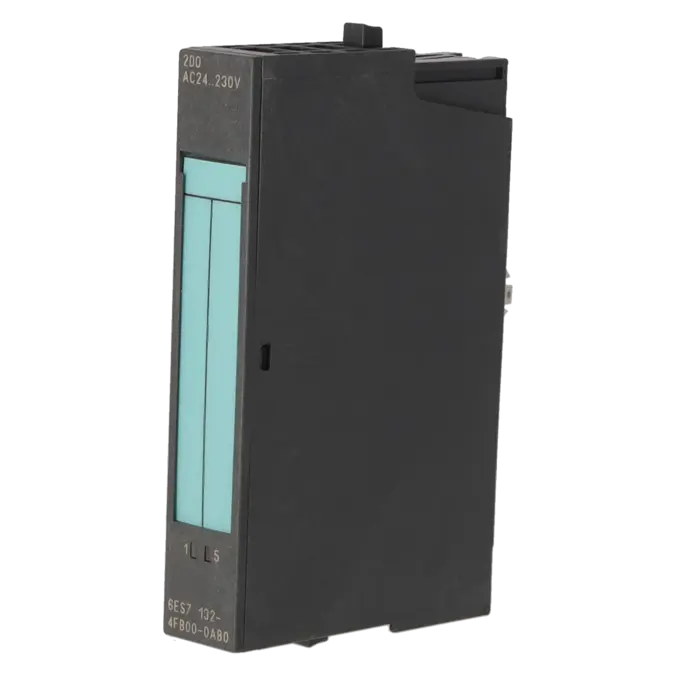

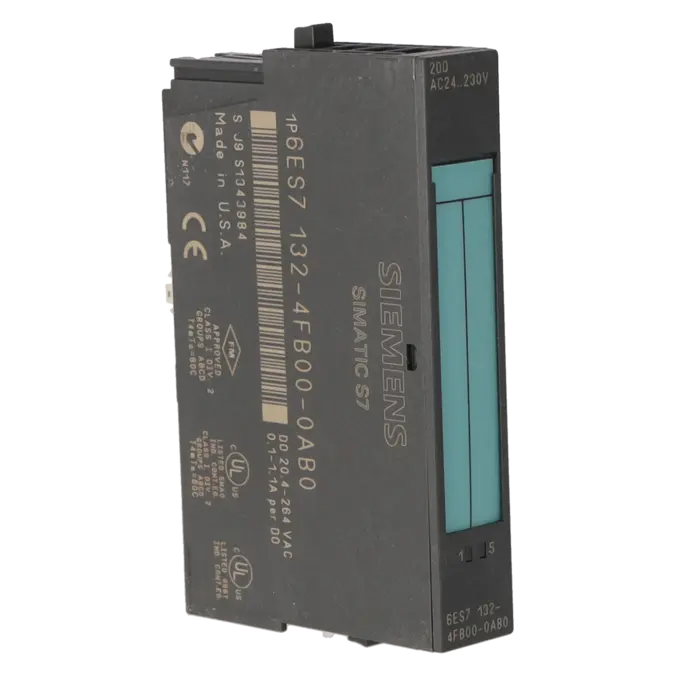

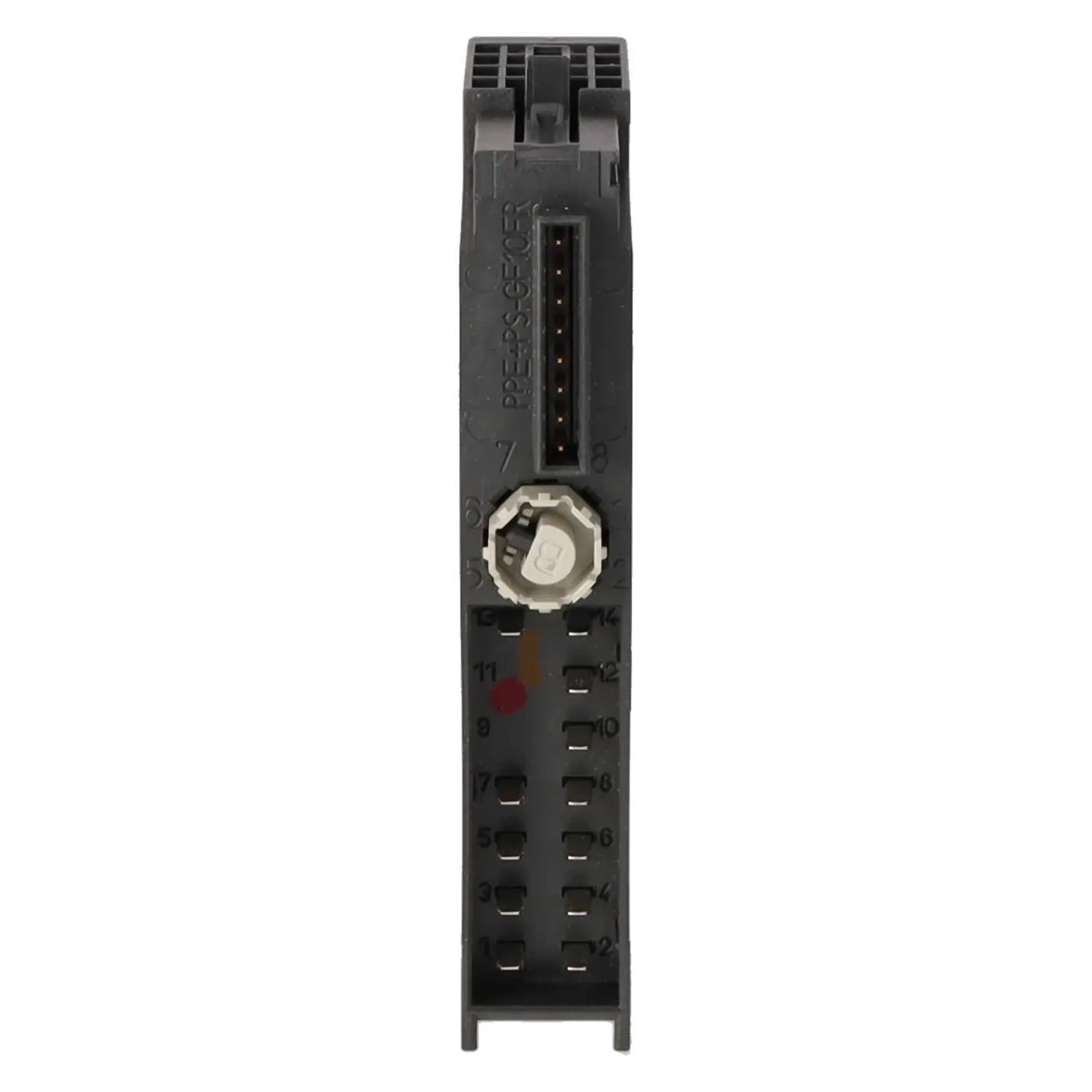

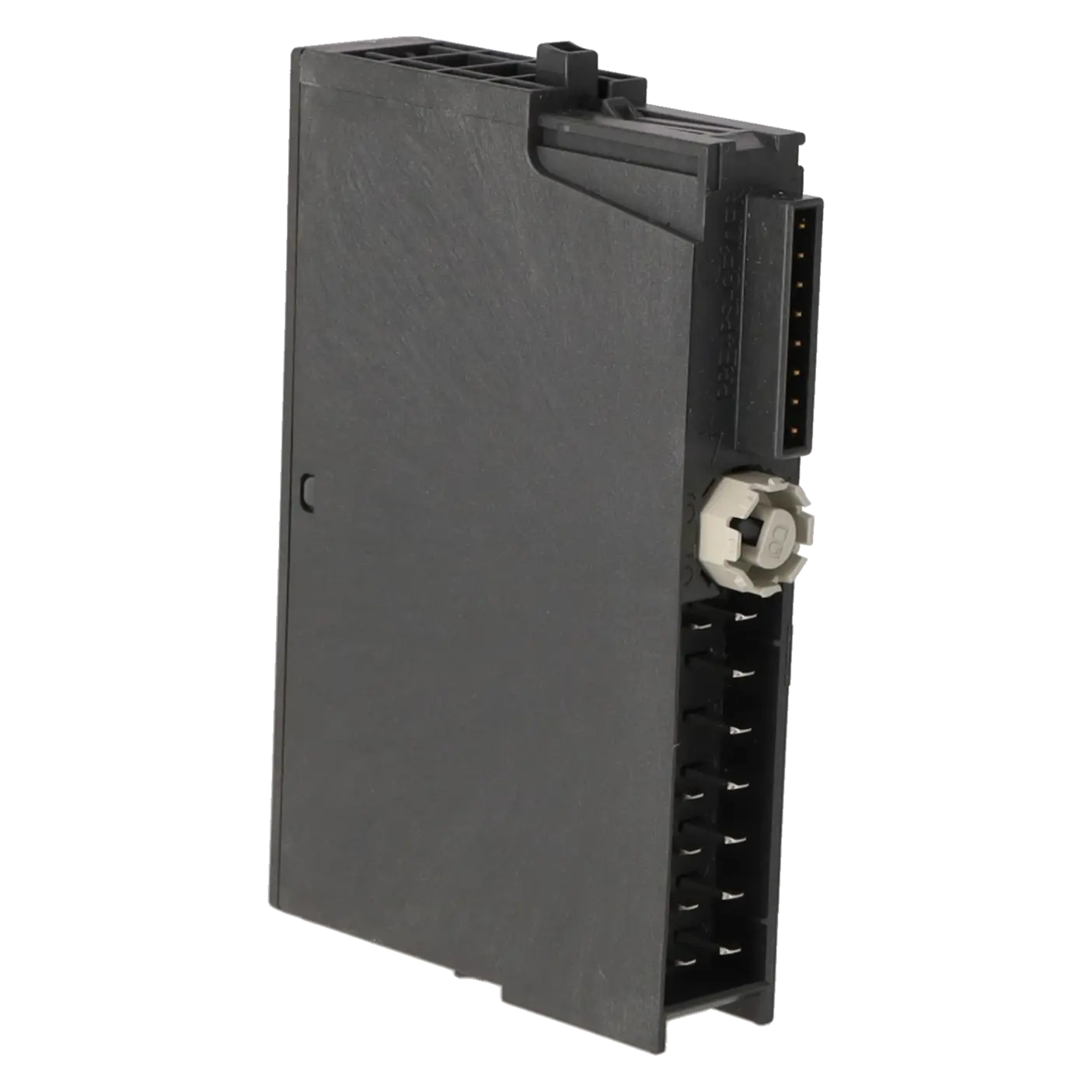

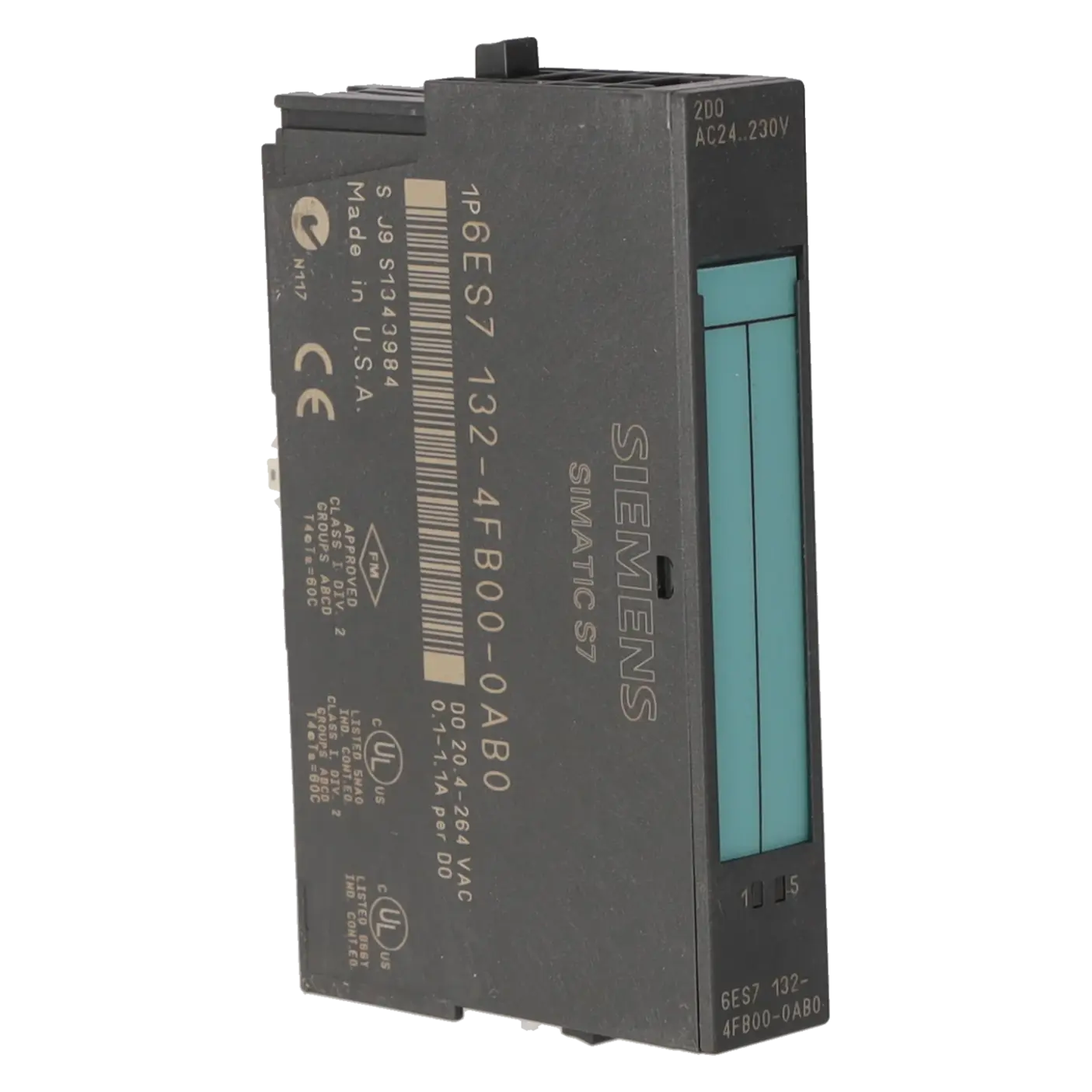

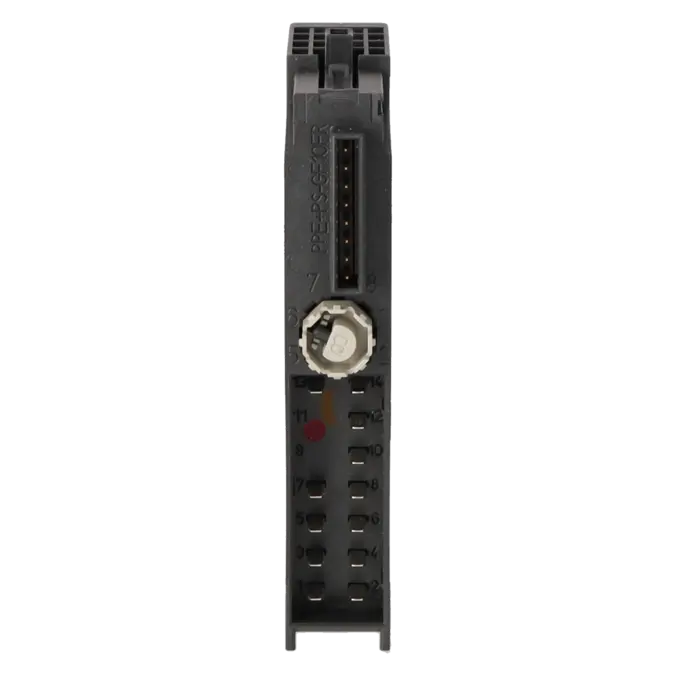

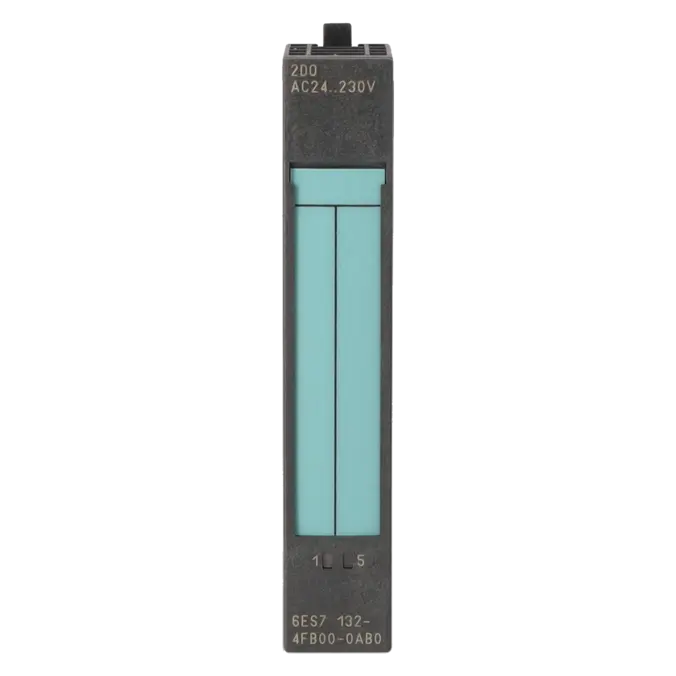

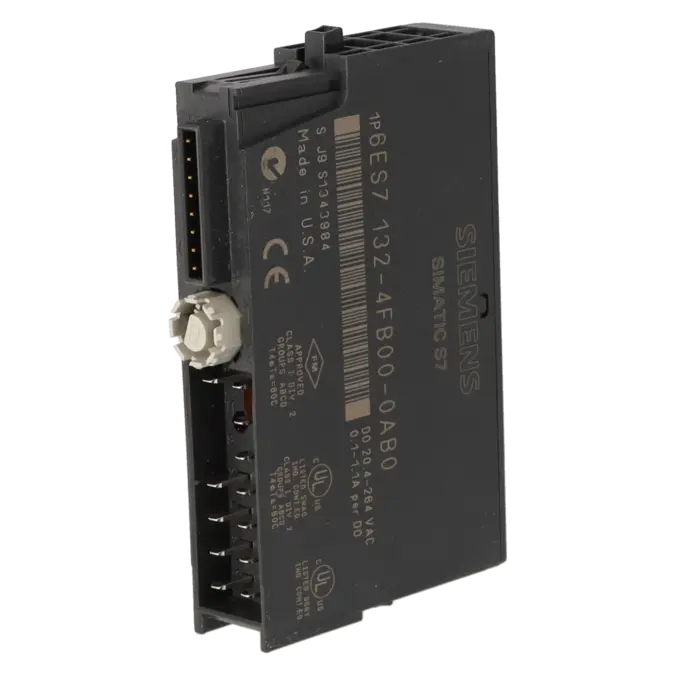

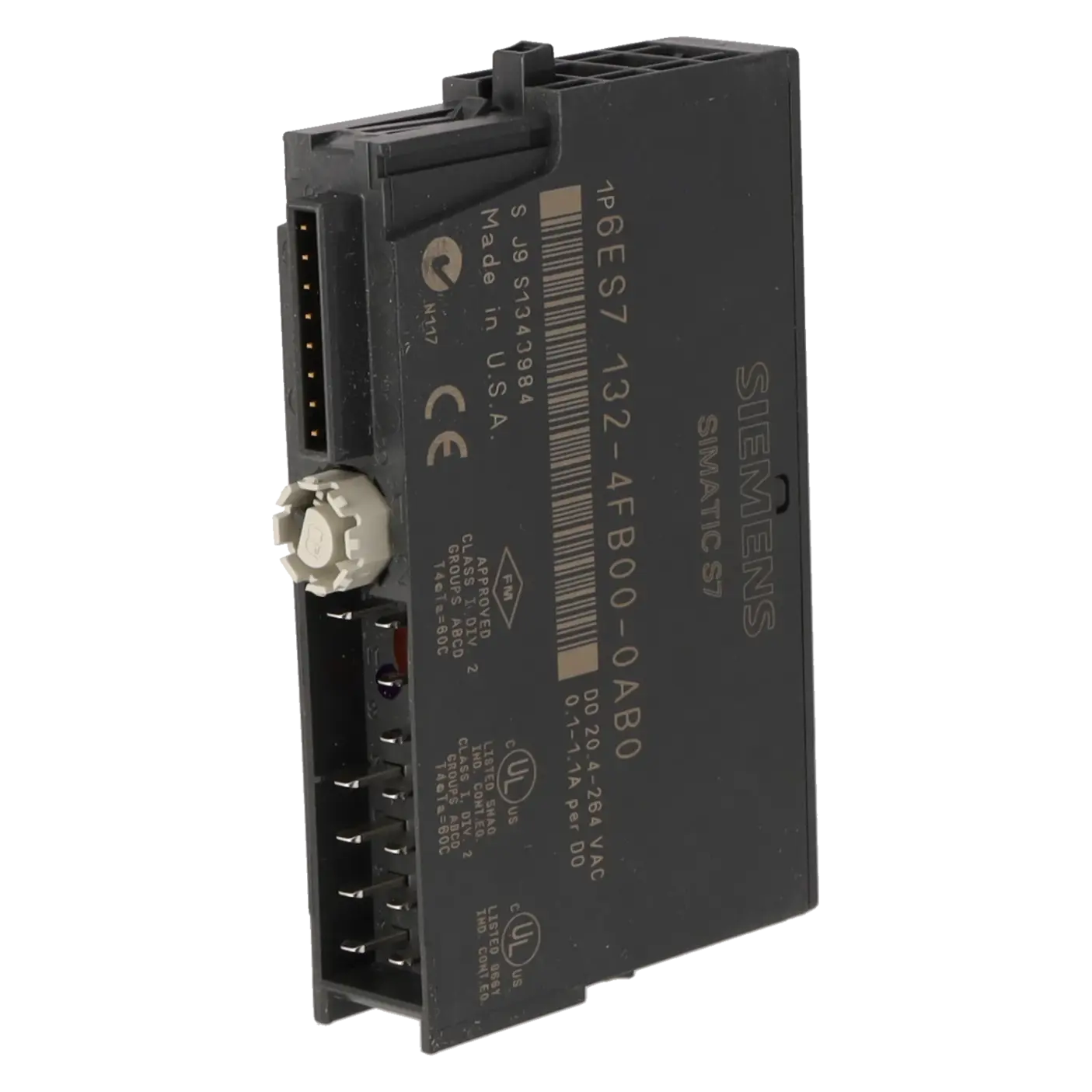

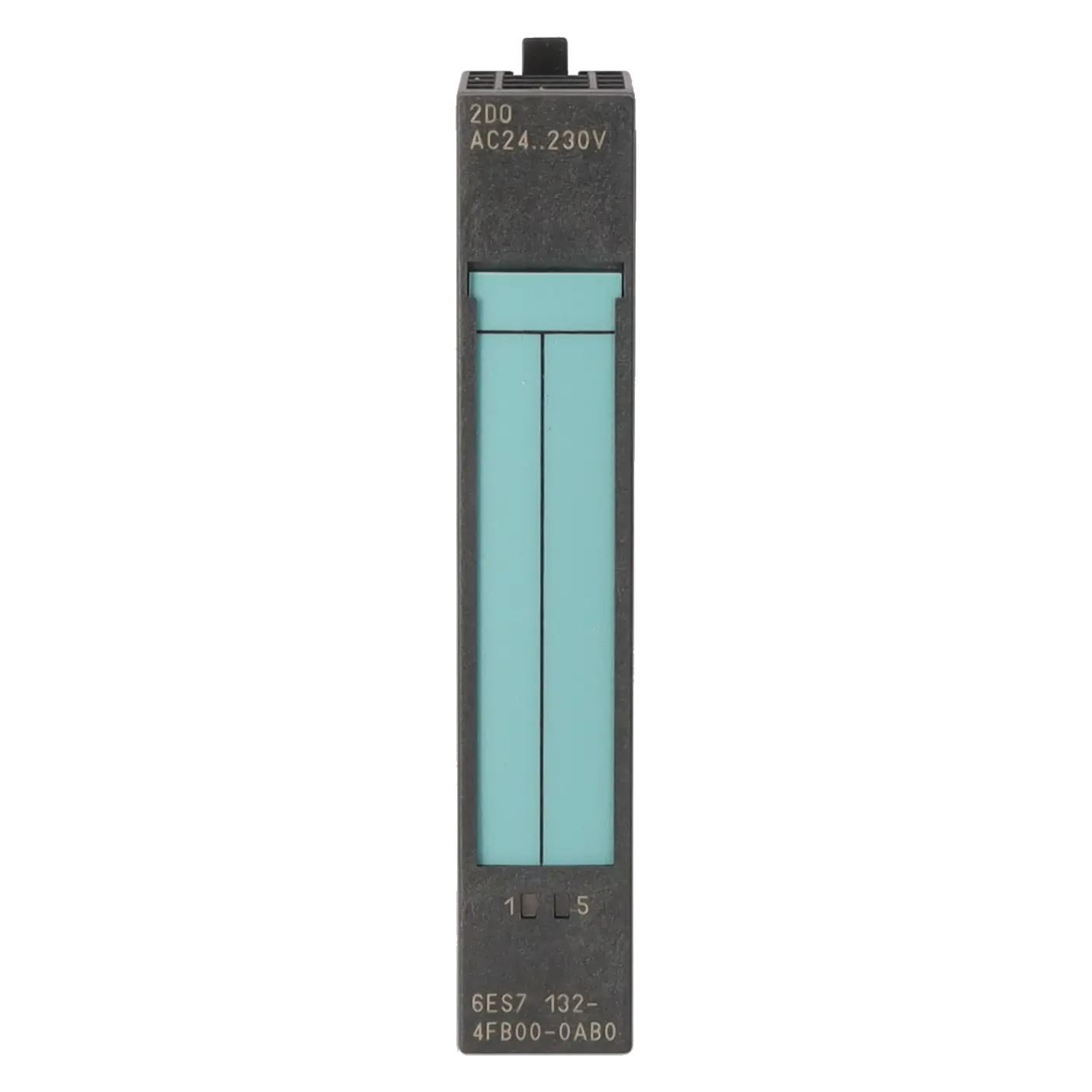

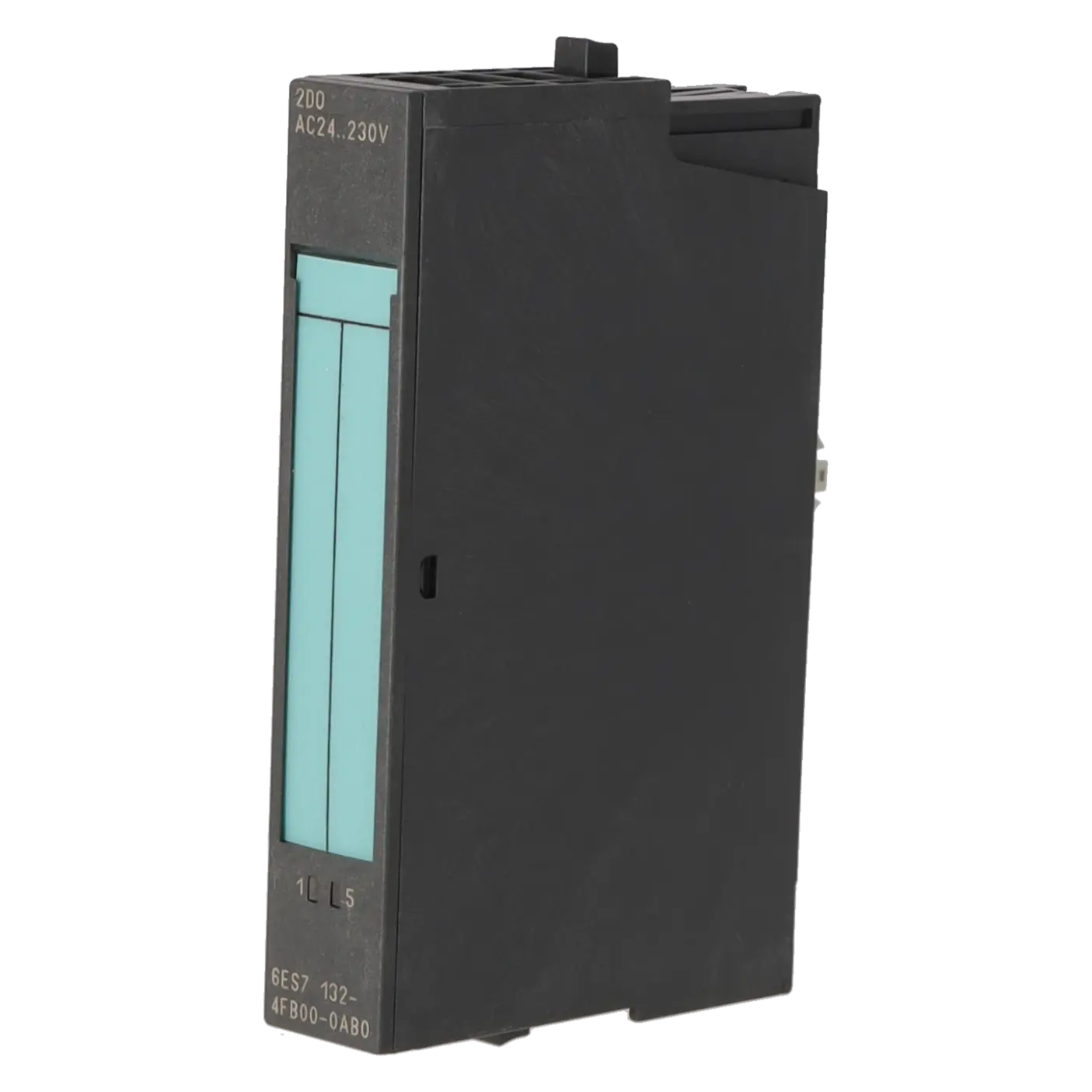

| Supply voltage |
|
| Reverse voltage protection |
Yes; when using the same load voltage as on the power module |
| Load voltage L1 |
|
| ● Rated value (AC) |
24.23 V; From power module |
| ● permissible range, lower limit (AC) |
24 V |
| ● permissible range, upper limit (AC) |
230 V |
| ● permissible frequency range, lower limit |
47 Hz |
| ● permissible frequency range, upper limit |
63 Hz |
| Input current |
|
| from load voltage L1 (without load), max. |
15 mA; Per channel |
| from backplane bus 3.3 V DC, max. |
18 mA |
| Power loss |
|
| Power loss, max. |
4 W |
| Address area |
|
| Address space per module |
|
| ● Address space per module, max. |
1 byte |
| ● with packing |
2 bit |
| Digital outputs |
|
| Number of digital outputs |
2 |
| Limitation of inductive shutdown voltage to |
-55 to -60 V |
| Controlling a digital input |
Yes; possible |
| Size of motor starters according to NEMA, max. |
up to 40 °C size acc. to NEMA: 5; up to 60 °C size acc. to NEMA: 4 |
| Zero-crossing switch |
Yes; Max. 25 V |
| Switching capacity of the outputs |
|
| ● on lamp load, max. |
100 W |
| Output voltage |
|
| ● for signal "1", min. |
L+ (-1.5 V) |
| Output current |
|
| ● for signal "1" rated value |
2 A |
| ● for signal "1" permissible range, min. |
0.1 mA |
| ● for signal "1" permissible range, max. |
2.2 A |
| ● for signal "0" residual current, max. |
3 mA |
| Output delay with resistive load |
|
| ● "0" to "1", max. |
15 ms |
| ● "1" to "0", max. |
15 ms |
| Parallel switching of two outputs |
|
| ● for uprating |
No |
| ● for redundant control of a load |
Yes; per module |
| Switching frequency |
|
| ● with resistive load, max. |
10 Hz |
| ● with inductive load, max. |
0.5 Hz |
| ● on lamp load, max. |
1 Hz |
| Total current of the outputs |
|
| ● Current per module, max. |
2 A; note derating data in the manual |
| Cable length |
|
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
600 m |
| Interrupts/diagnostics/status information |
|
| Diagnostics function |
No |
| Substitute values connectable |
Yes; 0/1 |
| Diagnostics indication LED |
|
| ● Status indicator digital output (green) |
Yes |
| Parameter |
|
| Remark |
3 byte |
| Response to CPU/master STOP |
Substitute a value/keep last value |
| Potential separation |
|
| Potential separation digital outputs |
|
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| Isolation |
|
| Isolation tested with |
2 500 V DC |
| Dimensions |
|
| Width |
15 mm |
| Height |
81 mm |
| Depth |
52 mm |
| Weights |
|
| Weight, approx. |
37 g |
