| General information |
|
| Product type designation |

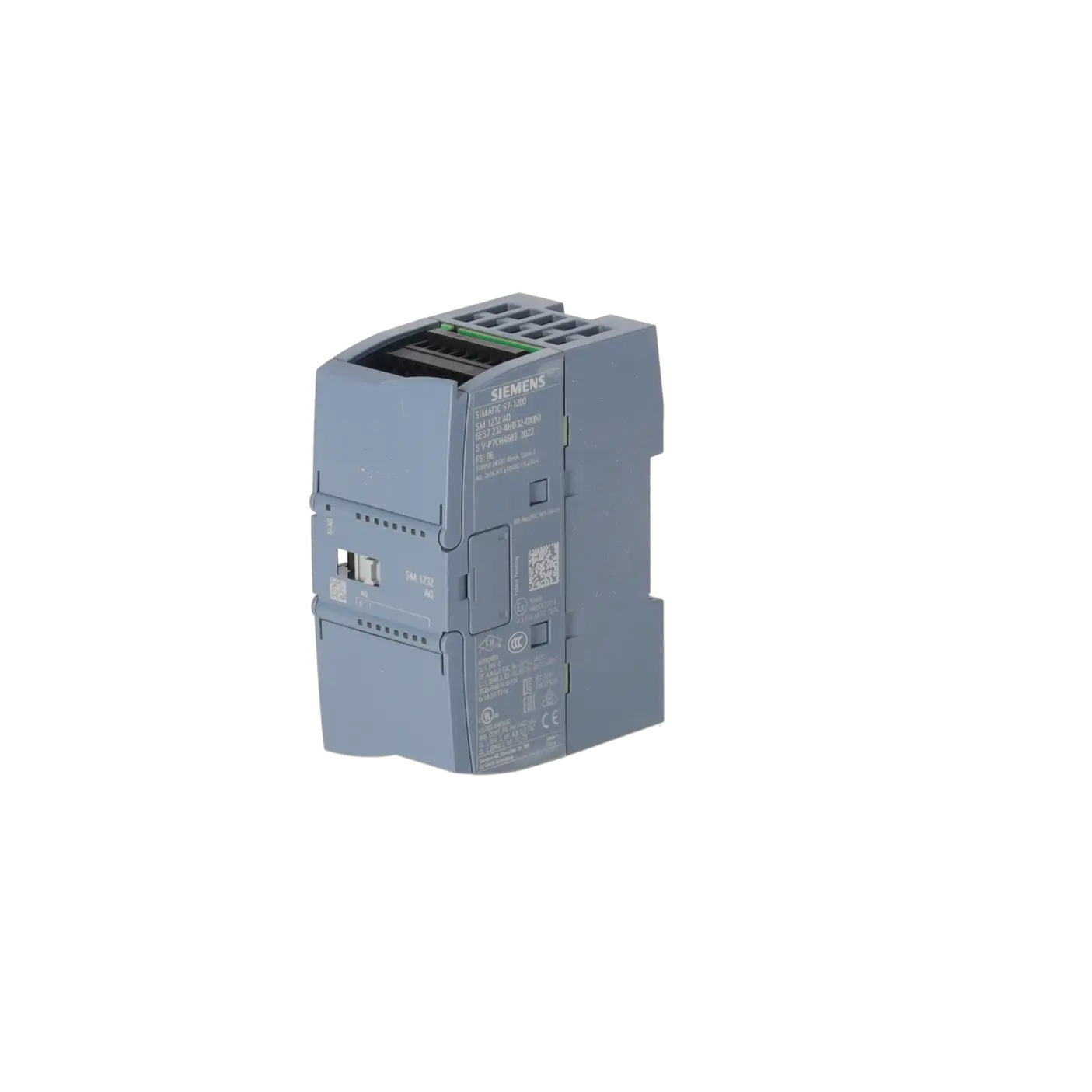

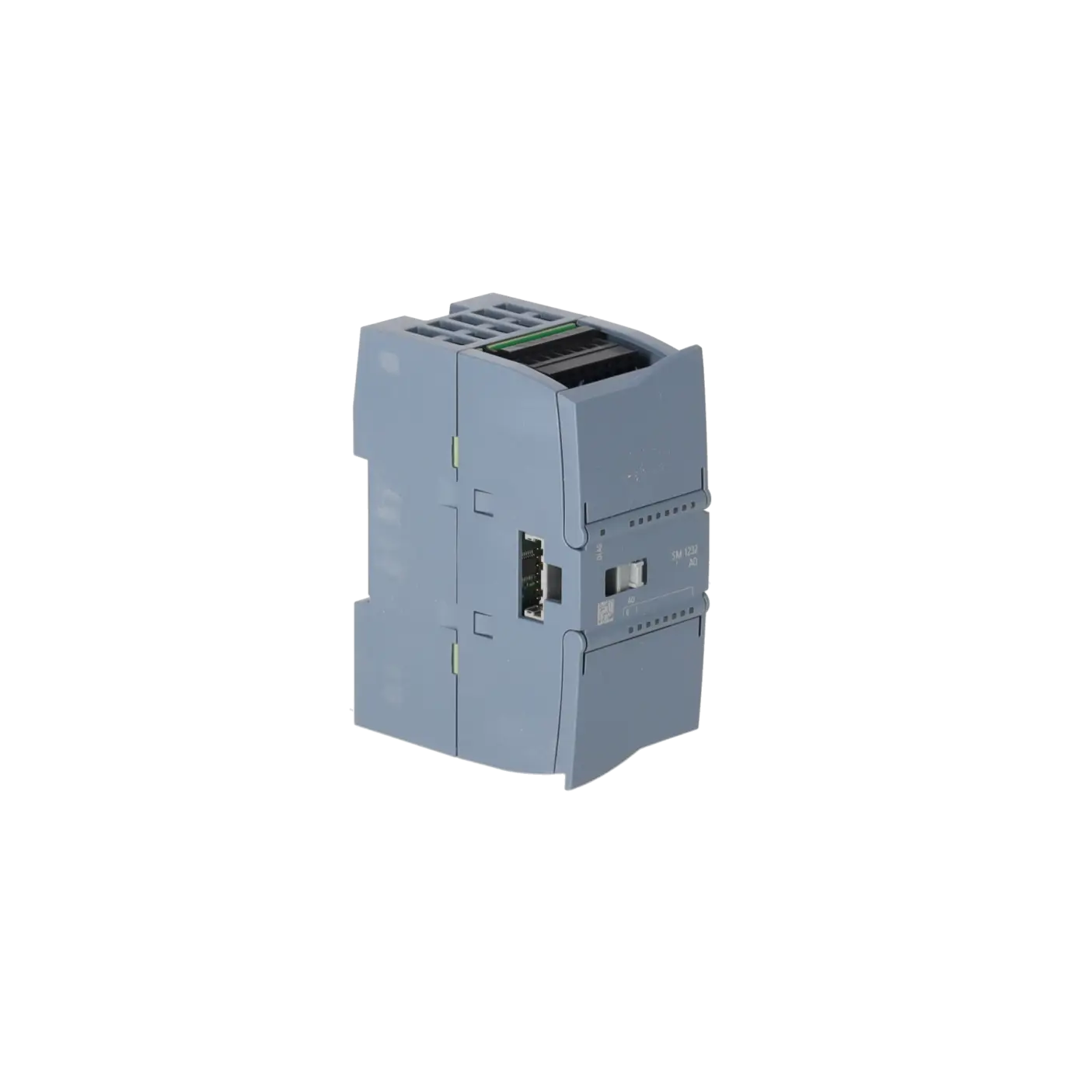

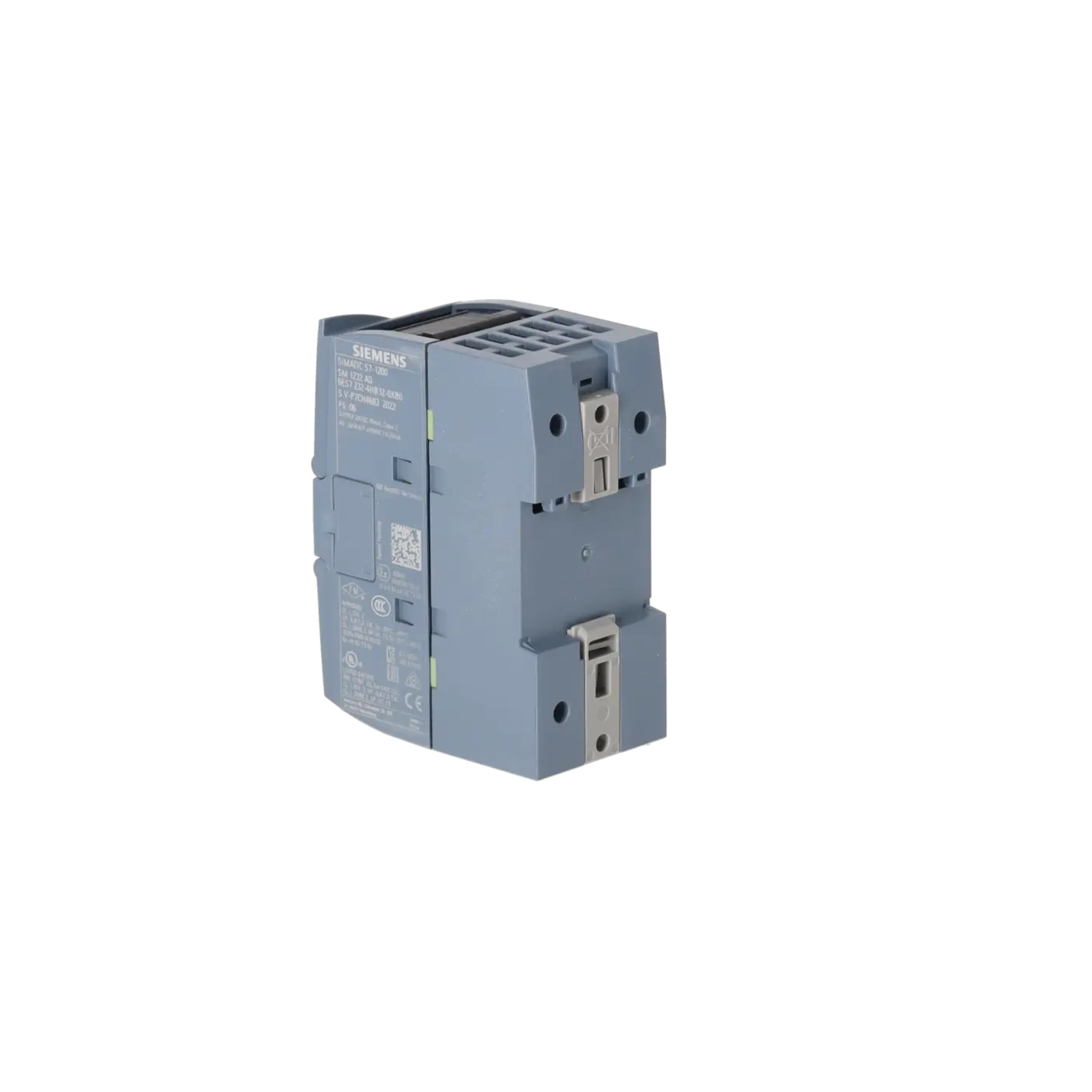

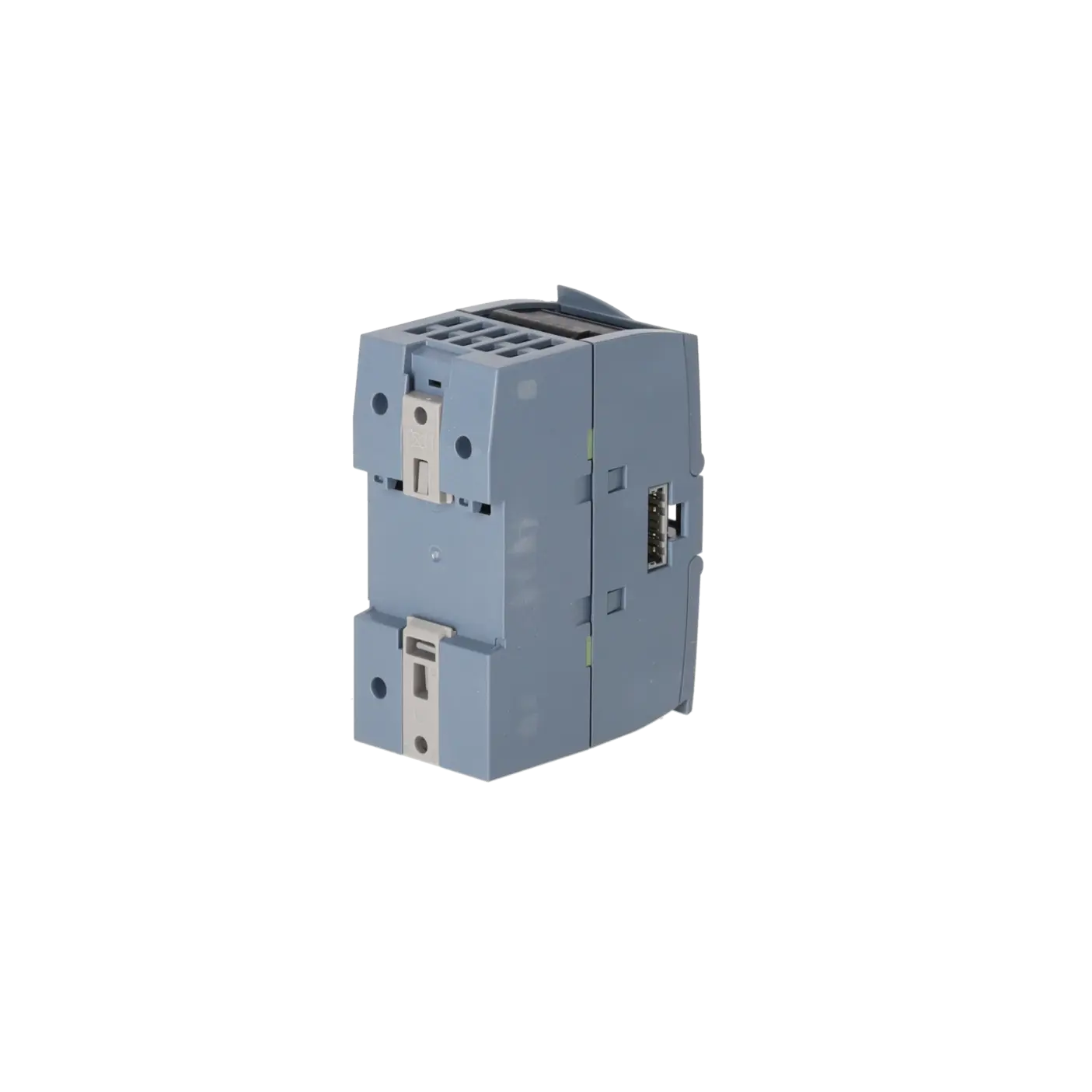

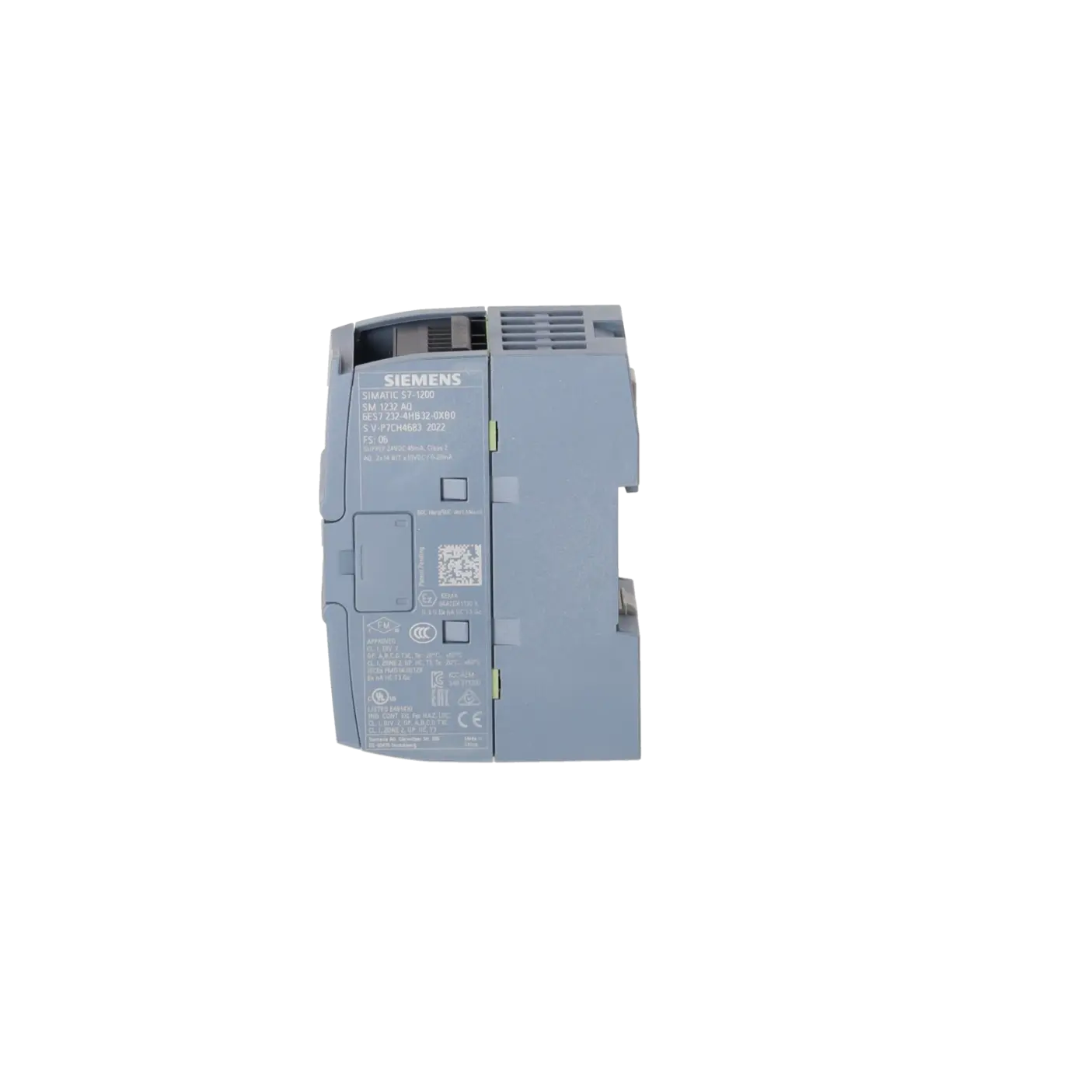

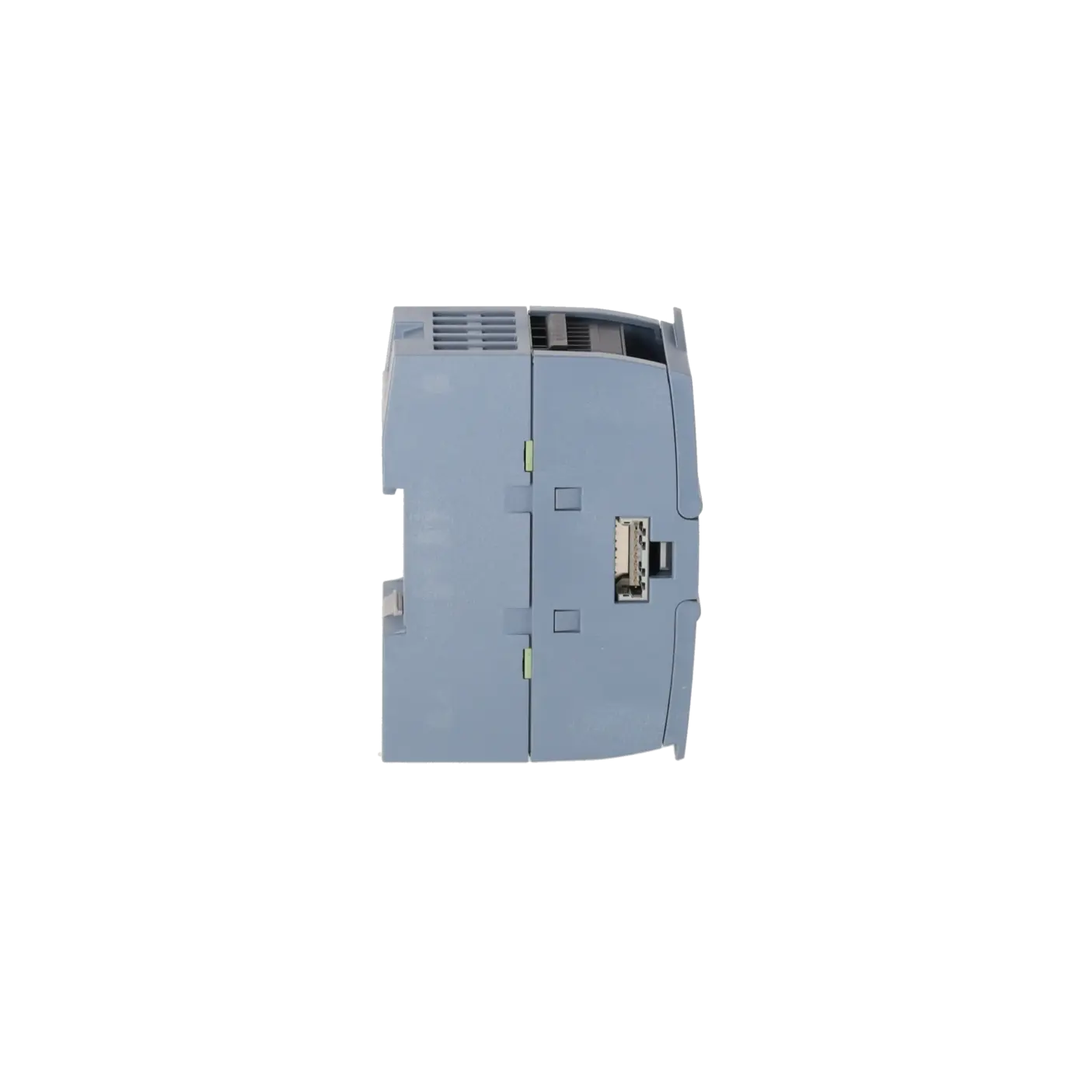

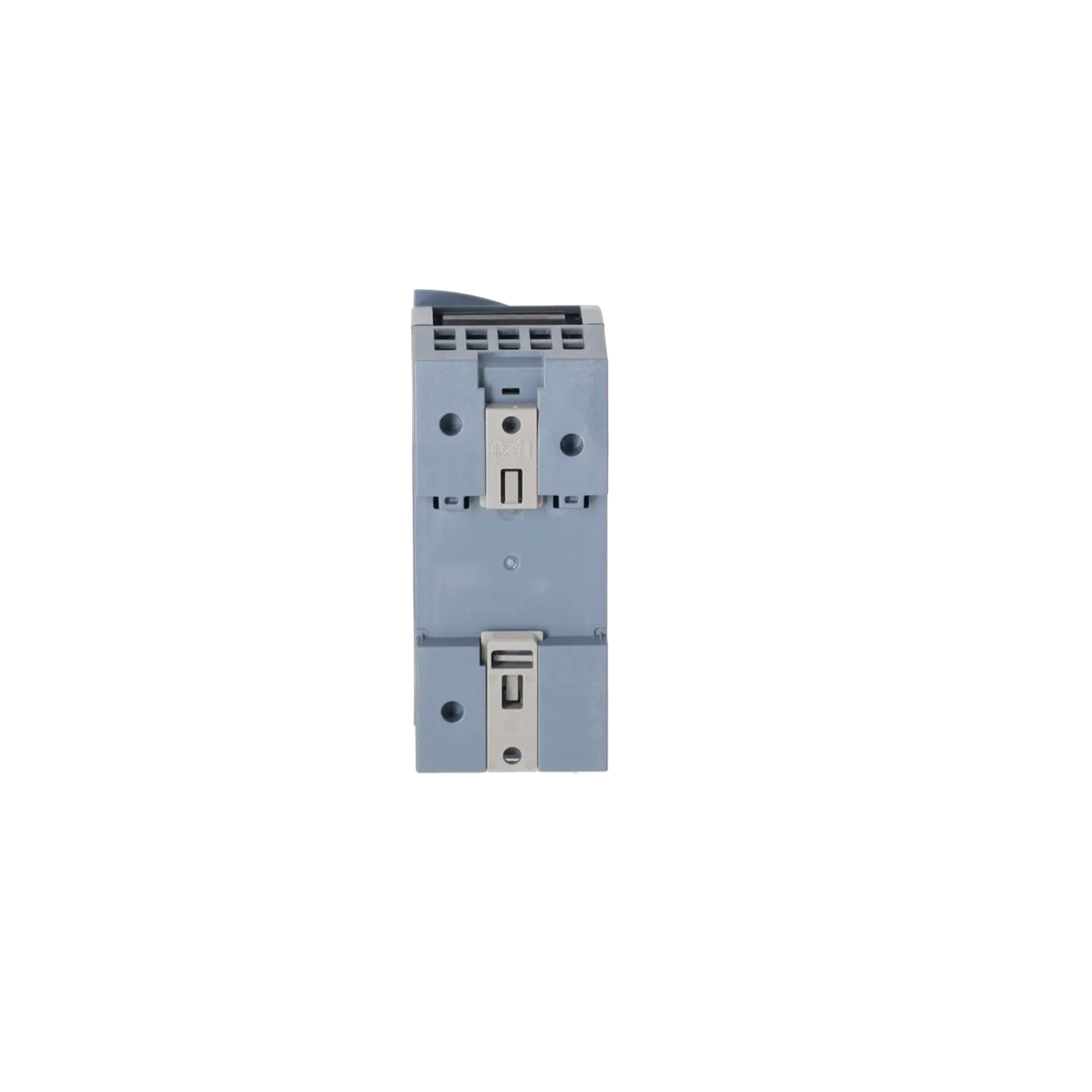

SM 1232, AQ 2x14 bit |
| Supply voltage |
|
| Rated value (DC) |
24 V |
| Input current |
|
| Current consumption, typ. |
45 mA |
| from backplane bus 5 V DC, typ. |
80 mA |
| Power loss |
|
| Power loss, typ. |
1.5 W |
| Analog outputs |
|
| Number of analog outputs |
2; Current or voltage |
| Output ranges, voltage |
|
| ● -10 V to +10 V |
Yes |
| Output ranges, current |
|
| ● 0 to 20 mA |
Yes |
| Load impedance (in rated range of output) |
|
| ● with voltage outputs, min. |
1 000 Ω |
| ● with current outputs, max. |
600 Ω |
| Cable length |
|
| ● shielded, max. |
100 m; shielded, twisted pair |
| Analog value generation for the outputs |
|
| Integration and conversion time/resolution per channel |
|
| ● Resolution with overrange (bit including sign), max. |
14 bit; Voltage: 14 bit; Current : 13 bit |
| Errors/accuracies |
|
| Temperature error (relative to output range), (+/-) |
25 °C ±0.3%, to 55 °C ±0.6% total measurement range |
| Basic error limit (operational limit at 25 °C) |
|
| ● Voltage, relative to output range, (+/-) |
0.3 % |
| ● Current, relative to output range, (+/-) |
0.3 % |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency |
|
| ● Common mode voltage, max. |
12 V |
| Interrupts/diagnostics/status information |
|
| Alarms |
Yes |
| Diagnostics function |
Yes |
| Alarms |
|
| ● Diagnostic alarm |
Yes |
| Diagnoses |
|
| ● Monitoring the supply voltage |
Yes |
| ● Wire break |
Yes |
| ● short-circuit |
Yes |
| Diagnostics indication LED |
|
| ● for status of the outputs |
Yes |
| ● for maintenance |
Yes |
| Degree and class of protection |
|
| IP degree of protection |
IP20 |
| Standards, approvals, certificates |
|
| CE mark |
Yes |
| CSA approval |
Yes |
| UL approval |
Yes |
| cULus |
Yes |
| FM approval |
Yes |
| RCM (formerly C-TICK) |
Yes |
| KC approval |
Yes |
| Marine approval |
Yes |
| Ecological footprint |
|
| ● environmental product declaration |
Yes |
| Global warming potential |
|
| — global warming potential, (total) [CO2 eq] |
36.4 kg |
| — global warming potential, (during production) [CO2 eq] |
7.46 kg |
| — global warming potential, (during operation) [CO2 eq] |
29.1 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.18 kg |
| Ambient conditions |
|
| Free fall |
|
| ● Fall height, max. |
0.3 m; five times, in product package |
| Ambient temperature during operation |
|
| ● min. |
-20 °C |
| ● max. |
60 °C |
| ● horizontal installation, min. |
-20 °C |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-20 °C |
| ● vertical installation, max. |
50 °C |
| Ambient temperature during storage/transportation |
|
| ● min. |
-40 °C |
| ● max. |
70 °C |
| Air pressure acc. to IEC 60068-2-13 |
|
| ● Operation, min. |
795 hPa |
| ● Operation, max. |
1 080 hPa |
| ● Storage/transport, min. |
660 hPa |
| ● Storage/transport, max. |
1 080 hPa |
| Relative humidity |
|
| ● Operation at 25 ℃ without condensation, max. |
95 % |
| Pollutant concentrations |
|
| ● SO2 at RH < 60% without condensation |
S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
| Connection method |
|
| required front connector |
Yes |
| Mechanics/material |
|
| Enclosure material (front) |
|
| ● plastic |
Yes |
| Dimensions |
|
| Width |
45 mm |
| Height |
100 mm |
| Depth |
75 mm |
| Weights |
|
| Weight, approx. |
180 g |
