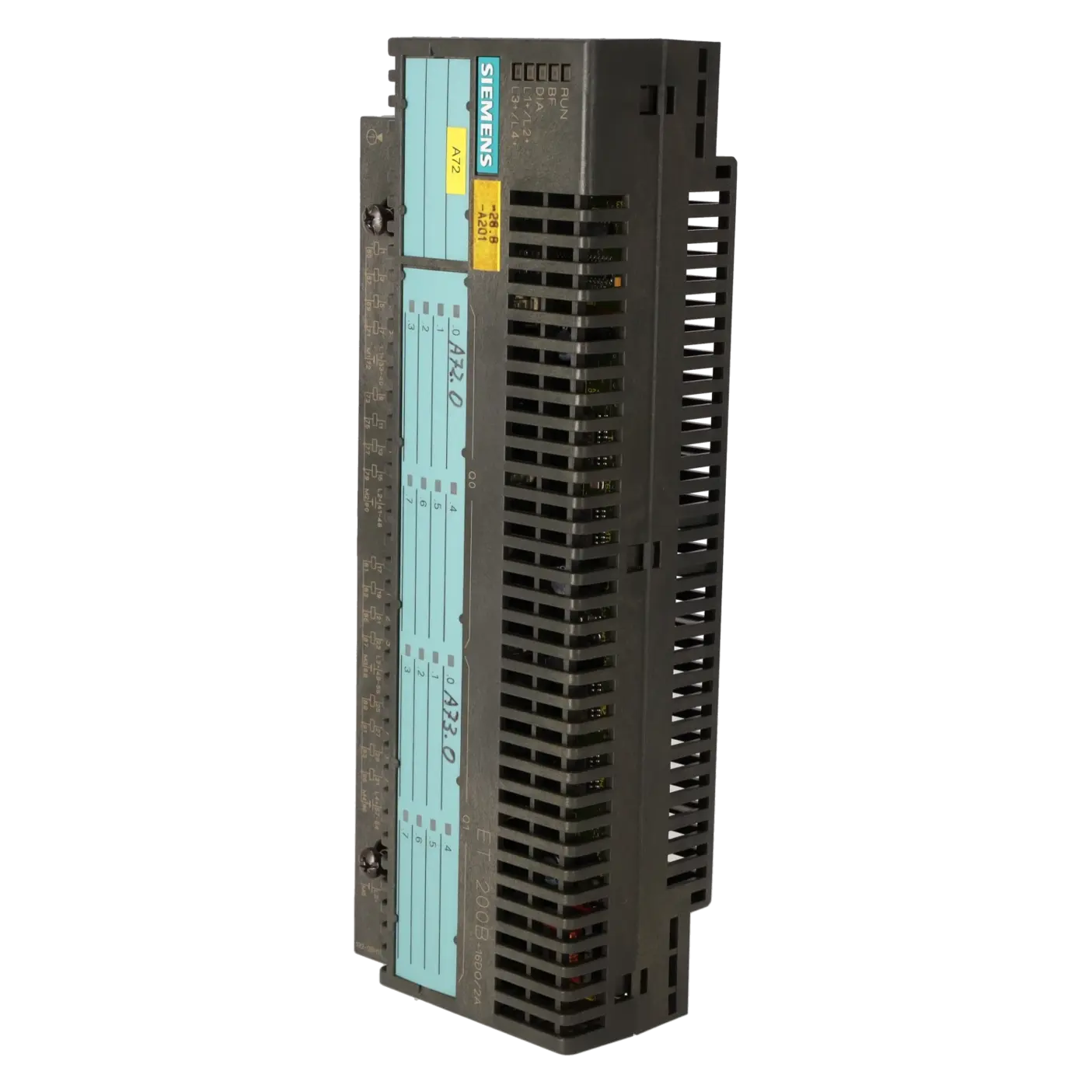

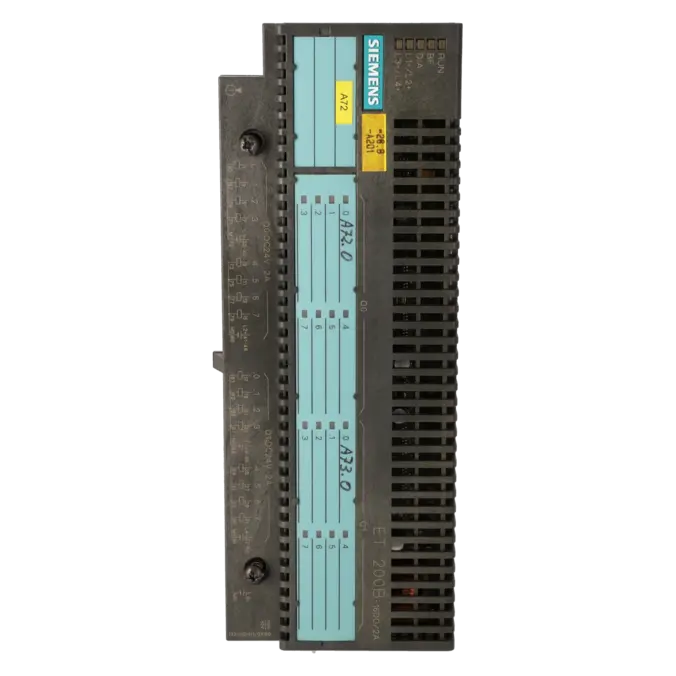

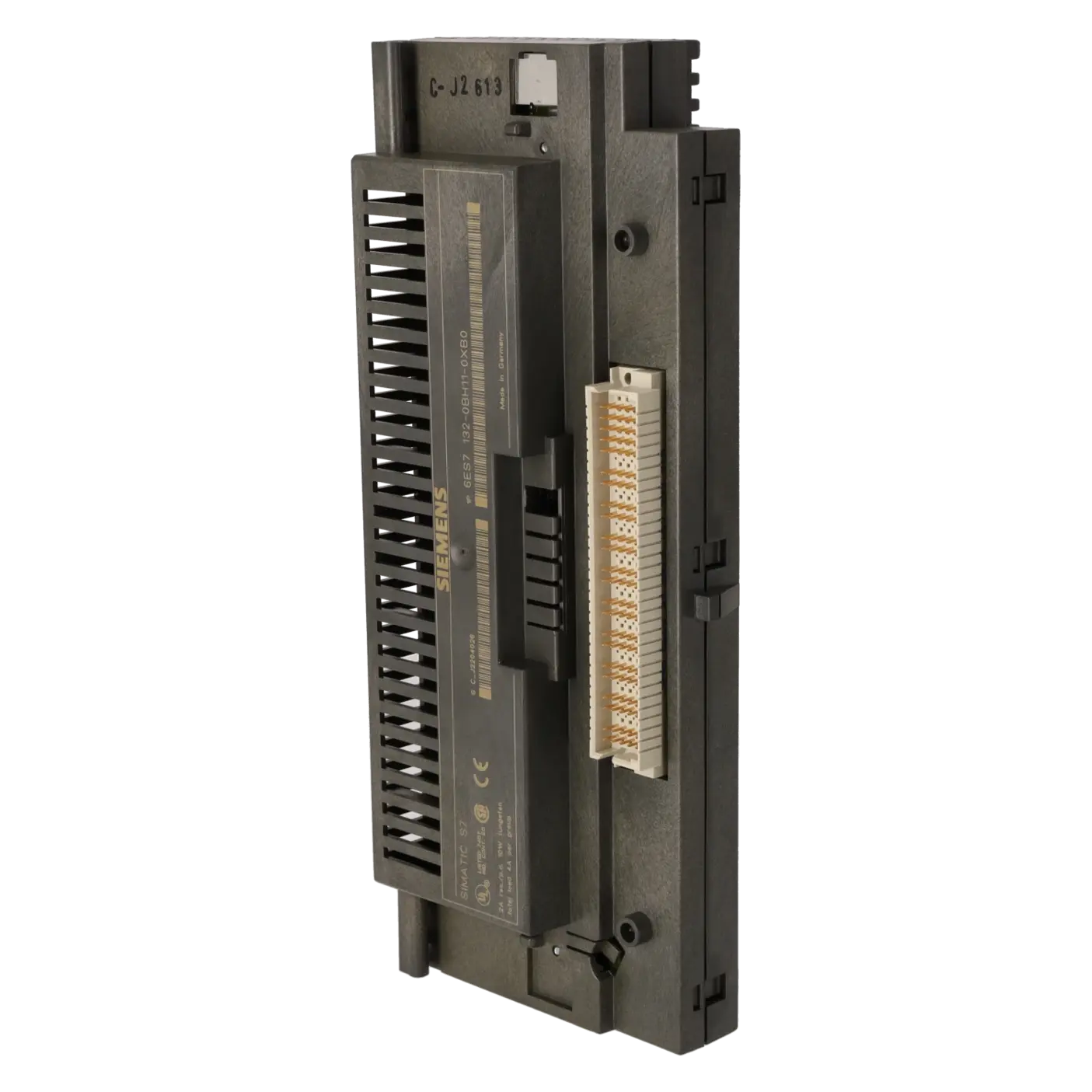

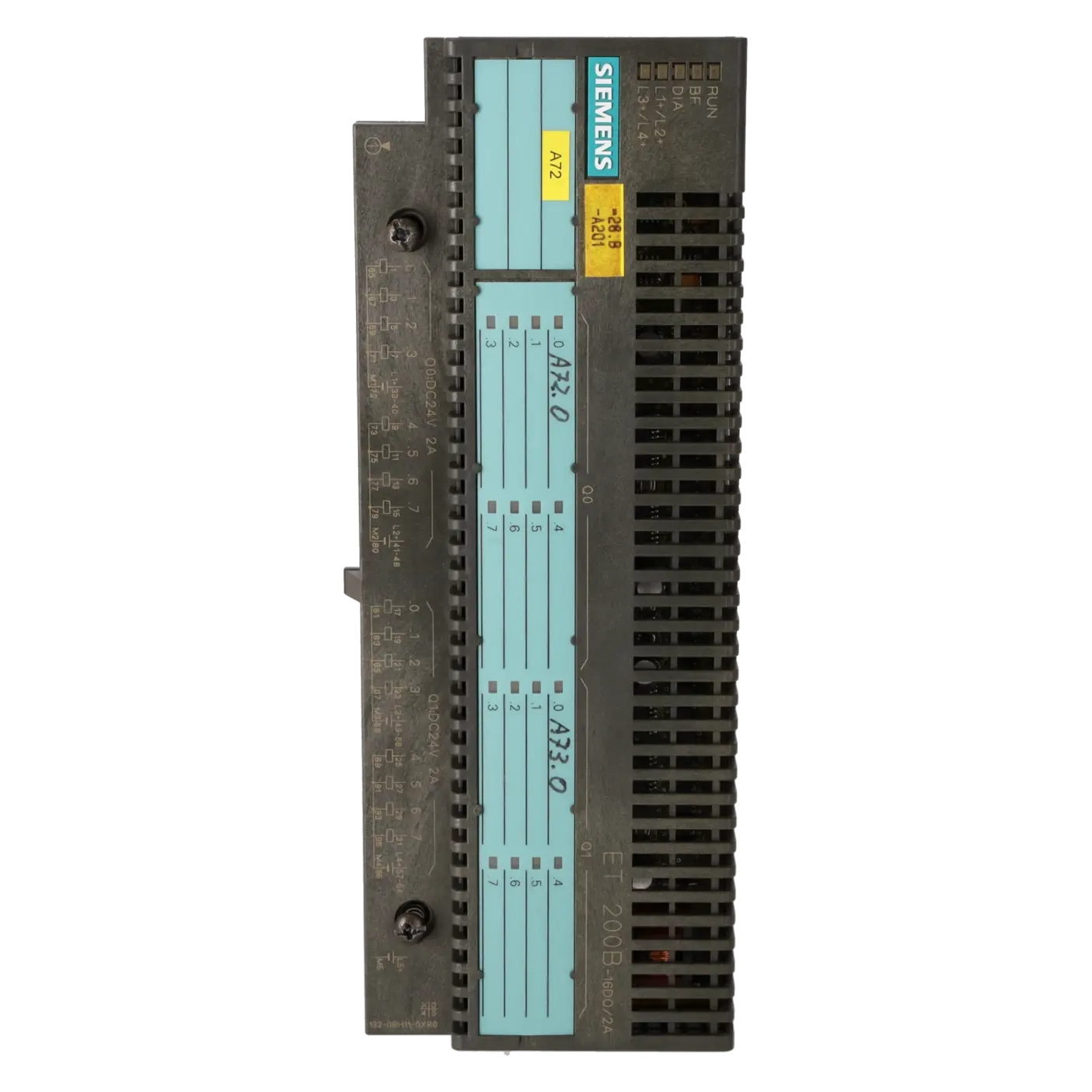

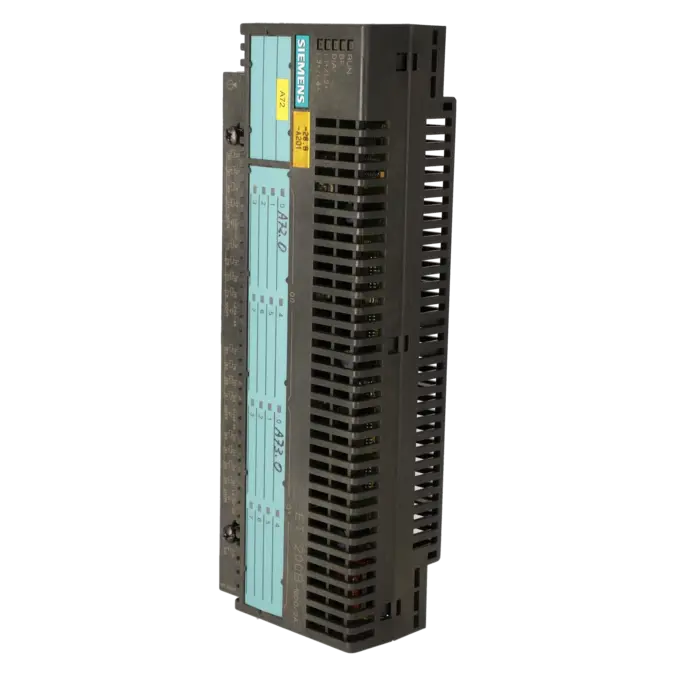

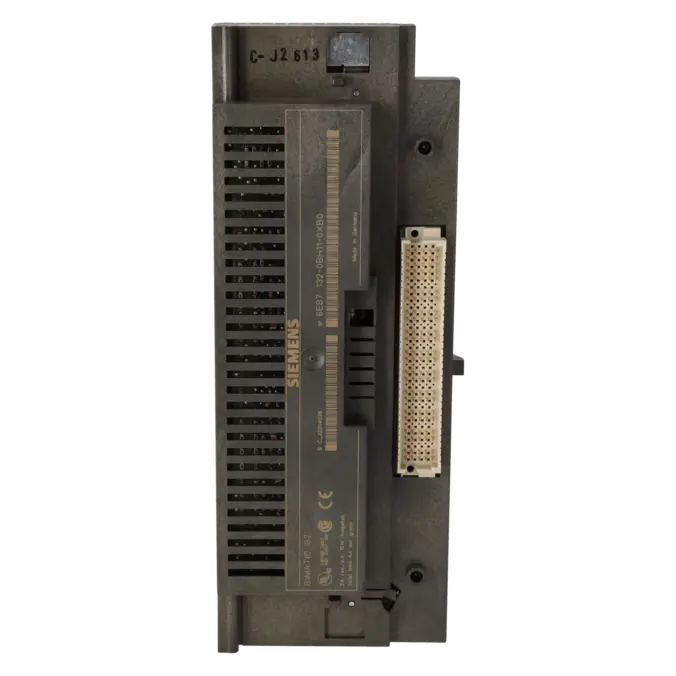

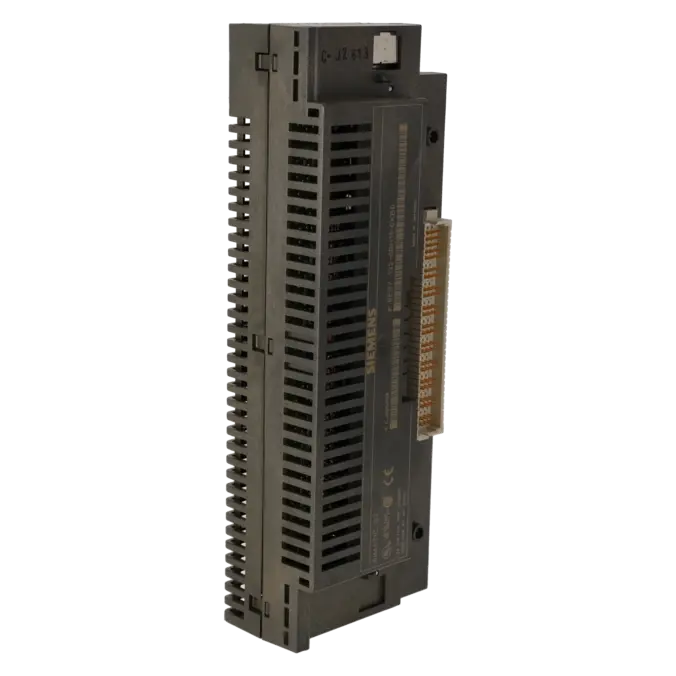

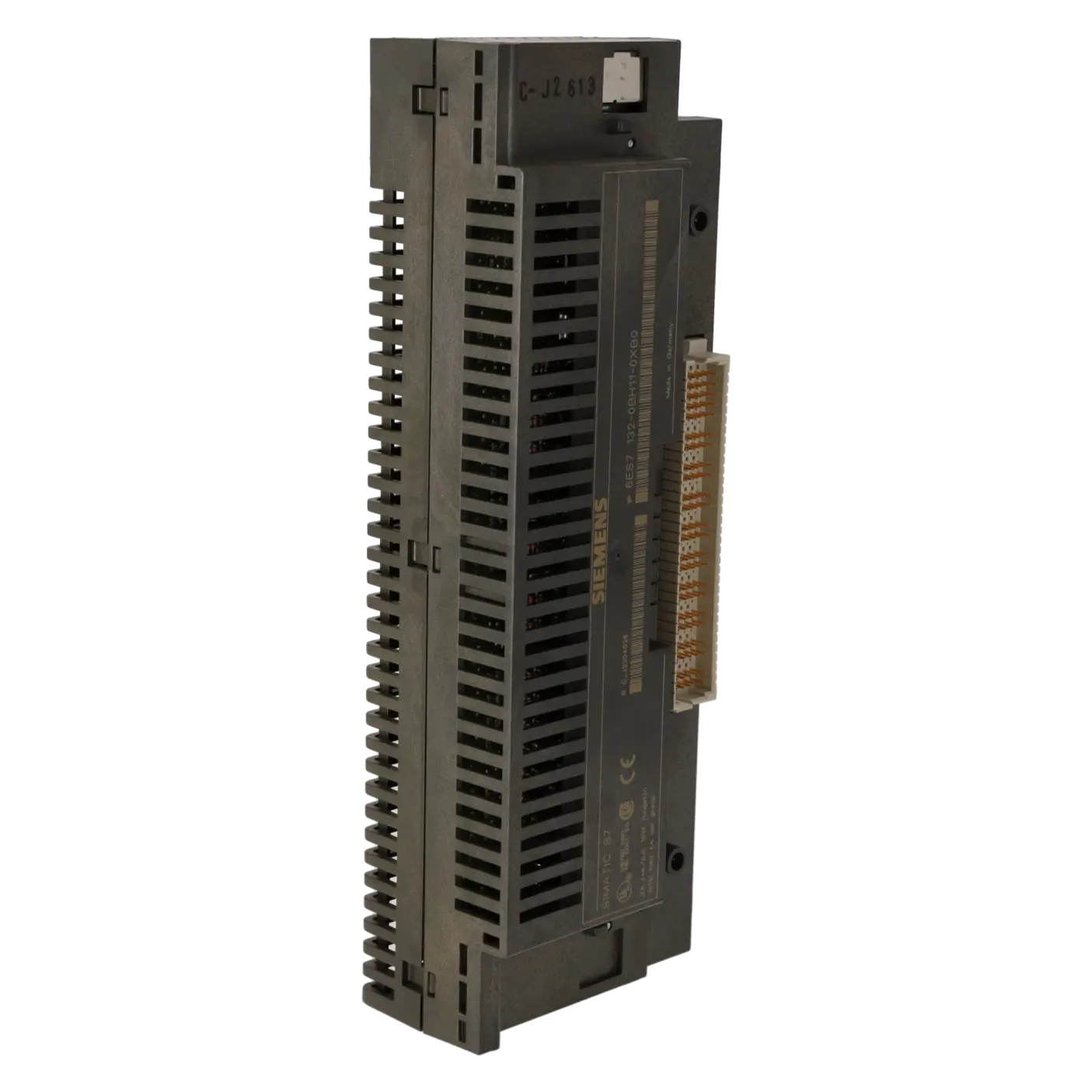

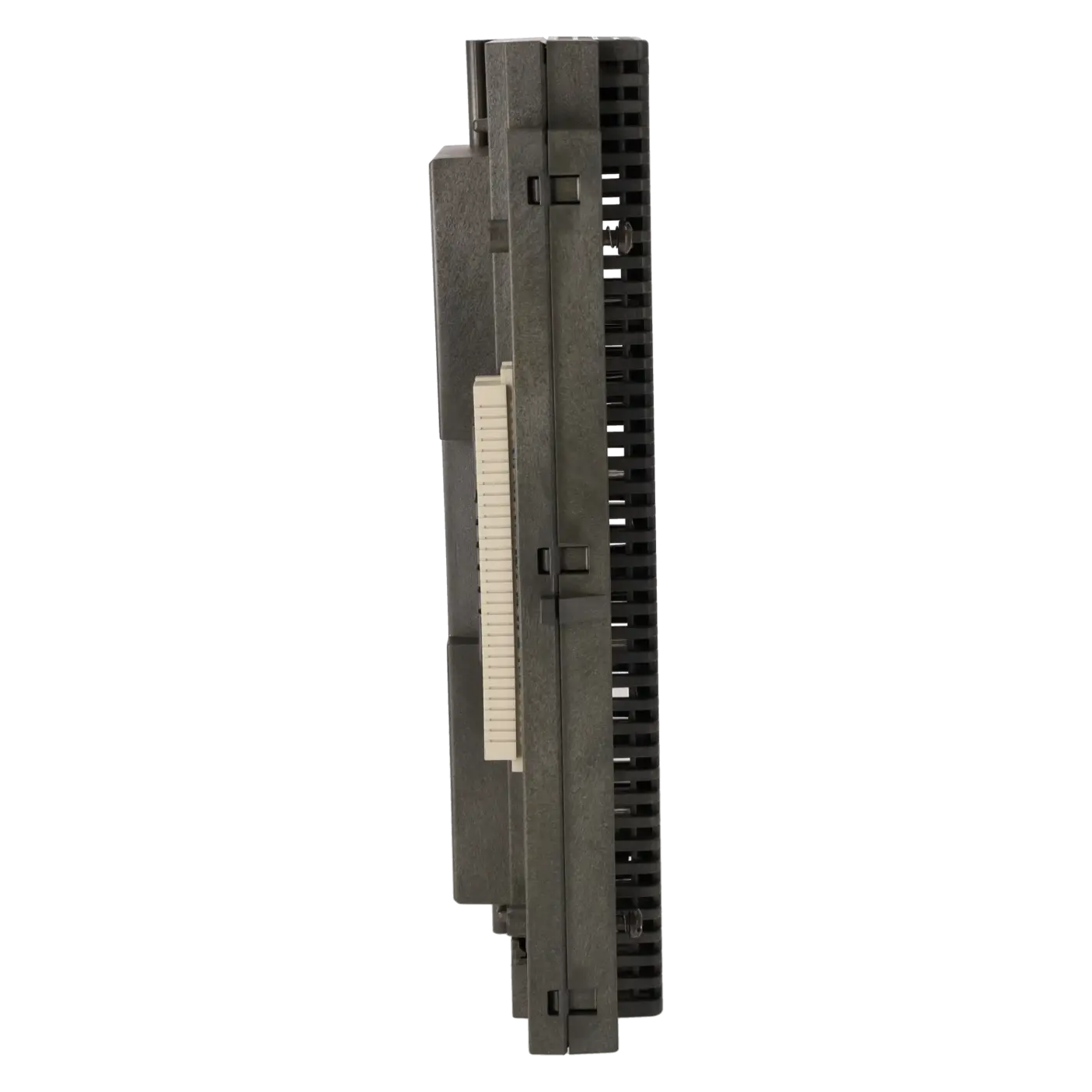

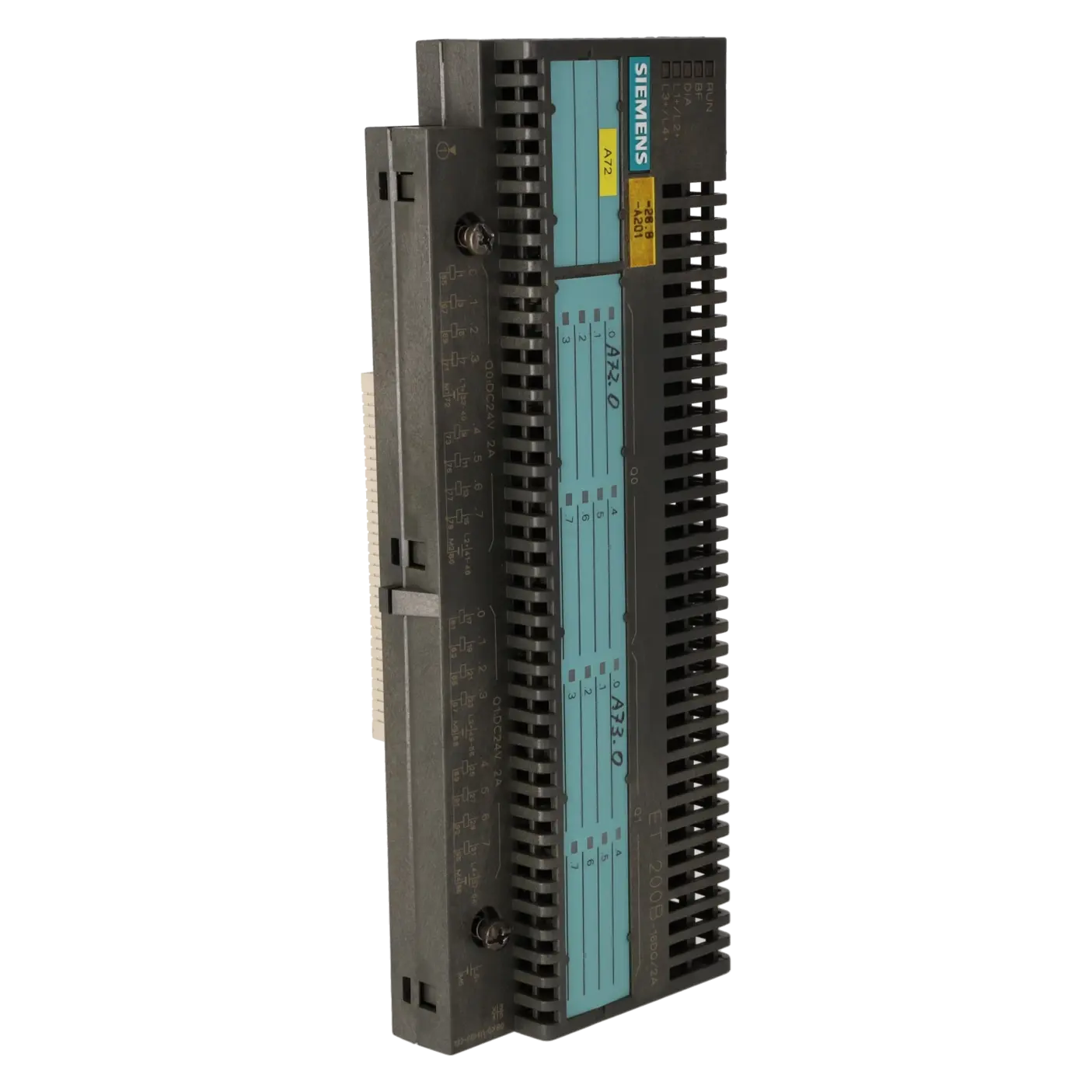

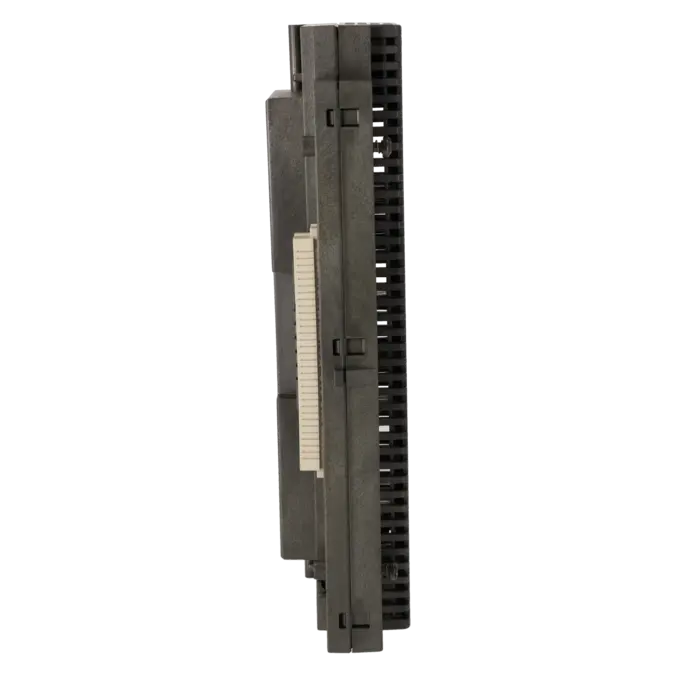

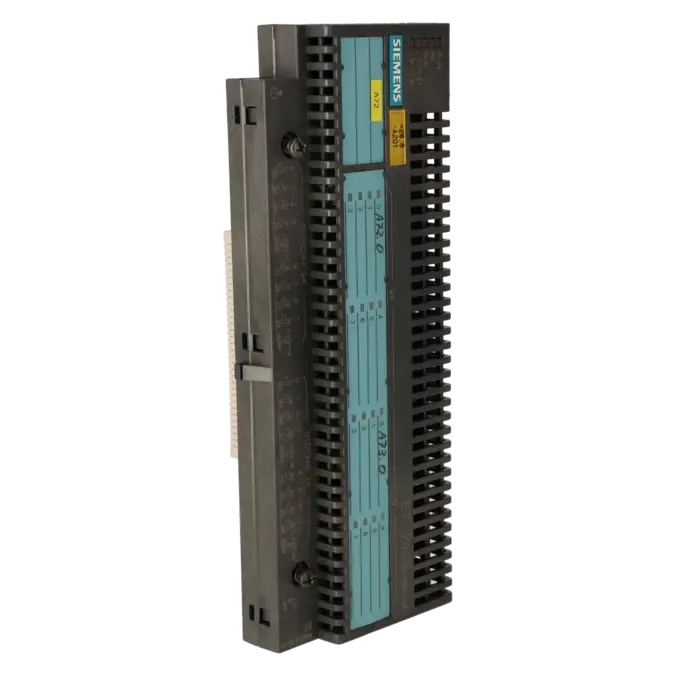

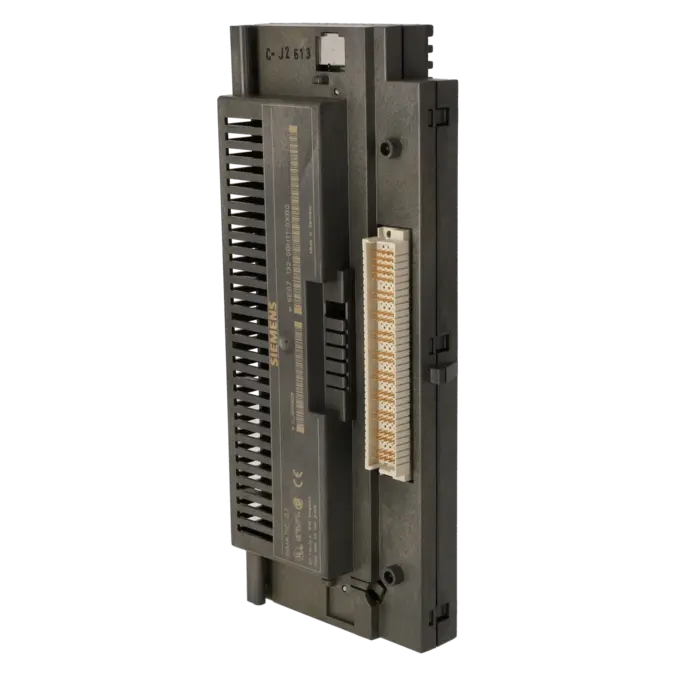

| General information |
|
| Usable terminal block |
TB2/DC, TB2-4/DC, TB4/DC, TB4-4/DC |
| Supply voltage |
|
| Rated value (DC) |
24 V; L1+, L2+, L3+, L4+, L5+; value at t < 0.5 s: 35 V |
| permissible range, lower limit (DC) |
18.5 V |
| permissible range, upper limit (DC) |
30.2 V |
| Input current |
|
| Current consumption, typ. |
100 mA; From L5+; logic |
| I²t |
0.05 A²·s; with starting current inrush |
| Power loss |
|
| Power loss, max. |
7 W |
| Digital outputs |
|
| Number of digital outputs |
16 |
| Short-circuit protection |
Yes; Electronic |
| Limitation of inductive shutdown voltage to |
typ. (L1+ to L4+) -50 V |
| Controlling a digital input |
Yes |
| Switching capacity of the outputs |
|
| ● on lamp load, max. |
10 W |
| Output voltage |
|
| ● Rated value (DC) |
24 V |
| ● for signal "0", max. |
2 V; idling |
| ● for signal "1", min. |
UE -3 V |
| Output current |
|
| ● for signal "1" permissible range, max. |
2 A; in groups of 4 |
| ● for signal "0" residual current, max. |
1 mA |
| Switching frequency |
|
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
0.5 Hz |
| ● on lamp load, max. |
8 Hz |
| Total current of the outputs (per group) |
|
| all mounting positions |
|
| — up to 60 °C, max. |
4 A |
| Cable length |
|
| ● unshielded, max. |
100 m |
| Interfaces |
|
| PROFIBUS DP |
|
| ● Transmission rate, max. |
12 Mbit/s |
| Protocols |
|
| Bus protocol/transmission protocol |
PROFIBUS DP |
| PROFIBUS DP |
|
| Services |
|
| — SYNC capability |
Yes |
| Interrupts/diagnostics/status information |
|
| Diagnostics indication LED |
|
| ● RUN LED |
Yes |
| ● Bus fault BF (red) |
Yes |
| ● Status indicator digital output (green) |
Yes |
| Potential separation |
|
| between electronic block and PROFIBUS DP |
Yes |
| Potential separation digital outputs |
|
| ● Potential separation digital outputs |
Yes |
| ● between the channels, in groups of |
4 |
| Ambient conditions |
|
| Ambient temperature during operation |
|
| ● horizontal installation, min. |
0 °C |
| ● horizontal installation, max. |
60 °C; 40°C for other mountings |
| Air pressure acc. to IEC 60068-2-13 |
|
| ● permissible range, lower limit |
795 hPa |
| ● permissible range, upper limit |
1 080 hPa |
| Relative humidity |
|
| ● Operation, min. |
15 % |
| ● Operation, max. |
95 %; RH class 2 in accordance with IEC 1131-2 |
| Vibrations |
|
| ● Operation, tested according to IEC 60068-2-6 |
Yes; IEC 68, Part 2-6; 10 to 57 Hz; (constant amplitude 0.075 mm); 57 to 150 Hz; (constant acceleration 1 g) |
| Shock testing |
|
| ● tested according to IEC 60068-2-27 |
Yes; IEC 68, Part 2-27; half-sine, 15 g, 11 ms |
| Connection method |
|
| Design of electrical connection for the inputs and outputs |
Screw-type and spring-loaded terminals, permanent wiring; 3 and 4-wire connection |
| Dimensions |
|
| Width |
235 mm; EB and TB |
| Height |
130 mm; EB and TB |
| Depth |
60 mm; EB and TB |
| Weights |
|
| Weight, approx. |
900 g; EB and TB |
