| General information |
|
| Product type designation |

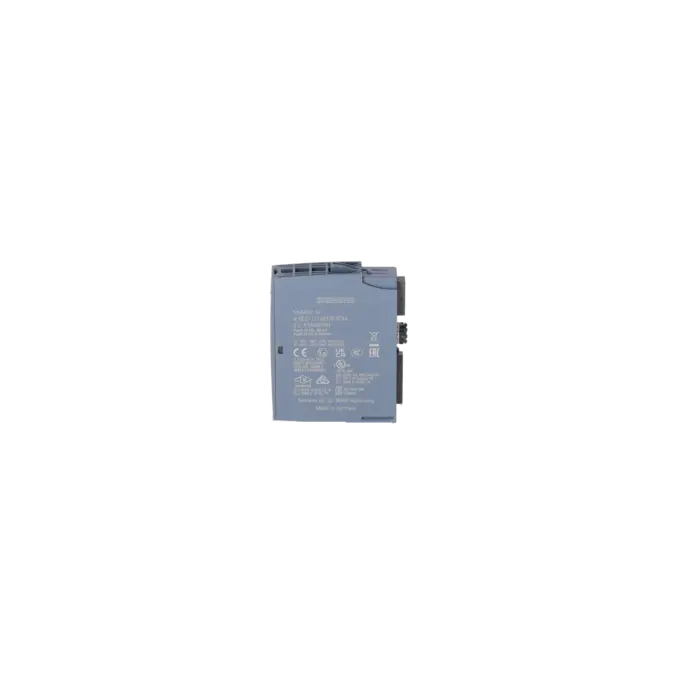

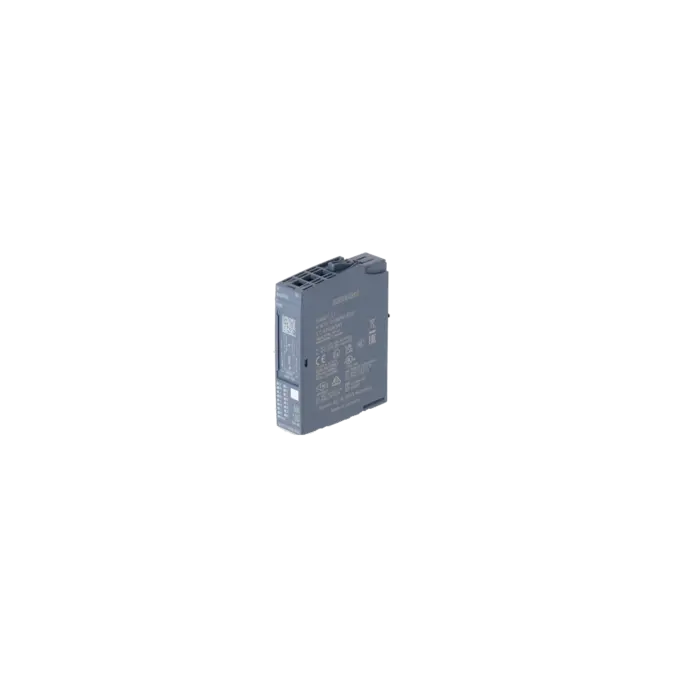

DI 8x24 V DC HF |
| HW functional status |
From FS07 |
| Firmware version |
|
| ● FW update possible |
Yes |
| usable BaseUnits |
BU type A0 |
| Color code for module-specific color-coded label |
CC01 |
| Product function |
|
| ● I&M data |
Yes; I&M0 to I&M3 |
| ● Isochronous mode |
Yes; 250 µs |
| ● suitable for operation on PROFINET R1 IMs |
Yes |
| Engineering with |
|
| ● STEP 7 TIA Portal configurable/integrated from version |
V13 SP1 / - |
| ● STEP 7 configurable/integrated from version |
V5.5 / - |
| ● PCS 7 configurable/integrated from version |
V8.1 SP1 |
| ● PCS neo can be configured/integrated from version |
from V1.0.0 |
| ● PROFIBUS from GSD version/GSD revision |
One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision |
GSDML V2.3 |
| Operating mode |
|
| ● DI |
Yes |
| ● Counter |
No |
| ● Oversampling |
No |
| ● MSI |
Yes |
| Supply voltage |
|
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Reverse polarity protection |
Yes |
| Input current |
|
| Current consumption (rated value) |
20 mA |
| Current consumption, max. |
39 mA |
| Encoder supply |
|
| Number of outputs |
8 |
| Output voltage, min. |
19.2 V |
| Short-circuit protection |
Yes |
| 24 V encoder supply |
|
| ● 24 V |
Yes |
| ● Short-circuit protection |
Yes; per channel, electronic |
| ● Output current per channel, max. |
700 mA |
| ● Output current per module, max. |
700 mA |
| Power loss |
|
| Power loss, typ. |
1.5 W; 24 V, 8 inputs supplied via encoder supply |
| Address area |
|
| Address space per module |
|
| ● Inputs |
1 byte; + 1 byte for QI information |
| Hardware configuration |
|
| Automatic encoding |
Yes |
| ● Mechanical coding element |
Yes |
| ● Type of mechanical coding element |
Type A |
| Submodules |
|
| ● Number of configurable submodules, max. |
4 |
| Selection of BaseUnit for connection variants |
|
| ● 1-wire connection |
BU type A0 |
| ● 2-wire connection |
BU type A0 |
| ● 3-wire connection |
BU type A0 with AUX terminals or potential distributor module |
| ● 4-wire connection |
BU type A0 + Potential distributor module |
| Digital inputs |
|
| Number of digital inputs |
8 |
| Digital inputs, parameterizable |
Yes |
| Sourcing/sinking input |
P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 |
Yes |
| Pulse extension |
Yes; Pulse duration from 4 µs |
| ● Length |
2 s; 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s |
| Edge evaluation |
Yes; rising edge, falling edge, edge change |
| Input voltage |
|
| ● Rated value (DC) |
24 V |
| ● for signal "0" |
-30 to +5 V |
| ● for signal "1" |
+11 to +30V |
| Input current |
|
| ● for signal "1", typ. |
2.5 mA |
| Input delay (for rated value of input voltage) |
|
| for standard inputs |
|
| — parameterizable |
Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length) |
| — at "0" to "1", min. |
0.05 ms |
| — at "0" to "1", max. |
20 ms |
| — at "1" to "0", min. |
0.05 ms |
| — at "1" to "0", max. |
20 ms |
| Cable length |
|
| ● shielded, max. |
1 000 m |
| ● unshielded, max. |
600 m |
| Encoder |
|
| Connectable encoders |
|
| ● 2-wire sensor |
Yes |
| — permissible quiescent current (2-wire sensor), max. |
1.5 mA |
| Isochronous mode |
|
| Filtering and processing time (TCI), min. |
420 µs |
| Bus cycle time (TDP), min. |
500 µs |
| Jitter, max. |
8 µs |
| Interrupts/diagnostics/status information |
|
| Diagnostics function |
Yes |
| Alarms |
|
| ● Diagnostic alarm |
Yes; channel by channel |
| ● Hardware interrupt |
Yes; Parameterizable, channels 0 to 7 |
| Diagnoses |
|
| ● Diagnostic information readable |
Yes |
| ● Monitoring the supply voltage |
Yes |
| — parameterizable |
Yes |
| ● Monitoring of encoder power supply |
Yes; channel by channel |
| ● Wire break |
Yes; Channel by channel, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm |
| ● Short-circuit |
Yes; channel by channel |
| Diagnostics indication LED |
|
| ● Monitoring of the supply voltage (PWR-LED) |
Yes; green PWR LED |
| ● Channel status display |
Yes; green LED |
| ● for channel diagnostics |
Yes; red LED |
| ● for module diagnostics |
Yes; green/red DIAG LED |
| Potential separation |
|
| Potential separation channels |
|
| ● between the channels |
No |
| ● between the channels and backplane bus |
Yes |
| ● between the channels and the power supply of the electronics |
No |
| Isolation |
|
| Isolation tested with |
707 V DC (type test) |
| Standards, approvals, certificates |
|
| Suitable for safety functions |
No |
| Ecological footprint |
|
| ● environmental product declaration |
Yes |
| Global warming potential |
|
| — global warming potential, (total) [CO2 eq] |
15.9 kg |
| — global warming potential, (during production) [CO2 eq] |
3.69 kg |
| — global warming potential, (during operation) [CO2 eq] |
12.7 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] |
-0.495 kg |
| Ambient conditions |
|
| Ambient temperature during operation |
|
| ● horizontal installation, min. |
-30 °C; < 0 °C as of FS07 |
| ● horizontal installation, max. |
60 °C |
| ● vertical installation, min. |
-30 °C; < 0 °C as of FS07 |
| ● vertical installation, max. |
50 °C |
| Altitude during operation relating to sea level |
|
| ● Installation altitude above sea level, max. |
5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity |
|
| ● dew point, min. |
-60 °C; suitable for dry room applications |
| Dimensions |
|
| Width |
15 mm |
| Height |
73 mm |
| Depth |
58 mm |
| Weights |
|
| Weight, approx. |
28 g |
