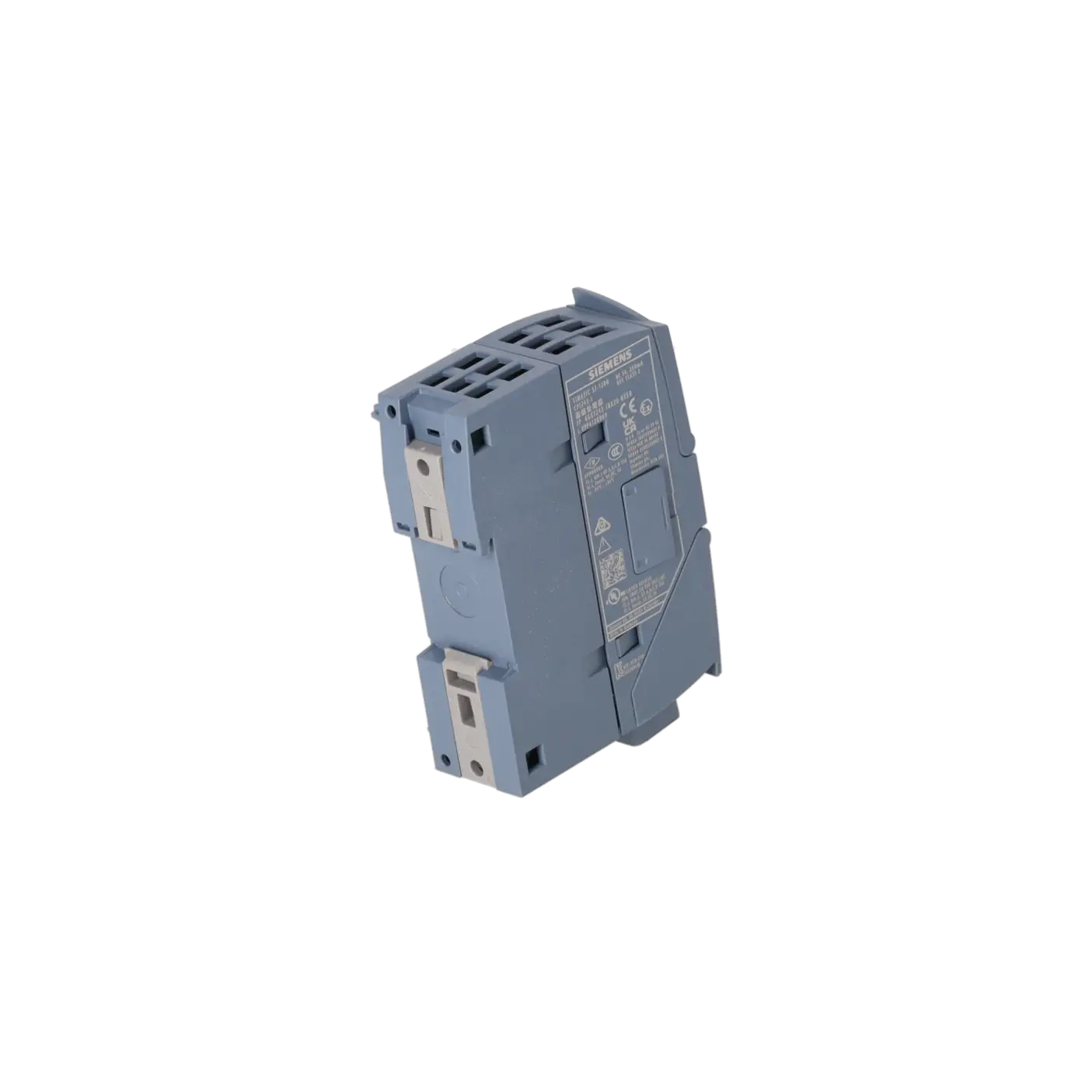

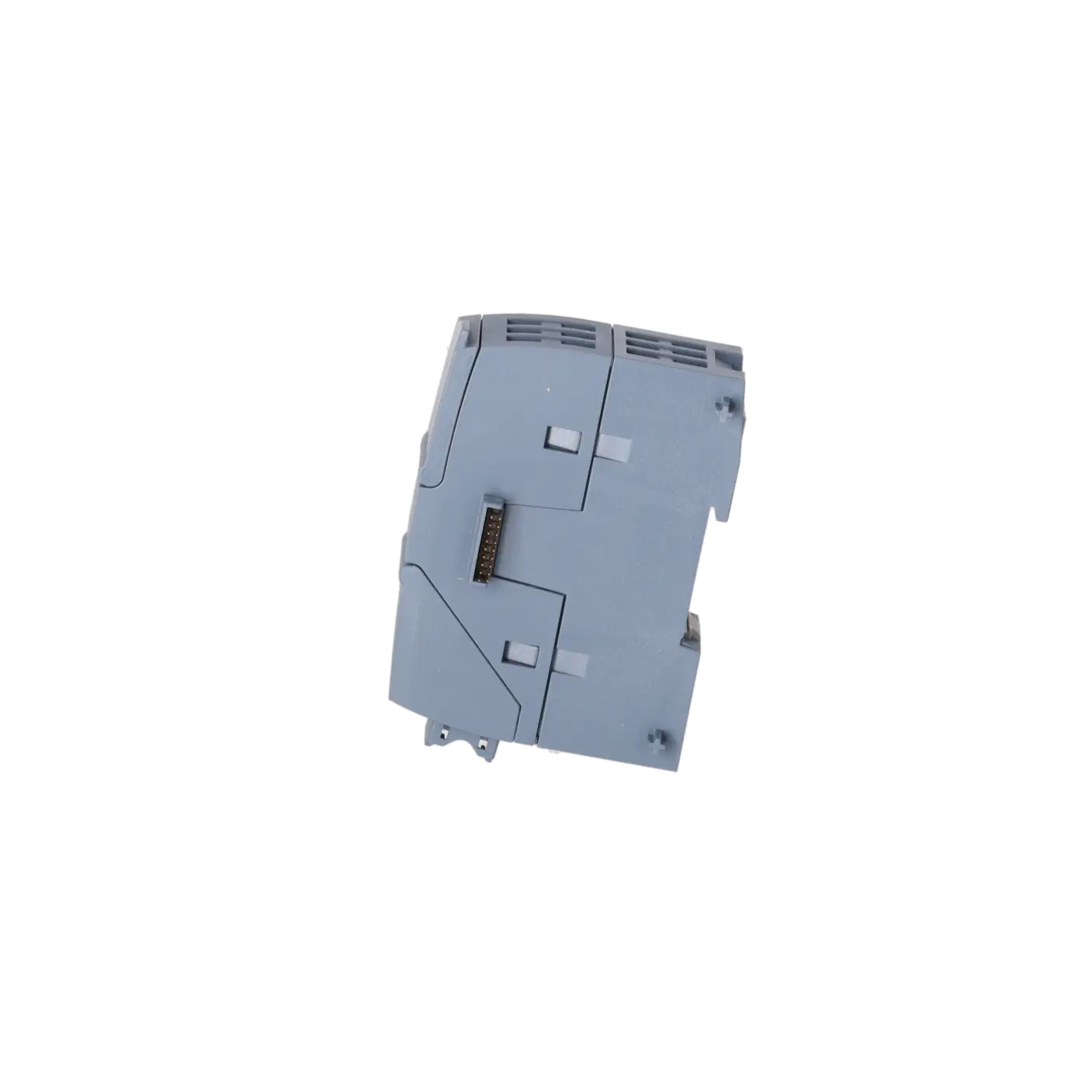

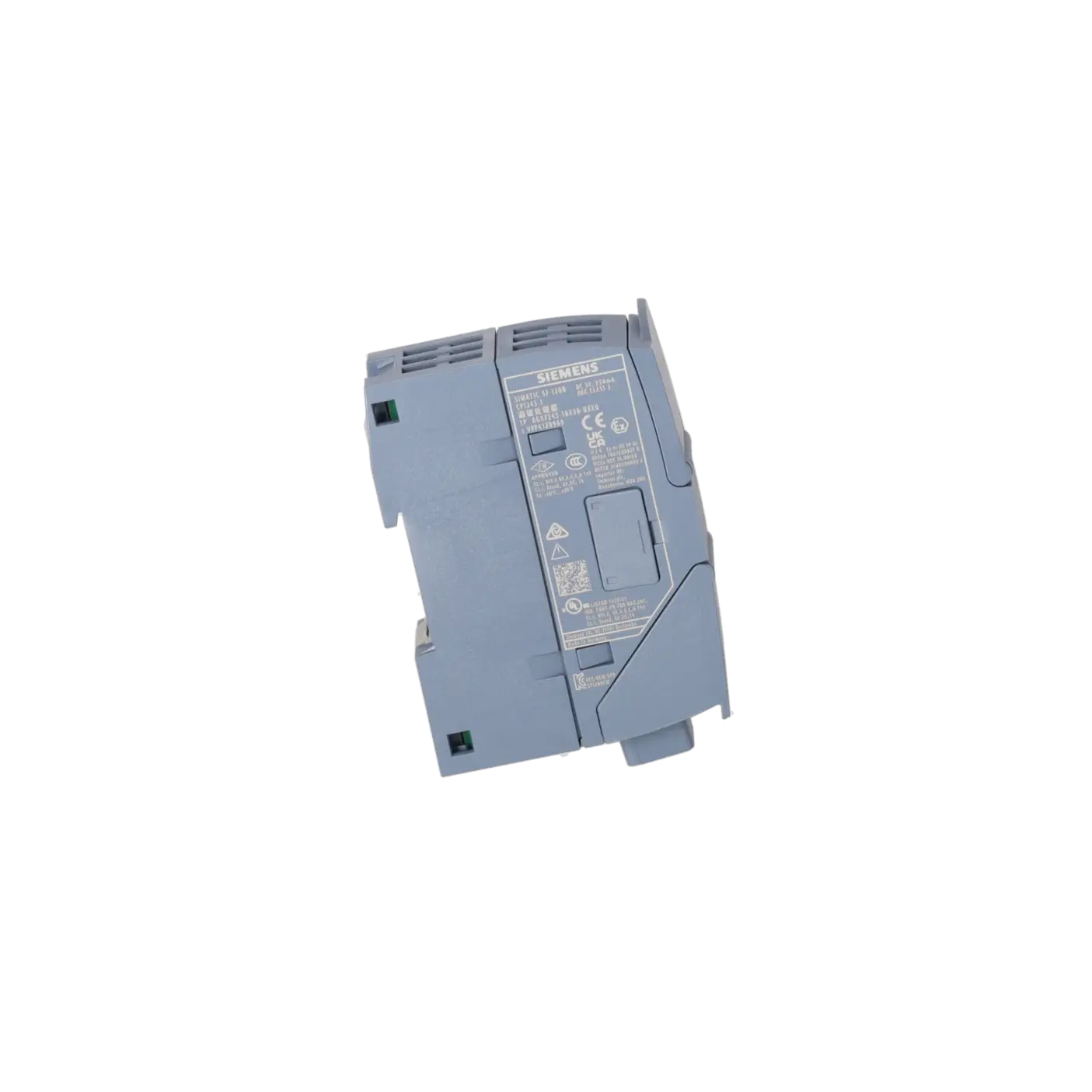

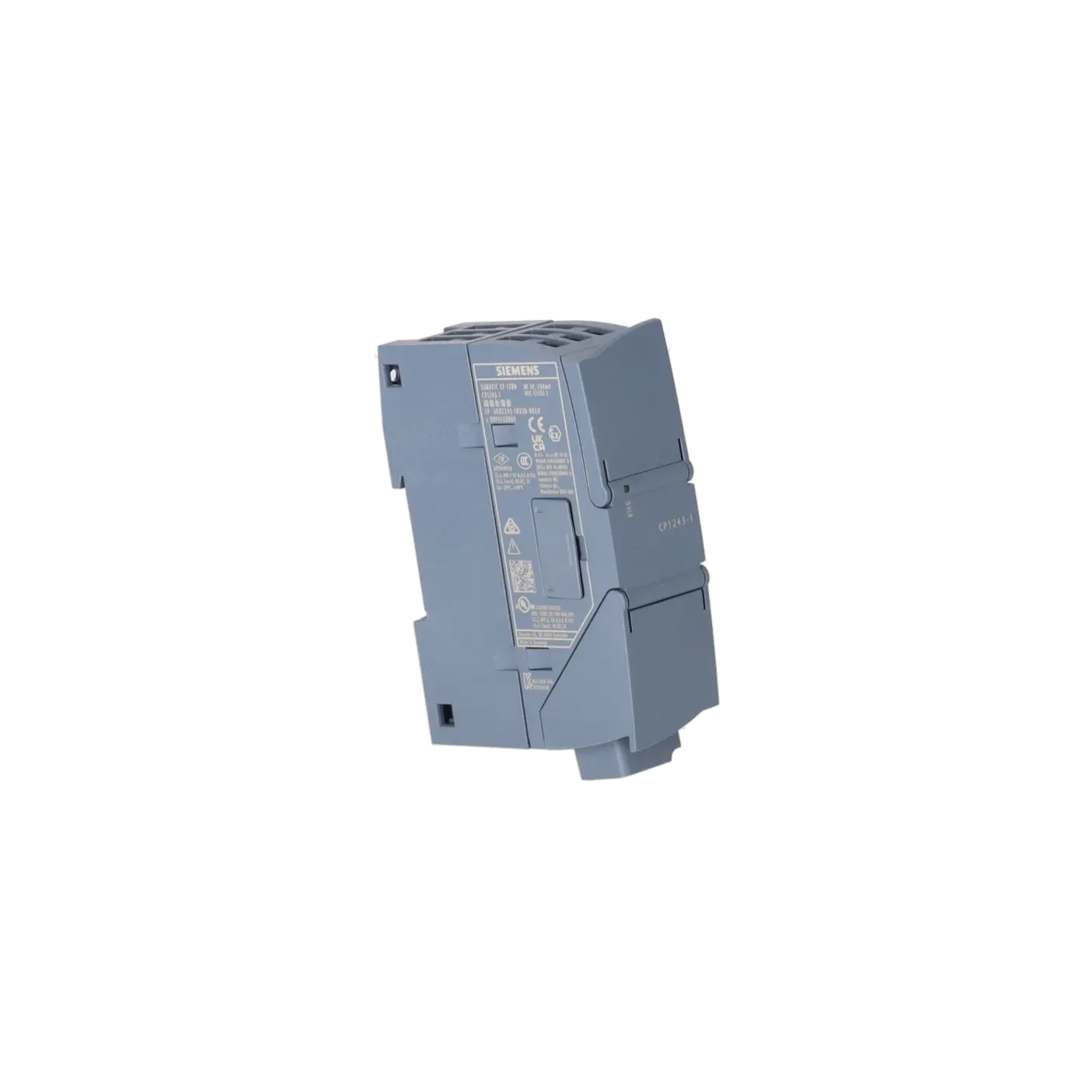

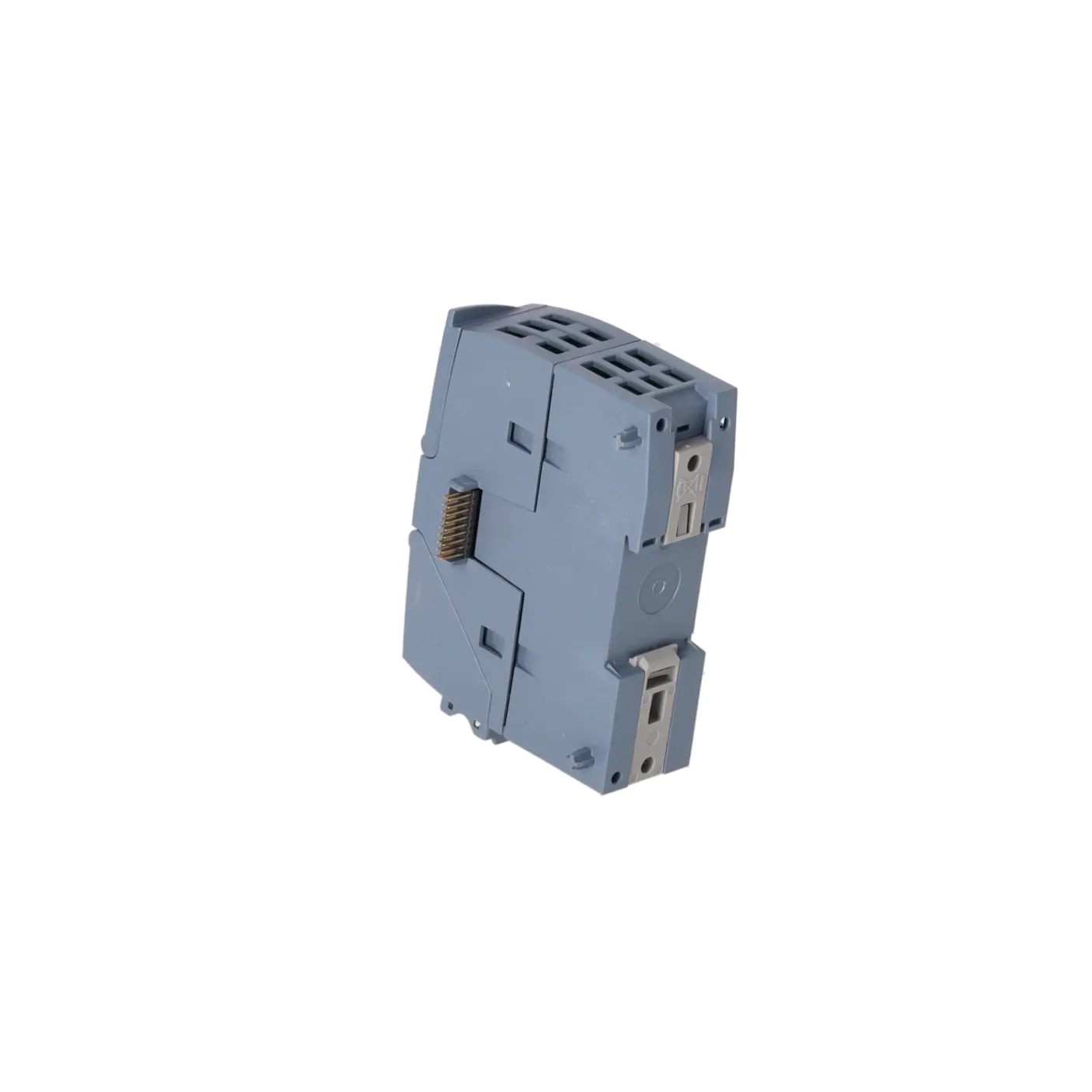

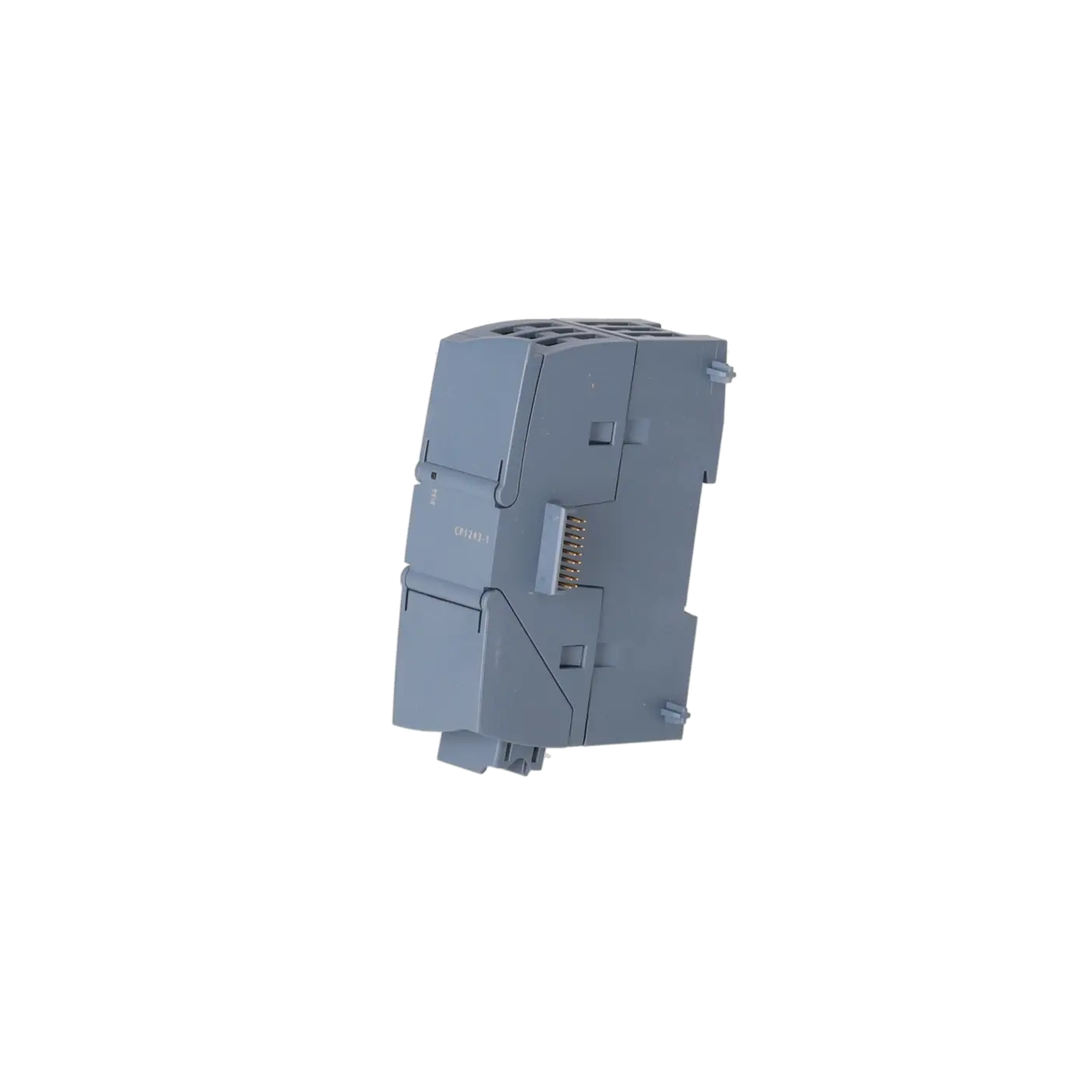

| product brand name |
SIMATIC NET |
| transfer rate |
|
| transfer rate |
|
| ● at the 1st interface |
10 ... 100 Mbit/s |
| interfaces |
|
| number of interfaces / according to Industrial Ethernet |
1 |
| number of electrical connections |
|
| ● at the 1st interface / according to Industrial Ethernet |
1 |
| ● for power supply |
0 |
| type of electrical connection |
|
| ● at the 1st interface / according to Industrial Ethernet |
RJ45 port |
| supply voltage, current consumption, power loss |
|
| type of voltage / of the supply voltage |
DC |
| supply voltage / 1 / from backplane bus |
5 V |
| consumed current |
|
| ● from backplane bus / at DC / at 5 V / typical |
0.25 A |
| power loss [W] |
1.25 W |
| ambient conditions |
|
| ambient temperature |
|
| ● for vertical installation / during operation |
-20 ... +60 °C |
| ● for horizontally arranged busbars / during operation |
-20 ... +70 °C |
| ● during storage |
-40 ... +70 °C |
| ● during transport |
-40 ... +70 °C |
| relative humidity |
|
| ● at 25 °C / without condensation / during operation / maximum |
95 % |
| protection class IP |
IP20 |
| design, dimensions and weights |
|
| module format |
Compact module S7-1200 single width |
| width |
30 mm |
| height |
110 mm |
| depth |
75 mm |
| net weight |
0.122 kg |

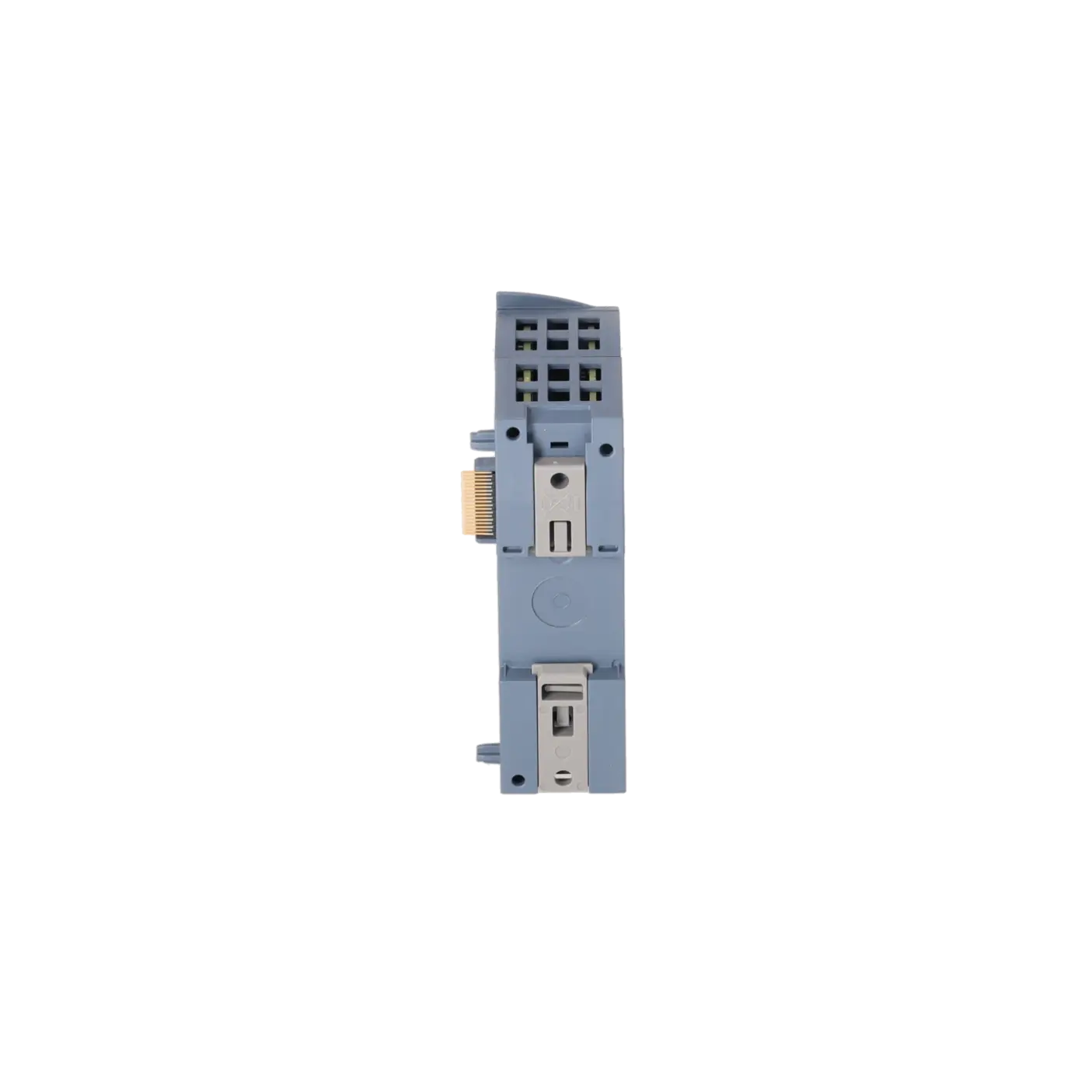

| fastening method |
|
| ● 35 mm DIN-rail mounting |
Yes |
| ● wall mounting |
Yes |
| product features, product functions, product components / general |
|
| number of units |
|
| ● per CPU / maximum |
3 |
| product functions / cloud connectivity |
|
| protocol / is supported |
|
| ● Message Queuing Telemetry Transport (MQTT) |
Yes |
| ● Advanced Message Queuing Protocol (AMQP) |
No |
| product function / for cloud connectivity |
|
| ● trigger management |
Yes |
| ● time stamping |
Yes |
| product feature / for cloud connectivity / buffered message frame memory |
No |
| number of active connections / for cloud connectivity |
1 |
| number of data points per device / maximum |
500 |
| performance data / open communication |
|
| number of possible connections / for open communication |
|
| ● by means of T blocks / maximum |
like CPU |
| performance data / S7 communication |
|
| number of possible connections / for S7 communication |
|
| ● maximum |
like CPU |
| performance data / IT functions |
|
| number of possible connections |
|
| ● as email client / maximum |
1 |
| performance data / telecontrol |
|
| suitability for use |
|
| ● node station |
No |
| ● substation |
Yes |
| ● TIM control center |
No |
| control center connection |
For use with TeleControl Server Basic, WinCC and PCS7 |
| ● by means of a permanent connection |
supported |
| ● note |
Connection to SCADA system via Telecontrol Server Basic and Standard Telecontrol protocols |
| protocol / is supported |
|
| ● DNP3 |
Yes |
| ● IEC 60870-5 |
Yes |
| product function / data buffering if connection is aborted |
Yes; 64,000 events |
| number of data points per device / maximum |
500 |
| number of stations / for direct communication / with Telecontrol Server Basic |
|
| ● in send direction / maximum |
3 |
| ● in receive direction / maximum |
15 |
| performance data / teleservice |
|
| diagnostics function / online diagnostics with SIMATIC STEP 7 |
Yes |
| product function |
|
| ● program download with SIMATIC STEP 7 |
Yes |
| ● remote firmware update |
Yes |
| product functions / management, configuration, engineering |
|
| configuration software |
|
| ● required |
STEP 7 Basic/Professional |
| product function / is supported / identification link |
Yes; acc. to IEC 61406-1:2022 |
| product functions / diagnostics |
|
| product function / web-based diagnostics |
Yes |
| product functions / security |
|
| firewall version |
stateful inspection |
| product function / with VPN connection |
IPsec, SINEMA RC |
| type of encryption algorithms / with VPN connection |
AES-256, AES-192, AES-128, 3DES-168 |
| type of authentication procedure / with VPN connection |
Preshared key (PSK), X.509v3 certificates |
| type of hashing algorithms / with VPN connection |
MD5, SHA-1, SHA-2 |
| number of possible connections / with VPN connection |
8 |
| product function |
|
| ● password protection for Web applications |
No |
| ● password protection for teleservice access |
No |
| ● encrypted data transmission |
Yes |
| ● ACL - IP-based |
No |
| ● ACL - IP-based for PLC/routing |
No |
| ● switch-off of non-required services |
Yes |
| ● blocking of communication via physical ports |
No |
| ● log file for unauthorized access |
No |
| product functions / time |
|
| protocol / is supported |
|
| ● NTP |
Yes |
| ● NTP (secure) |
Yes |
| time synchronization |
|
| ● from NTP-server |
Yes |
| ● from control center |
Yes |
| standards, specifications, approvals |
|
| certificate of suitability / CE marking |
Yes |
| certificate of suitability / UKCA marking |
Yes |
| certificate of suitability / cULus approval |
Yes |
| certificate of suitability / Regulatory Compliance Mark (RCM) |
Yes |
| certificate of suitability / RoHS conformity |
Yes |
| certificate of suitability / EAC approval |
Yes |
| standards, specifications, approvals / hazardous environments / header |
|
| certificate of suitability / ATEX |
Yes |
| certificate of suitability / IECEx |
Yes |
| certificate of suitability / CCC / for hazardous zone according to GB standard |
Yes |
| certificate of suitability / FM registration |
Yes |
| standards, specifications, approvals / marine classification / header |
|
| Marine classification association / Det Norske Veritas (DNV) |
Yes |
| Marine classification association / Lloyds Register of Shipping (LRS) |
Yes |
| standards, specifications, approvals / Environmental Product Declaration |
|
| Environmental Product Declaration |
Yes |
| global warming potential [CO2 eq] |
|
| ● total |
89.58 kg |
| ● during manufacturing |
14.29 kg |
| ● during operation |
75.11 kg |
| ● after end of life |
0.18 kg |
